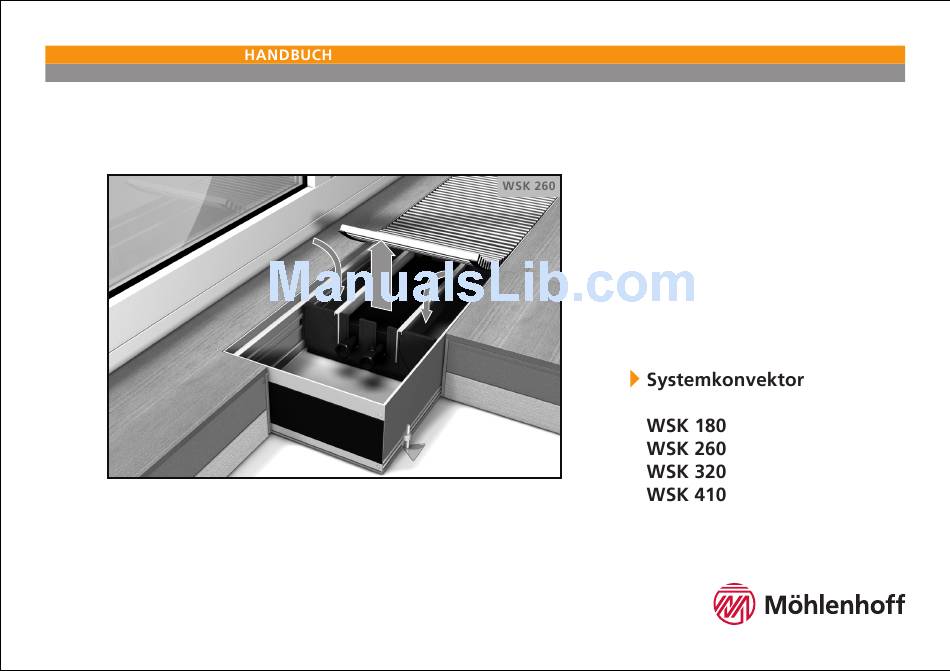

- Page 1 USER MANUAL System Convector...
-
Page 2: Table Of Contents
CONTENT Content ................2 Introduction ...............3 Product description............3 Safety instructions ............3 Instructions for installation ..........4 Scope of supply ...............4 Method of installation ...........4 Protective cover ..............5 System accessoiries ............6 Height adjustment block..........6 Connection kit..............7 Thermal Control ..............8 Thermic remote control unit FST 2/5 ......8 Electrical control - components ........9 Alpha-Actuator AA 2000 ..........9 Connection box tA 23.............9... -
Page 3: Introduction
System Convectors for the installation in the floor area (floor paving level), located in front of window surfaces, can serve as a barrier against cold air (WSK 180 / WSK 260 / WSK 320 / WSK 410) or as complete room heating mark of conformity system (WSK 320 / WSK 410), depending on the chosen inlet temperature. -
Page 4: Instructions For Installation
Scope of supply USER MANUAL System Convector WSK 180 System Convector System Convector WSK 260 User manual System Convector WSK 320 System Convector WSK 410 Method of installation 1. Continuously elastic border strips 2. Border acoustic insulation 3. Step-on acoustic insulation... -
Page 5: Protective Cover
/ Protective cover Remove the protective cover permanently only after finishing the installation of the System Convector and after finishing all building work. By this you avoid contamination and damage to the System Convector. • The tube connection side is marked with " "... -
Page 6: System Accessoiries
System accessoiries / Height adjustment block Locking of the adjustment blocks in the lateral profile of the trough: Positioning and alignment Adjustment blocks serve for the levelling of the system convectors and also for protecting against • The engagement of the adjustment blocks must be upward movement during the floor pavement installation. -
Page 7: Connection Kit
/ Connection kit VUD 15 Thermostat valve bottom passage from DN15 Manuel regulation cap for VUD 15 RLD 15 Regulux screwed return connection passage for DN 15 Screw the VUD 15 into the heating flow (window side) and the RLD 15 into the heating backflow (room side). -
Page 8: Thermal Control
– Thermal control – components Thermal remote control unit FST 2/5 The FST 2/5 is a liquid-filled thermostat with capillary tube 2 or 5 metres long. The range of adjustment: 8 °C to 27 °C. Thermal control – connecting diagram FST 2/5 For installing the capillary tube use a blank tube, Ø... -
Page 9: Electrical Control - Components
– Electrical control – components Connection box tA 23 Connection box for connecting Alpha-Actuators with Alpha-Thermostats. Simply install through clip-on attachment on profil rails close to the VUD 15. Alpha-Actuator 230V AA 2000-80-02 Thermoelectric actuator in the version “normally closed”, including valve adapter VA 80, matching VUD 15. -
Page 10: Alpha-Power Module Alm 22
– Electrical control – components Alpha-Thermostat AR 2010S-S / AR 2010C-S incl. Alpha-Mounting Base Roomthermostat that allowes a connecting of 5 Alpha-Actuators, max. „Automatic“ temperature setback of 4 K. Only AR 2010C-S:Selector switch for operation mode selection of temperature setback mode. Plug-in digital control clock for manual programming of setback times. -
Page 11: Alpha-Actuator Aa 2000
– Electrical control – connecting diagram Alpha-Thermostat AR 2010S-S or AR 2010C-S The Alpha-Mounting Base must be installed onto a flush-type electrical box. Please observe the notes in the installation and operating instructions of the Alpha-Thermostat. The electrical installation must be performed by an authorised specialist and according to the valid national regulations as well according to the regulations of the local power supply companies. -
Page 12: Decorative Roll-Up Grill
Decorative Roll-up Grill / Decorative Roll-up Grill Decorative Roll-up Grill Guard (optional) The Decorative Roll-up Grill Guard secures Decorative Roll-up Grill against lifting. Position the guard between the ribs in a way that the fixing rod of the guard is located above the guard and the fixing lugs of the rod are located below the grill rod connectors (rubberized step-on acoustic insulation). -
Page 13: System Extensions
/ System extensions System connectors System connectors serve for connecting two System Convector troughs, or two convector parts, respectively. Push the connectors in even distances into the grooves of the convector trough. Fix the convector parts and fix the connection by means of stud screws M6, allen key size 3. -
Page 14: Appendix
Appendix / Maintenance instructions Dear customer! Due to the air circulation, dust may deposit in the area of the heating element. As shown in the figure, if you have installated a Decorative Roll-up Grill Guard, loosen the Decorative Roll-up Grill Guard and roll up the grill evenly without bending it. The heating element could be hot! It is very important to de-energise the thermostat and system convector during maintenance work! You can remove the dust between the heating element lamina and from the System Convector trough... -
Page 15: Copyright Notice
/ Copyright Notice Copyright Notice This manual is copyrighted. All rights reserved. This document may not, in whole or part, be copied, reproduced, reduced or translated by any means, either mechanical or electronic, without prior consent in writing from Möhlenhoff Wärmetechnik GmbH. The information in this manual has been carefully checked and is believed to be accurate. -
Page 16: Contact
SYSTEM CONVECTORS System Convectors Alpha-Thermostat Alpha-Basis p/o-box: Alpha-Actuator Address: Decorative Roll-up Grill...
