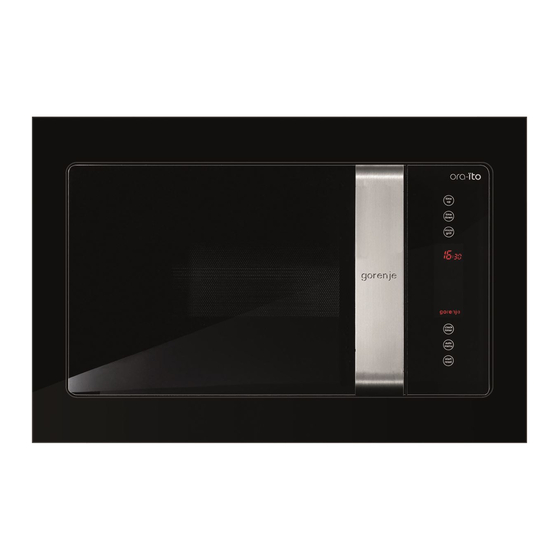

Gorenje BM6250ORAX Owner's Instruction Manual

OWNERS INSTRUCTION MANUAL
Read the Instructions carefully and Keep for Future Reference.

SPECIFICATIONS

Power consumption: .........................................................................................220-240V~50Hz,1400W
Output: ......................................................................................................................................... 900W
Grill Heater: ............................................................................................................................... 1200W
Operating Frequency: ............................................................................................................ 2450MHz
Outside Dimensions: .................................................................. 510mm(W) X 303mm(H) X 405mm(D)
Oven Cavity Dimensions: ........................................................... 330mm(W) X 212mm(H) X 330mm(D)
Oven Capacity: ......................................................................................................................... 23 litres
Uncrated Weight: .......................................................................................................... Approx. 14,5 kg
Noise level: ..................................................................................................................... Lc < 58 dB(A)
This appliance is marked according to the
European directive 2002/96/EC on Waste
Electrical and Electronic Equipment
This guideline is the frame of a European-
wide validity of return and recycling on
Waste Electrical and Electronic
Equipment.

Before you call for service

1. If the oven will not perform at all, the display
does not appear or the display disappeared:
a) Check to ensure that the oven is
plugged in securely. If it is not, remove
the plug from the outlet, wait 10
seconds and plug it in again securely.
b) Check the premises for a blown circuit
fuse or a tripped main circuit breaker.
If these seem to be operating properly,
test the outlet with another appliance.
2. If the microwave power will not function:
a) Check to see whether the timer is set.
b) Check to make sure that the door is
securely closed to engage the safety
interlocks. Otherwise, the microwave
energy will not flow into the oven.
If none of the above rectify the situation,
then contact the nearest authorized
service agent.
The appliance for household use for heating
food and beverages using electromagnetic
energy, for indoor use only.
(WEEE).

Radio interference

Microwave oven may cause interference to your
radio, TV, or similar equipment. When
interference occurs, it may be eliminated or
reduced by the following procedures.
a) Clean the door and sealing surface of the
oven.
b) Place the radio, TV, etc. as far away from
your microwave oven as possible.
c) Use a properly installed antenna for your
radio, TV, etc. to get a strong signal
reception.
Installation
1. Make sure all the packing materials are
removed from the inside of the door.
2. Inspect the oven after unpacking for any
visual damage such as:
- Misaligned Door
- Damaged Door
- Dents or Holes in Door Window and
Screen
- Dents in Cavity
If any of the above are visible, DO NOT
use the oven.
3. This Microwave Oven weighs 14,5 kg and
must be placed on a horizontal surface
strong enough to support this weight.
4. The oven must be placed away from high
temperature and steam.
5. DO NOT place anything on top of the oven.
6. Keep the oven at least 8 cm away from both
sidewalls and 10 cm away from rear wall to
ensure the correct ventilation.
7. DO NOT remove the turn -table drive shaft.
8. As with any appliance, close supervision is
necessary when used by children.
WARNING-THIS APPLIANCE MUST BE
EARTHED.
2
EN
