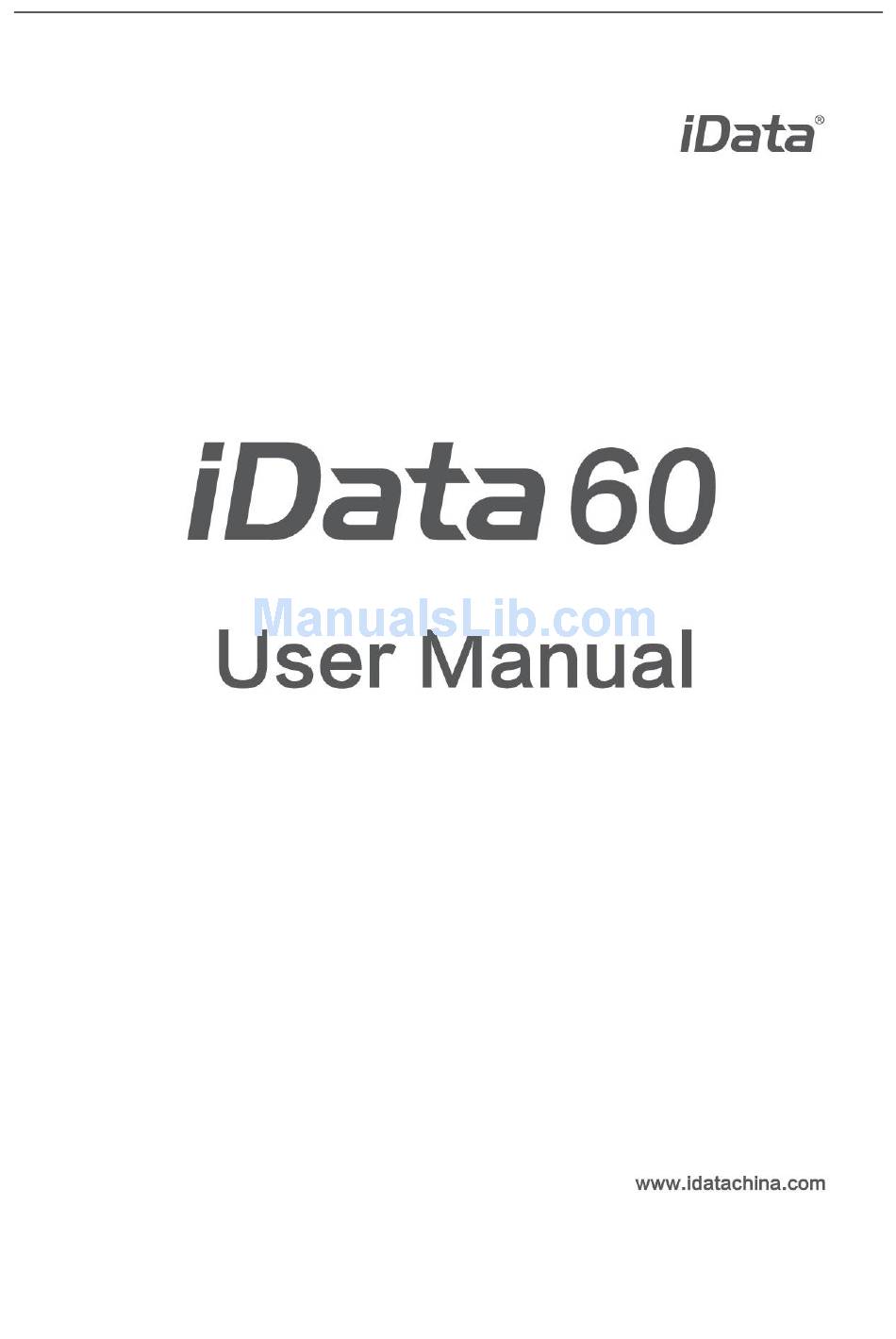

iData 60 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 60 and is the answer not in the manual?

Questions and answers

Related Manuals for iData 60

Summary of Contents for iData 60

  • Page 2: Table Of Contents

    4.2 Wi-Fi Network Connection ........................19 4.3 Bluetooth..............................19 4.4 GPS ................................21 4.5 Connecting the iData 60 to a PC Using USB Data Cable ..............21 4.6 Synchronization ............................22 5. Enabling Barcode Scanning ....................23 6. Enabling the NFC Function ....................24 7 Managing iData 60 ........................

  • Page 3: Introduction

    60 User manual 1 Introduction 1.1 Overview Figure 1-1 Front view of iData 60 Figure 1-2 Rear view of iData 60...

  • Page 4: Installing The Battery

    60 User manual 1.2 Installing the Battery To install the battery, do as follows: 1. Disassemble the battery cover and move the dialing buttons of the battery cover on the left and right along the OPEN direction to pull up the battery cover.

  • Page 5: Removing The Battery

    60 User manual 1.3 Removing the Battery To remove the battery, do as follows: 1. Move the dialing buttons of the battery cover on the left and right along the OPEN direction to pull up the battery cover. Figure 1-6 Disassembling the battery cover 2.

  • Page 6: Inserting A Tf Card

    60 User manual 1.5 Inserting a TF Card (Note: TF cards, namely Micro SD cards, are applicable to the iData 60.) 1. Open the card cover by following the OPEN direction marked on the card cover. When a click is heard, the card cover is completely opened.

  • Page 7: Charging

    When the battery volume is low, (1) a message indicating that the battery volume is less than 20% is displayed on the screen. (2) the iData 60 gives out a low battery prompt tone. (3) the charging indicator blinks in red.

  • Page 8: Instructions On Idata 60

    2 Instructions on iData 60 2.1 Powering On/Off the iData 60 After installing a SIM card and a battery and charging the iData 60 completely, you can use the iData 60. 1. To power on the iData 60, press the On/Off key in the lower right part of the keypad for some time.

  • Page 9: Home Screen

    Volume keys: +, - 2.4 Home Screen By default, the iData 60 has one home screen. You can add home screens by placing applications to the home screen and slide to the left or right to switch to another home screen.

  • Page 10: Status Icons And Indicators

    Application permission EDGE Connection between USB and PC pea pod ★ Note As software is upgraded continuously, status indicators may be different from those displayed on the iData 60. The actual status indicators prevail.

  • Page 11: Basic Settings

    60 User manual 2.6 Basic Settings 2.6.1 Date and Time Settings To change the date and time in the iData 60, do as follows: 1. Find the following icon. 2. Select Settings > Date & time > Set date or Set time.
  • Page 12 60 User manual 2.6.3 Ringtone Setting 1. Find the following icon. 2. Select Settings > Audio profiles > General/Silent/Meeting/Outdoor. Click different modes and set the ringtone in the modes.
  • Page 13 2.6.4 Security Setting 1. Find the following icon. 2. Select Settings > Backup & reset > Factory data reset. The iData 60 starts to restore factory settings. ★ Caution If you perform the preceding operation, the following data will be cleared: ...
  • Page 14 2.6.6 Shortcuts You can add shortcut icons on the home screen of the iData 60. On the home screen, click the icon of application tray, press and hold an icon and drag it to the home screen.
  • Page 15 60 User manual...

  • Page 16: Call Function

    60 User manual 3 Call Function 3.1 Making a Call 1. 1. Find the following icon. 2. Enter a phone number. Click to make a call. 4. Click to terminate the call. Call records Voice call Contacts 3.2 Contacts 1.

  • Page 17: Sms And Mms

    60 User manual 5. To edit or delete a contact, select the contact, press the menu key and click Edit/Delete. 3.3 SMS and MMS 1. 1. Find the following icon. 2. Click enter a receiver and text to be sent.

  • Page 18: Email

    You can send or receive emails. ★ Note To create an email account on the iData 60, first set the account on a PC. Take a QQ email account as an example. Log in to the QQ email account, click Setup in the upper right corner of the email account page, find and select the server option and inbox option and then save.
  • Page 19 60 User manual To synchronize or delete an account, do as follows: 1. On the home screen, click Settings. 2. Under the Account option, click POP3 to open added accounts and click the name of an account to be synchronized or deleted. On the synchronization page, click in the upper right corner and select Immediately Synchronize or Delete Account.

  • Page 20: Network Connection And Connection Synchronization

    After a GPRS data connection is established, you can access the Internet. To establish a GPRS data connection, ensure that a SIM card is installed in the iData 60. In general, the Internet access configuration is set on the iData 60. If you delete the default configuration...

  • Page 21: Wi-Fi Network Connection

    1. Find the following icon. Select Settings > WIRELESS & NETWORKS > WLAN. 1. Click Enable/disable WLAN. The iData 60 starts to search for networks.If WLAN is enabled, click Scan. The iData 60 lists networks in the range of search.
  • Page 22 60 User manual 1. Click the icon for enabling/disabling Bluetooth to enable Bluetooth and search for other Bluetooth devices. 2. In the list of searched devices, click a device to pair the device. 3. In the dialog box that is displayed, confirm the PIN and click Pair to connect the device.

  • Page 23: Gps

    4.5 Connecting the iData 60 to a PC Using USB Data Cable Connect the iData 60 to a PC by using a USB data cable so that you can transmit and process files such as photo, video and music files between the memory card of the iData 60 and the PC.

  • Page 24: Synchronization

    60 User manual Click the option to open the USB storage device and copy files between the PC and the device 4.6 Synchronization 1. Find the following icon. Select Settings > Accounts & sync. 1. Click Add account to set a new account.

  • Page 25: Enabling Barcode Scanning

    60 User manual 5. Enabling Barcode Scanning To start the iScan and enable scanning, do as follows: 1. Find the iScan icon on the menu page and click the icon. 2. Tick the square box on the right of “Enable barcode scanning”. The scanning function is enabled (if you click the square box again, the function is disabled).

  • Page 26: Enabling The Nfc Function

    3. Tick the square box on the right of “NFC”. The NFC function is enabled (if you click the square box again, the function is disabled). 4. Put an NFC card close to the back of the iData 60. After a beep is heard, the card is read successfully.

  • Page 27: Managing Idata 60

    2. Download software installation packages, store them on the SD cad and install the applications through file manager. 3. Connect the iData 60 to a PC by using a USB data cable and install applications for the iData 60 on the PC. However, first of all, you need to install a phone assistant application such as APK install, pea pod and phone assistant 91.

  • Page 28: Precautions And Troubleshooting

     Do not try to disassemble the iData 60. Otherwise, the iData 60 may be damaged.  Do not touch the screen surface of the iData 60 by using a pen, a pencil or other sharp articles in case the screen may be scratched.

  • Page 29: Troubleshooting

    After being inactive for a period of time, the inactive state. iData 60 is locked. The iData 60 is closed. The battery is used up. Replace the battery. The iData 60 responds Too many files are stored in Remove unused memos and records. If...
  • Page 30 Too many applications are Remove applications installed on the iData installed on the iData 60. The scan application is not Load the scan application in the iData 60. loaded. The iData 60 cannot Reading a barcode fails. Check that the barcode is not defective.
  • Page 31 60 User manual Table 8-2 Bluetooth troubleshooting Fault Cause Solution The iData 60 system is too Move the iData 60 close to other Bluetooth away from other devices, making the distance between them Bluetooth devices. within 10 meters. The iData 60 cannot...

  • Page 32: Appendix

    Used to charge the battery. Hand strap Wrist strap Package Quick guide Warranty card 1-slot communication charger Optional Table 2 Technical specifications of the iData 60 Item iData 60 System configuration Processor Dual-core 1.2 GHz high-performance processor Android 4.2 Memory...
  • Page 33  15 kV air discharge, 8 kV direct discharge 1D laser scanning engine  4 mil Optical resolution Scanning depth of field 3.81 cm - 60.98 cm 47  3 (standard) Scanning angle Scanning speed 10212 times per second (two-way) 1D/2D image scanning engine ...
  • Page 34 60 User Guide © 2016 Wuxi iData Technology Company Ltd. All Rights Reserved. This guide is prepared by Wuxi iData Technology Company Ltd. according to the existing information. The content in this document is subject to update without notice.
