KAM LED Parbar MKII Instruction Manual

I N S T R U C T I O N M A N U A L

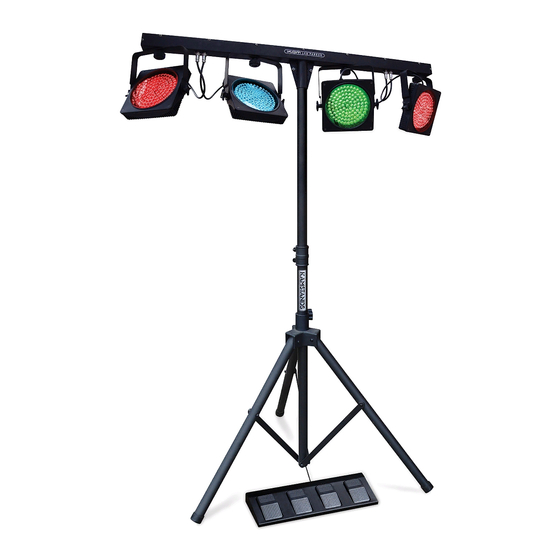

Kam LED Parbar MKII
Complete portable DMX LED lighting system
I n s t r u c t i o n
Technical specifications
Power supply:
Power consumption:
Number of DMX channels:
DMX-512 connection:
Number of 10mm LEDs:
Beam angle:
Sound-control: via built-in microphone
Due to continuous product development, specifications and appearance are subject to change.
If this product is ever no longer functional please it take to a recycling plant for environmentally friendly disposal.
For the latest product updates and information on the entire Kam range visit:
www kam co uk
Kam products are manufactured by: Lamba plc, Unit 1, Southfields Road, Dunstable, Bedfordshire, United Kingdom LU6 3EJ
Telephone: (+44) (0)1582 690600 • Fax: (+44) (0)1582 690400 • Email: mail@lambaplc.com • Web: www.lambaplc.com
m a n u a l
230V AC, 50 Hz~ Maximum ambient temperature Ta:
70W Maximum housing temperature TB (steady state):
15 Min.distance from flammable surfaces:
3-pin XLR Min.distance to lighted object:
432 Fuse:
25° Dimensions (LxWxH):
Weight:
v e r s i o n 1 . 0
1110 x 55 x 295mm
45°C
60°C
0.50m
0.10m
F 2A, 250V
8Kg
