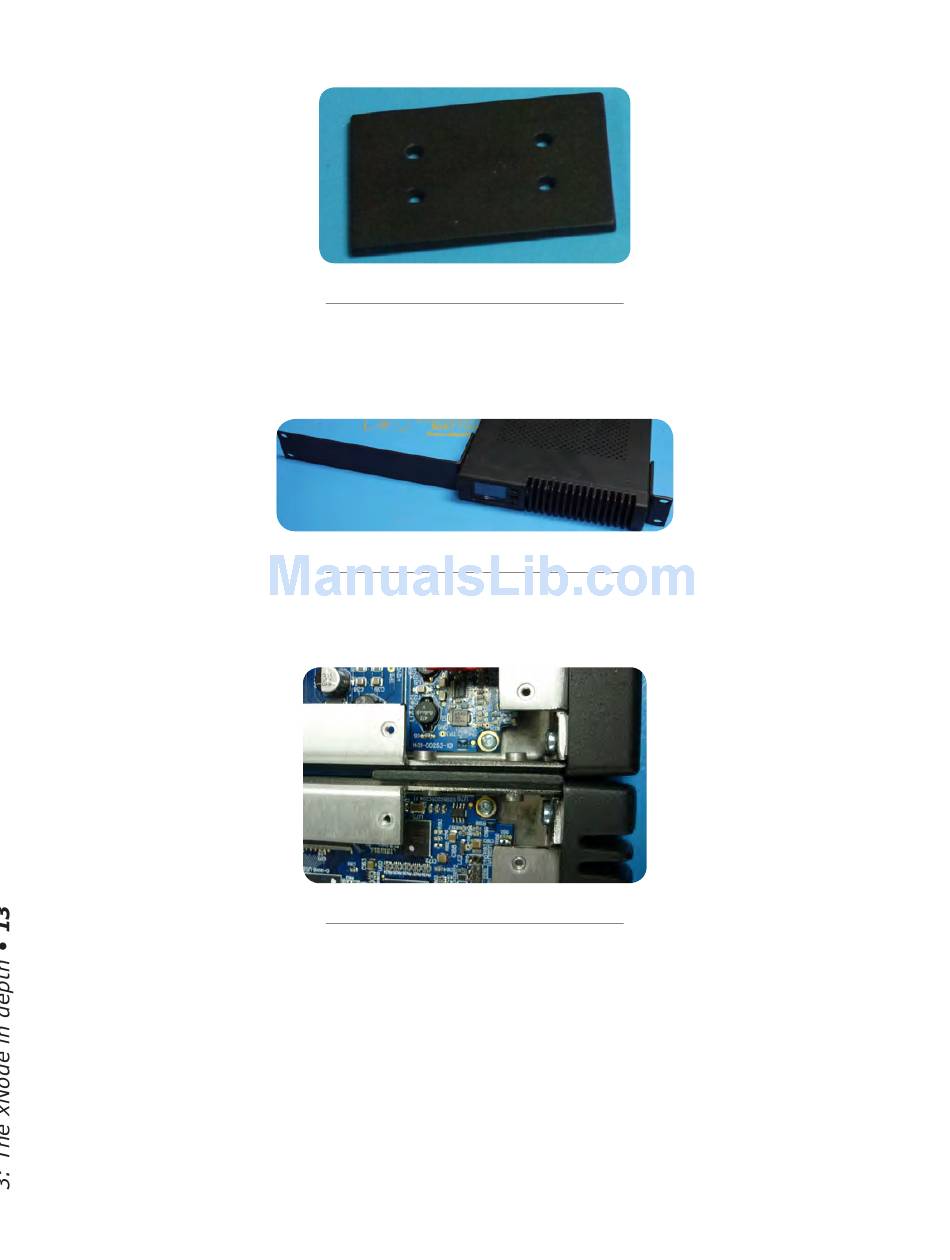

Figure 3-6: Spacer
Single xNode
Secure the short rack ear to one side of the xNode.
Secure the long ear to the opposing side of the xNode.
Figure 3-8
Double xNode
Remove the top lid from both xNodes. Place two xNodes side by side. Place the spacer between the two xNodes.
Figure 3-9a
© 2016 Axia Audio - Rev 2.0
