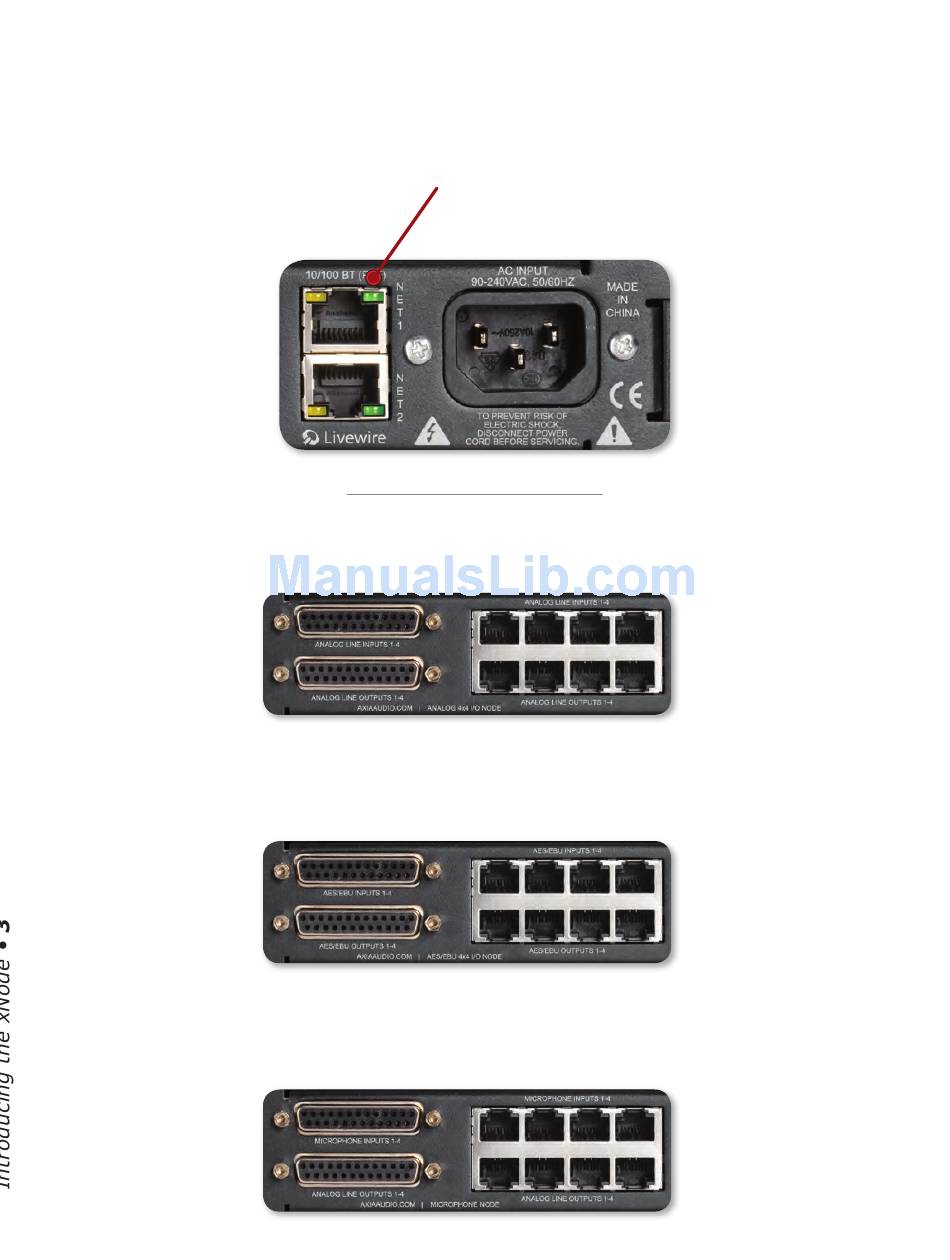

Rear Panel
The rear panel will vary between the xNodes. xNodes will have an IEC connector and two Ethernet ports.
The top Ethernet port accepts PoE power and the lower port does not. The remainder of the rear panel will depend
on the model of xNode.
Analog
Four stereo inputs and four stereo outputs are available in parallel through the RJ45 ports or the DB-25 ports. Pinout
information is available in Chapter 4.
AES/EBU
Four AES-3 inputs and four AES-3 outputs are available in parallel through the RJ45 ports or the DB-25 ports. Pin-
out information is available in Chapter 5.
PoE Port
Figure 1-3
© 2016 Axia Audio - Rev 2.0
