SOUNDMASTER SCD 6600 Manual

SOUNDMASTER SCD 6600 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

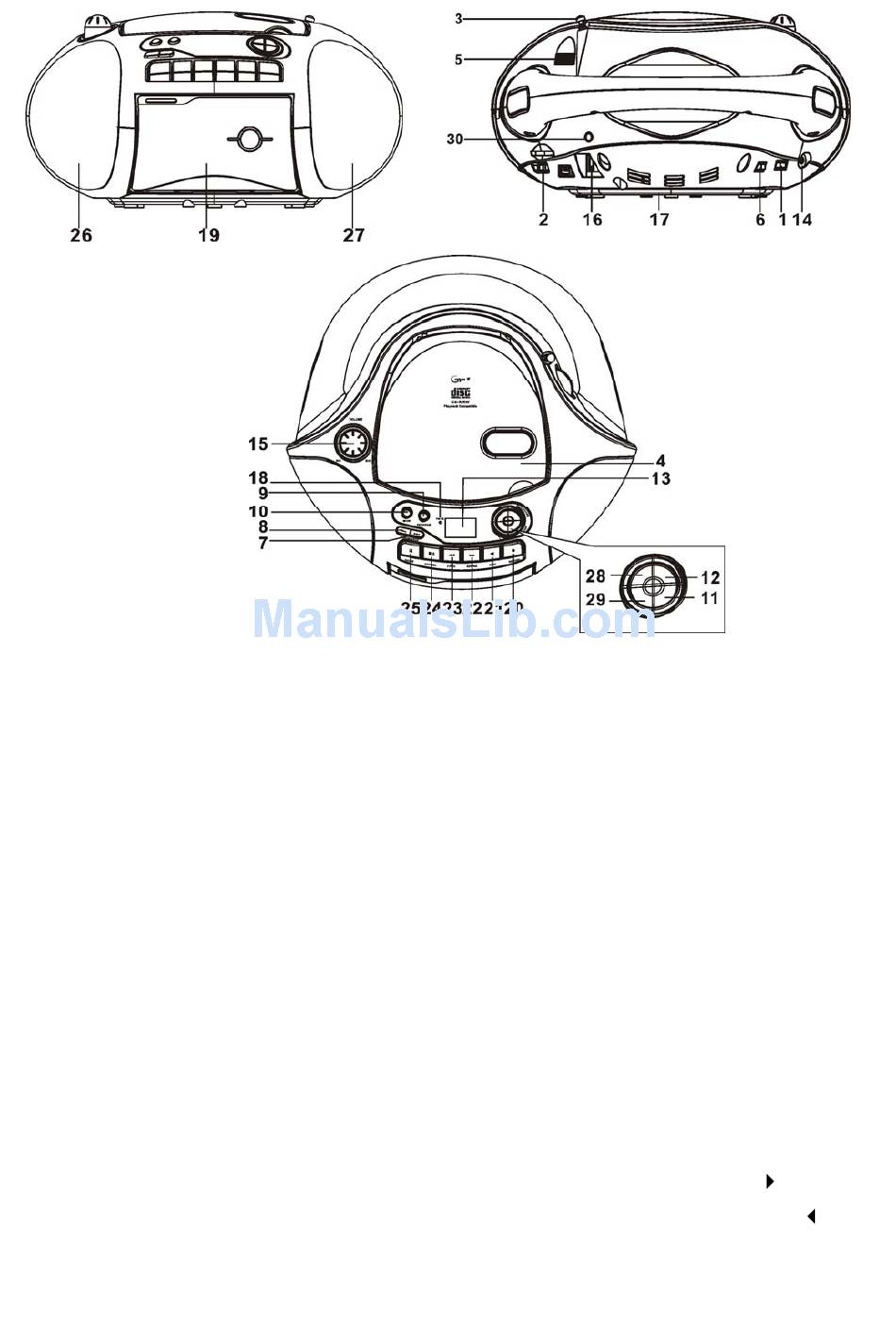

1. FUNCTION SWITCH
AUX/CD/TAPE (OFF)/RADIO
2. BAND SWITCH
3. FM ANTENNA
4. CD DOOR
5. TUNING KNOB
6. BASS BOOST BUTTON
7. CD SKIP/SEARCH FORWARD
BUTTON
8. CD SKIP/SEARCH BACKWARD
BUTTON
9. CD PROGRAM BUTTON
10. CD MODE BUTTON
11. CD STOP BUTTON
12. CD PLAY/PAUSE BUTTON
13. CD LCD DISPLAY
14. STEREO HEADPHONE JACK
15. VOLUME CONTROL KNOB
16. AC SOCKET
17. BATTERY DOOR
18. FM STEREO LED INDICATOR
19. CASSETTE COMPARTMENT
20. CASSETTE RECORD BUTTON
21. CASSETTE PLAY BUTTON
22. CASSETTE REWIND BUTTON
23. CASSETTE FAST FORWARD
BUTTON
24. CASSETTE STOP/EJECT BUTTON
25. CASSETTE PAUSE BUTTON
26. SPEAKER LEFT
27. SPEAKER RIGHT
28. FOLDER UP BUTTON " "
29. FOLDER DOWN BUTTON " "
30. AUX IN JACK
English - 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCD 6600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SOUNDMASTER SCD 6600

Summary of Contents for SOUNDMASTER SCD 6600

  • Page 1 1. FUNCTION SWITCH 15. VOLUME CONTROL KNOB AUX/CD/TAPE (OFF)/RADIO 16. AC SOCKET 2. BAND SWITCH 17. BATTERY DOOR 3. FM ANTENNA 18. FM STEREO LED INDICATOR 4. CD DOOR 19. CASSETTE COMPARTMENT 5. TUNING KNOB 20. CASSETTE RECORD BUTTON 6. BASS BOOST BUTTON 21.

  • Page 2: Radio Operation

    AC OPERATION Before operation please be sure that the voltage on the set corresponds to the voltage of your local area. Unravel the AC Line Cord, insert one end into the AC jack on the set, and the other end into a standard AC outlet. BATTERY OPERATION Disconnect the AC Cord Set completely.

  • Page 3: Stereo Headphone Jack

    STEREO HEADPHONE JACK For private listening, insert the plug of a Stereo Headphone into the STEREO HEADPHONE JACK and adjust the VOLUME CONTROL KNOB accordingly. During the use of a headphone, the Speakers are automatically disconnected. CASSETTE OPERATION Tape Playback Depress the STOP/EJECT BUTTON to open the cassette door.

  • Page 4: Getting Started

    Press the STOP/EJECT BUTTON to stop recording. When the tape runs to its end, the cassette operation will be stopped automatically. CD OPERATION PLAYING COMPACT DISC (CD-R/RW PLAYBACK COMPATIBLE) Getting Started Note: Should skipping of tracks occur during CD playing, try turning the volume down.

  • Page 5: Program Mode

    5. To turn off the unit, slide the FUNCTION SWITCH to “TAPE (OFF)” position. Skip And Search Mode 1. During play or pause mode, when CD SKIP/SEARCH or CD SKIP/SEARCH BUTTON is pressed once, it will go to the next track or go back to the beginning of the track.

  • Page 6: Playing Mp3 Disc

    DISPLAY will show the appropriate track number. Press the PROGRAM BUTTON to store this track in memory. 2. Repeat above procedure until all desired tracks have been programmed. A total of 20 tracks can be stored in memory. Remarks: Whenever CD SKIP/SEARCH FORWARD or BACKWARD BUTTON is pressed, it will always show the last programmed track first to recall your memory.
  • Page 7 Play/Pause Mode 1. When the PLAY/PAUSE BUTTON is pressed during CD stop mode, the first track will be played. The Play Indicator “ ” will be lighted. The “ ” Indicator will be shown as well to indicate MP3 Disc is being played. The LCD DISPLAY will show the specific track number being played.
  • Page 8 6. To turn off the unit, slide the FUNCTION SWITCH to “TAPE (OFF)” position. Repeat Mode 1. Repeat 1: When the MODE BUTTON is pressed once, the Repeat Indicator “ ” will light. This single track of music will be repeated. 2.
  • Page 9 Program Mode 1. During the CD stop mode, press the PROGRAM BUTTON once. The Program Indicator “ ” and the number of Program to be memorized starts from the first program “ ” will light up and blink continuously. Press the FOLDER UP or DOWN BUTTON, then press CD SKIP/SEARCH FORWARD or BACKWARD BUTTON to select your desired musical track, CD LCD DISPLAY will show the track number of this specific Album to be programmed.

  • Page 10: Maintenance

    The Program Indicator “ ” will disappear from the LCD DISPLAY. Recording From CD Player 1. Slide the FUNCTION SWITCH to “CD” position. 2. Put a CD into the CD compartment with the label side upward. 3. Insert a cassette into the cassette compartment and press PAUSE BUTTON of the cassette deck.

  • Page 11: Instructions On Environment Protection

    Instructions on environment protection Do not dispose of this product in the usual household garbage at the end of its lifecycle; hand it over at a collection point for the recycling of electrical and electronic appliances. The symbol on the product, the instructions for use or the packing will inform about the methods for disposal.
