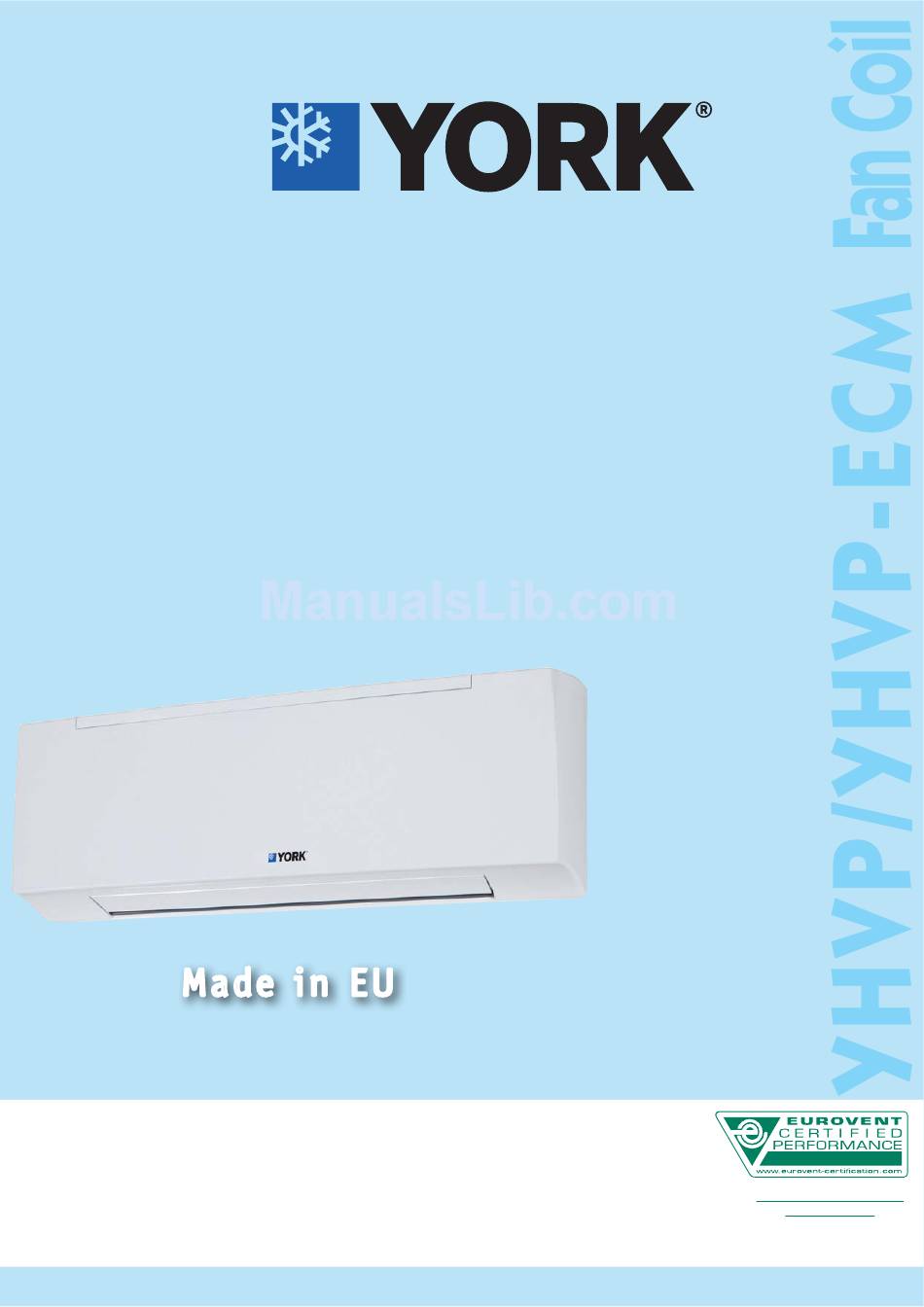

  • Page 1 Ma de i n E U High Wall Fan Coil YHVP YHVP-ECM www.eurovent-certification.com www.certiflash.com Technical Guide - for internal distribution only...
  • Page 2: Table Of Contents

    Page 26 • ECM configuration • Controls and units management and electric heating coil. Page 27 T and MB versions YHVP / YHVP-ECM Serie The units are for 2 pipe installations only. • Controls and units Page 28 T version YHVP...
  • Page 3: Versions And Main Components

    Casing Made of auto-extinguishing ABS UL94 HB plastic with high specifications and great resistance to aging. The diffusion flap is adjusted manually in YHVP version, with remote control in YHVP-T version and with JTM-B control in YHVP- MB version. Air Filter Washable-regenerable synthetic filter, readily accessible.
  • Page 4: Dimensions, Weight, Water Content

    Dimensions, Weight, YHVP Water content YHVP Serie COIL CONNECTIONS ON THE LEFT MOUNTING DIMENSIONS ø16 ø16 Back sight ø16...
  • Page 5 Dimensions, Weight, YHVP Water content YHVP Serie DIMENSIONS (mm) ODEL YHVP 1 YHVP 2 YHVP 3 YHVP 4 1185 1185 1255 1255 WEIGHT (kg) Weight packed unit Weight unpacked unit ODEL YHVP 1 YHVP 2 YHVP 3 YHVP 4 YHVP 1...
  • Page 6: Eurovent Certifications

    Entering air temperature: + 20°C Water temperature: + 7°C E.W.T. / + 12°C L.W.T. Water temperature: + 50°C E.W.T. Water flow rate as for the cooling conditions MODEL YHVP 1 YHVP 2 1 (E) 2 (E) 4 (E) 1 (E)
  • Page 7: Working Conditions

    Serie WORKING CONDITIONS Max. entering water temperature..... + 70 °C MIn. entering water temperature......+ 6 °C for entering water temperatures below + 6°C, contact “York” technical department Max. rated pressure ...........1000 kPa (10 bars) Installation height (m) ODEL YHVP 1 ÷ 4...
  • Page 8: Emissions

    YHVP Emissions YHVP Serie Cooling emission Entering air temperature: +27°C - Relative Humidity: 50% WT: 7/12 °C WT: 8/13 °C WT: 10/15 °C WT: 12/17 °C Dp(c) Dp(c) Dp(c) Dp(c) Model Speed 2,40 1,76 15,8 2,15 1,68 12,9 1,69 1,59...
  • Page 9 YHVP Emissions YHVP Serie Cooling emission Entering air temperature: +25°C - Relative Humidity: 50% WT: 7/12 °C WT: 8/13 °C WT: 10/15 °C WT: 12/17 °C Dp(c) Dp(c) Dp(c) Dp(c) Model Speed 1,90 1,63 10,4 1,69 1,58 1,31 1,31 1,09...
  • Page 10 3 x 1,5mm 3 x 1,5mm 3 x 1,5mm Current input 4,5 A 4,5 A Recommended fuse (Type gG) for overload protection YHVP operating limits with electric heater Max. ambient temperature for YHVP with electric coil in heating mode: 25°C.
  • Page 11: Water Side Pressure Drop

    YHVP Water side pressure drop YHVP Serie Coil pressure drop Valves pressure drop Kvs 2,5 Kvs 1,6 300 400 600 800 1000 2000 3000 4000 Pressure drop for mean water temperature of 10°C; for different temperatures multiply the pressure drop figure by the Legend K correction factors in the table.
  • Page 12: Control Operations

    YHVP Wall electronic controls YHVP Serie Control operations Electrical diagrams are shown on the installation, use and maintenance manual CONTROL CONTROL OPERATIONS IDENTIFICATION ON-OFF switch ON-OFF electric heater Manual 3 speed switch Manual/Automatic 3 speed selection Summer/Winter switch Remote centralized Summer/Winter switch or by an...
  • Page 13 YHVP Wall electronic controls YHVP Serie Code JWC-T 9066630K • ON-OFF switch. • Manual 3 speed switch. • Manual Summer/Winter switch. • Electronic room thermostat for fan control (ON-OFF). • Electronic room thermostat for valve control (ON-OFF) (the fan keeps working).
  • Page 14 YHVP Wall electronic controls YHVP Serie Speed switches - YHVP version Code SEL-CVP 9025302 • Speed switch (slave). • It allows to control up to 8 units with only one centralized thermostat using one speed switch for each unit. • For controls: JWC-T, JWC-TQR and TMO-503-SV2.
  • Page 15: Electronic Control Accessories

    YHVP Electronic control accessories YHVP Serie NTC low temperature cut-out thermostat Code 3021090 To be fitted between the coil fins. When connecting the control, the NTC probe cable must be separated from the power supply wires. To be used with the following controls: JWC-TQR.
  • Page 16: Controls And Units

    Units can be managed according to the Master/Slave logic (up to 20 units) or by supervisory controls. The system consists in a MB power board (mounted on models YHVP-MB) and a series of controls, such as the JTM-B wall mounted control, the RT03 infra-red remote control, the PSM-DI multifunction control and the NET supervisory program.
  • Page 17: Yhvp-Ecm Serie

    Casing Made of auto-extinguishing ABS UL94 HB plastic with high specifications and great resistance to aging. The diffusion flap is adjusted manually in YHVP-ECM version, with remote control in YHVP-ECM-T version and with JTM-B control in YHVP-ECM-MB version. Air Filter Washable-regenerable synthetic filter, readily accessible.
  • Page 18: Dimensions, Weight, Water Content

    Dimensions, Weight, YHVP-ECM Water content YHVP-ECM Serie COIL CONNECTIONS ON THE LEFT MOUNTING DIMENSIONS ø16 ø16 Back sight ø16...
  • Page 19 Dimensions, Weight, YHVP-ECM Water content YHVP-ECM Serie DIMENSIONS (mm) ODEL YHVP-ECM 1 YHVP-ECM 2 YHVP-ECM 3 YHVP-ECM 4 1185 1185 1255 1255 WEIGHT (kg) Weight packed unit Weight unpacked unit YHVP-ECM YHVP-ECM YHVP-ECM YHVP-ECM YHVP-ECM YHVP-ECM YHVP-ECM YHVP-ECM ODEL without valve...
  • Page 20: Eurovent Certifications

    Entering air temperature: + 20°C Water temperature: + 7°C E.W.T. / + 12°C L.W.T. Water temperature: + 50°C E.W.T. Water flow rate as for the cooling conditions MODEL YHVP-ECM 1 YHVP-ECM 2 1 (E) 5 (E) 10 (E) 1 (E)
  • Page 21: Working Conditions

    Serie WORKING CONDITIONS Max. entering water temperature..... + 70 °C MIn. entering water temperature......+ 6 °C for entering water temperatures below + 6°C, contact “YORK” technical department Max. rated pressure ...........1000 kPa (10 bars) Installation height (m) YHVP-ECM ODEL 1 ÷...
  • Page 22: Emissions

    YHVP-ECM Emissions YHVP-ECM Serie Cooling emission Entering air temperature: +27°C - Relative Humidity: 50% WT: 7/12 °C WT: 8/13 °C WT: 10/15 °C WT: 12/17 °C Dp(c) Dp(c) Dp(c) Dp(c) Model 2,15 1,55 12,9 1,93 1,47 10,5 1,51 1,37 1,15...
  • Page 23 YHVP-ECM Emissions YHVP-ECM Serie Cooling emission Entering air temperature: +25°C - Relative Humidity: 50% WT: 7/12 °C WT: 8/13 °C WT: 10/15 °C WT: 12/17 °C Dp(c) Dp(c) Dp(c) Dp(c) Model 1,70 1,42 1,50 1,37 1,16 1,16 0,91 0,91 YHVP-...
  • Page 24: Models With Electric Heater

    3 x 1,5mm 3 x 1,5mm 3 x 1,5mm Current input 4,5 A 4,5 A Recommended fuse (Type gG) for overload protection YHVP-ECM operating limits with electric heater Max. ambient temperature for YHVP-ECM with electric coil in heating mode: 25°C.
  • Page 25: Water Side Pressure Drop

    YHVP-ECM Water side pressure drop YHVP-ECM Serie Coil pressure drop Valves pressure drop Kvs 2,5 Kvs 1,6 300 400 600 800 1000 2000 3000 4000 Pressure drop for mean water temperature of 10°C; for different temperatures multiply the pressure drop figure by the Legend K correction factors in the table.
  • Page 26: Ecm Configuration

    • Impedance < 100 Ohm; • Maximum speed 10 Vdc; • Fan OFF with V < 1 Vdc; • Signal 1 - 10 Vdc. YHVP–ECM electric wiring diagram CONTROLLER 230Vac 50Hz BLAC Legend CONTROLLER = Controller BLAC = Inverter circuit board...
  • Page 27: Controls And Units T And Mb Versions

    Units can be managed according to the Master/Slave logic (up to 20 units) or by supervisory controls. The system consists in a MB power board (mounted on models YHVP-ECM-MB) and a series of controls, such as the JTM-B wall mounted control, the RT03 infra-red remote control, the PSM-DI multifunction control and the NET supervisory program.
  • Page 28: Yhvp / Yhvp-Ecm Serie

    RED REMOTE CONTROL The electronic board, mounted as per standard on the YHVP-T and YHVP-ECM-T, is set to carry out different functions and adjustment modes, in order to meet the installation requirements. These modes are selected by setting the configuration dip switches on the board.
  • Page 29: Mb Version

    RED REMOTE CONTROL The MB electronic board, mounted as per standard on the YHVP-MB and YHVP-ECM-MB, is set to carry out different functions and adjustment modes, in order to meet the installation requirements. These modes are selected by setting the configuration dip switches on the board.
  • Page 30: Yhvp

    Controls and units YHVP/YHVP-ECM MB version YHVP/YHVP-ECM Serie JTM-B wall control Description Code Wall control (to be used with MB board only) JTM-B 9066331E Wall control with display that allows controlling one or more units in Master/Slave mode. The control is equipped with...
  • Page 31 Controls and units YHVP/YHVP-ECM MB version YHVP/YHVP-ECM Serie RT03 infra-red remote control Description Code RT03 infra-red remote control with receiver supplied with separate packaging RS-RT03-F 9025301 (to be used with MB board only) RT03 infra-red remote control supplied with separate packaging...
  • Page 32 Serie A group of YHVP units with MB electronic board can be connected via a serial link and can consequently be managed at the same time by just one JTM-B wall control or RT03 infra-red remote control. Using the special jumper present on the MB board, one unit must be configured as the master, and all the others as slaves.
  • Page 33 PSM-DI 3021293 Another option available for the serial communication between the units is the possibility to connect up to 60 YHVP units in series and manage them with just one wall mounted PSM-DI controller. The wall mounted controller can be used to set the operating...
  • Page 34: Management System For A Network Of Units

    Management system for a network YHVP/YHVP-ECM of units YHVP/YHVP-ECM Serie NET program for managing a network of York MB fan coils Description Code Hardware/software supervisory system (to be used with MB board only) 9079118 NET is a centralised control system for networks of York MB fan coils, based on software that runs on LINUX™...
  • Page 35 Management system for a network YHVP/YHVP-ECM of units YHVP/YHVP-ECM Serie The main program screen can display and interact with the entire network of units. An individual unit, a group of units or the entire network can be called so as to make modifications to the operating mode and the set point. The user can then check the operating status of each individual unit, read the room temperature, the coil temperature and the operating status of the condensate drain pump or any alarms.
  • Page 36 Connection of a N ≤ 60 U (*) YHVP network MB versions Legend = YHVP unit = Power input = Outputs for systems = MC2 jumper to close. Network end. = 60 units max. (*) ) In the event of more than 60 units, add one or more Router-S (see below).
  • Page 37: Accessories

    YHVP/YHVP-ECM PSM-DI and NET Accessories YHVP/YHVP-ECM Serie Code SIOS 3021292 SIOS is a board equipped with 8 relays with potential free contact to control the activation or deactivation of remote electric utilities. Moreover, the board has 8 digital inlets to display the actuators or external consents, such as motor or other. The SIOS boards can be connected: - inside a network managed by NET;...
  • Page 39 The descriptions and illustrations provided in this publication are not binding: we reserve the right, whilst maintaining the essential characteristics of the types described and illustrated, to make, at any time, without the requirement to promptly update this piece of literature, any changes that we consider useful for the purpose of improvement or for any other manufacturing or commercial requirements.
