Hamamatsu Photonics C5909 SERIES Manual

HIGH
SENSITIVITY

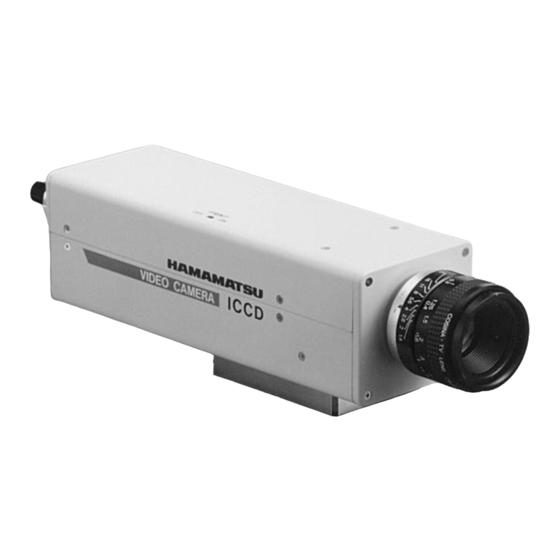

CCD CAMERA
OVER VIEW
Conventional high-speed shutter cameras cannot capture
objects other than strong light-emission ones unless those
objects are illuminated by powerful light, because the high-speed
shutter inevitably diminishes the amount of incident light when
operated. The Hamamatsu ICCD camera units, however, use an
image intensifier with high gain and ultra high-speed shuttering
functions, making it possible to measure images of ultra high-
speed phenomena with high sensitivity and fast time resolution.
APPLICATIONS
Analyzing High-speed Light-emission Phenomena
• Combustion Flame of Engines
• PDP • Plasma
Measuring Ultra Low-light-level Phenomena
• Microscope • Two-dimensional Spectroscopy
• Bio- and Chemiluminescence
Observing High-speed Moving Objects
• Turbine Blade Motion
ICCD CAMERA
WITH HIGH-SPEED ELECTRONIC SHUTTER
C5909 SERIES
• Discharge Event
• Fluorescence
• Injection
FEATURES
High Speed Shutter....5 ns
[-06, -07, -08, -09]
High Sensitivity
(Minimum Photocathode Illuminance: 4 × 10
[MCP: 2-stage type])
High Resolution of 450 TV Lines
[-10, -11, -12, -13]
Adjustable Shutter Time by External Con-
trol Signal
Long Accumulation Time (10 s Max.) on
CCD Chip (with C6687/Option)
[-06, -07, -08, -09, -10, -11, -12, -13]
Built-in Over-light Protection Circuit
Remote Control of Image Intensifier Gain
(with C5979/Option)
-7
lx
