LAND CRUISER 80 (RHD)
VEHICLE SECURITY SYSTEM

INSTALLATION INSTRUCTIONS

MAIN KIT
SUB KIT (SIREN AND RADAR)
FITTING KIT
FOR
Manual Ref. Nr. T3RJ8-0-500
Manual Ref. Nr. T3RL5-0-500
TVSS IIIB
PART NUMBER
FZJ80R, HDJ80R, HZJ80R
TOYOTA MOTOR CORPORATION
TOYOTA MOTOR CORPORATION
08585-00880
08586-50820
08586-60950

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TVSS IIIB and is the answer not in the manual?

Questions and answers

Nessi Sanu
August 3, 2025

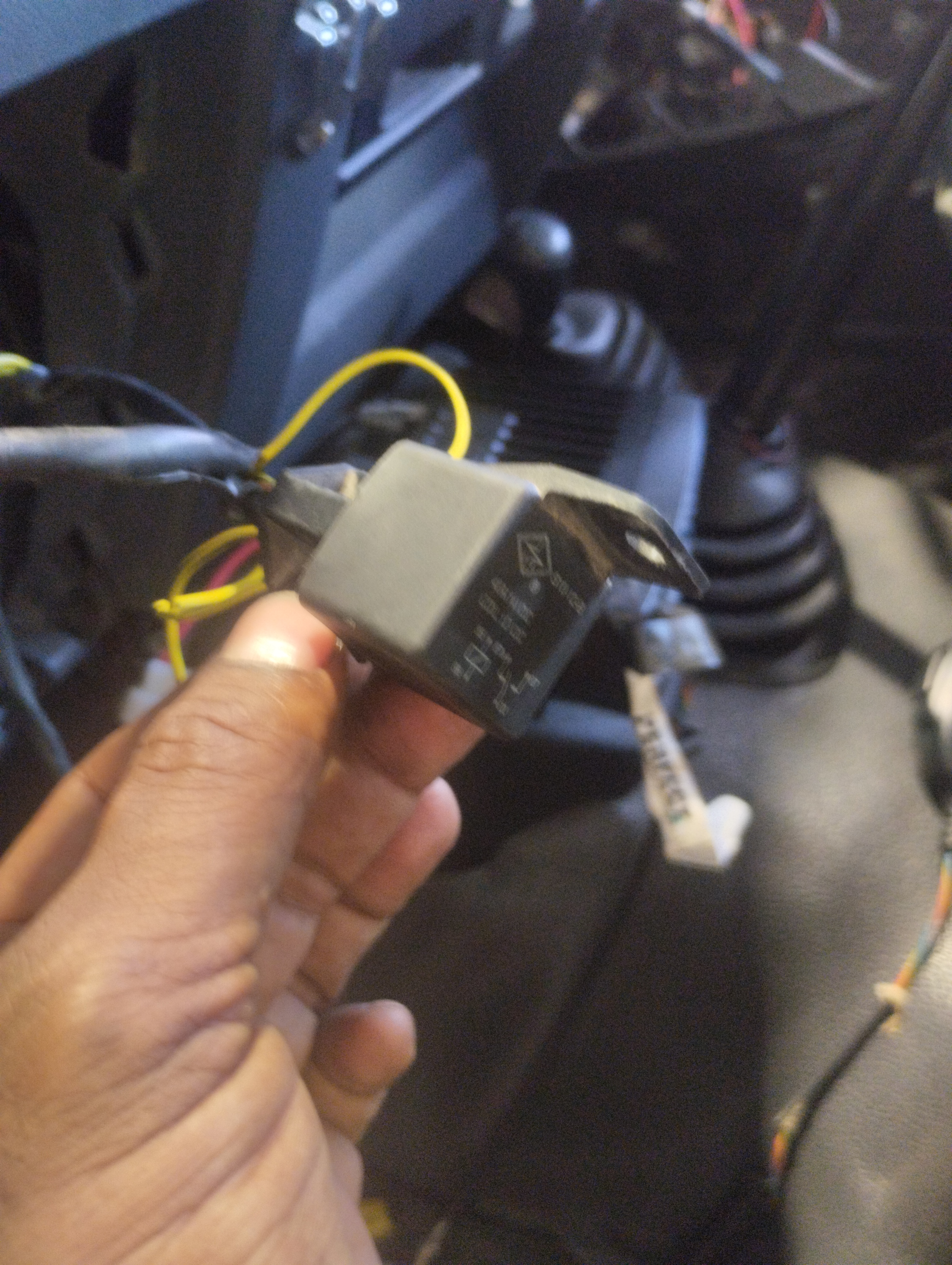

Where will I get the ignition supply with the earth from the security system to the relay and the supply out the fuel cut off solenoid

User image 688ecf7b55ce0
0

Related Manuals for Toyota TVSS IIIB

Summary of Contents for Toyota TVSS IIIB

  • Page 1: Installation Instructions

    LAND CRUISER 80 (RHD) VEHICLE SECURITY SYSTEM TVSS IIIB INSTALLATION INSTRUCTIONS PART NUMBER MAIN KIT 08585-00880 SUB KIT (SIREN AND RADAR) 08586-50820 FITTING KIT 08586-60950 FZJ80R, HDJ80R, HZJ80R TOYOTA MOTOR CORPORATION TOYOTA MOTOR CORPORATION Manual Ref. Nr. T3RL5-0-500 Manual Ref. Nr. T3RJ8-0-500...

  • Page 2: Precautions

    Land Cruiser 80 TOYOTA TVSS IIIB PRECAUTIONS PLEASE READ THOROUGHLY THESE PRECAUTIONS FOR THIS SYSTEM INSTALLATION • Be sure to disconnect the negative (-) lead from the battery ter- • Confirm that lamps, horn, wiper and other car accessories operate normally.

  • Page 3: Table Of Contents

    Land Cruiser 80 TOYOTA TVSS IIIB TABLE OF CONTENTS Precautions ................................... System Components • Main Kit ................................• Sub Kit (Siren and Radar) ........................... • Fitting Kit ................................System Layout and Wire Harness Outline • Main ..................................• Engine .................................

  • Page 4: Main Kit

    Land Cruiser 80 TOYOTA TVSS IIIB MAIN KIT 08585-00880 Description TVSS ECU REMOTE CONTROL TRANSMITTER SUB KIT (SIREN AND RADAR) 08586-50820 Description SIREN SIREN BRACKET BOLT RADAR SENSOR Other parts in the kit are not used. Land Cruiser (RHD) - 4...

  • Page 5: Fitting Kit

    Land Cruiser 80 TOYOTA TVSS IIIB FITTING KIT 08586-60950 Description WINDOW STICKER WIRE HARNESS (MAIN) PROTECTIVE BRACKET SCREW BLIND RIVET BUTYL TAPE WIRE TIE (SMALL) WIRE TIE (LARGE) FOAM (1 DIVISION ON 1 SHEET) FOAM (2 DIVISIONS ON 1 SHEET)
  • Page 6 Land Cruiser 80 TOYOTA TVSS IIIB Land Cruiser 80 (RHD) - 6...

  • Page 7: System Layout And Wire Harness Outline

    Land Cruiser 80 TOYOTA TVSS IIIB SYSTEM LAYOUT AND WIRE HARNESS OUTLINE (MAIN) Pos. No. Description TVSS ECU TVSS ECU CONNECTOR (26P GREY) GROUND TERMINAL PRE-WIRE CONNECTOR (12P WHITE) STATUS MONITOR CONNECTOR (2P CLEAR) RADAR SENSOR CONNECTOR (4P WHITE) GLASS BREAKAGE CONTROL CONNECTOR (6P WHITE)

  • Page 8: Engine

    Land Cruiser 80 TOYOTA TVSS IIIB SYSTEM LAYOUT AND WIRE HARNESS OUTLINE (ENGINE) Pos. No. Description PRE-WIRE CONNECTOR (6P GREY MALE) SIREN CONNECTORS (6P GREY FEMALE) GROUND TERMINAL HOOD SWITCH CONNECTOR (2P WHITE) SIREN Land Cruiser 80 (RHD) - 8...

  • Page 9: Connector Arrangement Of The Tvss Fitting Kit (Pin View)

    Land Cruiser 80 TOYOTA TVSS IIIB CONNECTOR ARRANGEMENT OF THE TVSS FITTING KIT (PIN VIEW) (male pin) (female pin) (female pin) (female pin) (female pin) (male pin) (female pin) (male pin) (female pin) Land Cruiser 80 (RHD) - 9...

  • Page 10: Vehicle Disassembly (Passenger Compartment)

    Land Cruiser 80 TOYOTA TVSS IIIB VEHICLE DISASSEMBLY (PASSENGER COMPARTMENT) Remove the passenger’s side front side step cover Plastic nut Figure 1 Peel back the carpet Figure 2 FOR MANUAL TRANSMISSION MODELS a) Remove the gear and the transfer shift knobs.
  • Page 11 Land Cruiser 80 TOYOTA TVSS IIIB FOR AUTOMATIC TRANSMISSION MODELS a) Remove the transfer shift knob b) Remove the console panel : Screws (3x) : Screw (1x) Figure 4 Remove the console compartment : Bolts (3x) Figure 5 a) Remove the accessory compartment...
  • Page 12 Land Cruiser 80 TOYOTA TVSS IIIB Pull out the centre cluster (Do not disconnect any connector). Figure 7 Land Cruiser 80 (RHD) - 12...

  • Page 13: Wire Harness (Main) Installation

    Land Cruiser 80 TOYOTA TVSS IIIB WIRE HARNESS (MAIN) INSTALLATION a) Locate and pull out the 12P connector (white) in the kick panel area on the passenger’s side. b) Connect the fitting kit wire harness (main) 12P connector (white) to the 12P connector white .
  • Page 14 Land Cruiser 80 TOYOTA TVSS IIIB Lay the fitting kit wire harness (main) under the carpet Figure 11 Connect the fitting kit wire harness (main) 26P connector (grey) to the TVSS Figure 12 Land Cruiser 80 (RHD) - 14...

  • Page 15: Mounting The Status Monitor

    Land Cruiser 80 TOYOTA TVSS IIIB MOUNTING THE STATUS MONITOR a) Put the fitting kit wire harness (main) 2P connector through the switch hole from the rear of the centre cluster b) Reinstall the centre cluster c) Connect the fitting kit wire harness...

  • Page 16: Mounting The Radar Sensor

    Land Cruiser 80 TOYOTA TVSS IIIB MOUNTING THE RADAR SENSOR a) Remove the cap from the radar sen- b) Locate the trimmer in the small hole. c) Turn the trimmer clockwise to the maximum. d) Turn the trimmer counterclockwise between the first and the second posi- MAX.
  • Page 17 Land Cruiser 80 TOYOTA TVSS IIIB Attach the butyl tape to the back of the radar sensor Figure 17 a) Connect the fitting kit wire harness (main) 4P connector (white) to the radar sensor 4P connector (white). b) Locate and mark the radar location (shaded portion in the figure).

  • Page 18: Mounting The Glass Breakage Control Unit

    Land Cruiser 80 TOYOTA TVSS IIIB MOUNTING THE GLASS BREAKAGE CONTROL UNIT Measure and cut the carpet as shown to make four slits 60 mm 10 mm 45 mm 10 mm 3,5 mm 10 mm Figure 20 Turn the sensor adjustment screw to posi- tion “9”...
  • Page 19 Land Cruiser 80 TOYOTA TVSS IIIB Put the wire ties (2x) around the glass breakage control unit and secure. Figure 23 Land Cruiser 80 (RHD) - 19...

  • Page 20: Vehicle Disassembly (Engine Compartment)

    Land Cruiser 80 TOYOTA TVSS IIIB VEHICLE DISASSEMBLY (ENGINE COMPARTMENT) Remove the bolt Figure 24 Remove the passenger’s side indicator light : Screw Figure 25 FOR PETROL ENGINE MODELS 25 24 Remove the battery : Nuts (6x) : Frame : Hook brackets (2x)
  • Page 21 Land Cruiser 80 TOYOTA TVSS IIIB FOR PETROL ENGINE MODELS Remove the ground bolt (Do not discard) Figure 27 FOR PETROL ENGINE MODELS Remove and discard the two bolts secu- ring the fuse box Figure 28 FOR DIESEL ENGINE MODELS...
  • Page 22 Land Cruiser 80 TOYOTA TVSS IIIB FOR DIESEL ENGINE MODELS Remove the battery : Nuts (4x) : Frame : Hook brackets (2x) : Negative battery terminal : Positive battery terminal Figure 30 FOR DIESEL ENGINE MODELS Remove the battery tray...

  • Page 23: Mounting The Siren

    Land Cruiser 80 TOYOTA TVSS IIIB MOUNTING THE SIREN a) Fit the mounting bracket to the siren bracket with bolt and nut b) Fit the siren bracket to the siren with the bolts (2x) and nuts (2x) temporarily. Figure 33...
  • Page 24 Land Cruiser 80 TOYOTA TVSS IIIB FOR DIESEL ENGINE MODELS a) Relocate the washer tank with the bolts (2x), the washers (2x) and bolt b) Locate the siren bracket to the tip of the bolts c) Secure the siren to the vehicle with the nuts (2x).

  • Page 25: Wire Harness (Engine) Installation

    Land Cruiser 80 TOYOTA TVSS IIIB WIRE HARNESS (ENGINE) INSTALLATION a) Locate the 6P connector (grey) in the brake booster area. b) Remove and discard the cap from the 6P connector Figure 38 Connect the fitting kit wire harness (engine)
  • Page 26 Land Cruiser 80 TOYOTA TVSS IIIB Lay and attach the fitting kit wire harness (engine) with the wire ties (3x). Figure 41 Lay and attach the fitting kit wire harness (engine) with the wire ties (2x). Figure 42 FOR PETROL ENGINE MODELS...
  • Page 27 Land Cruiser 80 TOYOTA TVSS IIIB FOR DIESEL ENGINE MODELS a) Connect the fitting kit wire harness (engine) 6P female connector (grey) to the siren 6P male connector (gey). b) Secure the fitting kit wire harness (engine) ground terminal with the...

  • Page 28: Mounting The Hood Switch

    Land Cruiser 80 TOYOTA TVSS IIIB MOUNTING THE HOOD SWITCH Fit the hood switch bracket to the vehi- cle with the bolt Figure 46 Fit the hood switch to the hood switch bracket Figure 47 Connect the fitting kit wire harness (engine)

  • Page 29: Setting The Tvss Ecu Dip Switches And Testing The System

    Land Cruiser 80 TOYOTA TVSS IIIB SETTING THE TVSS ECU DIP SWITCHES AND TESTING THE SYSTEM a) Set the dip switches of the TVSS ECU as shown. b) Test the system as explained in the SETTING GUIDE. Figure 49 Land Cruiser 80 (RHD) - 29...

  • Page 30: Mounting The Tvss Ecu

    Land Cruiser 80 TOYOTA TVSS IIIB MOUNTING THE TVSS ECU a) Wrap the fitting kit wire harness along the 26P connector (grey) in the foam b) Fit the protective bracket to the TVSS ECU with the screw the blind rivet (For details of how to use the blind rivet see next figure).
  • Page 31 Land Cruiser 80 TOYOTA TVSS IIIB a) Put the wire ties (2x) around the rear heater duct b) Put the TVSS ECU on to the rear heater duct Figure 53 Secure the TVSS ECU to the rear heater duct with the wire ties (2x).

  • Page 32: Mounting The Glass Breakage Sensor

    Land Cruiser 80 TOYOTA TVSS IIIB MOUNTING THE GLASS BREAKAGE SENSOR Remove the accessory tray and bracket from the console compartment : Screw : Screw (3x) Figure 55 Route the fitting kit wire harness (main) 2P connector (white) in the console...
  • Page 33 Land Cruiser 80 TOYOTA TVSS IIIB Attach the glass breakage sensor to the console compartment so that the sensor is located under the accessory tray points to an angle of 45 degrees from top as shown. 45° Figure 58 a) Attach the fitting kit wire harness (main)

  • Page 34: Attaching The Stickers

    Land Cruiser 80 TOYOTA TVSS IIIB Refit the console compartment and bun- dle up the excessive part of the fitting kit wire harness (main) into it. Figure 61 ATTACHING THE STICKERS Attach the stickers to both front door windows. 90 mm...
  • Page 35 GENUINE PARTS...
