ParaBody GS4 User Manual page 21

3/8 X 3-3/4" 6

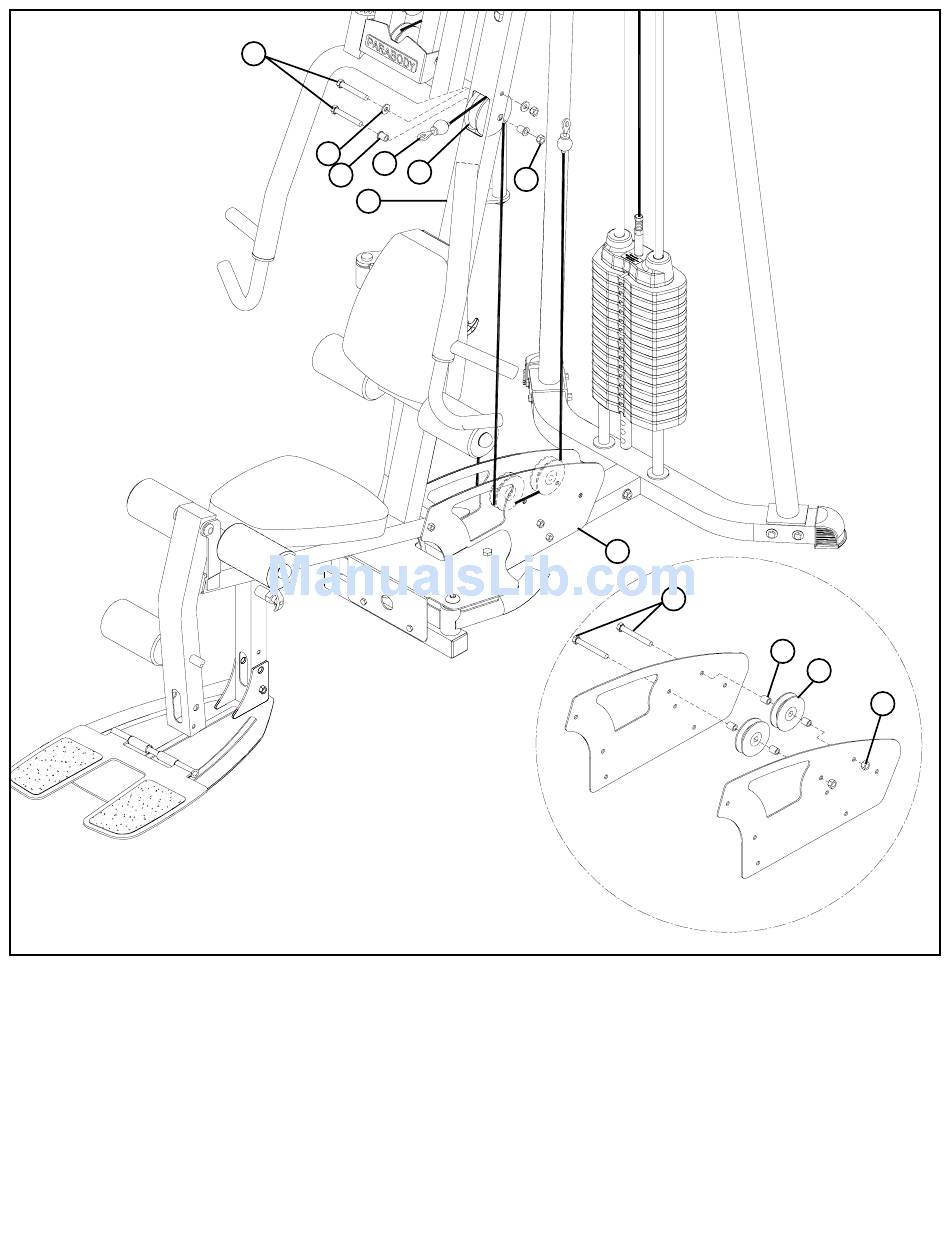

FIGURE 20
STEP 20:
• Route the large ball end of the LOW CABLE (AN) around one V- PULLEY (37) and assemble the PULLEY to the FRAME (A) using
two 3/8 X 3-3/4" BOLTS (6), two19/32" FLANGE SPACERS (28), two 3/8" WASHERS (18) and two 3/8" LOCK NUTS (19) as shown
in FIGURE 20.
• Route the small ball end of the LOW CABLE (AN) throught the BASE PLATES (C) and assemble two 3-1/2" PULLEYS (35) to the
BASE PLATES (C) using two 3/8 X 3-3/4" BOLTS (6), four 1" SPACERS (24) and two 3/8" LOCK NUTS (19). See FIGURE 20.
18
AN
37
28
A
21
19
C
6 3/8 X 3-3/4"
24
35
19
