ParaBody GS4 User Manual page 19

3/8 X 3-1/4" 7
O
35
*
P
19

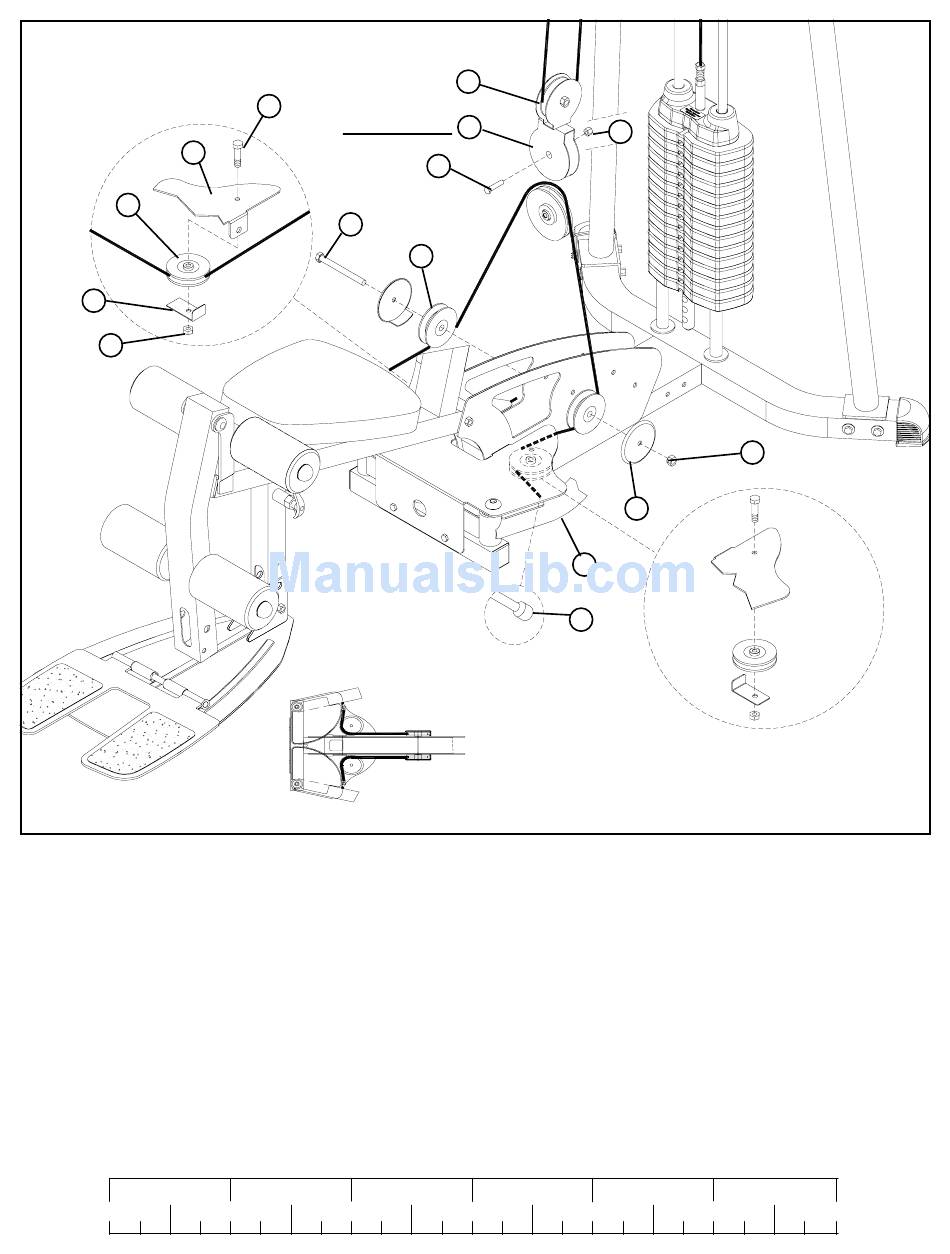

FIGURE 18
STEP 18:
• Securely assemble the PEC FLY CABLE (AP) to the RIGHT PEC ARM (6) as shown in FIGURE 18.
• Assemble one 3-1/2" PULLEY (35) to the PEC PLATE (O) using one 3/8 X 3-1/4" BOLT (7), one "L" CABLE RETAINER (P) and one
3/8" LOCK NUT (19). See FIGURE 18.(Note: Loop the PEC FLY CABLE (43) around the PULLEY prior to assembling the PULLEY
to the PEC PLATE.)
• Assemble two 3-1/2" PULLEYS (35) to the BASE PLATES (C) using one 3/8 X 5-3/4" BOLT (4), two PULLEY GUARD (Q)
and one 3/8" LOCK NUT (19). See FIGURE 18.(Note: Loop the PEC FLY CABLE (AP) around the PULLEY prior to assembling the
PULLEY to the PEC PLATE.)
• Route the PEC FLY CABLE (AP) around one 4-1/2" PULLEY (36) and assemble the 4-1/2" PULLEY (36) to the DOUBLE FLOATING
PULLEY BRACKET (AA) using one 3/8 X 1-3/4" BOLT (11) and one 3/8" LOCK NUT (19). See FIGURE 18.
• Assemble one 3-1/2" PULLEY (35) to the PEC PLATE (O) using one 3/8 X 3-1/4" BOLT (7), one "L" CABLE RETAINER (P) and one
3/8" LOCK NUT (19). See FIGURE 18.(Note: Loop the PEC FLY CABLE (AP) around the PULLEY prior to assembling the PULLEY
to the PEC PLATE.)
• Securely assemble the PEC FLY CABLE (AP) to the LEFT PEC ARM (G) as shown in FIGURE 18.
1/2
0
4-1/2" PULLEY
3/8 X 1-3/4" 11
4 3/8 X 5-3/4"
TOP-VIEW
1/2 1/2
1 2
AA
36
35
G
AP
*
NOTE: MAKE SURE "L" CABLE RETAINERS (P)
AND PULLEY GUARDS (Q) ARE ORIENTATED
SO THAT THE CABLE WILL NOT RUB
WHEN TIGHTENED.
1/2
3 4
19
19
19
*
Q
1/2 1/2
5
6
