ParaBody GS4 User Manual page 16

3/8 X 8" 3
6 3/8 X 3-3/4"
D
24

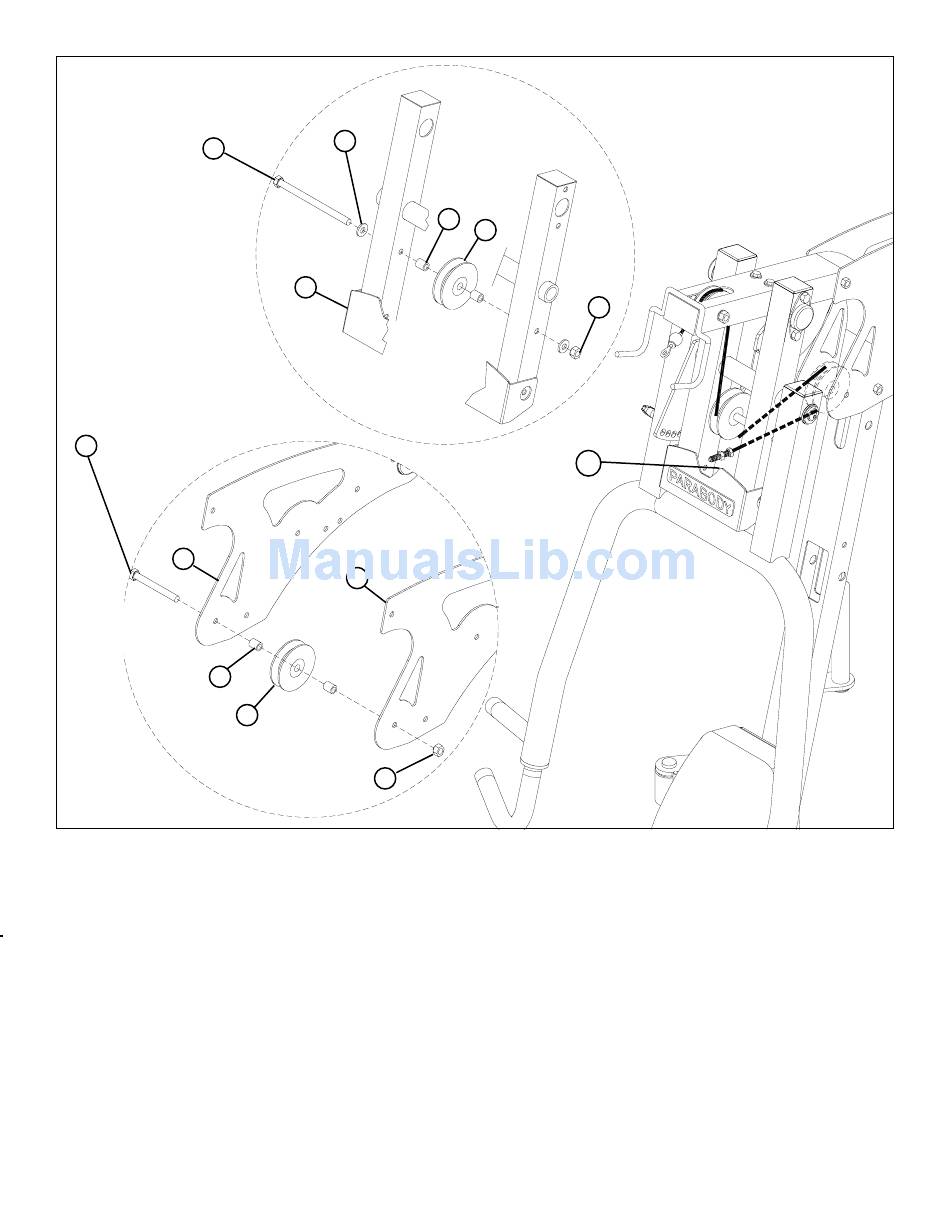

FIGURE 15
STEP 15:
• Route the LAT CABLE (AM) through the PRESS ARM SUPPORT FRAME (X) and assemble one 3-1/2" PULLEY (35) to the FRAME
PRESS ARM SUPPORT FRAME (X) using one 3/8 X 8" BOLT (3), two 3/8" WASHERS (18), two 3/8 X 1-1/4" SPACERS (25) and one
3/8" LOCK NUT (19). See FIGURE 15.
• Route the LAT CABLE (AM) around one 3-1/2" PULLEY (35) and assemble the PULLEY to the LEFT (D) and RIGHT (E) BOOM
PLATES using one 3/8 X 3-3/4" BOLT (6), two 3/8 X 15/16" SPACERS (24) and one 3/8" LOCK NUT (19). See FIGURE 15. (NOTE:
Make sure the cable runs in the grooves of the pulleys.)
18
X
E
35
19
25
35
19
AM
16
