ParaBody GS4 User Manual page 14

3/8 X 3/4"
ALLEN SCREW

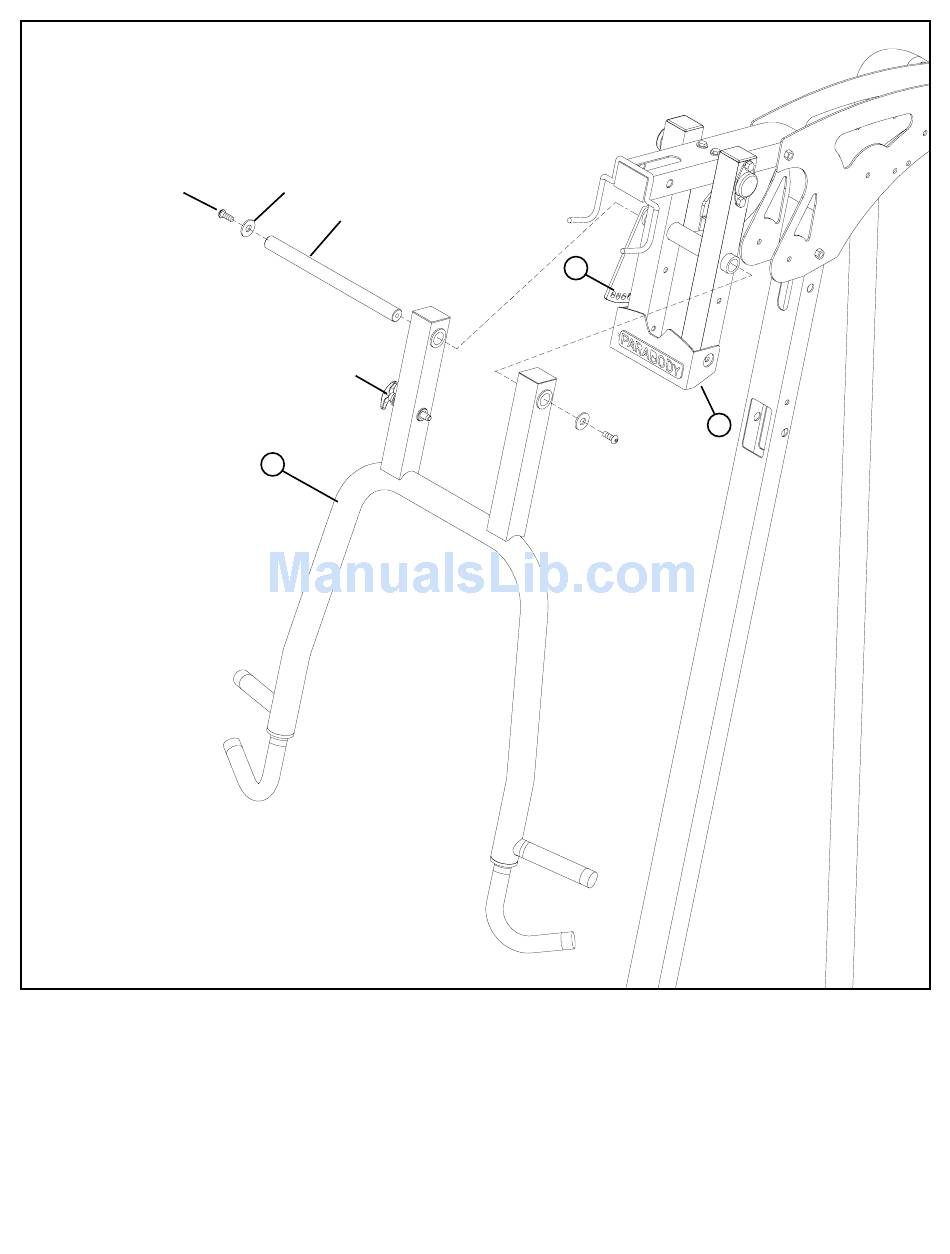

FIGURE 13
STEP 13:
• Disassemble the PRESS ARM PIVOT SHAFT from the PRESS ARM (H) by removing the two 3/8 X 3/4" ALLEN SCREWS and two
3/8" LOCK WASHERS as shown in FIGURE 13.
• Insert the PRESS ARM PIVOT SHAFT thru the PRESS ARM (H) and the PRESS ARM SUPPORT FRAME (X) and the resassemble the
3/8 X 3/4" ALLEN SCREWS and 3/8" LOCK WASHERS to the PRESS ARM PIVOT SHAFT as shown in FIGURE 13. (Note: Tighten
this connection enough to remove excess play yet allow the PRESS ARM to rotate freely.)
• Pull back on the SPRING PIN and rotate the PRESS ARM (H) until the SPRING PIN connects with the ROM PLATE (Y)
3/8" LOCK WASHER
PRESS ARM PIVOT SHAFT
SPRING PIN
H
Y
14
X
