ParaBody GS4 User Manual page 12

5/16 X 1" 38
ALLEN SCREW
30

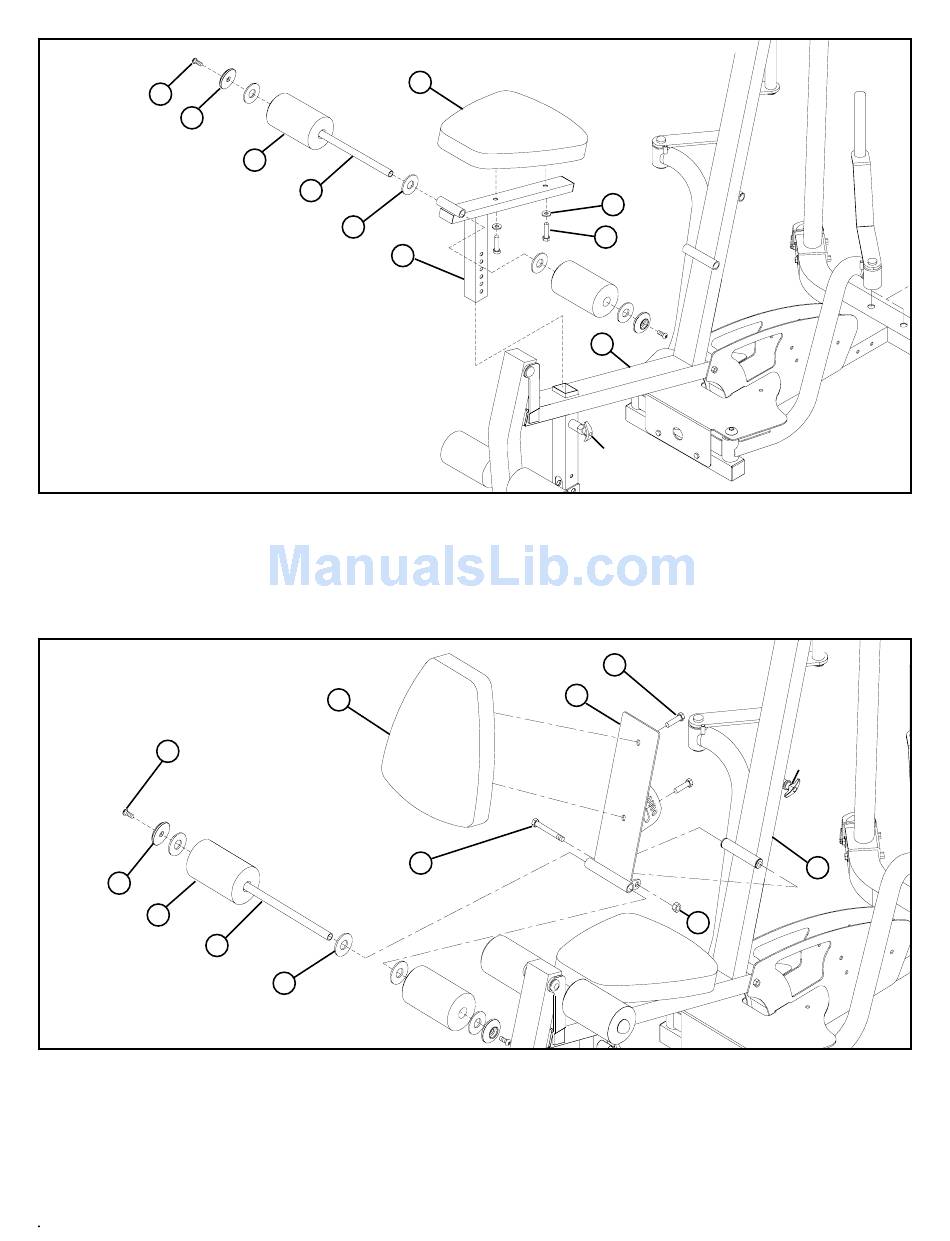

FIGURE 10
STEP 10:
• SECURELY assemble one SEAT/BACK PAD (AI) to the SEAT ADJUST (J) using two 3/8 X 2" BOLTS (10) and two 3/8" WASHERS (18).
• Assemble two ROLLER PADS (AJ) to the SEAT ADJUST (J) using one 3/4 X 18-1/8" TUBE (U), four PLASTIC WASHERS (33)
two ROLLER PAD CAPS (30) and two 5/16 X 1" ALLEN SCREWS (38) as shown in FIGURE 10.
• CAREFULLY insert the SEAT ADJUST ASSEMBLY into the FRAME (A) as shown. The SEAT height can be adjusted using the
PLUNGER PIN.
38 5/16 X 1"
ALLEN SCREW
30
AJ
V
FIGURE 11
STEP 11:
• SECURELY assemble one SEAT/BACK PAD (AI) to the BACK INCLINE ADJUST (W) using two 3/8 X 1-1/4" BOLTS (12).
• SECURELY assemble the BACK INCLINE ADJUST (W) to the FRAME (A) using one 1/2 X 5-3/4" BOLT (1) and one 1/2" LOCK NUT
(20). The BACK PAD angle can be adjusted using the PLUNGER. (Note: Tighten this connection enough to remove excess play yet
allow the BACK INCLINE ADJUST to rotate freely.)
• Assemble two ROLLER PADS (AJ) to the BACK INCLINE ADJUST (W) using one 3/4 X 20-3/8" TUBE (V), four PLASTIC
WASHERS (33) two ROLLER PAD CAPS (30) and two 5/16 X 1" ALLEN SCREWS (38) as shown in FIGURE 11.
AI
AJ
U
33
J
AI
1/2 X 5-3/4" 1
33
18
10 3/8 X 2"
A
PLUNGER
PIN
3/8 X 1-1/4" 12
W
12
PLUNGER
PIN
A
20
