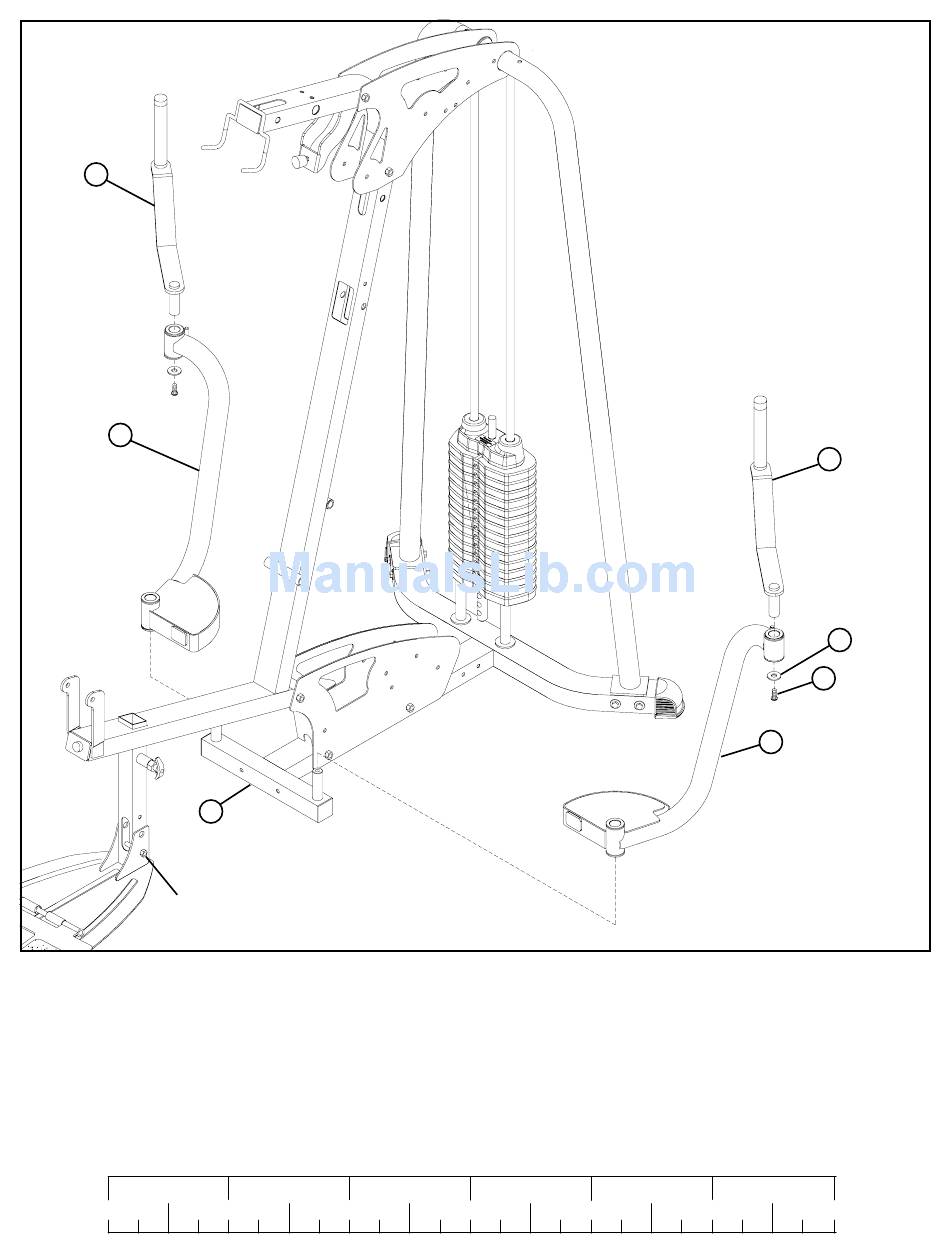

FIGURE 7
I
G
DO NOT TIGHTEN YET
STEP 7:
• Securely tighten all frame connections except the FOOTPLATE/FRAME connection as noted in FIGURE 7.
• Slide the LEFT (F) and RIGHT (G) PEC FLY ARMS over the BASE (B) as shown in FIGURE 7.
• SECURELY assemble the PEC FLY HANDLES (I) to the LEFT (F) and RIGHT (G) PEC FLY ARMS using two 1/2 X 3/4" BUTTON
HEAD BOLTS (15), and two 1/2" WASHERS (17) as shown in FIGURE 7.
1/2
0
B
1/2
1 2
1/2 1/2
3
10
1/2 1/2
4 5
I
17
15 1/2 X 3/4"
BUTTON HEAD
F
6
