USER MANUAL

Elo Touch Solutions

1523L and 1723L

Touchmonitors

SW601951 Rev B

Table of Contents

Need help?

Do you have a question about the 1523L and is the answer not in the manual?

Questions and answers

Summary of Contents for Elo Touch Solutions 1523L

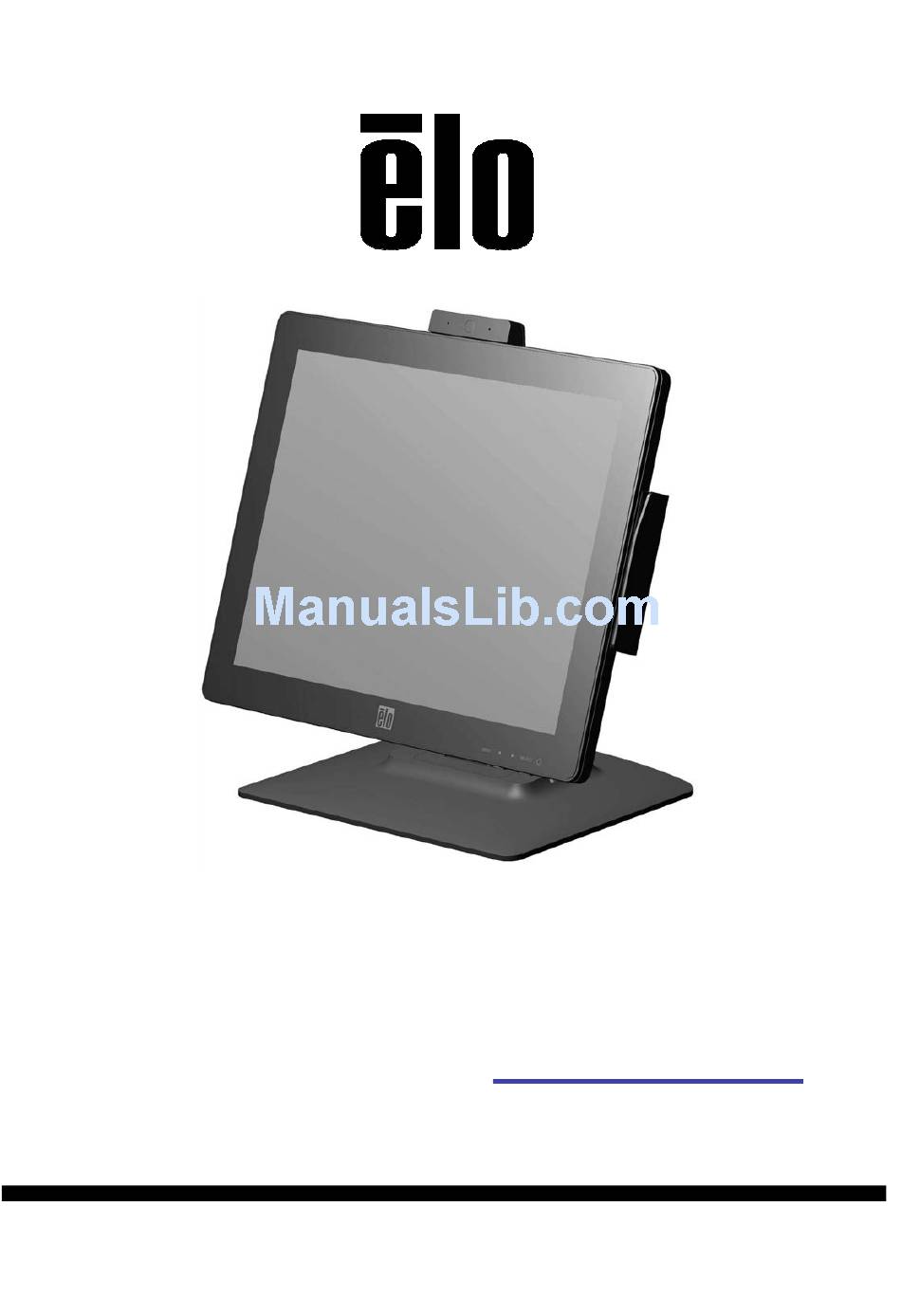

Page 1 USER MANUAL Elo Touch Solutions 1523L and 1723L Touchmonitors SW601951 Rev B...
Page 2 Elo Touch Solutions, Inc. Disclaimer The information in this document is subject to change without notice. Elo Touch Solutions, Inc. and its Affiliates (collectively "Elo") makes no representations or warranties with respect to the contents herein, and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose.
Page 3: Table Of Contents
.....................5 Chapter 3: Mounting ....................9 Chapter 4: Operation ..................... 12 Chapter 5: Technical Support ................17 Chapter 6: Safety & Maintenance ..............19 Chapter 7: Regulatory Information ..............21 User Manual: 1523L, 1723L SW601951 Rev B, Page 3 of 26...
Page 4: Chapter 1: Introduction
Chapter 1: Introduction Product Description Your new touchmonitor combines the reliable performance of Elo Touch Solutions touch products with the latest developments in touch technology and display design. This combination of features creates a natural flow of information between the user and the touchmonitor.
Page 5: Chapter 2: Installation
• Quick Install Guide • VGA cable • DVI cable • USB cable • Audio cable • AC-DC power adaptor • North American power cable • European power cable User Manual: 1523L, 1723L SW601951 Rev B, Page 5 of 26...
Page 6 The stand of the touchmonitor can be converted between two positions: the low profile “hostess” position and the high profile “upright” position. The touchmonitor ships in the low profile “hostess” position. Low profile (“hostess”) position User Manual: 1523L, 1723L SW601951 Rev B, Page 6 of 26...
Page 7 To convert the stand into the low profile “hostess” position, secure the thumbscrews into the low or “L” screw-holes in the bottom of the base. Connector Panel & Interfaces User Manual: 1523L, 1723L SW601951 Rev B, Page 7 of 26...
Page 8 6. Enter you email address, Click on “Next Step”. Your driver download will start automatically. 7. If you are a new user, fill in the required information and Click on “Register”. Your driver download will start automatically. User Manual: 1523L, 1723L SW601951 Rev B, Page 8 of 26...
Page 9: Chapter 3: Mounting
For the 15-inch touchmonitor, a four-hole 75x75mm mounting pattern for M4 screws is provided on the rear of the monitor. Remove the stand using a Phillips screwdriver to access this mounting interface. The VESA FDMI-compliant counting is coded: VESA MIS-B, 75, C. User Manual: 1523L, 1723L SW601951 Rev B, Page 9 of 26...
Page 10 For the 17-inch touchmonitor, a four-hole 75x75mm mounting pattern for M4 screws is provided on the rear of the monitor. Remove the stand using a Phillips screwdriver to access this mounting interface. The VESA FDMI-compliant counting is coded: VESA MIS-B, 75, C. User Manual: 1523L, 1723L SW601951 Rev B, Page 10 of 26...
Page 11 For the 17 inch touchmonitor, a threaded three-hole mounting pattern for M4 screws is provided on the bottom of stand base for mounting or securing. User Manual: 1523L, 1723L SW601951 Rev B, Page 11 of 26...
Page 12: Chapter 4: Operation
When connected to Windows 7 computers, the touchmonitor can report 2 simultaneous touches. When connected to Windows XP computers, the touchmonitor reports single touches. The iTouch Plus touchscreen can be re-calibrated to your displayed video image, if User Manual: 1523L, 1723L SW601951 Rev B, Page 12 of 26...
Page 13: Gesture Support
1024 x 768 for the 15-inch, and 1280 x 1024 for the 17-inch. User Manual: 1523L, 1723L SW601951 Rev B, Page 13 of 26...
Page 14 Increase value of selected parameter / Display OSD Contrast submenu select next menu item Select parameter for adjustment / Select Auto Adjust select submenu to enter User Manual: 1523L, 1723L SW601951 Rev B, Page 14 of 26...
Page 15 Adjusts how long a period of OSD button inactivity the touchmonitor will wait before OSD Timeout closing the OSD. The adjustable range is between 5 and 60 seconds. Default: 15 seconds User Manual: 1523L, 1723L SW601951 Rev B, Page 15 of 26...
Page 16 Press and hold the “Menu” and “Down” buttons for two seconds to enable/disable the Power Locking feature. When the Power Locking is enabled, pressing the power switch will have no effect on the system. User Manual: 1523L, 1723L SW601951 Rev B, Page 16 of 26...
Page 17: Chapter 5: Technical Support
Chapter 5: Technical Support If you are experiencing trouble with your touchmonitor, refer to the following suggestions. If the problem persists, please contact your local dealer or contact Elo Touch Solutions Customer Service. Solutions to Common Problems Problem Suggested Troubleshooting...
Page 18: Chapter 6: Safety & Maintenance
To clean the touchscreen, use window or glass cleaner applied to a clean cloth or sponge. Never apply the cleaner directly to the touchscreen. Do not use alcohol (methyl, ethyl or isopropyl), thinner, benzene, or other abrasive cleaners. User Manual: 1523L, 1723L SW601951 Rev B, Page 19 of 26...
Page 19 Waste Electrical & Electronic Equipment Directive (WEEE) This product should not be disposed of with household waste. It should be deposited at a facility that enables recovery and recycling. User Manual: 1523L, 1723L SW601951 Rev B, Page 20 of 26...
Page 20: Chapter 7: Regulatory Information
This Information Technology Equipment (ITE) is required to have a CE Mark on the Manufacturer’s label which means that the equipment has been tested to the following Directives and Standards: This equipment has been tested to the requirements for the CE Mark User Manual: 1523L, 1723L SW601951 Rev B, Page 21 of 26...
Page 21 (Removing or cutting the line cord ground may in crease RF emission levels and may also present a lethal shock hazard to the user.) If you need additional help, consult your dealer, manufacturer, or an experienced radio or television technician. User Manual: 1523L, 1723L SW601951 Rev B, Page 22 of 26...
Page 22 X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this component is above the limit requirement in SJ/T11363- 2006. For items marked with X, exemptions were taken according to EU RoHS. User Manual: 1523L, 1723L SW601951 Rev B, Page 23 of 26...
Page 23 Operating Conditions: Temperature: 0°C - 40°C Humidity: 20% to 80% (non-condensing) Altitude: 0 to 3,048m Storage Conditions: Temperature: -20°C - 60°C Humidity: 10% to 90% (non-condensing) Altitude: 0 to 12,192m User Manual: 1523L, 1723L SW601951 Rev B, Page 24 of 26...
