Your Mini-Rooter XP is designed to
give you years of trouble-free, profitable
service. However, no machine is better
than its operator.
Read, understand and follow all safety
warnings and instructions provided with
the product. Failure to follow the warnings
and instructions may result in electric
shock and/or serious injury. Save all warn-
ings and instructions for future reference.
SAVE THESE INSTRUCTIONS!

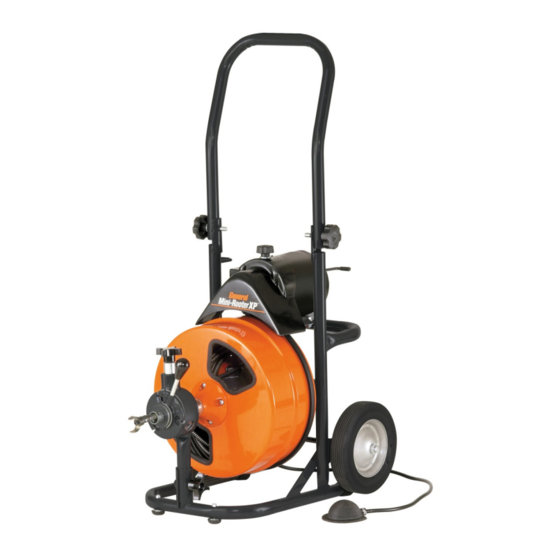

Mini-Rooter XP
Operating Instructions
For 1-1/4" through 4" lines
(30mm—100mm)
™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mini-Rooter XP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for General Pipe Cleaners Mini-Rooter XP

Summary of Contents for General Pipe Cleaners Mini-Rooter XP

  • Page 1 ™ Mini-Rooter XP Operating Instructions For 1-1/4” through 4” lines (30mm—100mm) Your Mini-Rooter XP is designed to give you years of trouble-free, profitable service. However, no machine is better than its operator. Read, understand and follow all safety warnings and instructions provided with the product.

  • Page 2: Safety Symbols

    Only wear leather gloves. Never use any other type of procedures for the Mini-Rooter XP. glove, such as cloth, rubber, or coated gloves. Never grasp a rotating cable with rag. These...

  • Page 3: General Safety Rules

    Mini-Rooter XP™ GENERAL SAFETY RULES Personal Safety Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use tool while tired or WARNING under the influence of drugs, alcohol, or medication. A mo- Read and understand all instructions.

  • Page 4: Specific Safety Rules

    Mini-Rooter XP™ SPECIFIC SAFETY RULES Ground Fault Circuit Interrupter (GFCI) Your machine is equipped with a ground fault circuit interrupter, which protects you against shock if a short circuit should occur. Check that This is the safety alert symbol. It is used to alert receptacle is properly grounded.

  • Page 5: Operating Instructions

    Place machine within ap- proximately two feet (.6m) of Feed Motor Switch drain opening. Be sure the Pressure Mini-Rooter XP Guide Tube Knob (XP-GT) is in place. If you V-Belt can’t place the machine this Feed Control close to the drain opening,...

  • Page 6: Special Operations

    Mini-Rooter XP™ Move the motor switch to the forward position. Then with a 10. Be careful not to let the cutter get caught in the stoppage as you gloved hand on the guide tube, depress the air foot pedal to start work through it.
  • Page 7 Mini-Rooter XP™ When working through difficult stoppages or tight bends, tighten HOW TO REMOVE DRUM FROM MACHINE the chuck to provide more torque and to prevent the cable from tangling in the drum. DISCONNECT MACHINE FROM POWER SOURCE BE- FORE INSTALLING CABLES OR DRUMS! Clean and lubricate chuck regularly to prevent corrosion.

  • Page 8: Maintenance

    Mini-Rooter XP™ MAINTENANCE The Feed Roller Axle should then be inserted through the same un-threaded Axle hole and should continue to be guided through the Spacers and Bearings to the threaded Axle hole on the other DISCONNECT MACHINE FROM POWER SOURCE BE- side of the Carrier.
  • Page 9 Mini-Rooter XP™ TROUBLE SHOOTING GUIDE (Table 3) Problem Probable Cause Solution Cable kinks or breaks. Operator forcing the cable. Do not force the cable. Let the cutter do the work. Too much slack between machine and Allow no more than two feet between machine and drain.
  • Page 10 Mini-Rooter XP™ MINI-ROOTER XP PARTS LIST CAT. NO. DESCRIPTION CAT. NO. DESCRIPTION XP-100-2 Complete Frame Assembly XP-306 V-Belt (45") XP-100-R Complete Frame Assembly XP-307 Belt Guard XP-101-2 Frame Only XP-308 Air Switch & Reverse Switch Assembly XP-101-R Frame Only XP-308-R Air Switch &...
  • Page 11 Mini-Rooter XP™...
  • Page 12 Mini-Rooter XP™ General Wire Spring Co, 1101 Thompson Avenue McKees Rocks, PA 15136 412-771-6300 www.drainbrain.com © General Wire Spring Co. 2010 C-XPOI-0510...
