X‐PIN & X‐PROX
Install Guide
MODES OF OPERATION
Normal Mode (Default)
• Mode indicator is green.
In normal mode, the door is locked until a valid primary code is presented to the controller. The controller can
only be programmed in normal mode.
Secure Mode
• Mode indicator is red.
Only secure and master users can access the premises in secure mode.
USER LEVELS
The X‐PIN & X‐PROX Access Control units accept up to 500 users and provide entry via the use of codes or cards.
Normal User ‐ A normal user only has a primary code and is granted access only when the controller is in its nor‐
mal or bypass mode
Secure User ‐ A secure user must have a primary and secondary code assigned, and the two codes must not be
the same. (please see User Manual for more information)
www.sensoraccess.co.uk

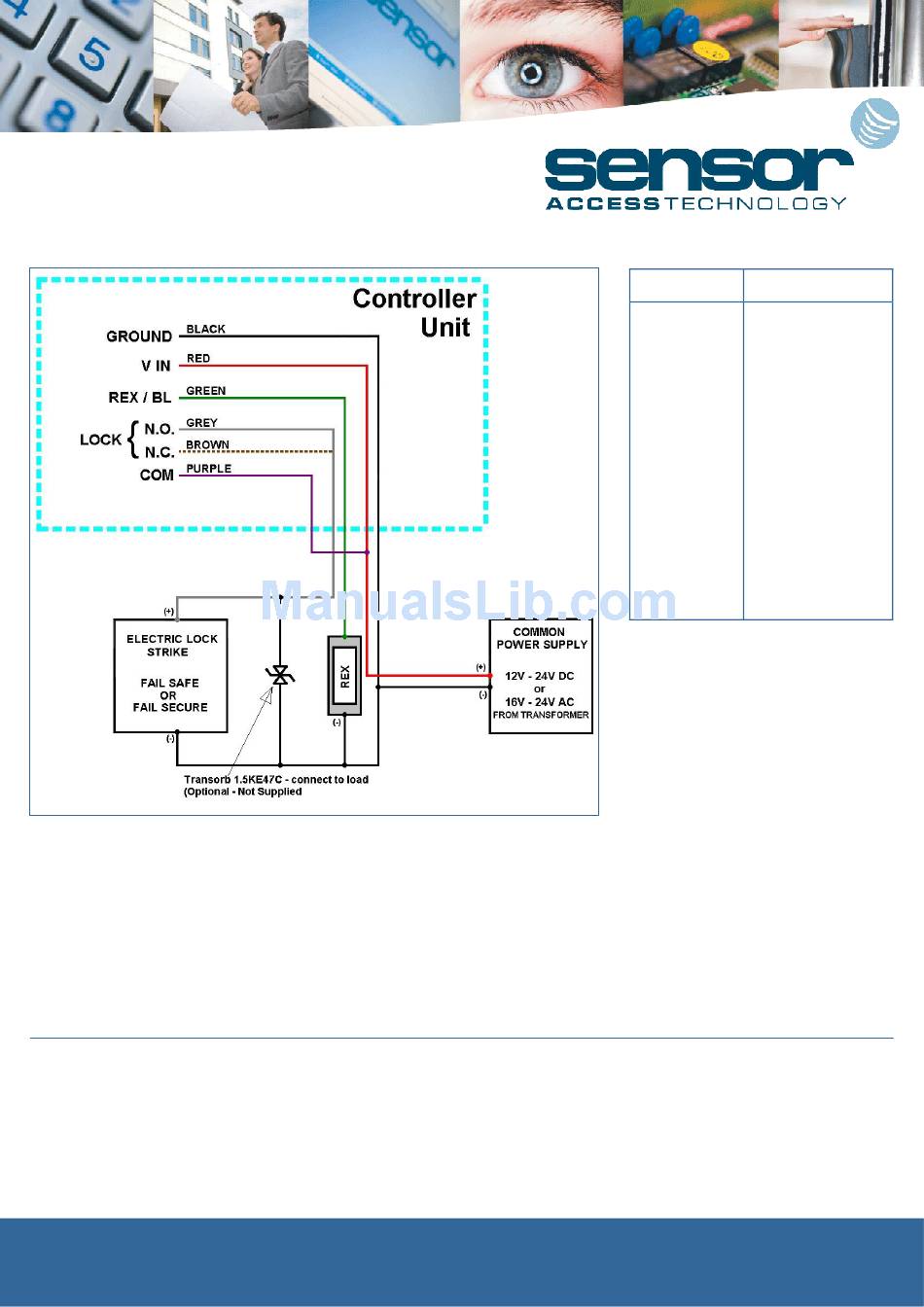

Colour Description
Red V Input
Black Ground
Green REX/BL
White In/Monitor
Purple Lock : Com
Grey Lock : N.O.
Brown Lock : N.C.
Blue Aux : Com
Yellow Aux : N.O.
Orange Aux : N.C.
