Page 1

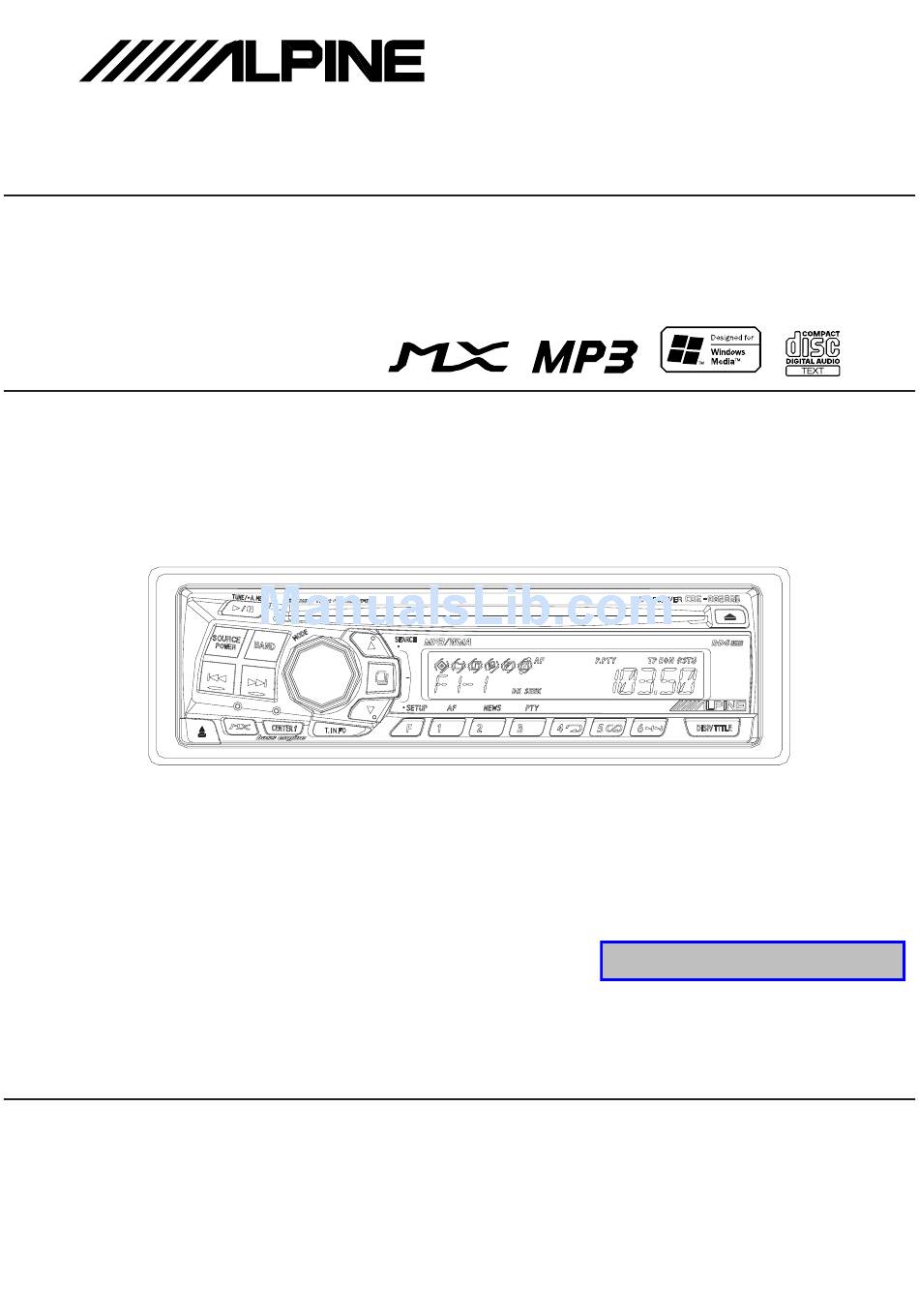

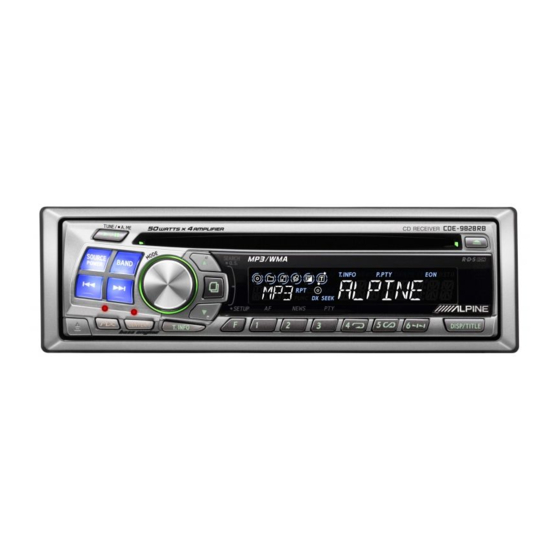

SERVICE MANUAL FM/MW/LW/RDS CD Receiver Q.S. (CDE-9828RB) TO ALPINE Home Page 3 / 04-A 68E36331S01 CDE-9828RB/CDE-9827R/ CDE-9827RM/CDE-9827RR...
Page 2
<Cautions for Safe Repair Work> The following cautions will prevent accidents in the workplace and will ensure safe products. *The symbols indicate caution is needed to prevent injuries and damage to property. The symbols and their meanings follow. If you ignore this symbol and handle the product incorrectly or unsafely, Warning serious injury or death may result.
Page 3
CDE-9828RB/CDE-9827R/ CDE-9827RM/CDE-9827RR Contents Packing Assembly Parts List Packing Method View Specifications 5 , 6 Extension Cable Adjustment Procedures 8 to 11 Block Diagram Parts Layout on P.W.Boards and Wiring Diagram 13 to 18 Schematic Diagram 19 to 26 Terminal Voltage of IC/ TR 27 to 34 Description of IC Terminal 35 to 39...
CDE-9828RB/CDE-9827R/ CDE-9827RM/CDE-9827RR Extension Cable * When repairing or measuring the voltage of this unit, connect with the Extension Cable as shown in below. TO CONTENTS - 7 -...
Page 9
CDE-9828RB/CDE-9827R/ CDE-9827RM/CDE-9827RR (3) Control Settings Power Switch ..........ON Band Switch ......FM/MW/LW Fader Control ......Center Position MX ..........Non Effect Balance Control ....... Center Position Others ........... OFF (4) Adjustment Procedures Test Point / Connectio Step Description Signal Generator Dial Control P .W.Board Adjustment...
Page 10
CDE-9828RB/CDE-9827R/ CDE-9827RM/CDE-9827RR Test Point / Step Description Connection Signal Generator Dial Control P .W.Board Adjustment Coordinates TP002 Auto Adjustment : 216kHz , (3-F) After setting up of Signal Genarator, 34dBµ 216kHz TP511 short GND and TP511 (Pull-Down) (Mod. OFF) (3-B) for 2~3 seconds.
Page 11
CDE-9828RB/CDE-9827R/ CDE-9827RM/CDE-9827RR Test Point / Step Description Connection Signal Generator Dial Control P .W.Board Adjustment Coordinates Set up of Adjustment Mode : — — — Push SOURCE/POWER + UP at the same time. 98.1MHz, Rotary encoder is turned and noise level Noise Level Audio Output Figure 6...
Page 29
CDE-9828RB/CDE-9827R/ CDE-9827RM/CDE-9827RR Description of IC Terminal M30626FHPGP : IC501 Symbol Terminal Description No connect terminal. REMOCON DATA Remote control input terminal. No connect terminal. GND(BYTE) GND terminal. GND(CNVss) 32.768kHz(NC) No connect terminal. RESET System RESET input terminal. 6MHz Crystal OSC connect terminal for main system clock OSC. GND terminal.
Page 30
CDE-9828RB/CDE-9827R/ CDE-9827RM/CDE-9827RR Symbol Terminal Description POWER CONT Power supply control signal output terminal for AUDIO/lighting. FM/AM TUNER (FM/AM) power supply control signal output terminal. (H:FM, L:AM) A-MUTE A-MUTE signal output terminal. IN INT Outernal interrupt signal input terminal. (at interrupt:H) P-ANT Outernal PWR ANT control signal output terminal.
Page 31
CDE-9828RB/CDE-9827R/ CDE-9827RM/CDE-9827RR TMS320DA150PGE160 : IC101 Symbol Terminal Description CVSS GND connect terminal. External program address terminal. CVSS GND connect terminal. DVDD Power supply terminal. (+3.3V) External program address terminal. Load-Motor2 LOAD motor control terminal. External program address terminal. CVDD Power supply terminal. (+1.6V) HAS(PULL-DOWN) Pull-down connect terminal.
Page 32
CDE-9828RB/CDE-9827R/ CDE-9827RM/CDE-9827RR Symbol Terminal Description SSEL BCLK output signal terminal. PF-BUS2 communication SCK signal terminal. CVSS GND connect terminal. (+1.6V) HINT(PULL-DOWN) Pull-down connect terminal. CVDD Power supply terminal. (+1.6V) MSEL LRCLK output signal terminal. (LR polarity, SMCK fixation) EPF-BUS2 communication CS signal terminal. HRDY(PULL-DOWN) Pull-down connect terminal.
Page 33
CDE-9828RB/CDE-9827R/ CDE-9827RM/CDE-9827RR Symbol Terminal Description X1(NC) No connect terminal. Clock connect terminal. DSP RESET EPF-BUS2 communication RESET signal terminal. I/O External program data terminal. External program address terminal. DVSS GND connect terminal. External program address terminal. CVSS GND connect terminal. DVDD Power supply terminal.
Page 34
CDE-9828RB/CDE-9827R/ Exploded View (Cabinet) CDE-9827RM/CDE-9827RR RCA302 ANT001 CB802 JK302 CH401 SW421 JK581 M800 CB501 LCD401 SW501 TO PARTS LIST TO CONTENTS - 40 -...
Page 35
CDE-9828RB/CDE-9827R/ Exploded View (CD Deck Mechanism) CDE-9827RM/CDE-9827RR (DP23S27R) TO PARTS LIST TO CONTENTS - 41 -...
CDE-9828RB/CDE-9827R/ CDE-9827RM/CDE-9827RR Electrical Parts List * Each parts on P.W.Board are described in order of the reference number. NOTE : #1 : For CDE-9828RB Model Only, $1 : For CDE-9827R Model Only, %1 : For CDE-9827RM Model Only, &1 : For CDE-9827RR Model Only, Others : Common.
CDE-9828RB/CDE-9827R/ CDE-9827RM/CDE-9827RR Cabinet Assembly Parts List NOTE : The part that has not PART NUMBER will not be supplied. #1 : For CDE-9828RB Model Only, $1 : For CDE-9827R Model Only, %1 : For CDE-9827RM Model Only, &1 : For CDE-9827RR Model Only, Others : Common.
Page 58
CDE-9828RB/CDE-9827R/ CDE-9827RM/CDE-9827RR CD Deck Mechanism Assembly Parts List NOTE : The part that has not PART NUMBER will not be supplied. 01V31800Y79 ASSY,ARM GUIDE 27C11557Y02 CHASSIS,TOP 45B11564Y02 LEVER,LINK-TOP 45B11595Y02 LEVER DISC(R) 45B11596Y02 LEVER,DISC(L) 41B11613Y16 SPRING,PULL 15D50248Y02 GUIDE,TOP-DPS2 07C50608Y01 BKT,MOTOR LOAD-P 03S40014G07 SCR,MCH M2X4 44B11578Y02...
