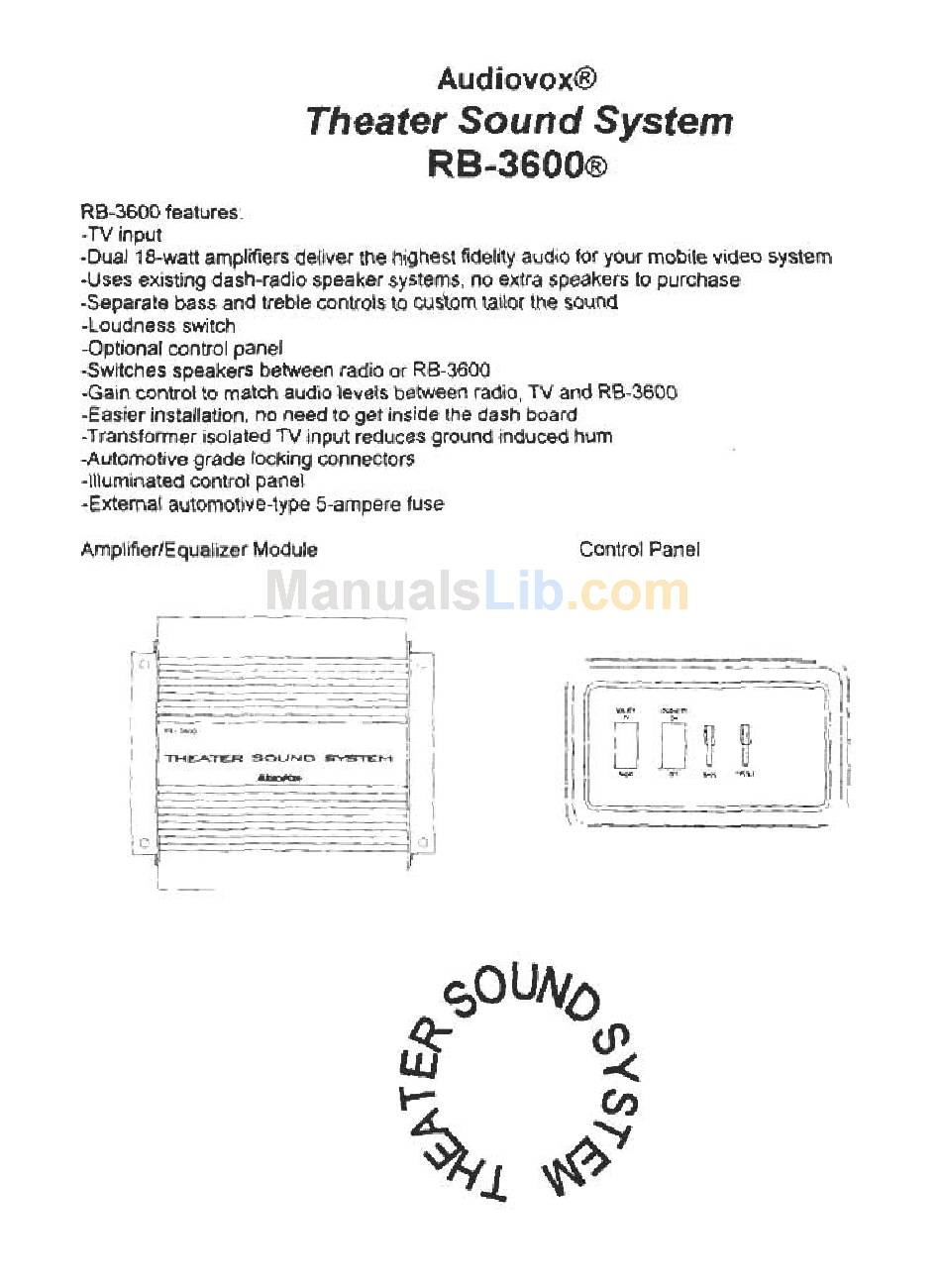

Audiovox@
Theater
Sound
System
RB-3600@
RB-3600 features:
-TV input
-Dual 18-watt amplifiers deliver the highest fidelity audio for your mobile video system
-Uses existing dash-radio speaker systems, no extra speakers to purchase
.Separate bass and treble controls to custom tailor the sound
-Loudness switch
-Optional control panel
-Switches speakers between radio or RB-3600
-Gain control to match audio levels between radio, TV and RB-3600
-Easier installation. no need to get inside the dash board
-Transformer isolated TV input reduces ground induced hum
-Automotive grade locking connectors
-Illuminated control panel
-External automotive-type 5-ampere fuse
Amplifier/Equalizer Module
Control Panel
Advertisement
Related Manuals for Audiovox RB-3600
Summary of Contents for Audiovox RB-3600
- Page 1 -Gain control to match audio levels between radio, TV and RB-3600 -Easier installation. no need to get inside the dash board -Transformer isolated TV input reduces ground induced hum -Automotive grade locking connectors -Illuminated control panel -External automotive-type 5-ampere fuse Amplifier/Equalizer Module Audiovox@ Sound System RB-3600@ Control Panel...
-
Page 2: Before Installation
IMPORTANT: The Audiovox RB-3600 Theater Sound System has been carefully designed of trouble-free operation. instructions to s\mp\ify installation theater sound experience The RB-3600 uses the existing stock vehicle speakers video speakers are required. RB-3600 ties into the existing vehicle sound harness and with the bypass switch, directs the... -
Page 3: Installation And Wiring Instructions
Connect 12 'Jolt power to the RB-'3600 as follows: +12 volt power Ground Connect the Audiovox television external speaker output to the RB-3600 as follows: External speaker output External speaker output Unplug the audio output of the VCP. Connect the isolation transformer... - Page 4 O.6Ib. Weight 0.73 Kg Dimensions 6.44"W X 5.75..D x 1.63"H 16.36cm Output Power 23W @ 40 x 2 ( 46W total) THD= 10% 30W @ 2Q x 2 (60W total) THD~1 0% Distortion 0.023% EO boostlcut +1- 15dB, shelving-type Loudness boost +6dB boost Current Draw 485 mA triggered...
-
Page 6: Limited Warranty
Electronics, 2~~19 Cooper problem to assist the Service Technicians to quickly repair your product. AUDIOVOX CORPORA TION product that should this product or any part thereof, under normal use and service, be proven defective in material or workmanship defect(s) will be repaired or replaced (at the Company's labor.
