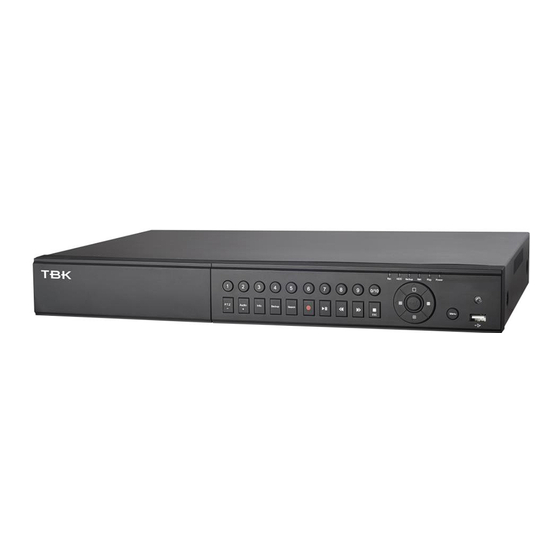

- Page 1 Network Video Recorder TBK VISION PLUS TBK-NVR5016P8 User manual v1.0 Please read this manual carefully for correct use of the product and preserve it for reference purposes www.tbkvision.com...
- Page 2 Notes Please read this user manual carefully to ensure that you can use the device correctly and safely. There may be several technically incorrect places or printing errors in this manual. The updates will be added into the new version of this manual.
-
Page 3: Table Of Contents
Contents Introduction ........................................ 3 1.1 NVR I ..................................3 NTRODUCTION 1.2 F ....................................3 EATURES Hardware Installation ....................................4 2.1 I ..................................4 NSTALL RIVE 2.2 F ................................4 RONT ANEL ESCRIPTIONS 2.3 R ................................5 ANEL NSTRUCTIONS 2.4 C ..................................... - Page 4 User Manual NVR TBK-NVR5016P8 TBK PLUS 6.3 A ....................................25 DVANCED 6.3.1 Reset ....................................25 6.3.2 Import/Export ................................. 25 6.3.3 Block/Allow List ................................26 Search, Playback & Backup ..................................27 7.1 T .................................... 27 EARCH 7.2 E ..................................27 VENT EARCH 7.3 F...
-
Page 5: Introduction
User Manual NVR TBK-NVR5016P8 TBK PLUS Introduction This manual applies to model NVR: TBK-NVR5016P8. 1.1 NVR Introduction This series of devices are standard 16 CH real-time 4MP/ 3MP/1080P/960P/720P/D1 high resolution NVR, which adopt the most advanced SOC technique to ensure high definition recording in each channel and realize outstanding robustness of the system. -
Page 6: Hardware Installation
User Manual NVR TBK-NVR5016P8 TBK PLUS Hardware Installation Check the unit and the accessories after getting the device. Please don’t power up the unit till the physical installation is complete. 2.1 Install Hard Drive Por favor use los HDD recomendados por la marca TBK. Asegúrese de quitar la alimentación antes de instalar el disco. -
Page 7: Rear Panel Instructions
User Manual NVR TBK-NVR5016P8 TBK PLUS Type Name Description 1. Decrease the value in setup 2. Enter backup mode in BACKUP/- live. Input number 0, 10, and the above number together with 0/10+ other digital keys. 1. Record manually 2. FOCUS function enables at PTZ Focus mode. -
Page 8: Remote Controller
User Manual NVR TBK-NVR5016P8 TBK PLUS Take 4 CH alarm inputs and 1 CH alarm output for example: Alarm Input: Alarm IN 1~4 are 4 CH alarm input interfaces. There are no type requirements for sensors. NO type and NC type are both available. -
Page 9: Connect With Mouse
User Manual NVR TBK-NVR5016P8 TBK PLUS The interface of remote controller is shown in Remote Controller. Record manually. Search To enter search mode. MEUN To enter menu. Exit To exit the current interface. ENTER To confirm the choice or setup. -
Page 10: Basic Operation
User Manual NVR TBK-NVR5016P8 TBK PLUS 3 Basic Operation 3.1 Startup and Shutdown Please make sure all the connections are done properly before you power on the unit. Proper startup and shutdown are crucial to expending the life of your device. -
Page 11: Live Playback
User Manual NVR TBK-NVR5016P8 TBK PLUS 3.4 Live playback Click Playback button to playback the record. Refer to Figure 3-3. You can do complete operation by clicking the buttons on screen. Fig 3-3 Live Playback www.tbkvision.com... -
Page 12: Add Ip Cameras
This chapter mainly introduces how to connect multiple IP cameras through NVR. Once you finish adding IP cameras, you can see the live images through the monitor of the NVR. The TBK-NVR5016P8 model supports up to 8 IP POE cameras connected directly to the switch POE included. You need to connect the source of 48VDC included with the NVR. - Page 13 User Manual NVR TBK-NVR5016P8 TBK PLUS Checkmark the searched devices and click “OK” button to return to the previous interface. Click “Apply” button and then the ③ added devices will be listed in the device management interface. “Connected” status means connecting the device successfully and you will see the live image.
-
Page 14: Main Menu Setup Guide
User Manual NVR TBK-NVR5016P8 TBK PLUS Main Menu Setup Guide Click right mouse or press ESC/Stop button on the front panel to display the main menu toolbar on the bottom of the screen. Refer to Fig 5-1: Fig 5-1 Main Menu Toolbar Click the icon beside the screen mode to display a channel select dialog. -
Page 15: Basic Configuration
User Manual NVR TBK-NVR5016P8 TBK PLUS 5.1 Basic configuration Basic configuration includes three sub menus: system, date & time and DST. 5.1.1 System ① Go to Main MenuSetupBasicSystem. Refer to Fig 5-3. Fig 5-3 Basic Configuration-System ② In this interface you can set up the device name, device ID, video format, max network user, VGA resolution and language. The... -
Page 16: Dst
User Manual NVR TBK-NVR5016P8 TBK PLUS 5.1.3 DST ① Go to Main MenuSetupBasicDST interface. Refer to Fig 5-5. Fig 5-5 Basic Configuration-DST ② In this interface, enable daylight saving time, time offset, mode, start & end month/ week/date, etc. Click “Apply” button to save the setting. -
Page 17: Main Monitor
User Manual NVR TBK-NVR5016P8 TBK PLUS 5.2.2 Main Monitor The main monitor settings allow you to set camera sequence in live display mode. Operate the following steps to set main monitor: ① Go to Main MenuSetupLiveMain Monitor interface. Refer to Fig 5-7. -
Page 18: Record Configuration
User Manual NVR TBK-NVR5016P8 TBK PLUS 5.3 Record Configuration Record configuration includes six sub menus: record, record bit rate, time, recycle record, stamp and snap. Before Configuration, please make sure your NVR has been installed with HDD and has completed its initialization. -
Page 19: Stamp
User Manual NVR TBK-NVR5016P8 TBK PLUS Fig 5-12 Record Configuration-Time Pre-alarm Record Time: Set the time in seconds to pre-record before the actual recording begins. Post-alarm Record Time: Set the time in seconds to post-record after the actual recording has finished. Five options: 10s, 15s, 20s, 30s, 60s, 120s, 180s and 300s. -
Page 20: Schedule Configuration
User Manual NVR TBK-NVR5016P8 TBK PLUS 5.4 Schedule Configuration Schedule configuration includes three sub menus: schedule, motion and sensor. 5.4.1 Schedule This tab allows defining schedule for normal recording for seven days of a week, 24 hours of a day. Every row denotes an hourly timeline for a day. -
Page 21: Alarm Configuration
User Manual NVR TBK-NVR5016P8 TBK PLUS 5.5 Alarm Configuration Alarm configuration includes four sub menus: sensor, motion, other alarm and alarm out. 5.5.1 Sensor Alarm Sensor includes three sub menus: sensor, alarm handling and schedule. Operate the following steps to configure sensor alarm: ①... -
Page 22: Motion Alarm
User Manual NVR TBK-NVR5016P8 TBK PLUS 5.5.2 Motion Alarm Motion includes two sub menus: motion and schedule. The steps to set motion alarm are as follows: ① Go to Main MenuSetupAlarmMotionMotion tab. Refer to Fig 5-19. ② Enable motion alarm, set alarm hold time which refers to the time till which the system will wait for further detection of motion. e.g. If the holding time is set to 10 seconds, once the system detects a motion, it will go to alarm but would not detect any other motion alarm (specific to channel) until 10 seconds. -
Page 23: Other Alarm
User Manual NVR TBK-NVR5016P8 TBK PLUS 5.5.3 Other Alarm This tab gives a choice to configure alarm for Disk Full, IP Conflict, the Disconnect event or Disk Attenuation. ① Go to Main MenuSetupAlarmOther Alarm. Refer to Fig 5-21. ② Fig 5-21 Other Alarm ③... -
Page 24: Network Configuration
Switch IP: TBK-NVR5016P8 recorder includes an 8-port POE switch. The gateway IP and POE switch are independent of the local IP address of the NVR. The IP address of the cameras connected to the POE POE switch ports must be in the same range of POE switch switch default IP 010.151.151.001. -
Page 25: Email
User Manual NVR TBK-NVR5016P8 TBK PLUS 6.1.3 Email To set up Email: ① Go to Main MenuSetupNetworkEmail tab. Refer to Fig 5-24. ② Set SMTP Server and port. Fig 5-24 Network Configuration-Email SMTP Server/Port: The name and port number of SMTP server. You can set up SSL check (such as Gmail) according to actual needs. -
Page 26: Other Settings: Ddns
User Manual NVR TBK-NVR5016P8 TBK PLUS Fig 5-26 Network Configuration-NAT 6.1.6 Other Settings: DDNS Your NVR allows to set up DDNS service to be used in connection. The setting steps are as follows: Fig 5-27 Network Configuration-Other Settings ① Go to Main MenuSetupNetworkOther Settings ②... -
Page 27: Advanced
User Manual NVR TBK-NVR5016P8 TBK PLUS ② Click Add button to display a dialog box as Fig 5-29. Fig 5-29 Add-General In General tab, input username, password and select user type. You can also check “Binding PC MAC Address” and input this address. -
Page 28: Block/Allow List
User Manual NVR TBK-NVR5016P8 TBK PLUS 6.3.3 Block/Allow List Fig 5-31 Block/Allow List Here authorized user can prohibit computer users within a certain IP address range from accessing to NVR or allow computer users within a certain IP address range to access NVR. E.g. if an admin user doesn’t want computer users within IP address range from 192.168.000.002 to 192.168.000.004 to access the NVR, he can check block list option, and then input such IP address range. -
Page 29: Search, Playback & Backup
User Manual NVR TBK-NVR5016P8 TBK PLUS Search, Playback & Backup Search configuration includes four submenus: time search, event search, file management and image. 7.1 Time Search ① Go to Main MenuSearchTime Search. Refer to Fig 6-1. Fig 6-1 Search Configuration-Time Search Select date and channels on the right hand side and press the ‘Search’... -
Page 30: File Management
User Manual NVR TBK-NVR5016P8 TBK PLUS 7.3 File Management ① Go to Main MenuSearchFile Management interface. Refer to Fig 6-3. Fig 6-3 Search Configuration-File Management ② Select date and channels. The date with highlighted borderline indicates presence of data. ③... -
Page 31: Manage Nvr
User Manual NVR TBK-NVR5016P8 TBK PLUS Fig 6-5 Backup Configuration Select a required file or checkmark “All” to select all data files. Click Backup button to display Backup information window. ③ ④ In the backup information interface, you can check the relevant information of backup files, storage type, save file type, etc. Then click “Start”... -
Page 32: Record Information
User Manual NVR TBK-NVR5016P8 TBK PLUS Disconnect: Disconnect the online users to access NVR. If this function is used by the admin, the particular PC will not be able to access the device for five minutes. 8.1.6 Record Information In this interface, you can check the resolution, ftp and record status including sensor alarm recording, motion recording, manual recording or schedule recording. -
Page 33: Remote Surveillance
User Manual NVR TBK-NVR5016P8 TBK PLUS Remote Surveillance 9.1 IE Remote Surveillance by NAT 9.1.1 NAT Settings ① The NVR shall be powered on and connected to the network. ② Go to Main MenuSetupNetworkNetwork. You can obtain the IP address, Subnet Mask and Gateway automatically. You can also manually input them according to the actual network situation. -
Page 34: Remote Preview
User Manual NVR TBK-NVR5016P8 TBK PLUS ③ Open IE browser, input IP address, or dynamic domain name and enter. If HTTP port is not 80, add the port number after IP address or domain name. ④ IE will download ActiveX control automatically. Then a window pops up and asks for user name and password. Input name and password correctly, and enter to view. - Page 35 User Manual NVR TBK-NVR5016P8 TBK PLUS Color adjustment: Drag the slide bar to adjust Brightness, Contrast, Hue, and Saturation. Click Default to reset them to original value. Buttons Description Drag the scroll bar to adjust the brightness of channel Drag the scroll bar to adjust the contrast...
-
Page 36: Remote Playback & Backup
User Manual NVR TBK-NVR5016P8 TBK PLUS All to sub stream: Set all channel to master stream or sub stream. Enable audio: Enable or disable audio. Full screen: The live preview picture will display in full screen and the tool bar will be hidden; double click left or click right mouse to return. - Page 37 User Manual NVR TBK-NVR5016P8 TBK PLUS Fig 8-5 Time Search Playback By Event Search: ① Go to SearchEvent Search. Refer to Fig 8-6. Fig 8-6 Event Search Interface ② Click the highlight date and select record channels. ③ Checkmark the event type: motion and sensor.
-
Page 38: Remote Backup
User Manual NVR TBK-NVR5016P8 TBK PLUS 9.4.2 Remote Backup Click “Backup” button to go to backup interface. Refer to Fig 8-8. Fig 8-8 Remote Backup Interface Select channels, set the start and end time and then click “Search” button to display the file information in the file list box. - Page 39 User Manual NVR TBK-NVR5016P8 TBK PLUS Fig 8-10 Remote Information Search Note: There may be slight differences with respect to functions of remote surveillance between through IE and through Apple PC. Here we only take IE remote access for example.
-
Page 40: Appendix A Faq
User Manual NVR TBK-NVR5016P8 TBK PLUS Appendix A FAQ Q1. Why can’t the NVR turn on even after connecting to the power? a. The power adapter could have gone bad. Please change a new power adapter. b. The power from the adapter may be not enough for operating the NVR. Please use the power adaptor supplied along with the NVR. - Page 41 User Manual NVR TBK-NVR5016P8 TBK PLUS Fig 8-1 Fig 8-2 Q9: NVR displays “please wait…”all the time. Why and how can I do? a.HDD power cable and data cable may not be well connected. Please check the connections for HDD.
-
Page 42: Appendix B Calculate Recording Capacity
User Manual NVR TBK-NVR5016P8 TBK PLUS open your file by using the media player which supports this format. Appendix B Calculate Recording Capacity You can calculate the size of hard disk according to the storage time and NVR recording settings. The formula is as follows in full frame rate condition. -
Page 43: Appendix D Specifications
User Manual NVR TBK-NVR5016P8 TBK PLUS Appendix D Specifications Model TBK-NVR5016P8 Compression Standar H.264 OS / CPU System Embedded Linux / Cortex A9 Channels IP Input 4MP: 2560x1440, 3MP: 2048x1536, 1080P: 1920x1080, Resolution 960P: 128x960, 720P: 1280x720 Video HDMI x 1：1920 x 1080; VGA x 1：1920 x 1080...
