Digital Video Recorder

TBK NEO 4 - TBK NEO 8 - TBK NEO 16
http://www.tbkvision.com/

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NEO 4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TBK vision NEO 4

Summary of Contents for TBK vision NEO 4

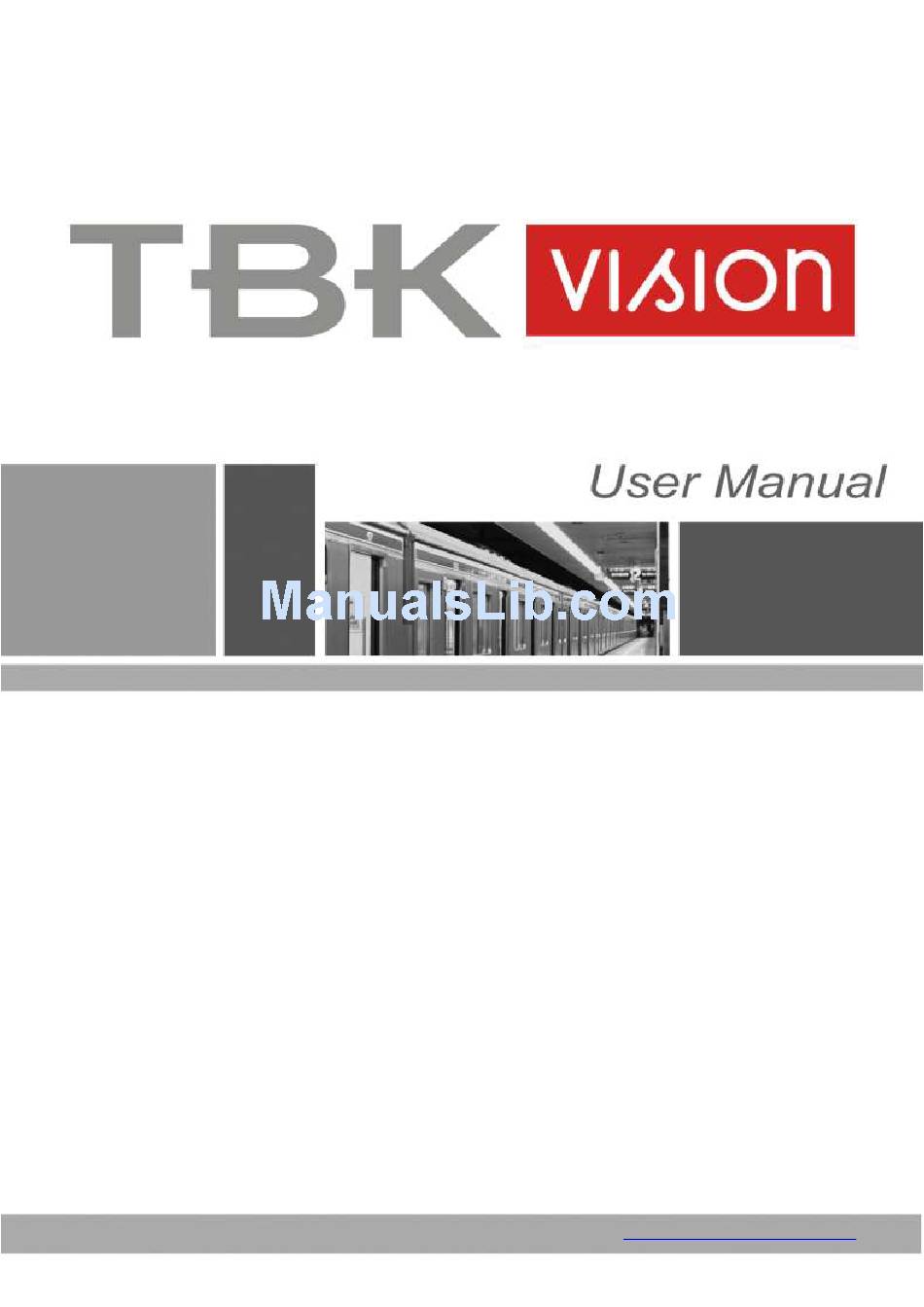

  • Page 1: Digital Video Recorder

    Digital Video Recorder TBK NEO 4 - TBK NEO 8 - TBK NEO 16 http://www.tbkvision.com/...
  • Page 2 User Manual TBK NEO Preface Thank you for choosing our product, for a better understanding of the product, we recommend you read the instruction and safety information before use. Notice： This user manual is an operation guide and available for our company DVR only. It has no implied or stated warranty, or guaranty of the product described herein.

  • Page 3: Table Of Contents

    User Manual TBK NEO Contents 1 Jacks and Ports ......................4 1.1 86 series 16 channels ..................4 2 HDD installation ......................5 3 System startup ......................6 3.1 System startup ....................6 4 Setup Wizard ......................... 6 4.1 Wizard interface ....................6 4.2 Administrator Login Interface ................

  • Page 4: Jacks And Ports

    User Manual TBK NEO 1. Jacks and Ports 1.1 TBK Neo TBK NEO 4 canales TBK NEO 8 canales TBK NEO 16 canales 1、grounding 8、network interface 2、Power switch 9、USB port 3、 video input 10、eSATA 4、Audio input 11、RS-485A/485B port 5、DC12V input 12、Video output...

  • Page 5: Hdd Installation

    User Manual TBK NEO 2 . HDD installation Check whether SATA installed or not before installation .SATA installation number differs for different models. We suggest you use professional SATA brand like Samsung, Seagate, Hitachi.

  • Page 6: System Startup

    User Manual TBK NEO 3. System startup 3.1 System startup Power on/off Connect the power plug to the power port on the back of the DVR. The system will automatically run a status check, and will start after few seconds. You will see a wizard interface after the system loading.

  • Page 7: Administrator Login Interface

    User Manual TBK NEO 4.2 Administrator Login Interface Here we recommend you setup a password for administrator and then click "Next" for more settings; if you click "Cancel”, you will enter directly into the "Main Menu"; if you click "Prev.", the system goes to the previous page.

  • Page 8: Network Setup

    User Manual TBK NEO Date/Time Setup: Click calendar and choose the date; Click time, a digital keyboard will appear, and then set to local time. Date Format: Three format types: MM/DD/YYYY, DD/MM/YYYY, and YYYY/MM/DD. Time Format: 24-hour/ 12-hour. Time Zone: Click the down arrow, time zone options will be displayed, please select your time zone. Note: Once the DVR connects with the internet, it will automatically adjust the time to the time zone you have chosen.

  • Page 9: Network Testing

    User Manual TBK NEO 4.5 Network testing The system will test your network setup automatically. If a network connection is abnormal, please return to the previous page to correct the settings and then click “Next”. If no testing is required, just click “Skip”...

  • Page 10: Record Mode & Record Setup

    User Manual TBK NEO Port Setup Media Port: one private communication port that between DVR and PC, default: 9000. If this port was occupied by other server port, please change it to an idle port. Web Port: Http port, default: 80, if change the web port, like to: 8088, when need to access through browser, need to add the web port after the IP address.

  • Page 11: Hdd Setup

    User Manual TBK NEO 4.8 HDD Setup HDD Information: You can check the HDD capacity and HDD quantity in the HDD setup. HDD Format: tick '√' under format, and then click “Format”. Note: The newly installed HDD must be formatted through our DVR before usage. Overwrite: There are three options to choose from;...

  • Page 12: Use Of Taskbar

    User Manual TBK NEO selects desired method. After the setup of disk, save and confirm interface will be shown on screen and click “Save to log out. After the completion of setup wizard, DVR can be worked properly. If personalized settings are needed, you can login to the menu to setup.
  • Page 13 User Manual TBK NEO Choose the channel to be setup and BRI, CON, HUE, SAT can be adjusted from "1-63"; Click "default" to recover to default settings; Click "apply" to save the settings. PIP：Drag mouse to partially enlarge. Setup of PTZ: Open the control interface of PTZ (As shown below).
  • Page 14 User Manual TBK NEO 1. Choose of relevant channel, "all" refer to all channels, control of the PTZ of relevant channel. 2.User can control the PTZ up, up left, down, right down, left, left down, right, right up or stop turning;...

  • Page 15: User Login

    User Manual TBK NEO 5. User login Click “START” to enter the login interface, insert the Device ID, the default Device ID is “0”. The initial user name is: admin with no password, but if you setup a password during the setup wizard, you now need to input your password here.
  • Page 16 User Manual TBK NEO BASIC: Open the basic menu, and 5 functions show in interface: system setup, time/date setup, record setup, display setup and user configuration ADVANCE: Open the advance menu, you can: setup the alarm, network settings, Internet application settings, and PTZ configuration. SEARCH: Search the video recorded.

  • Page 17: Basic

    User Manual TBK NEO 5.1 BASIC After enter the menu, move the cursor to “BASIC”, and the icon will be highlighted, click to enter. 5.1.1 System setup Setup of device name, device ID, video format, VGA resolution, language, logout time and startup wizard.
  • Page 18 User Manual TBK NEO 5.1.2 Date/time 1. Date/Time setup: 1) Date/time: Click the calendar beside the date setup box, and select the date; Click the time setup box and click to input. 2) Date format: Select “MM/DD/YYYY”、“YYYY-MM-DD”、“DD/MM/YYYY” from the drop-down box. 3) Time format: Select “24-Hour”...
  • Page 19 User Manual TBK NEO 2. DST setup 1) Enable: Mark enables the use of the DST setup. 2) Mode: Select “Week” or “Date” from the box. 3) Offset: time period ahead or delayed, Select “One hour” or “Two hours” from the box. 4) Start time: It can be set according to the DST Note: Click “Apply”...
  • Page 20 User Manual TBK NEO 1) CH: Order of the DVR channel 2) CH Name: Click to modify the CH name. 3) Mask: Click “setting” and select one CH. Drag the mouse to locate the mark area. 4 Mask areas are Maximum. Double click to cancel the mark. Click “Apply” to save. Click “Default” to cannel. 4) Color: Click “Setting “and select one CH.
  • Page 21 User Manual TBK NEO Copy CH: Copy one CH setting to another CH. 5.1.4 Record 1. Basic setting 1) CH: Order of the DVR channel 2) Enable: click to enable the basic setting 3) Audio: click to enable audio recording 4) Mode: Click “Always”...
  • Page 22 User Manual TBK NEO 2. Bit rate 1) CH: Order of the DVR channel 2) Resolution: Click “CIF””HD1” “D1”to set the recording resolution. 3) Frame rate: PAL:“1-25”fps is for option, NTSC:”1-30” fps is for option. 4) Quality:”Best””Better””Good”””Normal” for option 5) Copy CH: Copy one CH setting to another CH. 3.
  • Page 23 User Manual TBK NEO 2) Set the mode of recording.”Manual” ”Normal” ”Alarm” 3) Double click the recording schedule; the “schedule” window will pop up. You can set the recording schedule here. Copy CH: Copy one CH setting to another CH. 4.
  • Page 24 User Manual TBK NEO Create User: Create a new User and configure authority 1) Basic information: fill in the User name, Password, Retype password, User type, Binding Client MAC, MAC. 2) Authority: Select the Authority for this user.

  • Page 25: Advance

    User Manual TBK NEO 5.2 Advance Click “Advance setting” on the master menu 5.2.1 Alarm 1. Motion: Alarm will be in triggered when there is movement in the detecting area 1) CH: Order of the DVR channel 2) Enable: Click to enable the basic setting. 3) Sensitivity: “1-8”for options.
  • Page 26 User Manual TBK NEO Copy: For ease, setup one channel and then copy to the others. 6) Trigger: The processing for alarming, click “settings” display as below: Trigger recording: Place a check mark '√' for the channel you need to trigger, when there is alarm on the setting channel, will trigger to other channels.
  • Page 27 User Manual TBK NEO a picture. Send E-mail: Place a check mark '√', when there is alarm, will send the snapped picture to the mailbox you set. Alarm output: Place a check mark '√', will trigger the external alarm. Alarm output duration: Click the inverted triangle, options: 10s/ 30s/ 1min/ 3 min/ 5min/ 10min/ 15min/ 30min.
  • Page 28 User Manual TBK NEO Copy: For ease, setup one channel and then copy to the others. 6)Trigger: The processing for alarming, click “settings” display as below: Trigger recording: Place a check mark '√' for the channel you need to trigger, when there is alarm on the setting channel, will trigger to other channels.
  • Page 29 User Manual TBK NEO a picture. Send E-mail: Place a check mark '√', when there is alarm, will send the snapped picture to the mailbox you set. Alarm output: Place a check mark '√', will trigger the external alarm. Alarm output duration: Click the inverted triangle, options: 10s/ 30s/ 1min/ 3 min/ 5min/ 10min/ 15min/ 30min.
  • Page 30 User Manual TBK NEO Trigger recording: Place a check mark '√' for the channel you need to trigger, when there is alarm on the setting channel, will trigger to other channels. Snapshot: Place a check mark '√' in front the channel, when the setting channel has alarm, will snap a picture.
  • Page 31 User Manual TBK NEO 4. Camera block: Alarm when the camera was covered. 1) CH: DVR channels. 2) Enable: Place a check mark '√' 3) Sensitivity: Click the inverted triangle, 3 different level sensitivity: 1,2,3. 4) Schedule: From Monday to Sunday, 0:00 to 24:00, setup alarm for time periods (time period cannot cross a day), double click on the time to enter the time period setup.
  • Page 32 User Manual TBK NEO Copy: For ease, setup one channel and then copy to the others. 5) Trigger: The processing for alarming, click “settings” display as below:...
  • Page 33 User Manual TBK NEO Trigger recording: Place a check mark '√' for the channel you need to trigger, when there is alarm on the setting channel, will trigger to other channels. Snapshot: Place a check mark '√' in front the channel, when the setting channel has alarm, will snap a picture.
  • Page 34 User Manual TBK NEO 1) HDD invalid: “Enable/Disable” 2 options, setup according to the user needs. 2) HDD full: “Enable/Disable” 2 options, setup according to the user needs. 3) Trigger: Choose the channels need to be triggered 4) IP address conflict: “Enable/Disable” 2 options, setup according to the user needs. 5) Trigger: The processing for alarming, click “settings”...
  • Page 35 User Manual TBK NEO 5.2.2 Network 1. Lan 1) Obtain an IP address automatically 2) Use the following IP address IP address: Fill in the IP address according to your network settings. Subnet mask: Fill in the subnet mask according to your network settings. Default gateway: Fill in the default gateway according to your network settings.
  • Page 36 User Manual TBK NEO 2. ADSL 1)ADSL: Enable the ADSL 2)Fill the user name and password of your PPPOE which is provided by your Internet Service Provider (ISP). The system will restart after clicking OK. If the user name and password are correct, the system will connect to the network via the PPPOE.
  • Page 37 User Manual TBK NEO 3. 3G Choose “enable” option of 3G switch, then fill in APN and Access number according to local network service supplier. 4. Port 1) Media Port: one private communication port that is between the DVR and PC, the default is Port:...
  • Page 38 User Manual TBK NEO 9000. If this port is occupied by another server port, please change to an idle port. 2) Web Port: Http port, default is Port: 80, if a change of the web port is required, like to example Port:8088, the user will need to add the new port after the IP address when accessing the DVR via the web.
  • Page 39 User Manual TBK NEO 5.2.3 APP 1. DDNS 1) DDNS: Enable/Disable, please enable the DDNS when you use domain name server. 2) Server: Choose your domain name server: 3322, dyndns, no-ip, changeip or dnsexit. 3) Host name: The host name you registered on the domain name server. 4) User name: The user name you registered on the domain name server.
  • Page 40 User Manual TBK NEO 1) E-MAIL: Enable/ Disable 2) Sending interval: Immediately/ 30s/ 1 min/ 3min/ 5 min/ 10 min. 3) Mail server (SMTP): Put your email server address. 4) Port: Default is 25, if not, contact with your email server provider. 5) Connection security: None or SSL/TLS.
  • Page 41 User Manual TBK NEO 5.2.4 P.T.Z 1) CH: All DVR channels. 2) Enable: Place a check mark '√' when one channel connects to PTZ. 3) Protocol: Pelco-D/Pelco-P/ Pansonic/Sony/Samsung/ Philips…etc. 4) Baud rate: 1200/ 2400/ 4800/ 9600 5) Address: Input the address you get from PTZ parameters. Copy: For ease, setup one channel and then copy to the others.

  • Page 42: Search

    User Manual TBK NEO 5.3 Search In main menu, click “Search”, display as below. 1) After entering playback interface, DVR will automatically search current day’s (today) recording files and show in the right window. If there is no recording, the right window would be empty. 2) Calendar: green &...

  • Page 43: Hdd

    User Manual TBK NEO Control buttons: 1) Click “PLAY/STOP”, “STEP”, “FAST FORWARD”, “FAST BACKWARD” and “SLOW” to do corresponding operation. 2) Drag the slider to adjust volume, if you don’t need audio, click the speaker to mute. 3) Click “X” to exit playback interface. 5.4 HDD Click “DISK”...

  • Page 44: System Information

    User Manual TBK NEO 5.5 SYSTEM INFORMATION After enter main menu, move cursor to INFORMATION and click it. 5.5.1 DEVICE INFORMATION 1)Device Name：The name given to DVR 2) Device ID：The ID of DVR 3) Serial NO：Serial number of DVR 4) Firmware Version：The firmware version of DVR 5) MAC：MAC add of DVR...
  • Page 45 User Manual TBK NEO 5.5.2 NETWORK 1. LAN： Shows the network status, IP ADD of LAN, subnet mask, default gateway, preferred DNS server, alternate DNS server and IP add conflict ：Show the network status, IP address, preferred DNS server, alternate DNS server ADSL...

  • Page 46: Online User

    User Manual TBK NEO 5.5.3 Online user Shows the online user name, IP add, log in time and connection statues...

  • Page 47: Device Maintenance

    User Manual TBK NEO 5.5.4 Record information Shows the Channel#, resolution, frame fate, quality and date per hour. 5.6 Device Maintenance After enter main menu, move cursor to MAINTENANCE and click it. 5.6.1 Basic Upgrade the device firmware or Standby or Reboot the system; Set an auto maintenance time or frequency.
  • Page 48 User Manual TBK NEO 2) If choose “every month”, then the date will be shown in drop-box. Set the date and time to auto maintenance. 3) If choose “Every week” in drop-down box, the seven days of a week shows behind it, then edit the time fix an auto maintenance time this week...
  • Page 49 User Manual TBK NEO 4) If you choose “Everyday” in drop-down box and fix the time, it will auto maintenance in that time every day. FIRMWARE UPGRADE 1) Copy the firmware to a blank USB drive. 2) Insert USB drive to the USB port of DVR...
  • Page 50 User Manual TBK NEO 3) Enter DVR-MENU-ADVANCE-SYSTEM MAINTAINANCE 4) Click SYSTEM UPGRADE. It will scan the USB Drive and start the upgrade. Don’t pull out the USB drive during upgrading. STANDBY: Click to standby Reboot: Click to reboot. Note: Click save to save the setting, click default back to default settings. 5.6.2 Settings 1.

  • Page 51: Logout

    User Manual TBK NEO NOTE: you can click the button ALL or CLEAR to select all the items above or clear it all. 5.7 LOGOUT Enter main menu, move cursor to LOGOUT icon and then click it,the NOTE window pops out, if you are sure to logout just click YES, then the main menu locked, the password is needed if you want to enter it again.

  • Page 52: Remote Control

    User Manual TBK NEO 6 Remote control We will introduce how to build up DVR internet group in this chapter Internet group example 1. Apply for ADSL, only one DVR needs connecting to internet 1) Make sure that DVR connected with the ADSL modem. Users can confirm it through the indicator light of the DVR or the ADSL modem 2) Using PPPoE to connect the internet 3) Input the media port and web port...
  • Page 53 User Manual TBK NEO PC login Access the device though IE browser, users can view the real time video, download the video, playback the video and set the parameter and update We take PPPoE connection as an example, the device will generate a IP address after we save the user name and the password.
  • Page 54 User Manual TBK NEO Thanks for choosing our DVR, due to the firmware upgrade, the function may mismatch the user guide please feel free to contact us. Or you can log in our website to download the newest version. Sorry that we cannot inform you in time.
