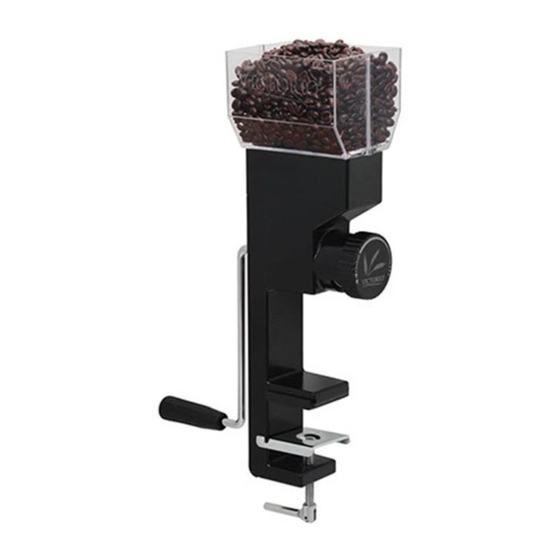

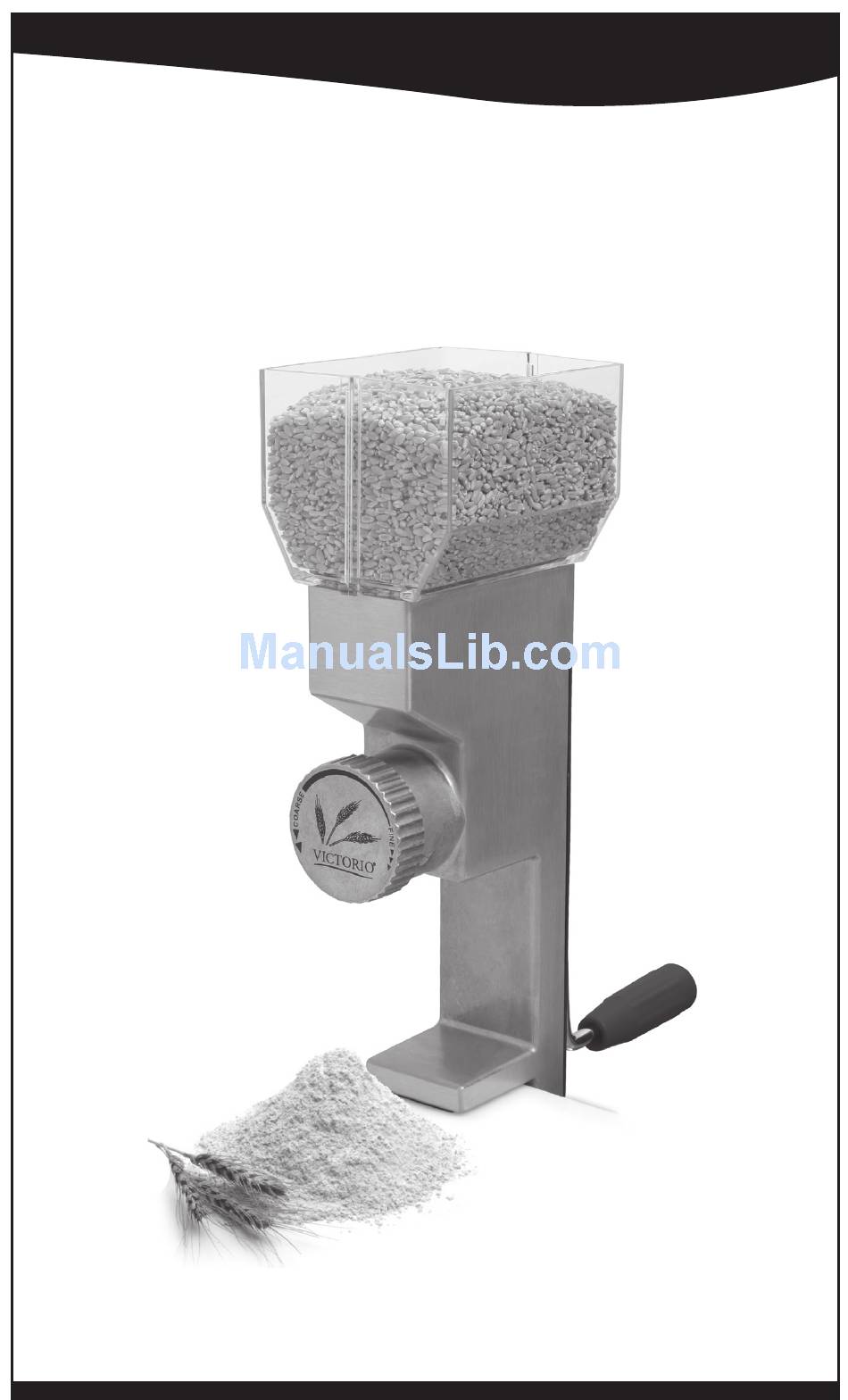

- Page 1 VICTORIO Deluxe GRAIN MILL VKP1024A Instruction Manual *Optional Motor Instructions, p. 10-17...
-
Page 2: Table Of Contents
Circuit Breaker Instructions ..............13 Motor Use Instructions ................ 14 Troubleshooting Guide ................ 17 Warranty/Contact Info ............Back Cover *For the most up-to-date manual, or for more information regarding this product, visit our website: www.Victorio.info. Copyright © 2014 Victorio Kitchen Products. All Rights Reserved. -
Page 3: Parts Diagram
Your complete grain mill includes everything shown below: Parts List: (1) VKP1024-5 Hopper (2) Housing - Not Sold Separately (3) VKP1024-4 Clamp Assembly (4) VKP250-15 Handle (5) VKP1024A-1 Milling Cone Shaft Assembly (6) VKP1024-2 Nylon Adjustment Tip (7) VKP1024-3 Adjustment Knob w/Tip... -
Page 4: Operating Precautions
Your Victorio® Grain Mill will serve you well for years to come. Caring well for your Grain Mill will help it last, so be sure to read through all the instructions contained in this manual before using your product for the first time. -
Page 5: Care Instructions
Care Instructions To ensure your Grain Mill works properly at all times, please follow the care and handling instructions below: • When you receive your Grain Mill, dismantle all parts and wipe them off using a damp cloth to remove any residue from manufacturing and packaging. -
Page 6: Mounting Instructions
Mounting Instructions Choose a firm, sturdy surface when mounting the Grain Mill. The best surfaces are built-in counter tops and heavy tables, like a dining room table. These types of surfaces ensure the Grain Mill can remain in place while grinding. -
Page 7: Hopper Assembly
Hopper Assembly Assemble the hopper by lining up the sides and firmly pressing them together, until both sides are fully touching and no gaps remain. After correct assembly, the hopper should fit snugly on the top of the Grain Mill. If the hopper doesn’t fit correctly then the halves have not been pressed together far enough. - Page 8 4. Place the hopper on top of the Grain Mill, making sure it is pushed all the way down. 5. Place a shallow bowl or pan in front of the Grain Mill, under the milling cone, before you begin the grinding process (see picture below). 6.
-
Page 9: Use Instructions
Use Instructions DO NOT turn the handle if the Grain Mill is empty. This will damage the milling heads. Now that you have assembled your Grain Mill properly, read through ALL of the following instructions before you start the grinding process. -
Page 10: Troubleshooting Guide
GRAIN MILL TROUBLESHOOTING GUIDE PROBLEM SOLUTION The Grain mill rocks from side to The Grain Mill is not properly side when the handle is cranked. mounted and clamped. See p. 4 for mounting instructions. Also, make sure the surface you are using is sturdy and immovable, such as a built-in counter top. -
Page 11: Recipes
Wheat Dough Recipe ½ c. Butter, melted ½ c. Sugar 2 c. Water, very warm 2 tbsp Active Dry Yeast In a stand mixer, beat the above ingredients well. Then add: 2 c. White Wheat Flour 2 Eggs, beaten 2 tsp Salt Once all of the ingredients are mixed together, add 3-4 more cups of regular white flour, a little at a time, checking the consistency of the dough constantly. -
Page 12: Features
Victorio Deluxe Grain Mill Motor VKP1024-M (optional) *The electric motor is an optional accessory and is sold separately. Vent Drive Shaft On/Off Overload Switch Breaker Motor Latch Cord Features: • Installs quickly and is easy to use. • Energy efficient and durable. -
Page 13: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING! - Failure to follow these safety instructions correctly will lead to a risk of fire, electric shock or personal injury. SAVE THESE INSTRUCTIONS When using electric appliances, basic precautions should always be followed, including the following: •... -
Page 14: Grounding Instructions
• Never use the grain mill without the hopper in place. • Do not cover the motor ventilation holes. • Make sure the motor is attached to the grain mill properly before operating (See ‘Motor Use Instructions’ on p. 14). •... -
Page 15: Circuit Breaker Instructions
Caution: If the breaker trips immediately after plugging in or turning on the motor, do not bypass the breaker and do not use the motor. Contact Victorio Customer Service at 866-257-4741. Power Switch Overload Breaker... -
Page 16: Motor Use Instructions
Motor Use Instructions Make sure you have read the Important Safety Instructions on p. 11 before installing the motor. Installation Steps: 1. Remove the motor from the packaging and make sure the power switch is in the off (“O”) position (see diagram on p. 13) and the motor is unplugged. - Page 17 6. Make sure the power switch is still in the off (“O”) position and plug the motor cord into a correct power source (see diagram on p. 12). 7. WARNING! - Do not turn on the motor at this point! You will damage your grain mill by running it without grain.
- Page 18 3. The motor may be tight or hard to remove. If so, rock it up and down gently as you pull straight back. (See diagram below). 4. If needed, you can clean the motor by using a damp cloth to wipe away any dust or residue on the outside surfaces.
-
Page 19: Troubleshooting Guide
MOTOR TROUBLESHOOTING GUIDE PROBLEM SOLUTION I cannot attach the motor. Review p. 14 on how to attach the motor, including how to correctly align the motor shaft with the grain mill shaft. I cannot remove the motor. Sometimes the motor shaft can get stuck or be difficult to remove. - Page 20 Damages to the product due to accident, misuse, abuse, negligence, or if the appliance has been altered in any way.. Victorio Kitchen Products 1804 Sandhill Rd Orem UT, 84058 By Phone: 866-257-4741 By Email: Help@Victorio.info www.Victorio.info © Copyright 2014 Victorio Kitchen Products, Inc. All rights reserved.
