Pioneer VSX-2016AV-S Service Manual

Hide thumbs

Advertisement

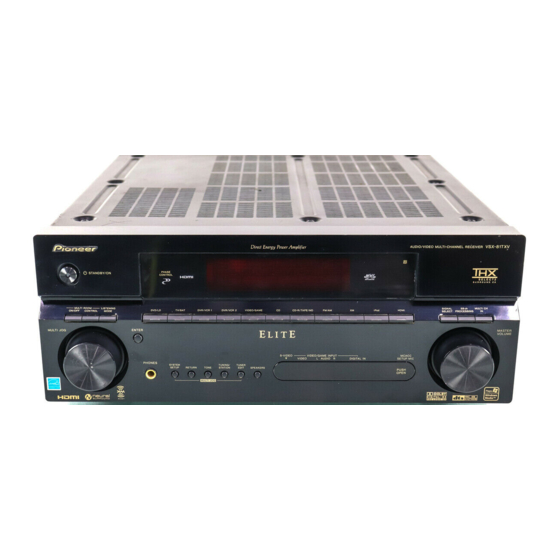

AUDIO/VIDEO MULTI-CHANNEL RECEIVER
VSX-2016AV-S
VSX-81TXV
VSX-81TXV-S
VSX-9110TXV-K
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model
VSX-2016AV-S
HYXJ5
VSX-81TXV
KUXJCA
VSX-81TXV-S
KUXJCA
VSX-9110TXV-K
KUXJ
For details, refer to "Important Check Points for good servicing".
PIONEER CORPORATION
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2006
Type
Power Requirement
AC 220 V to 230 V
AC 120 V
AC 120 V
AC 120 V
4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
VSX-2016AV-S
ORDER NO.
RRV3397
Remarks
T-IZS SEPT. 2006 printed in Japan

Advertisement

Table of Contents

   Also See for Pioneer VSX-2016AV-S

   Related Manuals for Pioneer VSX-2016AV-S

   Summary of Contents for Pioneer VSX-2016AV-S

  • Page 1 PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2006 T-IZS SEPT.
  • Page 2: Safety Information

    PIONEER Service Manual. A subscription to, or additional copies of, Also test with plug reversed Earth PIONEER Service Manual may be obtained at a nominal (Using AC adapter ground charge from PIONEER. plug as required)
  • Page 3 To protect products from damages or failures during transit, the shipping mode should be set or the shipping screws should be installed before shipment. Please be sure to follow this method especially if it is specified in this manual. VSX-2016AV-S...
  • Page 4: Table Of Contents

    3.22 POWER AMP IN and POWER PROTECT ASSYS................66 3.23 HDMI & DVC ASSY (1/2) ........................68 3.24 HDMI & DVC ASSY (2/2) ........................70 3.25 USB ASSY (VSX-2016AV-S ONLY) ....................... 72 4. PCB CONNECTION DIAGRAM ........................74 4.1 AUDIO IN ASSY............................76 4.2 12V-REG ASSY ............................
  • Page 5 4.31 HDMI & DVC ASSY ..........................152 4.32 USB ASSY (VSX-2016AV-S ONLY)......................156 5. PCB PARTS LIST ............................158 6. ADJUSTMENT ..............................194 7. GENERAL INFORMATION ...........................195 7.1 DIAGNOSIS............................195 7.1.1 TEST MODE.............................195 7.1.2 PROTECTION CIRCUIT SPECIFICATION ..................198 7.1.3 DSP TROUBLESHOOTING ......................200 7.1.4 HDMI TROUBLESHOOTING ......................216 7.1.5 USB MODULE..........................228...
  • Page 6: Specifications

    1. SPECIFICATIONS For VSX-2016AV-S Amplifier section FM Tuner Section Continuous Power Output (Stereo) Frequency Range ....87.5 MHz to 108 MHz Front ..150 W + 150 W (DIN 1 kHz, THD 1 %, 6 Ω) Usable Sensitivity .
  • Page 7 Signal-to-Noise Ratio [EIA, at 1W (1 kHz)] LINE ......83 dB VSX-2016AV-S...
  • Page 8 Accessories AM Loop Antenna FM Wire Antenna AA/LR6 Dry Cell Batteries (ATB7013) (ADH7030) (VEM1021: VSX-2016AV-S) AA/IED R6P Dry Cell Batteries (VEM1031: Other models) Audio Control Cable for iPod (ADE7119) Remote Control Unit Setup Microphone (AXD7432: VSX-2016AV-S) (for Auto MCACC setup)
  • Page 9 VSX-2016AV-S...
  • Page 10: Exploded Views And Parts List

    For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) 2.1 PACKING SECTION Polyethlene Bag VSX-81TXV, -S, VSX-9110TXV-K ONLY 17 (VSX-2016AV-S ONLY) VSX-2016AV-S ONLY VSX-2016AV-S...
  • Page 11 Operating Instructions (Spanish)See Contrast table (2) Operating Instructions (Dutch) See Contrast table (2) Remote Control Unit See Contrast table (2) (2) CONTRAST TABLE VSX-2016AV-S/HYXJ5, VSX-81TXV/KUXJCA, VSX-81TXV-S/KUXJCA and VSX-9110TXV-K/KUXJ are con- structed the same except for the following: VSX-2016AV-S VSX-81TXV VSX-81TXV-S VSX-9110TXV-K Mark No.
  • Page 12: Exterior Section

    2.2 EXTERIOR SECTION VSX-2016AV-S /HYXJ5 ONLY Refer to "2.3 CHASSIS SECTION". Refer to "2.6 FRONT PANEL SECTION". VSX-2016AV-S...
  • Page 13 See Contrast table (2) Screw IBP30P090FCC 4P Shielded Cable See Contrast table (2) Earth Spring ABH7245 (2) CONTRAST TABLE VSX-2016AV-S/HYXJ5, VSX-81TXV/KUXJCA, VSX-81TXV-S/KUXJCA and VSX-9110TXV-K/KUXJ are con- structed the same except for the following: VSX-2016AV-S VSX-81TXV VSX-81TXV-S VSX-9110TXV-K Mark No. Symbol and Description...
  • Page 14: Chassis Section

    2.3 CHASSIS SECTION VSX-81TXV, -S, AC OUTLET VSX-9110TXV-K ONLY VSX-2016AV-S /HYXJ5 ONLY Sub Trans VSX-2016AV-S /HYXJ5 ONLY 42(x4) Refer to "2.5 POWER AMP SECTION". VSX-81TXV, VSX-9110TXV ONLY Refer to "2.4 REAR SECTION". Refer to 2.6 FRONT PANEL SECTION (∗b) VSX-2016AV-S...
  • Page 15 DSP Shield 2016 ANG7546 NSP 55 Fuse Card See Contrast table (2) Cushion Circle 14B AED7081 (2) CONTRAST TABLE VSX-2016AV-S/HYXJ5, VSX-81TXV/KUXJCA, VSX-81TXV-S/KUXJCA and VSX-9110TXV-K/KUXJ are con- structed the same except for the following: VSX-2016AV-S VSX-81TXV VSX-81TXV-S VSX-9110TXV-K Mark No. Symbol and Description...
  • Page 16: Rear Section

    2.4 REAR SECTION VSX-2016AV-S POWER AMP IN CN5603 27(x3) 24(x2) LOCAL P-SUPPLY CNJ3505 FRONT-IN CN2651 POWER PROTECT CN5703 DISPLAY CN2301 LOCAL P-SUPPLY 3502 VSX-2016AV-S ONLY FRONT-IN CN2652 12V-REG LOCAL P-SUPPLY J3504 VSX-2016AV-S...
  • Page 17 FM/AM Tuner Unit AXX7170 Rear Panel 2016SHY ANC8377 19P FFC/60V (J58) ADD7535 11P FFC/60V (J59) ADD7536 17P FFC/60V (J54) ADD7540 29P FFC/60V (J55) ADD7532 19P FFC/60V (J56) ADD7533 10P FFC/60V (J51) ADD7528 Card Spacer AEC7214 Screw BBZ26P080FCC Screw BBZ30P080FCC Screw PMZ30P060FCC VSX-2016AV-S...
  • Page 18 VSX-81TXV, -S, VSX-9110TXV-K POWER AMP IN CN5603 27(x3) 29(x2) 24(x2) LOCAL P-SUPPLY CNJ3505 FRONT-IN CN2651 VSX-81TXV, 81TXV-S, VSX-9110TXV-K ONLY POWER PROTECT CN5703 DISPLAY CN2301 LOCAL P-SUPPLY 3502 12V-REG LOCAL P-SUPPLY J3504 VSX-81TXV, VSX-9110TXV-K ONLY VSX-2016AV-S...
  • Page 19 12 FM/AM Tuner Unit AXX7172 AXX7172 AXX7172 13 Rear Panel 81KKU ANC8378 Not used Not used 13 Rear Panel 81SKU Not used ANC8379 Not used 13 Rear Panel 9110KKU Not used Not used ANC8380 19 12P FFC/60V (J52) ADD7529 ADD7529 ADD7529 VSX-2016AV-S...
  • Page 20: Power Amp Section

    2.5 POWER AMP SECTION COMPONENT CN1406 VSX-2016AV-S ONLY to/from PS/SP TRANS 2-1 CN3252 TRANS SIDE CN3202 MAIN CONTROL CN103 LOCAL P-SUPPLY J3503 VSX-2016AV-S ONLY VSX-2016AV-S...
  • Page 21 Heat Sink 45 ANH7152 Screw BBZ30P080FCC PCB Angle 45 ANG7406 Mica Sheet 45 AEE7047 (2) CONTRAST TABLE VSX-2016AV-S/HYXJ5, VSX-81TXV/KUXJCA, VSX-81TXV-S/KUXJCA and VSX-9110TXV-K/KUXJ are con- structed the same except for the following: VSX-2016AV-S VSX-81TXV VSX-81TXV-S VSX-9110TXV-K Mark No. Symbol and Description /HYXJ5...
  • Page 22: Front Panel Section

    2.6 FRONT PANEL SECTION TRANS SIDE 3201 MAIN CONTROL CN101 ∗a USB CN701 MAIN CONTROL CN113 ∗b ∗a VSX-2016AV-S...
  • Page 23 NSP 14 P Base See Contrast table (2) NSP 15 Side Button See Contrast table (2) (2) CONTRAST TABLE VSX-2016AV-S/HYXJ5, VSX-81TXV/KUXJCA, VSX-81TXV-S/KUXJCA and VSX-9110TXV-K/KUXJ are con- structed the same except for the following: VSX-2016AV-S VSX-81TXV VSX-81TXV-S VSX-9110TXV-K Mark No. Symbol and Description...
  • Page 24: Block Diagram And Schematic Diagram

    FRONT OPT IN IC741(1/2) FOPT FOPT BA4560RF JA2651 VIDEO/GAME AOUTL MICOUT JA2701 MICOUT IC781 MIC IN BA4560RF CN2652 JA2751 USB ASSY VSX-2016AV-S only IC701 IC781 TCC760 PRE Amp CN701 CN702 CN516 IC801 IC501 CN521(1/2) UPC4570G2 R2S152005FP IC841 CN522(1/2) UPC4570G2 CDR/TAPE/MD VOL.
  • Page 25 Voltage Amp IC5602 CN5603 SAP17P CN5303 CN5606 Current Amp CN5303 POWER AMP IN ASSY CN1406 CN1501(1/2) CN2901 CN2902 CN1405 CN1502(1/2) LOUT LOUT SLOUT SLOUT CN1501(2/2) SWOUT SWOUT PRE OUT COUT COUT CN1501(2/2) SBLOUT SBLOUT CN1502(2/2) BRIDGE 2 COMPONENT ASSY ASSY VSX-2016AV-S...
  • Page 26: Block Diagram For Video Block

    S-Video IC1203 IC1201 CD74HC4053PW MONITOR CD74HC4051PW DVD/LD MUTE TV/SAT MUTE Sync DVR/VCR 1 DVR/VCR 1 REC OUT Selector for DVC/Through Y Selector DVR/VCR 2 MUTE IC1202 CD74HC4051PW MUTE 6dB AMP DVR/VCR 2 REC OUT S-VIDEO ASSY C Selector VSX-2016AV-S...
  • Page 27 DVC from DVC CN1401 COMPONENT ASSY IC1042 TC74LVX4052FT COMPONENT IC1043 TC74LVX4053FT IC1044 NJM2581M Input Selector COMPONENT for Component 6dB AMP Selector &DRIVER for DVC/Through COMPONENT IC1041 TC74LVX4052FT VSX-2016AV-S...
  • Page 28: Overall Wiring Diagram

    CN1401 XM LINE (VSX-2016AV : AWX9031) 12/150 ADD7529- (VSX-81TXV, VSX-9110TXV : AWX9032) CN1402 CN3803 CN1203 CN1202 S-VIDEO ASSY (VSX-2016AV : AWX9030) CN1201 (VSX-81TXV, VSX-9110TXV : AWX9029) CN3802 CN1002 CN1003 COMPOSITE ASSY (VSX-2016AV : AWX9028) CN1001 (VSX-81TXV, VSX-9110TXV : AWX9026) VSX-2016AV-S...
  • Page 29 (VSX-81TXV, VSX-9110TXV : AWX9052) 1.25mm BOARD to BOARD XKP%%-A 1.25mm BOARD to BOARD KP250NA 2.5mm BOARD to BOARD POWER CORD VSX-2016AV : VDG1080 2.5mm BOARD to BOARD VSX-81TXV, VSX-9110TXV : VDG1075 ANOTHER TYPE BtoB SOCKET ANOTHER TYPE BtoB CONNECTOR VSX-2016AV-S...
  • Page 30: Audio In Assy (1/2)

    XKP3069 INSL1 (Sin) (1/2) AKB7172 VSX-2016AV SURROUND ONLY VSX-2016AV ONLY (SR) R516 C568 INSR1 47/25 CN526 (2/2) AKB7172 (SBL) 47/25 R517 C569 INSBL1 (SBin) VSX-2016AV CN402 SURROUND ONLY VSX-2016AV ONLY BACK (SBR) R518 INSBR1 C570 47/25 C645 0.01 GNDCH VSX-2016AV-S...
  • Page 31 Unit: p-pF or µF unless otherwise noted. Ratings: Capacity(µF)/Voltage(V) unless GDAC C790 R798 otherwise noted. (SBR) Rated Voltage: 50V except for electrolytic C782 R784 R786 R788 INSBR2 (SBR) capacitors. 10/50 2.2/50 2.7K 2.7K 2.7K IC781 V-12A C788 BA4560RF-TBB GDAC0 (2/2) 470p VSX-2016AV-S...
  • Page 32: Audio In (2/2) And 12v-reg Assys

    V+5DH V+7D V+5D(HDMI) HDMI SW HDEO V+5D(HDMI) HD MUTEO UGRTN V+5DUN(HDMI) HD REQI UGRTN HDREQI DAC RESET VLCK VCLK HDEO HD MUTEO ADC RESET/NC VLDT R572 HDMI SW LSSN GND U LSSN HD RESET PREGAIN GURTN GNDU1 GNDU GDAC VSX-2016AV-S...
  • Page 33 Tolerance: (J) 5% unless otherwise noted. (SBL) 2.CAPACITORS : Audio Signal Route (Surround Back L ch) Unit: p-pF or µF unless otherwise noted. Ratings: Capacity(µF)/Voltage(V) unless (SW) otherwise noted. : Audio Signal Route (SubWoofer ch) Rated Voltage: 50V except for electrolytic capacitors. VSX-2016AV-S...
  • Page 34: Main Control Assy (1/3)

    VSX-9110TXV ONLY MEXST R141 RDSXM5 M232RX OSDT XMIRQ5 MEXCK XMLINK5 NECK6 XMLSDT5 CONT5V MAIN V+5US stby V+5_6U C131 NECK8 D103 V+5_6ST V+5UM stby 1SS355 C494 V+5_6U V+5_6ST V+5UMIN C493 stby D102 L101 DAN202U ATL7002 GNDU D108 RB520S-30 3502 CN2301 VSX-2016AV-S...
  • Page 35 Q109 XMPOW 232SW MRSP MRSP Q104 (1/2) NECK6 UMB1N NECK8 MEXDT0 R194 12TRG1 R195 stby SBMUTE Q104 (2/2) RT1P241M UMB1N D107 DAN202U RDS SW / XMRST VSX-81TXV, IC109 SN74AHCT32PW PORT EXPANDER VSX-9110TXV ONLY Q110 (4/4) MRSP RT1P241M (3/3) (XM) VSX-2016AV-S...
  • Page 36: Main Control (2/3), Guard-c And Guard-f Assys

    R310 R331 R318 stby R319 R320 stby R321 stby CONT3V V+12A V+5_6U V+5_6ST (LEVEL CONVERT) V+3DD Q108 IC310 (1/2) Q301 NJM2391DL1-33 UMB1N 2SA1036K(QR) D301 DAN202U Q108 MFWRITE (2/2) UMB1N Q302 CONT5VPOFF5 12VON (1/8) Q107 RT1N241M RT1N241M (LEVEL CONVERT) GNDU VSX-2016AV-S...
  • Page 37 2.CAPACITORS Unit: p-pF or µF unless otherwise noted. STBY Ratings: Capacity(µF)/Voltage(V) unless otherwise noted. Rated Voltage: 50V except for electrolytic GUARD-F ASSY capacitors. CONT5V (AWX9070) VEF1040-A (LEVEL CONVERT) (Main u-com) CN952 (PORT EXPANDER ) VEF1040-A VEF1040-A VSX-81TXV, VSX-9110TXV ONLY VSX-2016AV-S...
  • Page 38: Main Control Assy (3/3)

    GNDVC GNDVC USBR GNDA GNDVC CbIN GNDVC CrIN GNDVC uGRTN GNDVC V-7A GNDVC CrIN uGRTN GNDVC CbIN GNDVC VLCK GNDVC VLCK GNDVC YOUT VLDT VLDT GNDVC R385 GNDVC GNDU USBL CbOUT GNDVC USBR GNDVC GNDU GNDU GNDVC CrOUT (uGRTN) VSX-2016AV-S...
  • Page 39 IC108 (DSP ucom) (HDMI) GNDU : Audio Signal Route (L ch) : Video Signal Route (SY) : Audio Signal Route (Mic ch) : S-Video Signal Route (Y ch) (SC) : Audio Data Route : S-Video Signal Route (C ch) VSX-2016AV-S...
  • Page 40: Dsp Assy (1/4)

    NOTES: INDICATED PARTS IS... CCSRCH****50-T CKSRYB****50-T CKSRYB104K16-T CKSRYB105K6R3-T CKSQYB105K16-T CEVW***M**-TRB XTL0 RS1/16S***J-T HDSPD (RX3) RAB4C***J-T (RX2) UNLESS OTHERWISE NOTED C929 C930 C931 C932 stby stby stby stby GDAC GNDD GDAC GNDD GDAC GNDD GDAC GNDD (A/D) (A/D) (8chD/A) (2chD/A) VSX-2016AV-S...
  • Page 41 GNDD C917 stby (DSP) GNDD C921 C918 R919 R918 stby 0.01 CH 470p R920 stby C922 R930 GNDH 100k YB 0.01 100k R929 GNDD GDAC (DSP) C923 YB 0.1 C924 GNDD CH 470p CN901 BTEM20P-1R GNDD GDAC (DIR) CN507 VSX-2016AV-S...
  • Page 42: Dsp Assy (2/4)

    PAD3 PAD4 (A12) V31F DQ12 PAD12 (A4) (A11) PAD13 (A5) (A10) XRESET PAD14 (A6) (A9) DQ11 PAD15 (A7) (A8) RY/XBY DQ10 PAD3 PAD2 PAD1 GNDD PAD15 PAD0 PAD14 PAD13 PAD12 IC109 TC7SH32FUS1 PAD11 PAD10 PAD9 R153 R154 4.7k GNDD VSX-2016AV-S...
  • Page 43 FDTI (DSDL0) VDDEXT PAD2 R113 PAD1 PAD0 VDDINT R107 C119 470p C139 470p 42 43 46 47 49 50 52 53 54 58 59 68 69 70 71 C140 C137 C120 470p C138 GNDD DT3O DT2O DT1O DT0O R112 VSX-2016AV-S...
  • Page 44: Dsp Assy (3/4)

    D906 RB160L-40 NOTES: R902 R904 stby R903 R905 INDICATED PARTS IS... stby 1608 size CCSRCH****50-T CKSRYB****50-T CKSRYB104K16-T IC904 CKSRYB105K6R3-T BD00KA5WFP V1D2 V3D2 2125 size 1.25V CKSQYB105K16-T IC903 CK47 CK48 CKSQYB475K6R3-T BD7802FP CEVW***M**-TRB RS1/16S***J-T RAB4C***J-T UNLESS OTHERWISE NOTED REGULATOR GNDD VSX-2016AV-S...
  • Page 45 R222 PINIT CK51 R220 UCOM EXTAL CK52 VDDIO VDDPD GNDPD OSC2 GNDPP GNDSP R209 4.7k R227 stby C211 C209 C207 470p 470p 470p C210 C212 C208 CK109 R219 4.7k C213 stby C214 stby C215 stby R206 stby R208 stby VSX-2016AV-S...
  • Page 46: Dsp Assy (4/4)

    R806 100k GNDH GNDD (CN801 6,8pin) R810 100k GNDH GNDD GNDD (CN801 16,18pin) R962 100k R964 R961 stby 100k R951 100k R956 stby R955 R957 stby 4.7k CN952 GNDD GNDD VKN1416 CN951 XKP3083 GNDD CN305 CN512 VSX-81TXV, VSX-9110TXV ONLY VSX-2016AV-S...
  • Page 47 TC74VHC157FTS1 Switch for XM/DIR DATA GNDD XMSW3 R613 R614 VSX-2016AV ONLY V3D2 V32L LRCK NOTES: IC651 INDICATED PARTS IS... TC74VHC157FTS1 CCSRCH****50-T Switch for HDMI CKSRYB****50-T CKSRYB104K16-T DATA CKSRYB105K6R3-T CKSQYB105K16-T CEVW***M**-TRB RS1/16S***J-T GNDD RAB4C***J-T HDSW UNLESS OTHERWISE NOTED HDMI DIR/XM VSX-2016AV-S...
  • Page 48: Composite Assy

    2SC4081 GOS2 (C'site) C1122 IC1006 V-5V OSDDT PDC132A STBY OSDCK OSDCS V-5V VOS2 V+5_6V V+5V D1003 1SS355 R1039 L1003 X1001 GOS1 R1040 33uH ASS1056 R1041 VI_POD D1004 1SS355 V-7A GNDU V-5_6V V-5V CN1003 XKP3077 GNDU (SUPERG2) CN1002 XKP3081 CN3802 VSX-2016AV-S...
  • Page 49 C1118 UPC4570G2 CN1004 VSX-9110TXV iP-L ONLY R1107 510K AKP7202 ONLY C1115 R1115 R1123 0.01 STBY 4.7K F/W GND (IP) VSX-2016AV-S R1109 C1107 10/50 STBY R1121 F/W GND ONLY STBY 4.7K 10/50 R1113 ACC ID C1105 R1103 10/50 Q1102 F/W POWER...
  • Page 50: S-video And Bridge 2 Assys

    No marked Capacitors are CEAT or CKSRYB. V+5_6U Unit: p-pF or µF unless otherwise noted. Rated Voltage: shown as "Capacity(µF)/Voltage(V)", or 50V unless otherwise noted. 3.DIODES No marked Diodes are 1SS355. * Parts or parts block marked by "STBY" are standby. GNDU GNDVC CN108 CN109 VSX-2016AV-S...
  • Page 51 : S-Video Signal Route (Y ch) GNDA GNDA V+12TRG (SC) : S-Video Signal Route (C ch) GNDA GNDA V-5_6V (SO) V-5S CN520 GNDA GNDA GNDU (SWO) CN1203 GNDA GNDA XKP3078 (CO) CN1405 GNDA GNDA SBRO SBRO GNDA GNDA (SBO) SBLO SBLO CN3803 VSX-2016AV-S...
  • Page 52: Component Assy

    : Audio Signal Route (Surround Back L ch) (SW) STBY : Audio Signal Route (SubWoofer ch) GNDU GNDVC GNDU (CHASSIS) : Video Signal Route (Component Y ch) (Cb) : Video Signal Route (Component Cb ch) (Cr) CN107 : Video Signal Route (Component Cr ch) VSX-2016AV-S...
  • Page 53 Unit: p-pF or µF unless otherwise noted. Rated power: 1/16W unless otherwise noted. Tolerance: ±5%(J) unless otherwise noted. Rated Voltage: shown as "Capacity(µF)/Voltage(V)", or 50V unless otherwise noted. 2.DIODES No marked Diodes are 1SS355. * Parts or parts block marked by "STBY" are standby. VSX-2016AV-S...
  • Page 54: Display, Volume And Multi Jog Assys

    SIGNAL SELECT V+5UH S2452 SB ch PROCESSING S2453 GNDU Multi ch IN KEY4 KEY 4 VENCB C2452 VENC B 0.01 VENCA C2453 VENC A LED12 0.01 J2451 Q2406 Q2407 Q2408 GNDU LED13 RT1N431M RT1N431M RT1N431M D15A04-100-2651 GNDU LED14 S2454 ASX7048 VSX-2016AV-S...
  • Page 55 S2553 S2563 S2573 RETURN S2554 S2564 S2574 LED10 Q2511 RT1N431M CD-R/TEPE TONE LISTENING V+5UH MODE S2555 S2565 S2575 V+5UH1 DVD/LD S2556 S2566 S2576 TV/SAT S2557 S2567 S2577 SPEAKERS DVR/VCR1 LED11 GNDU S2558 Q2512 RT1N431M GNDU S2551 - S2577: VSG1024- VSX-2016AV-S...
  • Page 56: Headphone, Front-in, Primary And Trans 1 Assys

    V+7A (FSY) V-7A (FV) R2665 R2672 VIDEO VIDEO GAV2 (FVL) (FVL) R2651 AUDIO C2653 R2655 R2659 R2666 L2651 10/50 STBY R2667 STBY L2653 KN2651 V-7A CTF1385 VNF1084 GNDA GNDCH2 L2652 R2656 C2654 R2660 STBY 10/50 GNDCH2 R2652 (CHASSIS) GNDA VSX-2016AV-S...
  • Page 57 : Video Signal Route Unit: p-pF or µF unless otherwise noted. (SY) Ratings: Capacity(µF)/Voltage(V) unless otherwise noted. : S-Video Signal Route (Y ch) Rated Voltage: 50V except for electrolytic capacitors. 3.DIODES (SC) : S-Video Signal Route (C ch) Indicated in 1SS355. VSX-2016AV-S...
  • Page 58: Trans 2-1, Diode 1, Vh Tr, Bridge 1 And Ps/sp Assys

    Cr OUT 2SB1186A(DE) D3351 5811 1SR154-400 VEF1040-A CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH VH TR ASSY SAME TYPE NO. ICP-N15, MFD BY ROHM (AWX9061) CO., LTD. FOR IC3351 and IC3352. S T U V VSX-2016AV-S...
  • Page 59 Unit: p-pF or µF unless otherwise noted. (SL) Ratings: Capacity(µF)/Voltage(V) unless otherwise noted. : Audio Signal Route (Surround L ch) Rated Voltage: 50V except for electrolytic capacitors. MBA:CQMBA, LA:CFTLA : Audio Signal Route (Center ch) (SBL) : Audio Signal Route (Surround Back L ch) VSX-2016AV-S...
  • Page 60: Trans 2-2, Trans Side, Local P-supply, Dc/dc, Ir I/o And Video Connect Assys

    CHASSIS STBY R3210 GNDST L3210 V+5.6ST R3211 V+5.6ST L3211 RY AC VEF1040-A STBY RY AC R3212 W UP W UP L3212 HPDET R3213 CN3203 CN3202 L3213 B13B-PH-K-S CKS3382 R3202 - R3214,L3202 - L3214:STBY DC/DC ASSY (AWX9015) X Y Z VSX-2016AV-S...
  • Page 61 GAV(SUPERG2) GAV(SUPERG2) V+5.6V V+5.6V V-5.6V V-5.6V V+iPOD GNDU V+iPOD 3801 V-5_6V (SUPERG2) STBY CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH VIDEO CONNECT SAME TYPE NO. 49101.6 MFD, BY LITTELFUSE INK. FOR IC3510. ASSY (AWX9069) VSX-2016AV-S...
  • Page 62: Power Amp-l, Posi 1-l And Posi 2-l Assys

    (SBL) R5201 C5201 R5202 4.7/50 ACG7057 4p/200V Q5201 2SD2704K C5208 Q5202 Q5202 R5204 IMT4 IMT4 STBY Q5205 (SBL) (SBL) 2SC2705(OY) CN5003 KM250NA6L C5222 GNDA stby R5231 R5230 C5217 R5229 (1/10W) 33k 330/10 C5215 C5216 C5227 STBY AD AE AF VSX-2016AV-S...
  • Page 63 (5W+5W) (GRAY) R5244 R5250 Q5272 IC5202 (SBL) SAP17P(OY) R5222 C5212 R5226 J5005 ACG7056 R5224 100p/200 (0.5W) ADB7021 0.047 Q5271 ACN7132 (1/4W) STBY C5611 R5292 J5006 ADB7022 (0.5W) 0.047 100p/200 R5621 ACN7132 ACG7056 IC5601 R5615 SAP17N(OY) STBY R5613 62 F VSX-2016AV-S...
  • Page 64: Power Amp-r And Posi 1-r Assys

    R5502 4.7/50 KN5301 CHASSIS ACG7057 4p/200V STBY Q5501 C5508 2SD2704K Q5502 Q5502 R5504 IMT4 IMT4 CN5303 Q5505 2SC2705(OY) KM250NA6L GAMP C5522 VSX-2016AV stby 5002 ONLY 330/10 R5531 R5530 R5529 (1/10W) 33k C5517 VEF1040-A C5515 C5516 C5527 STBY AG AH VSX-2016AV-S...
  • Page 65 2SA1255(OY) R5543 D5543 1SS355 R5527 ACN7121 0.18+0.18 (2/2) (5W+5W) ADX7460 CN3006 (BROWN) R5544 R5550 IC5502 R5522 SAP17P(OY) C5512 R5526 ACG7056 ACN7132 (0.5W) 0.047 R5524 100p/200 (1/4W) DC_DET J5306 ADB7021 IC5602 R5622 SAP17P(OY) C5612 R5592 (0.5W) ACG7056 ACN7132 0.047 100p/200 VSX-2016AV-S...
  • Page 66: Power Amp In And Power Protect Assys

    OL DET RT1P241M (22k) DC DET POSI_2 VSX-81TXV, POSI_1 VSX-9110TXV Q5701 Q5705 (22k) GNDU ONLY R5747 OL DET RT1N241M Q5703 RT1N241M R5715 (22k) (22k) RT1N241M (22k) Q5704 2SC4081(QR) OL DET DC DET POSI_2 POSI_2 GNDU POSI_1 CN5702 XKP3065 AI AJ VSX-2016AV-S...
  • Page 67 RYAC R5711 R5750 WATTS V+5.6ST GNDST IC5701 GNDST BA4560RF-TBB RYCS RYCS RYHP RYHP CN3202 V+12A V-12A LOCKDET V-FAN PROTECTION DETECT V-FAN NORMAL DETECT V+FAN LOCK DET OL DET V+FAN DC DET CN5705 TEMP1,2 52044-1745 CN5704 S5B-PH-K-S AI AJ J3503 VSX-2016AV-S...
  • Page 68: Hdmi & Dvc Assy (1/2)

    A1(NC) R172 Data0 Shield R1X0+ A2(NC) Data0+ R1X1- Data1- R171 Data1 Shield R1X1+ GNDD Data1+ V+3RX R1X2- Data2- Q172 DTC114YUA Data2 Shield R1X2+ Data2+ GNDD GNDD R193 Q173 V+5R1 GNDD HN1K02FU STBY R194 STBY DSDA1 DSCL1 GNDD GNDC GNDC VSX-2016AV-S...
  • Page 69 MCLKO R202 BCKO R203 LRCKO /DR0O R204 SD0O /DL0O 47*4 SD1O /DR1O SD2O /DL1O SD3O /DR2O SPDIF R205 SPDIFO UMB1N DL2O I2S_OFF HN1K01FU GNDD V+3RX IC203 TC74LCX541FTS1 R206 47*4 R207 R208 DCLK R209 MCLK R210 R213 STBY DSD_OFF GNDD VSX-2016AV-S...
  • Page 70: Hdmi & Dvc Assy (2/2)

    C421 CVBS C454 R421 R455 35 36 37 38 39 40 41 42 43 44 45 R422 68*4 GNDA GNDD V+1R8VC GNDD C491 STBY V+3R3VC R456 IC402 68*4 TC7WU04FU GNDD GNDC R416 GNDD R414 X401 GNDD ASS7067 28.63636M GNDD VSX-2016AV-S...
  • Page 71 Cr IN C703 VC(Y) GNDA 13 14 16 17 19 20 Y OUT R774 VC(Cb) GNDA STBY GNDD Cb OUT VC(Cr) GNDA Q771 2SA1576A(RS) Cr OUT V+5A R1101 GNDD FRONT SIDE R1102 R784 STBY GNDD GNDD GNDA Q781 2SA1576A(RS) GNDD VSX-2016AV-S...
  • Page 72: Usb Assy (vsx-2016av-s Only)

    3.25 USB ASSY (VSX-2016AV-S ONLY) USB ASSY (AWX8704) V5USB R731 STBY CN701 V+3R3 B4B-PH-K-S L731 GNDD1 VTL1169 R737 V5USB R732 L702 USBH_D- STBY L733 QTL1013 VTH1043 USBH_D+ R713 X701 P188 V18D V+1R8 R733 P187 C732 R738 STBY CSS1614 XRST STBY...
  • Page 73 IC953 IC951 TC74VHC08FTS1 TC74VHCT08AFTS1 RS1/16S~ (SN74AHC08PW) (SN74AHCT08PW) CAPACITOR 5V -> 3V 3V -> 5V level shifter level shifter : 2125Size for XM for XM CKSQ**~ : 1608 Size CCSR**~ CKSR**~ GNDD1 GNDD1 SDCLK ELECTRIC CAPS SDCKE JQ : CEJQ***M** VSX-2016AV-S...
  • Page 74: Pcb Connection Diagram

    Symbol In PCB Symbol In Schematic Part Name Diagrams Diagrams C E B Capacitor Connector Transistor B C E SIDE A Transistor with resistor B C E Field effect SIDE B P.C.Board Chip Part transistor Resistor array 3-terminal regulator VSX-2016AV-S...
  • Page 75 VSX-2016AV-S...
  • Page 76: Audio In Assy

    C786 C745 C783 C784 C743 R781 R782 R741 CN661 CN516 J664 IC663 C794 C793 NJM78M12 PRINTED SIDE J663 1.V+7D 2.GRTN Y661 3.V+5D C662 C661 CN513 CN511 AUDIO IN ASSY AWX9012 AWX9096 CN516 AWX9013 PRODUCTION CODE AWX9087 ABH724 C606 C605 VSX-2016AV-S...
  • Page 77 C591 CRE R Y661 R563 IC501 R564 CN509 C746 C765 C766 C705 C706 CD L C744 C763 C764 C703 C704 Q701 R742 R761 R762 R701 R702 R733 CD R C599 C600 C598 C597 CN512 CN507 CN501 ABH7245 C606 (ANP7559-C) VSX-2016AV-S...
  • Page 78 R506 16.TL 15.TR 16.GNDA(GDAC) 14.V+7A 17.SBRO 13.V-7A 18.GNDA(GDAC) R503 12.FVL 19.SBLO 11.FVR 20.STBY 10.GNDA 21.STBY 9.GNDA 22.STBY R504 8.USBL 23.STBY 7.USBR 6.MIC 1.GNDD 5.UGRTN R572 2.XTLO 4.UGRTN 3.VCLK 2.VDT CN509 1.GNDU CN512 CN501 CN507 (ANP7559-C) CN507 CN509 CN512 CN501 VSX-2016AV-S...
  • Page 79 SIDE B J662 AUDIO IN ASSY D670 R666 R663 D669 J664 CN661 J664 CN661 1.V+7D 2.GRTN 3.V+5D CN511 CN513 J662 CN516 C607 CN511 CN513 CN516 VSX-2016AV-S...
  • Page 80: Reg Assy

    4.2 12V-REG ASSY SIDE A SIDE A 12V-REG ASSY IC661 IC662 NJM79M12 NJM78M12 PRINTED SIDE PRINTED SIDE J663 12V REG ASSY AWX9014 (ANP7559-C) J663 J664 SIDE B SIDE B J663 (ANP7559-C) 12V-REG ASSY VSX-2016AV-S...
  • Page 81: Bridge 2 Assy

    3.GNDA 3.GNDA 4.GNDA 4.GNDA 5.FLO 5.FLO 6.GNDA 6.GNDA 7.SRO 7.SRO 8.GNDA 8.GNDA 9.SLO 9.SLO 10.GNDA 10.GNDA 11.SWO 11.SWO 12.GNDA 12.GNDA 13.CO 13.CO 14.GNDA 14.GNDA 15.SBRO 15.SBRO 16.GNDA 16.GNDA 17.SBLO 17.SBLO (ANP7561-B) SIDE B SIDE B (ANP7561-B) BRIDGE 2 ASSY VSX-2016AV-S...
  • Page 82: Main Control Assy

    Q110 Q109 C118 IC103 MAIN CONTROL Ass'y AWX9008 AWX9011 AWX9009 KN281 AWX9010 IC108 CN109 CN108 L295 R291 L291 IC306 D291 L292 L293 JA291 C291 CN110 L294 CN111 IC107 R187 R185 IC304 R346 CN109 CN112 CN110 CN112 CN1202 CN1001 CN509 VSX-2016AV-S...
  • Page 83 IC310 24.SR IN RYHP 1.V+5UM C310 R308 C309 IC305 IC302 R312 R307 IC308 R301 R315 R314 X301 R310 R180 R302 IC303 C304 IC107 C305 R187 C306 R330 R185 IC105 IC304 R309 R346 CN302 CN301 (ANP7559-C) CN301 CN302 CN511 CN513 VSX-2016AV-S...
  • Page 84 12.MRIN 7.FLAC1 MAIN CONTROL Ass'y 13.1W WP 6.iPodPOWER 14.EX CK 5.FANSTOP 15.EX ST 4.FANDRIVE 16.EX OE AWX9009 3.V+5_6U AWX9008 17.EX DT0 2.GNDU 1.GNDU AWX9011 AWX9010 Q301 R352 R337 Q302 R333 R317 R326 R324 R325 R361 CN302 CN301 CN302 CN301 VSX-2016AV-S...
  • Page 85 C256 C257 CN283 R283 Q102 17.V+5D 16.FOPT 15.GNDD 14.GNDD 13.FVC 12.FVY 11.FV 10.GAV 9.GAV 8.MICDET 7.MICOUT R282 CN104 6.GNDA 5.GNDA 4.FVL CN113 3.FVR Q101 2.V+7A 1.V-7A CN107 R281 Q107 CN109 CN108 R352 Q108 R357 CN110 CN111 (ANP7559-C) CN112 CN112 VSX-2016AV-S...
  • Page 86: Dsp Assy

    C182 C216 C218 R555 C904 R153 C133 C217 C219 C134 R554 R107 L102 R148 C187 R110 CN951 C188 R154 IC111 IC105 C121 C123 C125 C127 C129 C131 C174 IC110 R907 IC902 C122 C124 C126 C128 C130 C132 C102 IC551 VSX-2016AV-S...
  • Page 87 C310 C311 C485 C488 C454 R923 C925 C452 X301 C486 C489 C455 C914 R408 R415 D402 R410 R412 R413 C926 C459 R917 C915 C261 R409 R411 CN402 CN951 C912 R951 C913 R916 CN951 CN402 CN901 (ANP7550-A) CN512 CN501 CN507 VSX-2016AV-S...
  • Page 88 SIDE B DSP ASSY CN801 CN801 R613 R209 R485 R226 R909 IC351 Q201 C352 L901 D401 CN901 CN402 CN951 CN901 CN402 CN951 VSX-2016AV-S...
  • Page 89 SIDE B CN801 PRODUCTION CODE D903 D904 R903 CN801 IC103 R209 R213 Q201 IC104 DSP ASS'Y (ANP7550-A) CN951 VSX-2016AV-S...
  • Page 90: Composite Assy

    MR Rch JA1005 JA1004 1003 R1160 JA1006 C1153 C1151 R1159 C1005 C1003 C1004 C1152 C1002 C1154 IC1151 C1001 D1112 CMKM-P3X X1001 R1015 R1016 VOS2 IC1006 C1028 Direct P VOS1 CN1002 R1042 C1043 C1027 C1032 C1031 C1033 R1034 CN1002 CN380 VSX-2016AV-S...
  • Page 91 AWX9028 V+7A V+12A 5.V-7A AWX9089 MR R iPODL GNDA GNDA AWX9090 5.GNDA GNDA MR L 1.iPODR AWX9094 MRMUTE C1129 R1121 CN1003 VLCK C1128 C1119 AWX9095 1.VLDT C1127 R1128 CN1001 C1126 COMPOSITE C1125 L1101 ASSY PRODUCTION CODE CN1002 CN3802 (ANP7561-B) VSX-2016AV-S...
  • Page 92 MONITOR VIDEO 5.V-7A R1105 iPODL GNDA GNDA 1.iPODR CN1003 R1110 Q1002 V+5_6V V-5_6V R1115 C1047 R1116 L1002 R1046 AWX9026 Q1004 AWX9028 11.GAV 5.GNDA 10.GAV AWX9089 MR L MRMUTE V+12A AWX9090 AWX9095 VLCK MR R CN1001 1.VLDT GNDA AWX9094 (ANP7561-B) VSX-2016AV-S...
  • Page 93 SIDE B MR R MR L DVR IN EVOLIN MR L Q1151 MR R IC1005 D1007 R1051 Q1002 D1002 D1001 COMPOSITE ASSY D1005 CN1002 CN1002 VSX-2016AV-S...
  • Page 94: S-video Assy

    4.7 S-VIDEO ASSY SIDE A S-VIDEO ASSY CN1204 CN1205 JA1351 IC1205 C1232 R1230 CMKM-P3X S-VIDEO ASSY R1228 C1230 AWX9105 AWX9029 AWX9030 C1227 C1229 C1231 AWX9093 C1252 C1251 AWX9099 AWX9100 CN1203 CN1203 CN3803 VSX-2016AV-S...
  • Page 95 SIDE A CN1301 CN1206 R1301 CN1205 Q1301 D1302 R1304 R1303 C1305 R1310 C1303 C1217 C1306 IC1201 C1218 C1232 R1230 C1301 C1302 C1304 R1228 IC1301 C1230 L1302 C1219 R1302 IC1202 C1221 C1243 R1235 C1223 C1251 IC1203 C1222 C1224 L1201 C1249 (ANP7561-B) VSX-2016AV-S...
  • Page 96 SIDE B S-VIDEO ASSY DVD IN DVR1 C1294 DVR1 C1293 D1301 R1219 FOR_SERVICE DVC_DIRECT_PASS. R1220 L1301 C1250 C1244 L1202 R1236 FOR_SERVICE DVC_DIRECT_PASS. Q1206 0 1 2 3 4 5 6 7 8 9 0 1 2 3 VSX-2016AV-S...
  • Page 97 C1291 C1292 DVR2 DVR1 IN DVR2 MONITOR C1293 C1355 C1354 C1353 R1355 Q1352 V+5S R1356 R1231 V-5S R1352 C1228 D1351 R1351 L1351 S-VIDEO ASSY VMUTE Video Amp IN AWX9029 AWX9099 (Y signal) AWX9030 AWX9100 AWX9093 AWX9105 CN1003 (ANP7561-B) CN1203 VSX-2016AV-S...
  • Page 98: Component Assy

    4.8 COMPONENT ASSY SIDE A COMPONENT ASSY C1551 C1549 C1532 C1548 C1533 C1547 C1531 Rout Bout CN1501 C1430 C1429 R1574 CN1406 R1576 CN1403 COMP 1.VMUTE 5.EXPDT1 6.OSDCK 2.S53ABC /EXPCK 3.EXPST 4.EXPOE 7.OSDDT CN1406 CN1403 CN5603 CN3804 VSX-2016AV-S...
  • Page 99 C1439 CN1401 1429 C1472 CMKM-P3X C1469 C1465 C1464 C1463 R1436 R1437 C1473 AWX9031 R1438 AWX9032 C1456 AWX9033 COMPONENT ASS'Y 1.VMUTE 5.EXPDT1 8.OSDCS 6.OSDCK 2.S53ABC 11.GAV 9.OSDRT /EXPCK 3.EXPST 12.V+5.6V 10.GAV 4.EXPOE 7.OSDDT 13.V-5.6V C1467 C1466 C1468 CN1404 1401 (ANP7561-B) VSX-2016AV-S...
  • Page 100 SIDE B COMPONENT ASSY C1403 R1403 C1404 C1401 C1493 R1409 C1406 R1404 Yout R1411 C1437 R1410 IC1404 C1435 R1461 Q1415 R1462 C1433 R1464 R1465 Q1416 R1463 C1444 AWX9031 AWX9032 AWX9033 V+5C C1431 C1432 R1419 R1420 R1442 CN1404 VSX-2016AV-S...
  • Page 101 SIDE B R1507 R1527 C1493 R1409 R1548 R1508 R1547 R1528 C1521 C1501 R1568 C1542 C1502 C1541 C1522 C1562 Rout R1411 C1561 R1567 SBLO GNDA SBRO GNDA V-5C GNDA V+5C GNDA GNDA GNDA GNDA GNDA CN1406 V-12A CN1403 (ANP7561-B) CN1403 CN1406 VSX-2016AV-S...
  • Page 102: Display Assy

    4.9 DISPLAY ASSY SIDE A DISPLAY ASSY Production Code V2301 C2360 D2410 W2470 D2412 HDMI PHASE CONTROL W2447 LED14 2301 W2423 LED13 W2420 GNDU DIGITAL P W2422 MJOGB W2421 MJOGA DISPL PNE-1B1 VSX-2016AV-S...
  • Page 103 W2460 C2407 W2459 1WUP W2462 V+5UH W2455 V+5UH W2461 GNDU W2456 VENCB W2454 VENCA 2301 D2414 W2440 X2301 DISPRST DIGITAL PROCESSING W2442 DISPLAY ASSY DISPRST W2445 VENCB W2444 W2438 VENCA W2443 GNDU AWX9040 AWX9041 W2418 MRIN AWX9042 AWX9043 (ANP7562-B) VSX-2016AV-S...
  • Page 104 23.DISP DO 10.V+5.6U 22.DISP RDY 9.GNDU 21.DISP EN 8.GNDU 20.HPDET DIGITAL PROCESSING 7.MICDET 29.12V DET MRIN 19.XiPod 6.SRIN 28.232CDET 5.RMC 27.TEMP2 4.SROUT 3.FLAC1 2.FLAC2 1.VF 0 1 2 3 0 1 2 3 4 5 6 7 8 9 VSX-2016AV-S...
  • Page 105 SIDE B DISPLAY ASSY AWX9040 AWX9041 HDMI AWX9042 AWX9043 PHASE CONTROL LED14 LED13 GNDU MJOGB MJOGA 1.V+5U 2.V+5UH 3.KEY1 4.KEY2 5.KEY3 6.LED11 7.LED10 8.LED9 9.LED16 10.EXCK 11.EXSTB ESSING 12.EXOE 13.EXDAT 14.EXQS 15.GNDU PNE-1B1 16.MJOGB 17.MJOGA (ANP7562-B) VSX-2016AV-S...
  • Page 106: Volume Assy

    4.10 VOLUME ASSY SIDE A SIDE A VOLUME ASSY VOLUME ASSY AWX9044 AWX9111 SIGNAL SELECT S2451 S2452 S2453 Multi ch IN (Sound Retriver) SBch PROCESSING PNE-1B1 W2491 VENCB S2454 (ANP7562-B) SIDE B SIDE B VOLUME ASSY (ANP7562-B) VSX-2016AV-S...
  • Page 107: Headphone Assy

    4.11 HEADPHONE ASSY SIDE A SIDE A HEADPHONE ASSY CN2851 1.HPDET 2.HPR 3201 3.GNDHP 4.HPL KN2851 (ANP7562-B) SIDE B SIDE B HEADPHONE ASSY C2854 C2855 (ANP7562-B) VSX-2016AV-S...
  • Page 108: Multijog Assy

    GNDU V+5UH W2510 V+5UH 123.0mm W2509 W2508 V+5U GNDU W2512 GNDU MULTI JOG ASSY 123.0mm S2561 ENTER W2502 EXQS AWX9045 W2501 AWX9046 EXOE AWX9112 AWX9113 W2504 EXQS S2501 S2562 S2563 S2564 S2565 S256 System TUNING/STATION TUNER RETURN TONE SETUP VSX-2016AV-S...
  • Page 109 D2504 D2506 D2508 D2510 D2512 D2514 D2516 S2551 S2552 S2553 S2554 S2555 S2556 S2557 S2558 W2539 DVR/VCR2 VIDEO/GAME CD-R/TAPE Tuner iPod HDMI V+5UH Multi CH IN (VIDEO SELECT) (ANP7562-B) W2504 EXQS S2565 S2566 S2567 UNING/STATION TUNER EDIT SPEAKERS PNE-1B1 VSX-2016AV-S...
  • Page 110 SIDE B MULTI JOG ASSY HDMI iPod TUNER VIDEO/GAME DVR/VCR2 (VIDEO SELECT) (Multi CH IN) CD-R/TAPE V+5UH EXQS TUNING/ TUNER EDIT SPEAKERS STATION VSX-2016AV-S...
  • Page 111 (Phase Control) DVD/LD Listening Mode DVR/VCR1 TV/SAT MR CONTROL KEY1 DVR/VCR2 (Acoustic EQ) V+5UH GNDU V+5UH V+5UH V+5U GNDU GNDU MULTIJOG ASSY AWX9045 AWX9112 EXQS AWX9046 AWX9113 ENTER EXOE PNE-1B1 EXQS (ANP7562-B) TONE RETURN SYSTEM TUNING/ R EDIT SETUP STATION VSX-2016AV-S...
  • Page 112: Front In Assy

    JA2751 W2619 C2715 C2755 W2612 C2716 FRONT IN C2712 CN2652 ASSY KN3351 W2610 C2706 AWX9047 AWX9048 W2606 1.V+5D 2.FOPT 3.GNDD 4.GNDD 5.FV-C 6.FV-Y 7.FV W2604 8.GAV 9.GAV 10.MICDET PNE-1B1 11.MICOUT W2600 12.GNDA 13.GNDA 14.FV-L 15.FV-R 16.V+7A 17.V-7A CN2651 CN113 VSX-2016AV-S...
  • Page 113 SIDE A JA2652 JA2651 W2616 GNDA W2612 W2617 GNDA RONT IN C2653 KN2651 ASSY W2613 GNDA GNDCH W2621 C2659 W2607 GNDCH W2622 W2623 GNDCH W2608 (ANP7562-B) VSX-2016AV-S...
  • Page 114 SIDE B FRONT-IN ASSY R2674 L2751 C2756 GNDD C2758 GNDA C2757 R2666 C2754 GNDA GNDCH GNDCH GNDCH FRONT IN ASSY (ANP7562-B) VSX-2016AV-S...
  • Page 115 SIDE B CN2652 L2751 VA2752 VA2751 C2756 C2758 C2757 C2754 CN2652 PNE-1B1 GNDA R2712 AWX9047 AWX9048 1.V+5D 2.FOPT 3.GNDD 4.GNDD 5.FV-C 6.FV-Y 7.FV 8.GAV 14.FV-L 9.GAV 15.FV-R 10.MICDET 16.V+7A 11.MICOUT 17.V-7A 12.GNDA 13.GNDA CN2651 VSX-2016AV-S...
  • Page 116: Primary Assy

    4.14 PRIMARY ASSY SIDE A PRIMARY ASSY CN3007 CN2002 W2010 2005YEL W2006 W2005 2005WHT W2004 2005 (ANP7562-B) Y14A POWER CORD VSX-2016AV-S...
  • Page 117 SIDE A CN3008 CN2001 AWX9034 AWX9035 AWX9036 AWX9037 AWX9085 AWX9086 AWX9091 IC2001 AWX9092 78M56A W2022 Y14A Y15A Y14B Y15B VSX-2016AV-S...
  • Page 118 SIDE B PRIMARY ASSY CN2001 CN200 CN200 CN2001 Y15A Y14A Y15A Y14A VSX-2016AV-S...
  • Page 119 SIDE B CN2002 CN2002 2005 CN2003 (ANP7562-B) VSX-2016AV-S...
  • Page 120: Trans 1 Assys

    4.15 TRANS 1 ASSYS SIDE A SIDE A TRANS 1 ASSY AWX9038 TRANS1 ASS'Y PNE-1B1 Y15A Y14A Y14B Y15B PRIMARY SIDE (ANP7562-B) T1501 MAIN TRANS. SIDE B SIDE B TRANS 1 ASSY Y14B Y15B (ANP7562-B) VSX-2016AV-S...
  • Page 121: Trans 2-1 Assy

    SIDE B SIDE B TRANS 2-1 ASSY 6.+C BINDER 5.+B AWX9058 4.+VH AWX9059 3.-VH Y10A 2.-B Y10A 1.-C TRANS2-1 ASS'Y D3264 D3258 D3262 D3260 D3254 5.V-12A D3261 4.NECK8 3.NECK6 D3256 2.VH- V-12A 1.VH+ NECK6 Q3251 Q3252 NECK8 D3265 D3266 (ANP7563-B) VSX-2016AV-S...
  • Page 122: Diode 1 And Vh Tr Assys

    4.17 DIODE 1 and VH TR ASSYS SIDE A SIDE B DIODE 1 ASSY DIODE 1 ASSY W3314 W3313 Y10B Y10A Y10B Y11A Y11B Y11B Y12B Y12B Y12A R3301 W3306 W3305 (ANP7563-B) (ANP7563-B) 3251 (ANP7563-B) (ANP7563-B) VH TR ASSY VH TR ASSY VSX-2016AV-S...
  • Page 123: Bridge 1 Assy

    4.18 BRIDGE 1 ASSY SIDE A SIDE A BRIDGE 1 ASSY CN1002 CN5811 123.0mm 123.0mm (ANP7563-B) 5811 PNE-1B1 CN5812 CN106 SIDE B SIDE B BRIDGE 1 ASSY CN5812 CN5812 CN5811 CN5811 (ANP7563-B) VSX-2016AV-S...
  • Page 124: Ps/sp Assy

    1.HP L C3001 V-12A L3051 CN3004 W3020 V-12 R3031 V+12 2.FL L3011 R3052 C3051 C3052 R3011 Y13A L3021 W3014 C3031 R3012 W3015 C3032 RY3002 W3003 W3009 RY3001 W3004 C3011 W3008 C3012 W3007 W3005 W3006 C3033 C3023 C3013 C3053 CN3001 VSX-2016AV-S...
  • Page 125 V-12 V-12 CN3006 R3072 W3024 R3051 R3071 W3023 L3071 L3041 RY3003 CN2002 RY3004 L3061 R3052 C3051 W3016 C3052 C3071 R3042 C3041 W3017 C3072 W3015 W3009 W3012 KN3001 W3008 W3010 C3042 W3013 W3007 W3011 (ANP7563-B) C3043 C3063 C3053 CN3002 C3073 VSX-2016AV-S...
  • Page 126 PS/SP ASSY Y12A Y11A PS/SP ASSY Y12A Y11A AWX9109 AWX9052 AWX9110 AWX9053 AWX9054 W UP AWX9055 RYAC AWX9107 V5.6ST AWX9108 GNDST GNDST GNDST GNDST GNDST GNDST CN3102 PNE-1B1 GNDST CN3101 Q3002 V+12 V-12 V-12 Q3003 Q3004 (ANP7563-B) CN3102 CN3101 VSX-2016AV-S...
  • Page 127 SIDE B Y11A Y11A CN3003 J3009 CN3102 V+5.6ST CN3004 CN3101 Q3002 V-12 V-12 V-12 CN3004 Q3001 CN3101 VSX-2016AV-S...
  • Page 128: Trans 2-2 Assy

    SIDE A TRANS 2-2 ASSY CN3501 (ANP7563-B) SIDE B SIDE B 12.AREG 11.AREGG 10.AREG 6.DREG 9.DREG 5.VREG 8.DREG 4.VREGG 7.DREG 3.VREG 2.AC2 1.AC1 PNE-1B1 RISK OF FIRE - REPLACE FUSE AS MARKED. TRANS2-2 ASS'Y AWX9062 (ANP7563-B) TRANS 2-2 ASSY VSX-2016AV-S...
  • Page 129: Posi 1-l, Posi 2-l And Posi 1-r Assys

    (ANP7564-B) POSI 1-R ASSY POSI 1-L ASSY (ANP7564-B) (ANP7564-B) J4501 CN5004 SIDE B SIDE B J4501 (ANP7564-B) 9080 POSI 1-L ASSY 9081 POSI_1L ASSY 9083 9084 POSI 1-R ASSY POSI_1R ASSY (ANP7564-B) (ANP7564-B) J4551 POSI 2-L ASSY AF AH VSX-2016AV-S...
  • Page 130: Trans Side Assy

    4.22 TRANS SIDE ASSY SIDE A TRANS SIDE ASSY CN5705 CN2851 CN3202 3201 3201 1.HPSW 2.HPR 3.HPG PRODUCTION CODE 4.HPL CN3202 SIDE B TRANS SIDE ASSY 0 1 2 3 CN3202 3201 VSX-2016AV-S...
  • Page 131 SIDE A J3009 CN3203 13,WUP 12,RYAC 11,V+5.6ST 10,GNDST 9,RYB 8,RYCS 7,RYHP 6,RYA 5,V+12V 4,V-12V 3,HPR 2,HPG 1,HPL AWX9056- 1,+FAN TRANS SIDE ASSY 2,-FAN AWX9057- 3,LOCK DET PNE-1B1 (ANP7563-B) SIDE B (ANP7563-B) CN3203 VSX-2016AV-S...
  • Page 132: Ir I/o Assy

    4.23 IR I/O ASSY SIDE A SIDE A IR I/O ASSY JA3701 JA3702 W3710 W3711 GNDU (ANP7563-B) SIDE B SIDE B (ANP7563-B) IR I/O ASSY VSX-2016AV-S...
  • Page 133 VSX-2016AV-S...
  • Page 134: Local P-supply Assy

    4.24 LOCAL P-SUPPLY ASSY SIDE A SIDE A LOCAL P-SUPPLY ASSY CN661 CN3801 J3505 J3504 D3517 C3503 2SD1763 Q3502 C3511 (ANP7563-B) VSX-2016AV-S...
  • Page 135 SIDE B SIDE B LOCAL P-SUPPLY ASSY J3504 J3505 J3504 J3505 (ANP7563-B) VSX-2016AV-S...
  • Page 136: Dc/dc Assy

    3.V+5D L651 W668 C658 GRTN W661 GRTN W659 GRTN C659 Q651 W658 GRTN W662 V+12UN W657 V+12UN W660 V+5D C655 KN651 C654 1.DREG 2.DREG 3.DREG 4.DREG W656 DREG W655 W654 DREG W653 DREG AWX9015 AWX9098 PNE-1B1 DC/DC ASSY (ANP7563-B) VSX-2016AV-S...
  • Page 137 SIDE B SIDE B DC/DC ASSY 1.V+7D 2.GRTN 3.V+5D GRTN GRTN D651 GRTN V+12UN GRTN V+12UN V+5D R653 R652 C656 R654 DREG DREG DREG DREG (ANP7563-B) VSX-2016AV-S...
  • Page 138: Video Connect Assy

    SIDE A SIDE A VIDEO CONNECT ASSY W3811 V+12TRG 1.V+12T 2.V+12TRG 3.GTRG 4.V+5.6V 5.SUPERG2 6.SUPERG2 7.SUPERG2 8.V-5.6V CN3804 9.V+iPod W3806 V+5.6V W3805 V-5.6V W3807 W3803 W3804 V+5.6V CN3803 PNE-1B1 W3802 V-5.6V VIDEO CONNECT ASSY AWX9069 W3801 V+5.6V CN3802 (ANP7563-B) VSX-2016AV-S...
  • Page 139 SIDE B SIDE B VIDEO CONNECT ASSY V+12TRG 1.V+12T 2.V+12TRG 3.GTRG 4.V+5.6V 5.SUPERG2 6.SUPERG2 7.SUPERG2 8.V-5.6V 9.V+iPod CN3804 V+5.6V V-5.6V V+5.6V PNE-1B1 CN3803 V-5.6V VIDEO CONNECT ASSY AWX9069 V+5.6V CN3802 (ANP7563-B) VSX-2016AV-S...
  • Page 140: Power Amp-l Assy

    C5117 C5017 C5101 C5001 C5133 C5033 W561 W565 CN5002 C5107 C5007 W560 W564 C5109 C5009 Q5105 Q5005 C5123 C5023 C5124 C5024 W544 W549 W545 PURPLE W548 GREEN W546 W550 R5027 R5127 J5002 W531 J5003 W530 W524 J5001 J5004 W529 VSX-2016AV-S...
  • Page 141 C5201 BLUE 2,VH- 1,VH+ C5233 W571 CN5001 C5007 C5207 W570 CN5003 R5051 1,GNDA C5209 BLACK W568 Q5205 3,bb 4,CB 5,CE C5223 6,CE C5023 C5224 W555 W556 W554 GRAY W557 R5027 R5227 W531 KN5003 W537 W530 J5005 W540 J5006 (ANP7564-B) VSX-2016AV-S...
  • Page 142 SIDE B POWER AMP-L ASSY CN5005 CN5005 13,SL 12,GNDA 11,FL 10,GNDA 9,SBL 8,GNDA 7,WT 6,DC 5,AMUTE 4,SBMUTE 3,VH- 2,VH- 1,VH+ 1,GNDA 3,bb 4,CB 5,CE 6,CE R5015 R5022 R5013 C5212 C5611 C5211 C5012 VSX-2016AV-S...
  • Page 143 SIDE B CN5004 CN5004 1,NC 2,NC 3,GNDU 4,POSI_1 5,POSI_2 6,DC DET 7,OL DET 8,WT 9,NC 10,NC 11,NC R5015 R5022 R5021 R5121 R5115 R5122 R5013 R5113 C5011 C5112 C5111 5012 (ANP7564-B) VSX-2016AV-S...
  • Page 144: Power Amp-r Assy

    4.28 POWER AMP-R ASSY SIDE A POWER AMP-R ASSY R5327 W735 ORANGE WHITE 1,NC 2,NC 3,WT 4,OL DET 5,DC DET 6,POSI_2 7,POSI_2 8,GNDU 9,POSI_1 10,NC 11,NC CN5304 W9073 9073 W9106 9106 CN5304 CN3006 J4551 CN3004 VSX-2016AV-S...
  • Page 145 SIDE A R5327 BROWN 1.CE 2.CE 3.CB 4.bb BLACK 6.GAMP BLUE SBMUTE AMUTE GNDA GNDA GNDA (ANP7564-B) CN3102 CN3006 VSX-2016AV-S...
  • Page 146 R5321 1.CE 2.CE 3.CB 4.bb 6.GAMP Q5502 Q5441 Q5602 Q5303 Q5503 R5501 13.VH+ 12.VH- 11.VH- R5529 C5502 R5530 10.SBMUTE R5301 C5515 R5504 9.AMUTE Q5501 R5503 R5531 Q5301 R5304 C5516 8.DC C5503 C5303 7.OL 6.GNDA 5.SBR 4.GNDA 3.FR 2.GNDA 1.SR VSX-2016AV-S...
  • Page 147 Q5403 R5429 R5329 C5302 R5330 C5402 R5430 R5301 R5401 C5415 C5315 Q5301 Q5401 R5304 R5303 R5331 R5403 R5431 R5404 C5316 C5416 C5303 C5403 1,NC 2,NC 3,WT 4,OL DET 5,DC DET 6,POSI_2 7,POSI_2 8,GNDU 9,POSI_1 10,NC 11,NC CN5304 (ANP7564-B) CN5304 VSX-2016AV-S...
  • Page 148: Power Amp In Assy

    SIDE A POWER AMP IN ASSY CN1406 CN5603 W929 W924 W928 W927 W926 W925 CN5003 CN5605 W920 W922 W921 W917 W916 W912 CN5601 W911 W914 YELLOW W915 W908 W903 1.VH+ CN5602 2.VH- 3.NECK6 W902 4.NECK8 5.A-12V CN5606 (ANP7564-B) CN5606 CN5303 VSX-2016AV-S...
  • Page 149 SIDE B SIDE B POWER AMP IN ASSY CN5603 CN5603 C5603 CN5605 1.VH+ 2.VH- CN5605 3.NECK6 4.NECK8 5.A-12V CN5601 R5607 D5601 D5603 D5605 D5604 D5602 D5606 R5644 CN5606 CN5602 R5648 D5644 D5643 (ANP7564-B) CN5606 VSX-2016AV-S...
  • Page 150: Power Protect Assy

    4.30 POWER PROTECT ASSY SIDE A SIDE A POWER PROTECT ASSY (ANP7564-B) VSX-2016AV-S...
  • Page 151 SIDE B SIDE B POWER PROTECT ASSY (ANP7564-B) VSX-2016AV-S...
  • Page 152: Hdmi & Dvc Assy

    R179 IC171 R332 IC172 R132 R124 R116 R118 R193 VA179 R115 VA180 R194 R142 L305 C137 C138 R331 R121 R119 C135 VA360 VA359 L354 C201 L304 L353 L352 R212 IC201 L351 C202 C312 C314 R316 C315 C203 R573 R213 VSX-2016AV-S...
  • Page 153 R203 R582 R581 R583 R512 R592 R212 R544 IC201 R516 R518 R543 R591 Q591 C202 R567 C507 R541 R523 R205 R542 R1001 C1001 R1002 Production Code C203 R207 C1002 R589 R208 R588 R209 R587 C918 CN1001 CN1001 (ANP7576-B) CN801 VSX-2016AV-S...
  • Page 154 SIDE B HDMI & DVC ASSY CN1002 CN1002 IC904 IC911 CN1001 CN1001 VSX-2016AV-S...
  • Page 155 SIDE B D171 R312 Q352 Q351 (ANP7576-B) VSX-2016AV-S...
  • Page 156: Usb Assy (vsx-2016av-s Only)

    4.32 USB ASSY (VSX-2016AV-S ONLY) SIDE A SIDE A CN2652 USB ASSY CN701 R757 CN701 C771 R705 L731 L732 IC771 L772 R706 R731 R734 C773 R773 R771 R735 R702 R772 IC761 ICT FC USB ASSY AWX8704 R701 C707 R703 R704...
  • Page 157 VSX-2016AV-S...
  • Page 158: Pcb Parts List

    Example) IC 301 is on the point (face A, 91 of x-axis, and 111 of y-axis) of the corresponding PC board. IC 301 (A, 91, 111) IC NJM2068V 7 7 7 7 LIST OF WHOLE PCB ASSEMBLIES VSX-2016AV-S VSX-81TXV VSX-81TXV-S...
  • Page 159 Not used CEVW470M6R3 C502, C504-C506, C508, C602 Not used CKSRYB104K16 C503, C601 Not used CCSRCH471J50 C507 Not used CEVW101M16 Mark Symbol and Description AWX8698 AWX8797 C509, C510 Not used CCSRCH100D50 C513 Not used CKSQYB105K16 R503, R613-R616 RS1/16S0R0J Not used VSX-2016AV-S...
  • Page 160 Not used 2SC4081(QRS) Q1351, Q1353 Not used 2SA1576A(RS) Q1352 Not used RT1N241M D1302 Not used 1SS355 D1351 Not used UDZS5R1(B) L1351 CHIP SOLID INDUCTOR Not used ATL7002 C1304, C1305 Not used CKSRYB105K10 C1306 Not used CKSRYB473K50 C1308 Not used CKSRYB224K16 VSX-2016AV-S...
  • Page 161 AWX9048 and AWX9047 are constructed the same except for the following : Mark Symbol and Description AWX9048 AWX9047 L2752, L2753 CHIP FERRITE BEAD VTL1169 Not used C2673 CKSRYB104K16 CKSRYB104K25 C2753, C2756 CKSRYB104K16 Not used C2755 CEAT101M16 Not used C2757 CCSRCH471J50 Not used VSX-2016AV-S...
  • Page 162 AWX9067 and AWX9066 are constructed the same except for the following : Mark Symbol and Description AWX9067 AWX9066 D3702 Not used 1SS355 L3701, L3703 INDUCTOR Not used CTF1473 L3702 CHIP SOLID INDUCTOR Not used QTL1013 L3704 INDUCTOR Not used CTF1385 C3758 Not used CKSRYB103K50 VSX-2016AV-S...
  • Page 163 Not used Q5706 RT1P241M Not used D5702 1SS355 Not used C5706 CKSRYB103K50 Not used R5704, R5709 Not used RS1/16S0R0J R5705, R5708, R5746 RS1/16S0R0J Not used R5706 RS1/16S822J Not used R5718 RS1/16S104J Not used CN5706 3 PIN CONNECTOR S3B-EH Not used VSX-2016AV-S...
  • Page 164 7 7 7 7 PCB PARTS LIST FOR VSX-2016AV-S/HYXJ5 UNLESS OTHER WISE NOTED Mark No. Description Part No. Mark No. Description Part No. R 511 (B,302,128) RS1/16S222J MAIN ASSY (AWK7889) R 512 (B,302,118) RS1/16S222J MISCELLANEOUS R 513 (B,302,142) RS1/16S331J J 663 JUMPER WIRE...
  • Page 165 R 770 (B,193,64) RS1/16S392J R 872 (A,263,128) RS1/16S153J R 771 (B,190,68) RS1/16S122J R 875 (B,282,194) RS1/16S104J R 772 (B,193,68) RS1/16S122J R 876 (B,282,186) RS1/16S104J R 773 (B,188,72) RS1/16S221J R 883 (A,253,116) RS1/16S0R0J R 774 (B,195,72) RS1/16S221J R 777 (B,186,79) RS1/16S101J VSX-2016AV-S...
  • Page 166 C 559 (A,300,99) ELECT. CAPACITOR CEAT470M25 C 707 (B,202,68) CCSRCH391J50 C 560 (A,300,90) ELECT. CAPACITOR CEAT470M25 C 561 (A,300,112) ELECT. CAPACITOR CEAT470M25 C 708 (B,209,68) CCSRCH391J50 C 709 (A,202,76) CEAT100M50 C 710 (A,209,76) CEAT100M50 C 713 (A,223,69) CEAT100M50 C 714 (A,216,69) CEAT100M50 VSX-2016AV-S...
  • Page 167 IC 307 (A,160,210) LOGIC IC SN74AHC08PW IC 308 (A,114,132) LOGIC IC SN74LV244APW C 810 (A,260,173) CKSRYB103K50 > IC 310 (A,197,141) IC NJM2391DL1-33 C 821 (A,265,108) CEAT4R7M50 Q 101 (B,106,182) TRANSISTOR DTC143TK C 822 (A,265,101) CEAT4R7M50 C 825 (A,263,133) CCSRCH101J50 C 826 (A,263,145) CCSRCH101J50 VSX-2016AV-S...
  • Page 168 RS1/16S101J CN113 (A,94,180) CONNECTOR CKS3382 R 182 (A,102,137) RS1/16S182J CN281 (A,33,209) 23P PLUG XKP3071 R 183 (A,101,137) RS1/16S104J CN301 (A,170,98) B TO B CONNCTOR BTEM20P-1R R 184 (A,99,137) RS1/16S104J CN302 (A,199,102) 23P SOCKET XKP3082 101 (A,218,170) PCB BINDER VEF1040 VSX-2016AV-S...
  • Page 169 R 347 (B,211,147) RS1/16S473J C 317 (A,90,132) CKSRYB104K16 R 348 (B,212,143) RS1/16S222J C 318 (A,164,209) CKSRYB104K16 R 349 (B,110,132) RS1/16S104J C 319 (A,110,135) CKSRYB104K16 R 350 (B,104,136) RS1/16S104J R 351 (B,112,132) RS1/16S104J R 352 (B,108,146) RS1/16S104J R 353 (A,111,125) RS1/16S104J VSX-2016AV-S...
  • Page 170 ATL7002 R 212 (A,101,36) RS1/16S473J L 903 (B,179,19) CHIP SOLID INDUCTOR ATL7002 R 214 (B,100,34) RS1/16S101J JA 351 (A,225,22) JACK AKB7131 R 215 (B,104,40) RS1/16S101J X 301 (A,190,25) CRYSTAL RESONATOR XSS3003 R 216 (A,98,33) RS1/16S101J R 217 (A,100,33) RS1/16S101J VSX-2016AV-S...
  • Page 171 C 121 (A,54,23) CCSRCH471J50 R 482 (B,172,35) RS1/16S470J C 122 (A,54,21) CKSRYB104K16 R 483 (B,169,35) RS1/16S470J C 123 (A,57,23) CCSRCH471J50 R 503 (A,153,52) RS1/16S0R0J C 124 (A,57,21) CKSRYB104K16 R 551 (A,96,26) RS1/16S105J C 125 (A,60,23) CCSRCH471J50 R 552 (A,96,30) RS1/16S152J VSX-2016AV-S...
  • Page 172 C 183 (A,40,49) CCSRCH471J50 C 413 (B,158,19) CCSRCH471J50 C 184 (A,42,49) CKSRYB104K16 C 414 (B,160,19) CCSRCH471J50 C 185 (A,26,51) CCSRCH471J50 C 415 (A,158,22) CCSRCH471J50 C 186 (A,24,51) CKSRYB104K16 C 416 (A,158,21) CKSRYB104K16 C 187 (A,9,17) CCSRCH471J50 C 417 (A,154,36) CEVW101M16 VSX-2016AV-S...
  • Page 173 D 1104(A,157,209) DIODE UDZS6R2(B) R 1109(B,168,195) RS1/16S472J D 1105(A,172,201) DIODE 1SS355 R 1110(B,150,195) RS1/16S472J R 1111(B,163,190) RS1/16S103J D 1108(B,178,206) DIODE UDZS5R1(B) D 1109(B,176,206) DIODE UDZS5R1(B) D 1110(B,169,207) DIODE UDZS5R1(B) L 1002(B,180,192) CHIP COIL LCTAW120J2520 L 1003(A,33,200) AXIAL INDUCTOR LAU330J VSX-2016AV-S...
  • Page 174 C 1098(B,43,224) CKSRYB103K50 R 1208(B,63,151) RS1/16S750J C 1101(A,162,206) CCSRCH101J50 R 1209(B,47,148) RS1/16S750J C 1102(A,158,205) CCSRCH101J50 R 1210(B,49,148) RS1/16S750J C 1103(A,160,200) CCSRCH101J50 C 1104(A,158,200) CCSRCH101J50 R 1211(B,103,149) RS1/16S750J R 1212(B,105,149) RS1/16S750J R 1213(B,75,149) RS1/16S750J R 1214(B,77,149) RS1/16S750J R 1215(B,123,134) RS1/16S331J VSX-2016AV-S...
  • Page 175 CN1403(A,68,39) 13P SOCKET XKP3077 C 1232(A,87,135) CKSRYB104K16 CN1405(A,19,59) 17P SOCKET XKP3079 C 1233(B,59,142) CKSRYB104K16 CN1406(A,53,41) CONNECTOR CKS3384 C 1234(B,59,134) CKSRYB104K16 CN1501(A,58,94) PIN JACK (4P) AKB7172 C 1235(A,53,143) CEAT101M16 CN1502(A,30,94) PIN JACK (4P) AKB7172 C 1236(A,53,136) CEAT101M16 1401(A,166,28) PCB BINDER VEF1040 VSX-2016AV-S...
  • Page 176 C 1420(A,95,61) CEAT101M10 R 1507(B,63,86) RS1/16S474J C 1421(A,97,53) CEAT101M10 R 1508(B,67,87) RS1/16S474J C 1425(A,83,67) CEAT101M10 R 1509(A,62,60) RS1/16S103J R 1510(A,68,60) RS1/16S103J C 1426(A,83,73) CEAT101M10 R 1511(A,60,69) RS1/16S103J C 1427(B,86,67) CKSRYB104K25 C 1428(B,86,72) CKSRYB104K25 C 1431(B,82,60) CKSRYB224K10 C 1432(B,78,60) CKSRYB224K10 VSX-2016AV-S...
  • Page 177 CCSRCH271J50 C 1591(B,58,86) CKSRYB103K50 R 2326(B,154,240) RS1/16S104J C 1593(B,30,86) CKSRYB103K50 R 2327(B,156,240) RS1/16S104J R 2328(B,158,240) RS1/16S104J R 2329(B,160,240) RS1/16S104J COMPLEX ASSY R 2330(B,162,240) RS1/16S104J MISCELLANEOUS > Y 14 AWG18 BOARD IN ADX7500 > Y 15 AWG18 BOARD IN ADX7501 VSX-2016AV-S...
  • Page 178 R 2411(B,247,191) RS1/16S0R0J C 2451(B,281,208) CKSRYB102K50 R 2412(B,249,192) RS1/16S104J C 2452(B,304,186) CKSRYB103K50 R 2413(B,240,191) RS1/16S472J C 2453(B,299,186) CKSRYB103K50 R 2414(B,237,196) RS1/16S0R0J R 2415(B,257,192) RS1/16S104J R 2416(B,251,195) RS1/16S103J R 2417(B,239,196) RS1/16S102J R 2419(B,232,240) RS1/16S101J R 2420(B,233,220) RS1/16S331J R 2421(B,72,225) RS1/16S331J VSX-2016AV-S...
  • Page 179 S 2577(A,138,141) SWITCH VSG1024 CAPACITORS 2501(A,41,205) 17P CABLE HOLDER 51048-1700 C 2851(B,19,42) CKSRYB392K50 C 2852(B,11,29) CKSRYB392K50 C 2853(B,10,40) CCSRCH471J50 RESISTORS C 2854(B,13,43) CKSRYB103K50 R 2501(B,151,152) RS1/16S331J C 2855(B,13,45) CKSRYB104K16 R 2502(B,184,152) RS1/16S331J R 2503(B,194,152) RS1/16S331J R 2504(B,216,152) RS1/16S331J R 2505(B,237,152) RS1/16S331J VSX-2016AV-S...
  • Page 180 R 2707(B,38,62) RS1/16S333J D 2004(B,304,75) DIODE 1SS355 R 2708(B,41,61) RS1/16S101J D 2006(B,308,70) DIODE UDZS5R1(B) > R 2709(B,30,48) RS1/16S472J L 2001(A,244,24) LINE FILTER XTF3004 R 2710(B,34,48) RS1/16S333J H 2001(A,243,46) FUSE CLIP AKR7001 R 2711(B,36,48) RS1/16S101J H 2002(A,223,46) FUSE CLIP AKR7001 VSX-2016AV-S...
  • Page 181: Secondary Assy

    UDZS12(B) CN5811(A,46,130) 23P PLUG XKP3071 D 3263(B,238,218) DIODE UDZS13(B) CN5812(A,46,105) 23P PLUG XKP3071 D 3264(B,253,218) DIODE UDZS15(B) 5811(A,8,101) PCB BINDER VEF1040 D 3265(B,257,226) DIODE UDZS13(B) D 3266(B,267,227) DIODE UDZS13(B) J 3251 JUMPER WIRE D20PDY0610E 3251(A,261,193) 6P CABLE HOLDER 51048-0600 VSX-2016AV-S...
  • Page 182 > R 3061(A,309,63) METAL OXIDE RS1/2LMF4R7J 3201(A,84,28) 4P CABLE HOLDER 51048-0400 > R 3062(A,313,73) METAL OXIDE RS1LMF100J > R 3071(A,280,88) METAL OXIDE RS1/2LMF4R7J > R 3072(A,268,94) METAL OXIDE RS1LMF100J R 3101(A,222,115) CARBON FILM RD1/4MUF473J R 3102(A,252,115) CARBON FILM RD1/4MUF473J VSX-2016AV-S...
  • Page 183 CEAT221M35 C 3505(A,139,179) CEAT101M16 CN3703(A,28,43) CONNECTOR CKS3376 C 3506(A,133,145) CEAT470M50 C 3508(B,122,152) CKSRYB103K50 RESISTORS C 3510(A,110,171) ELECT. CAPACITOR CEANP102M16 R 3703(B,25,84) RS1/16S0R0J C 3511(A,107,154) ELECT. CAPACITOR CEAT102M35 R 3752(A,38,66) CARBON FILM RESISTOR RD1/4MUF391J C 3512(A,109,135) CEAT100M50 R 3755(B,48,62) RS1/16S0R0J VSX-2016AV-S...
  • Page 184 2SA1145 R 5024(A,162,176) CARBON FILM RD1/4MUF4R7J > Q 5205(A,250,191) TRANSISTOR 2SC2705 R 5025(B,163,156) CHIP (0.047, 0.5 W) ACN7132 > Q 5241(B,238,197) CHIP TR 2SA1255 R 5026(B,200,156) CHIP (0.047, 0.5 W) ACN7132 > R 5027(A,190,166) RESISTOR (0.18, 5 W) ACN7121 VSX-2016AV-S...
  • Page 185 C 5115(B,115,205) CCSRCH220J50 R 5206(B,257,198) RS1/16S821J C 5116(B,115,207) CCSRCH220J50 R 5207(B,279,196) RS1/16S2001F C 5117(A,119,207) CEAT331M10 C 5123(A,137,180) CEAT100M63 R 5208(B,268,193) RS1/16S682J C 5124(A,112,184) CEAT100M63 R 5209(A,271,192) CARBON FILM RESISTOR RD1/2VM473J R 5210(B,278,183) RS1/16S151J R 5211(B,276,183) RN1/16SE1201D R 5212(B,251,195) RS1/16S221J VSX-2016AV-S...
  • Page 186 R 5324(A,161,70) CARBON FILM RD1/4MUF4R7J Q 5504(A,274,63) TRANSISTOR 2SA1145 > R 5325(B,203,91) CHIP (0.047, 0.5 W) ACN7132 Q 5505(A,252,55) TRANSISTOR 2SC2705 > R 5326(B,166,91) CHIP (0.047, 0.5 W) ACN7132 Q 5541(B,239,49) CHIP TR 2SA1255 > R 5327(A,172,80) RESISTOR (0.18, 5 W) ACN7121 VSX-2016AV-S...
  • Page 187 RS1/16S152J C 5415(B,114,41) CCSRCH220J50 R 5506(B,258,47) RS1/16S821J C 5416(B,114,39) CCSRCH220J50 R 5507(B,281,48) RS1/16S2001F C 5417(A,119,39) CEAT331M10 C 5423(A,137,66) CEAT100M63 R 5508(B,270,54) RS1/16S682J C 5424(A,111,62) CEAT100M63 R 5509(A,273,48) CARBON FILM RD1/2VM473J R 5510(B,280,63) RS1/16S151J R 5511(B,277,63) RN1/16SE1201D R 5512(B,253,51) RS1/16S221J VSX-2016AV-S...
  • Page 188 CN5701(A,28,171) 11P PLUG XKP3065 RESISTORS CN5702(A,15,138) 11P PLUG XKP3065 R 5601(B,58,93) RS1/16S102J CN5703(A,8,85) 19P CONNECTOR 52044-1945 R 5602(B,54,41) RS1/16S221J CN5704(A,37,83) CONNECTOR S5B-PH R 5603(B,52,41) RS1/16S333J CN5705(A,30,223) 17P CONNECTOR 52044-1745 R 5604(B,57,82) RS1/16S103J CN5706(A,38,222) 3PIN CONNECTOR S3B-EH R 5605(B,46,36) RS1/16S152J VSX-2016AV-S...
  • Page 189 IC 901 (B,144,27) REGULATOR IC BD7802FP R 101 (A,52,83) RESISTOR ARRAY RAB4CQ100J > IC 902 (B,140,41) IC NJM2885DL1-18 R 102 (A,66,79) RESISTOR ARRAY RAB4CQ470J > IC 903 (B,156,40) REGULATOR IC BD7802FP R 103 (A,50,79) RS1/16S100J R 104 (B,52,77) RS1/16S100J R 105 (A,47,79) RS1/16S103J VSX-2016AV-S...
  • Page 190 R 207 (A,84,15) RS1/16S470J R 453 (A,80,62) RESISTOR ARRAY RAB4CQ680J R 208 (A,84,14) RS1/16S470J R 454 (A,80,65) RESISTOR ARRAY RAB4CQ680J R 209 (A,84,12) RS1/16S470J R 455 (A,80,55) RESISTOR ARRAY RAB4CQ680J R 210 (B,80,11) RS1/16S470J R 456 (A,80,58) RESISTOR ARRAY RAB4CQ680J VSX-2016AV-S...
  • Page 191 C 128 (A,49,51) CKSRYB104K16 C 129 (A,68,53) CKSRYB104K16 R 710 (A,119,63) RS1/16S1201F C 130 (A,52,51) CKSRYB104K16 R 711 (A,100,62) RS1/16S1201F C 131 (A,54,51) CKSRYB104K16 R 712 (A,100,64) RS1/16S1201F C 132 (A,56,50) CKSRYB104K16 R 713 (B,97,59) RS1/16S470J R 714 (B,100,59) RS1/16S103J VSX-2016AV-S...
  • Page 192 C 425 (A,136,77) CKSRYB104K16 C 912 (B,153,59) CKSQYB225K10 C 426 (A,137,78) DCH1201 C 915 (B,109,11) CKSRYB104K16 C 427 (B,135,76) CKSRYB104K16 C 916 (B,107,11) CKSRYB103K50 C 428 (A,137,81) CKSRYB104K16 C 917 (B,99,11) CKSQYB225K10 C 429 (A,142,85) CEVW101M16 C 1001(A,111,18) CKSRYB104K16 VSX-2016AV-S...
  • Page 193: Usb Assy

    R 729 (B,30,38) RS1/16S103J C 717 (B,30,33) CCSRCH471J50 C 719 (A,25,36) CCSRCH471J50 R 730 (B,39,33) RS1/16S102J C 720 (B,23,30) CKSRYB104K16 R 734 (A,43,58) RS1/16S0R0J C 721 (A,24,24) CEJQ101M6R3 R 735 (A,32,55) RS1/16S153J R 736 (A,40,55) RS1/16S153J R 737 (A,34,55) RS1/16S100J VSX-2016AV-S...
  • Page 194: Adjustment

    C 786 (A,55,16) CEJQ100M16 C 788 (A,42,18) CKSRYB104K16 C 789 (A,77,26) CKSRYB102K50 C 790 (A,79,25) CKSRYB102K50 C 791 (A,75,31) CEJQ100M16 C 792 (A,81,31) CEJQ100M16 C 951 (A,58,27) CCSRCH471J50 C 952 (A,59,27) CKSRYB105K10 C 956 (A,70,34) CKSQYB105K10 C 957 (A,70,33) CCSRCH471J50 VSX-2016AV-S...
  • Page 195: General Information

    3. If the USB firmware version indication becomes "**," return the unit to Normal mode, switch Function to USB, then reenter Test mode and check the USB firmware version. If the indication becomes "**" again, communication between the main microcomputer and the USB firmware is in failure. VSX-2016AV-S...
  • Page 196 When the keys are pressed, the numbers of DC detections, overload detections, detections of connectors disconnection inside unit (It is detected by both DC and OVERLOAD detections.), detections of fan abnormalities, and detections of abnormal temperature are displayed for 3 seconds each, in that order. The maximum value of each detections is 255. VSX-2016AV-S...
  • Page 197 XM ANT ERR : Thepower supply of the XM antenna is abnormally. (KUXJ and KUXJCA types only) [How to enter release mode] Press and hold DVR/VCR2 and ENTER keys on the front panel simultaneously for 5 seconds in standby mode. VSX-2016AV-S...
  • Page 198: Protection Circuit Specification

    → Collector of Q5571 and Q5572 are "L". C ch L ch SL ch SBL ch -DC detection: Q5572 emitter is minus to the base. → Collector of Q5571 and Q5572 are "L". POWER AMP-L ASSY POWER AMP IN ASSY VSX-2016AV-S...
  • Page 199 R5043 Q5704 GNDU OUTPUT L ch GNDU GAMP IC5002 R5044 CN5702 D5343 R ch D5143 SL ch CN5302 D5443 SR ch POWER D5243 SBL ch D5543 AMP-R ASSY SBR ch CN5301 C ch CN5602 D5143 POWER AMP IN ASSY VSX-2016AV-S...
  • Page 200: Dsp Troubleshooting

    FFC securely in the path. securely. 5.2 V? inserted? XM Jack To Step 2 CN501 (Pin 1) Is the voltage 5.2 V? Is the voltage of IC502-pin 1 5.2 V? Replace IC502. Check the power output of the main unit. VSX-2016AV-S...
  • Page 201 IC103 (Pin 20) Is IC902 Is the voltage Check the parts and patterns Is the voltage abnormally hot? 1.2 V? in the path. 3.3 V? Replace IC902. The output and GND may be short- circuited. Check the path between them. VSX-2016AV-S...
  • Page 202 IC301 (Pins 21,38) DIR 2nd DSP 1.25 V IC201 (Pin 8, etc.) Check the parts and patterns Is the voltage Check the parts and patterns Is the voltage in the path. 3.3 V? in the path. 1.25 V? VSX-2016AV-S...
  • Page 203 FRONT IN Assy. signal? an operating master an operating master clock signal(20 MHz) (0 V ⇔ 4 V) clock signal at IC551-pin 7? (20 MHz)? Replace IC551 or X551. Check the parts and patterns in the path. To Step 4 VSX-2016AV-S...
  • Page 204 (24.576 MHz)? Replace IC301 Replace IC301 or IC651 (IC601). (IC601) or IC651. VSX-2016AV-S...
  • Page 205 DIRL output a LR clock of IC301-pin 24 input? IC651 (Pin 1) HDSW Check the parts and patterns in the input path. Is the voltage Check the path to the microcomputer. 0 V? Replace IC301 or IC481 or IC651 (IC601). VSX-2016AV-S...
  • Page 206 Check the path to the Replace IC651. microcomputer. IC651 (Pin 3) HFDT Replace IC481. Is there Is there abnormality at the a audio data parts and patterns input? in the input path? Replace IC651. VSX-2016AV-S...
  • Page 207 HDSW IC651 (Pin 6) HBCK Is there Is the Is there abnormality at the Check the path to the microcomputer. voltage a bit clock parts and patterns input? 0 V? in the input path? Replace IC651. To Step 5 VSX-2016AV-S...
  • Page 208 (24.576 MHz)? in the path? Is there Replace IC291 Is there abnormality at the or IC101. a audio data parts and patterns input? in the input path? Replace IC501 or IC601. VSX-2016AV-S...
  • Page 209 IC101 (Pin 86) LCK2 parts and patterns in the path? Replace IC651 Is there or IC101. Is there abnormality at the a LR clock parts and patterns in the path? Failure in 1st DSP block, Go to Step 8. VSX-2016AV-S...
  • Page 210 (with Sch source)? in the path? Is there Replace IC201. Is there abnormality at the a LR clock parts and patterns in the path? Failure in 2nd DSP block, Go to Step 9. VSX-2016AV-S...
  • Page 211 5? Is there a Check the parts and patterns analog audio output (short-circuit) in the path including (with Sch source)? the DSP assy and others. Is not there poor contact Replace CN402. in CN402-pins 7 Replace IC401. and 5? VSX-2016AV-S...
  • Page 212 (It is very difficult to diagnose which (Does it fall to become peripheral part of the DSP is in failure.) 0V periodically?) Is the clock Check the parts and patterns signal output while the in the path. voltage at DICS3 is 0 V? VSX-2016AV-S...
  • Page 213 D2CS Is the is 0 V? voltage of D2RST The 2nd DSP or the communication maintained in 3.3V? path is in failure. (Does it fall to become 0V periodically?) VSX-2016AV-S...
  • Page 214: Dsp Block Diagram

    64 65 70 71 86,87 F C C B 14,15 6,13 FLASH ROM F 13 IC651 IC106 1st DSP 74VHC157 AYW7128 IC101 ADSP-21266 7,12 SRAM SKSTZ-2D 88,89 IC107 4Mbit (8bit×512kW) B S C 81 79 80 B 10 S 11 C 12 VSX-2016AV-S...
  • Page 215 DSP OSC Logic ICs Logic ICs 3.3V 3.3V GNDD GNDD 5V & 3.3V GNDD 2ch ADC 8ch DAC COAX AV5V & D3.3V GNDD XM/DT GNDD 3.3V GDAC GNDD GDAC 10 11 13 5 6 15 18 20 CN402 CN901 VSX-2016AV-S...
  • Page 216: Hdmi Troubleshooting

    2. Causes for noncompletion of HDMI authentication between the monitor and this unit (no display or sound from the monitor) Replace the HDMI cable. Replace the HDMI cable. Replace the Receiver. Repare the Receiver. Replace the TV monitor. Repare the TV monitor. VSX-2016AV-S...
  • Page 217 If L104 is failure, replace L104. 3.3 V? Check the X501 and IC501. Is there a 15.7 MHz If X501 or IC501 is failure, output? replace X501 or IC501. To Step 2-1: HDMI section To Step 3-1: Video converter section VSX-2016AV-S...
  • Page 218 3.3V_TX2 Check the patterns,Q171 or R181 Is the voltage "H" (5 V)? in the path. Check the R1301. Is the voltage If Q171 or R181 is failure, If R1301 is failure, replace R1301. 3.3 V? replace Q171 or R181. VSX-2016AV-S...
  • Page 219 * When connected the source replace Q101 or R134. equipment to IN2. SDA (HDMI IN2) JA102 (Pin 16) Does a signal output in Check the patterns and JA102 in constant period the path. (0 to 5 V) If JA102 is failure, replace JA102. VSX-2016AV-S...
  • Page 220 MCLK constant period the path. (0 to 5 V) If JA301 is failure, replace JA301. Check the parts and patterns in Is there a clock? the path (IC101 to IC202, IC203 and IC301). If IC101 is failure, replace IC101. VSX-2016AV-S...
  • Page 221 "H" (3.3 V)? If IC501 is failure, replace IC501. CN1001 (Pin 10) MCLK Check the parts and patterns in Is there a clock? the path (IC202, IC203 to CN1001). If IC202 or IC203 is failure, replace IC202 or IC203. VSX-2016AV-S...
  • Page 222 Assy or COMPONENT Assy. If D903 or IC904 is failure, replace D903 or IC904. 1.8 V (VIDEO DEC) 1.8V_DE1 1.8V_DE1 Check the patterns in the path Is the voltage 1.8 V? and L402. If L402 is failure, replace L402. VSX-2016AV-S...
  • Page 223 Check the parts and patterns in Is there a data? replace Q741 or R743. the path (IC401 to IC453, IC701). If IC401 or IC453 or IC701 is failure, replace IC401 or IC453 or Diagnose the MAIN CONTROL IC701. Assy or S-VIDEO Assy. VSX-2016AV-S...
  • Page 224 CN1002 (Pin 21) Pb OUT Check the parts and patterns in Is there a the path (Q771 to CN1002). Pb signal? If Q771 or R773 is failure, replace Q771 or R773. Diagnose the MAIN CONTROL Assy or COMPONENT Assy. VSX-2016AV-S...
  • Page 225 V+1R8VC 3.3V_DE1 3.3V_RX3 3.3V_RX1 V+5E0 V+1R8RX 1.8V_DE2 3.3V_EN2 3.3V_RX2 3.3V_EN1 V+3DE V+5A Video converter section Video converter section HDMI section HDMI section Common Common section section V+5E1 3.3V_TX1 3.3V_TX2 V+3R3UC V+1R8TX V+3RA V+3R3VC V+1R8 V+5HD V+3R3 V+7D V+5D V+3TX VSX-2016AV-S...
  • Page 226 HDMI & DVC Assy Check Points (Signal section) SIDE B HDMI section HDMI & DVC ASSY Video converter section D-11 D-12 D-10 D-15 D-16 D-14 D-13 Common section VSX-2016AV-S...
  • Page 227 R1XC[+,-] JA102 D[0-7] DSCL1 (19P) DSDA1 D[8-15] Hot Plug1 D[16-23] IC453 IC454 IC452 TC74LCX TC74LCX TC7SZ VC_SCL 541FTS1 541FTS1 125FU VC_SDA Analog Video IN/OUT CVBS IC401 P[2-9] ADV7401BSTZ P[12-19] VIDEO LLC1 IC701 DECODER ADV7172KSTZ CN1002 VIDEO ENCODER (23P) CVBS VSX-2016AV-S...
  • Page 228: Usb Module

    In this state, flashing of "USB ERROR1" stops, but playback will not start. To start playback, press the USB play key again. In the above case, if overcurrent is detected again, the above procedures 1 through 4 are repeated. VSX-2016AV-S...
  • Page 229 : USB Host control decoder (MP3/WMA/MPEG-4AAC) 16M FLASH ROM : Firmware is stored 64M SDRAM : Temporary storage area of decoding music file LOAD SWITCH : Current limitation to USB device power 2ch DAC : D/A converter for analog output VSX-2016AV-S...
  • Page 230 Is IC702 the voltage abnormally IC7814 (pins 14, 15) 1.8 V ? hot? Replace IC702. Check the parts and the voltage patterns in the path. The output and GND may be 5 V ? short-circuited. Check the path between them. VSX-2016AV-S...
  • Page 231 Replace IC762, etc. Fig. 2 IC951 (3 V → 5 V) IC701 CN702 USCLK pin 116 pins 4,5 pin 6 pin 7 USDAO pin 115 pins 9,10 pin 8 pin 11 TREQ pin 123 pins 12,13 pin 11 pin 13 VSX-2016AV-S...
  • Page 232 L/R clock IC701 (pin 63). signal IC781 (pins 10,11) LOUT/ROUT IC781 (pin 3) DATA Are there Replace IC781. audio signal Is there Check the output from DATA signal IC701 (pin 67). Check the parts and pattern between IC781 and CN702. VSX-2016AV-S...
  • Page 233: How To Update Firmware

    • Never change the function setting or turn the power off during the process of Steps 3 through 5. If you do, loading of the firmware will fail, and updating procedures cannot be continued. In such a case, replacement of the flash memory is required. VSX-2016AV-S...
  • Page 234: How To Update The Flash Roms For Various Microcomputers

    Slit for an MAIN and DSP for downloading FFC CONTACT SIDE : UPWARD (VDA1681) GGF1348 RS-232C Straight cable [Connections B] (MAIN microcomputer) (DSP microcomputer) - KU models - Connect as indicated in the figure below: This unit RS-232C Cross cable VSX-2016AV-S...
  • Page 235 The display shows RESET OK?. 4 Press SETUP to confirm. OK appears in the display to indicate that the receiver has been reset to the factory default settings. • Note that all settings will be saved, even if the receiver is unplugged. VSX-2016AV-S...
  • Page 236: How To Update The Dsp Flash Rom By Playing Back Cd

    The display shows RESET OK?. 4 Press SYSTEM SETUP to confirm. OK appears in the display to indicate that the receiver has been reset to the factory default settings. • Note that all settings will be saved, even if the receiver is unplugged. VSX-2016AV-S...
  • Page 237 (2) After confirming that "OK" is displayed, stop or pause the player then after 5 seconds set the player to STANDBY OFF. 8. Check the version of the program after updating. (1) Check the version by simultaneously pressing and holding the STANDBY/ON and MULTI CH IN keys. (2) For confirmation, check basic operations. VSX-2016AV-S...
  • Page 238: Disassembly

    Reassembling the Power Amp Block. Q3252 Q3252 UMD2N UMD2N D3265 13(B) IC3252 AEK7021 D3266 Q3253 Q3253 13(B) UMD2N UMD2N -65V +56V R3254 R3256 4.7k 3.3k (1/2W) (1W) -56V 3251 51048-0600 TRANS 2-1 ASSY To VH TR ASSY C3257 C3258 TRANS 2-1 ASSY VSX-2016AV-S...
  • Page 239: Pcb Location

    ASSY TRANS 1 HDMI & DVC COMPONENT ASSY ASSY ASSY TRANS 2-1 S-VIDEO ASSY ASSY VH TR COMPOSITE ASSY ASSY DIODE 1 AUDIO IN BRIDGE 2 ASSY ASSY ASSY PRIMARY ASSY VSX-2016AV USB ASSY DSP ASSY ONLY PS/SP ASSY VSX-2016AV-S...
  • Page 240 Disconnect the one jumper wire. Disconnect the six connectors. Remove the power amp block. PS/SP Assy Rear view ×6 TRANS 2-1 Assy Remove the eight screws. Remove the bonnet. POWER AMP IN Assy Power Amp Bonnet Block ×2 POWER PROTECT Assy ×2 VSX-2016AV-S...
  • Page 241 Remove the HS angle 2016. HS angle 2016 ×2 HS Angle 2016 Remove the four screws. Remove the HS angle 2016. ×2 HS angle 2016 ×2 Replacing the Power Transistor POWER AMP-L Assy POWER AMP-R Assy Power transistor Power transistor ×2 Replace VSX-2016AV-S...
  • Page 242 First remove the BRIDGE 2 Assy, then remove the COMPOSITE, S-VIDEO, COMPONENT and VIDEO CONNECT Assys. Remove the one screw. Remove the three screws. Remove the 32 screws. (KU model: Remove the 34 screws.) Remove the rear panel. ×32 Rear view VSX-2016AV-S...
  • Page 243 Pin jack (L side GND) on the AUDIO IN Assy ↔ chassis c Pin jack (Yellow GND) on the COMPOSITE Assy ↔ chassis d Speaker terminal (L side black) ↔ chassis DSP Assy AUDIO IN Assy Speaker terminal AUDIO IN Assy VSX-2016AV-S...
  • Page 244 VIDEO CONNECT Assy S-VIDEO Assy COMPOSITE Assy COMPOSITE Assy 11P board to board S-VIDEO Assy Insulation sheet extension jig cable (GGD1482) 15P board to board 13P board to board extension jig cable extension jig cable (GGD1484) (GGD1483) Diagnosis Diagnosis VSX-2016AV-S...
  • Page 245 Connect the one flexible cable. COMPONENT Assy VIDEO CONNECT Assy BRIDGE 2 Assy S-VIDEO Assy COMPOSITE Assy 11P board to board extension jig cable (GGD1482) 13P board to board 21P board to board extension jig cable extension jig cable (GGD1483) (GGD1485) Diagnosis VSX-2016AV-S...
  • Page 246: Parts

    Ground − Non connection DATA Control data input Inputs data in synchronization with clock. Clock input pin for transferring serial data − Non connection − Power supply VOUT2 2-ch output VIN2 2-ch input − Non connection Cref Vref filter VSX-2016AV-S...
  • Page 247 DR CTL2 Changeover pin of drive ability NFB5 Negative feedback pin of amp VOUT2 Output pin − − -VCC2 -VCC power supply Ground VIN6+ Input pin VOUT1 Output pin − NFB6 Negative feedback pin of amp +VCC1 +VCC power supply VSX-2016AV-S...
  • Page 248 Character Size Character Output Control OSCOUT Synchronization Register Shift Timing Generator Background Control Signal Generator Register Video output Control Horizontal Horizontal Character SYNIN Character Size SEPC Size Register Register SEPOUT SEPIN CTRL3 CTRL2 CTRL1 Xtal Xtal BLANK CVIN CVOUT VSX-2016AV-S...
  • Page 249 N setting is valid. High = PAL-M format. CTRL3 Controls whether or not the VSYNC signal is input to the SEPIN input. Low = VSYNC input, high = VSYNC not input. System reset input − VDD1 +5 V digital power supply VSX-2016AV-S...
  • Page 250 P85/NMI TXINT P84/INT2 P30/A8(/_/D7) RXINT P83/INT1 HD_REQI P82/INT0 P31/A9 VSYNC P81/TA4IN/U P32/A10 RXRST P80/TA4OUT/U P33/A11 RXMUTE P77/TA3IN P34/A12 ACLKOFF P76/TA3OUT P35/A13 TXRST P36/A14 P75/TA2IN/W HD_REQO P37/A15 P74/TA2OUT/W VCINT(NC) P40/A16 P73/CTS2/RTS2/TA1IN/V MUTE P41/A17 P72/CLK2/TA1OUT/V VC_SCL P42/A18 P71/RxD2/SCL/TA0IN/TB5IN VC_SDA P70/TXD2/SDA/TA0OUT P43/A19 VSX-2016AV-S...
  • Page 251 P55/HOLD HOLD Pull up with Vcc P54/HLDA HLDA OPEN P53/BCLK BCLK Pull up with Vcc P52/RD FLASH ROM I/F RD P51/WRH/BHE OPEN P50/WRL/WR FLASH ROM I/F WR P47/CS3 PUSEL DDC communication pull-up resistor switch (L: Normal operation) P46/CS2 OPEN VSX-2016AV-S...
  • Page 252 EDID2 E2PROM WP control (L: Normal operation, H: Writing) − AVSS AVSS P100/AN0 DSD_OFF Audio data control DSD data OFF (H: OFF) − VREF VREF Reference voltage 3.3V − AVcc AVCC Power supply 3.3V P97/ADTRG/SIN4 HD_DI Main controller communication (DATA IN) VSX-2016AV-S...
  • Page 253 P37/A15 DISP RDY P74/TA2OUT/W P40/A16 DISP RST P73/CTS2/RTS2/TA1IN/V P41/A17 USB CLK P72/CLK2/TA1OUT/V P42/A18 USB DO/XMRX P71/RxD2/SCL2/TA0IN/TB5IN P43/A19 OPEN USB DI/XMTX P70/TXD2/SDA2/TA0OUT P44/CS0 36 P67/TXD1/SDA1 232C TxD P45/CS1 EVOL CK Vcc1(5V) Vcc1 P46/CS2 P66/RxD1/ 232C RxD P47/CS3 EVOL DT2 SCL1 VSX-2016AV-S...
  • Page 254 SR+/iPod communication data input LOW COMSUMPTION P61/CLK0 O/L AMUTE power ON/OFF (ON: H) P60/CTS0/RTS0 S-DET S-VIDEO detection (H) P137 WAKE_UPB(XM) For XMDT communication P136 USB HREQ O/L Communication enabling signal to the USB module P135 EXP ST O/L Expansion IC communication VSX-2016AV-S...
  • Page 255 O/L FLASH MEMORY communication address output P23/AN23/A3(/D3/D2) O/L FLASH MEMORY communication address output P22/AN22/A2(/D2/D1) O/L FLASH MEMORY communication address output P21/AN21/A1(/D1/D0) O/L FLASH MEMORY communication address output P20/AN20/A0(/D0/_) OPEN O/L FLASH MEMORY communication address output P17/D15/INT5 O/L FLASH MEMORY communication data input/output VSX-2016AV-S...
  • Page 256 P104/AN4/KI0 XM/ERR XM Error P103/AN3 WATT IN (A/D) Voltage detection for limitter control P102/AN2 SIMUKE2 (A/D) Destination distinction P101/AN1 SIMUKE1 (A/D) Destination distinction − Avss Avss(GND) Ground Vss (GND) P100/AN0 O/L REQ output for HDMI/DSP microcomputer HDMI/ DSP REQ VSX-2016AV-S...
  • Page 257 READY ARM940T GPIO_A[15:0], GPIO_B[29:21], GPIO_B[9:7], GPIO (2-channel) GPIO_B[5:0], GPIO_D[17:15] TDI,TMS,TCK JTAG nTRST,TDO UT_TX/GPIO_B[8] UART/IrDA DAI (I2S) UT_RX/GPIO_B[9] GPIO_D[21:15] Video Input CODEC Interface GPIO_A[3:0] GPIO_A[11:10], GPIO_A[9:8], & GPIO_D[17:15] CD-DSP ADIN0, ADIN2, ADIN4 DAO/GPIO_B[24], GPIO_A[3]/CDAI MCLK/GPIO_B[23], GPIO_A[2]/CLRCK BCLK/GPIO_B[21], GPIO_A[1]/CBCLK LRCKO/GPIO_B[22], DAI/GPIO_B[25] VSX-2016AV-S...
  • Page 258 External bus chip select [1] / NAND flash output enable [1] / GPIO_B[3] nCS2/nOE2/GPIO_B4 External bus chip select [2] / NAND flash output enable [2] / GPIO_B[4] nCS3/nOE3/GPIO_B5 External bus chip select [3] / NAND flash output enable [3] / GPIO_B[5] VSX-2016AV-S...
  • Page 259 GPIO_D16 GPIO_D[16] GPIO_D17 GPIO_D[17] GPIO_D18 GPIO_D[18] GPIO_D19 GPIO_D[19] GPIO_D20 GPIO_D[20] GPIO_D21 GPIO_D[21] − VSSIO Digital ground for I/O MODE1 Mode select input 1, Pull-down for normal operation. JTAG serial data input for ARM940T JTAG test mode select for ARM940T VSX-2016AV-S...
  • Page 260 Pin Function No. Pin Name Pin Function P-channel MOS FET drain OUT 1 − Ground FAULT Open-drain FAULT output GND 2 ON (ON) Enable input: 4618 active low, 4618- active high P-channel MOS FET source FAULT 3 ON (ON) VSX-2016AV-S...
  • Page 261: Panel Facilities

    8. PANEL FACILITIES Front panel (VSX-2016AV-S/HYXJ5) VSX-2016AV AUDIO/VIDEO MULTI-CHANNEL RECEIVER STANDBY / ON PHASE CONTROL LISTENING SIGNAL SB ch MULTI CH DVD/LD TV/SAT DVR/VCR1 DVR/VCR2 VIDEO/GAME CD-R/TAPE/MD FM/AM iPod HDMI MODE SEARCH MODE SELECT PROCESSING ENTER MASTER MULTI JOG VOLUME...
  • Page 262 10 SIGNAL SELECT Use to select an input signal. SBch PROCESSING – Selects the surround back channel mode or virtual surround back mode. MULTI CH IN – Press to select the multichannel analog inputs. 11 MASTER VOLUME dial 12 ENTER VSX-2016AV-S...
  • Page 263 4 Control input/output surround, surround back and subwoofer channels. → Connecting additional amplifiers. Use to connect other Pioneer components so that you can control all your equipment from a single IR remote sensor. → Operating other Pioneer components with this unit's 11 Composite and S-video monitor outputs sensor.
  • Page 264 Use to connect monitors and TVs. → Control input/output Connecting your TV and DVD player. Use to connect other Pioneer components so that you can control all your equipment from a single IR remote sensor. 15 Multichannel analog audio inputs →...
  • Page 265 Display (VSX-2016AV-S/HYXJ5) SIGNAL DIGITAL VIDEO CONV. V.SB DNR MIDNIGHT TUNED DIALOGUE LOUDNESS STEREO WMA9 Pro 96/24 AUTO OVER ATT Hi-bit/sampling TONE MONO HDMI SBL SB DIGITAL HDMI ANALOG [ 2 ] [ 1 ] STREAMDIRECT PRO LOGIC Neo : 6 THX ADV.SURROUND...
  • Page 266 TUNER indicators TUNED – Lights when a broadcast is being received. STEREO – Lights when a stereo FM broadcast is being received in auto stereo mode. MONO – Lights when the mono mode is set using the MPX button. VSX-2016AV-S...
  • Page 267 Remote control (VSX-2016AV-S/HYXJ5) Number buttons and other receiver/component controls Use the number buttons to directly select a radio frequency or the tracks on a CD, DVD, etc. DISC (ENTER) can be used to enter commands for TV or DTV, and also to select a disc in a multi-CD player.
  • Page 268 ATT, etc)). Also use this button to set up surround sound. 15 VOL +/- Use to set the listening volume. 16 MUTE Mutes the sound or restores the sound if it has been muted (adjusting the volume also restores the sound). VSX-2016AV-S...
  • Page 269 Use to select the input source (use SHIFT for INPUT INPUT SELECT – Use to select the TV input signal. SELECT TV CH +/– – Use to select channels. Input source buttons Press to select control of other components (see Controlling the rest of your system). VSX-2016AV-S...
  • Page 270 DIRECT F – See Direct function. RENAME – See Renaming input source names. ERASE – See Erasing one of the remote control button settings. RESET – See Resetting the remote control presets. READ ID – See Confirming preset codes. VSX-2016AV-S...
  • Page 271 VSX-2016AV-S...
  • Page 272: Jigs List

    RS-232C I/F jig GGF1348 Update the Flash ROMS 7-pin FFC VDA1681 CLEANING Before shipping out the product, be sure to clean the following positions by using the prescribed cleaning tools: Position to be cleaned Cleaning tools Fans Cleaning paper : GED-008 VSX-2016AV-S...

This manual is also suitable for:

Vsx-81txv-sVsx-81txvVsx-9110txv-k

Comments to this Manuals

Symbols: 0
Latest comments:
  • Shankar Jan 14, 2017 01:17:
    Amp err blinks display power outomatica​lly off mcacc blinking power do not turn
