Summary of Contents for Euroheat 3110

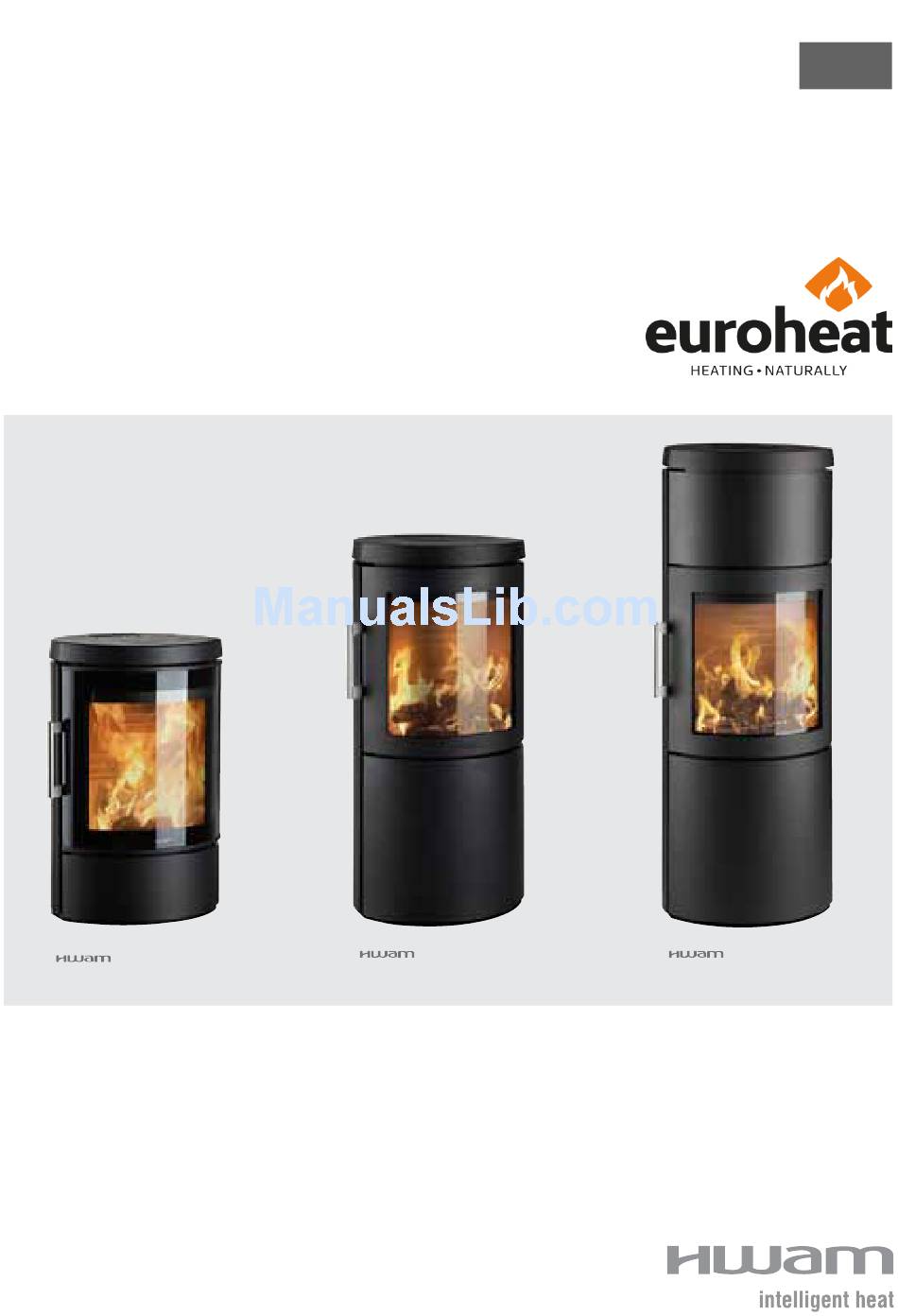

- Page 1 Assembly Instructions for combustion air system 3120 3130 3110 21.11.2014 / 53-7028 Euroheat IN1330...
- Page 6 NGLISh Rear connection (HWAM 3110, HWAM 3120, HWAM 3130) – drawings A, B1 and B2 1. Remove the top plate (1). 2. Loosen and remove the bolt (2) that holds the two sides together. Loosen the bolt (3) that holds the left side in position slightly, but do not remove it.
- Page 7 9. Attach the flexi-hose (17) to the connector bush and pull the insulation sleeve (18) onto the flexi- hose. 10. Place the bottom of the heat shield between the stove and the guide pins (19) at the back of the bottom plate on the stove and press it in towards the stove.
- Page 8 www.hwam.com...
