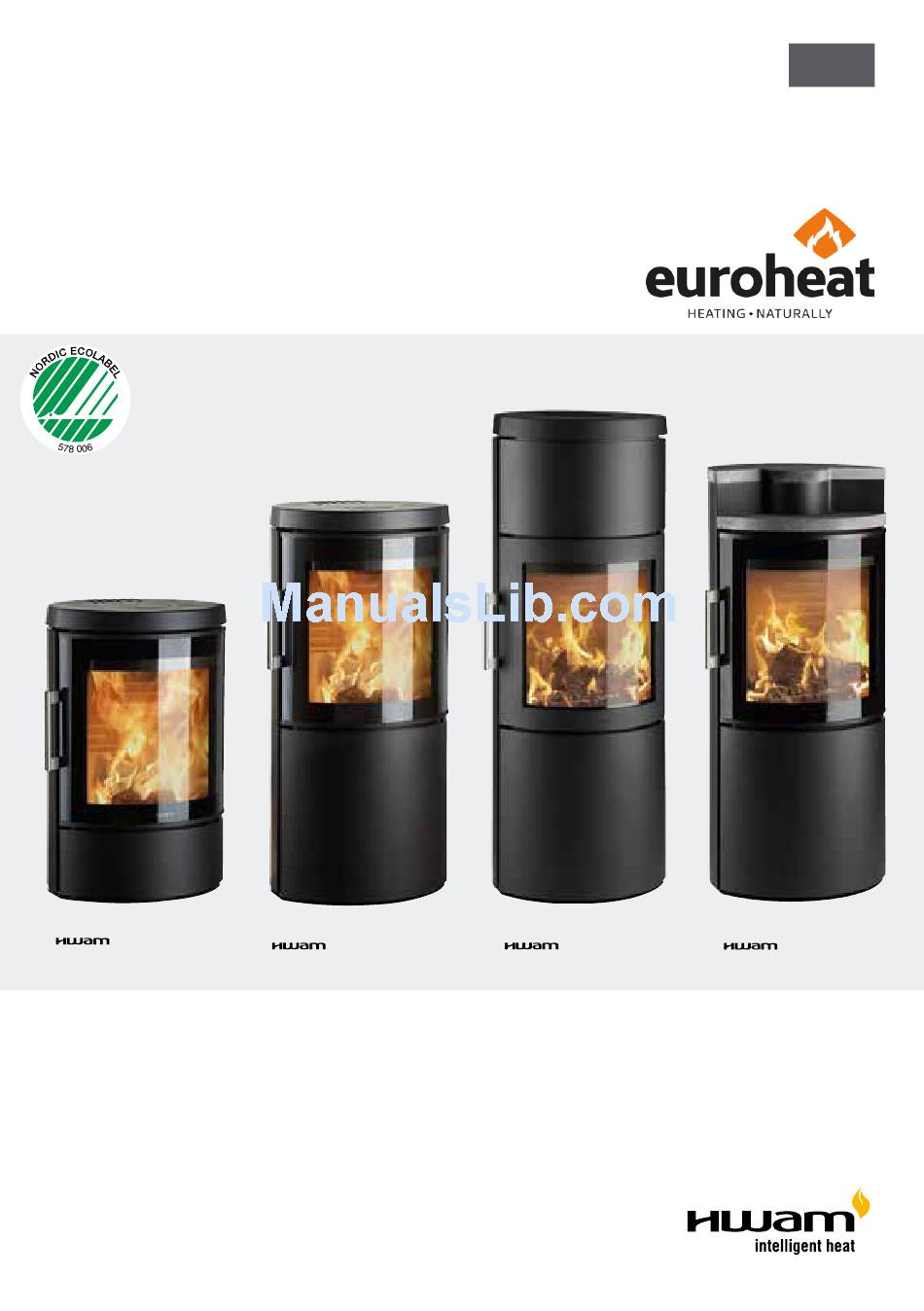

- Page 1 Installation Instructions & User's Manual 3110 3120 3130 3220 08.09.2015 / 97-9654 Euroheat IN1333...
- Page 2 45˚...
-
Page 7: Installation
If HWAM 3110 is placed on a flammable floor, always mount it on a plinth whether or not the floor is covered by a non-flammable material, such as a plate of glass or steel. The plinth is an accessory. Contact... - Page 8 *All dimensions in connection with corner installation are only recommendations. Contact your chimney sweep for a clarification. For wall-mounting, HWAM 3110 must be placed at least 3 cm above any inflammable flooring. This also applies to any floorboard placed on the floor.
-
Page 9: Connection To Chimney
11. Installing the top plate of the stove: replace the top plate (1) on top of the stove. 12. HWAM 3130: Install the front (11) on the heat-storage compartment again. An accessory top cover is available to cover the hole in the stove top plate if the smoke outlet is con- nected at the rear of the stove. -
Page 10: Chimney Sweeping
Vertical cross-section of the stoves (Drawing B): • The smoke shelf (5). To be placed on top of the steel rail and on the holders in the sides. • Two-piece smoke defector plate (6). Each half is hung on the hooks located beneath the top plate. The two halves join in the holders behind the air pipe. - Page 11 Recommended wood types All types of wood, for instance birch, beech, oak, elm, ash, conifers, and fruit trees can be used as fuel in your wood burning stove. The great difference is not in the fuel value, but in the weight of the wood types per cubic metre.
- Page 12 Lighting the stove (drawing E) A successful combustion process requires that the wood is lit in the right way. A cold stove and a cold chimney challenge the combustion process. It is important to achieve a high flue gas temperature quickly. Turn the regulator (1) clockwise to maximum.
-
Page 13: F Iring In General
IrIng In general Rapid or fierce heat Rapid or fierce heat is obtained by burning many small pieces of wood. Maximum amounts of fuel: The maximum allowed amount of fuel per hour is: Wood: 2.0 kg If these limits are exceeded, the stove will no longer be covered by the factory guarantee, and it may also become damaged due to excessive heat. -
Page 14: Maintenance
Types of fuel The stove may be damaged by very high temperatures and the glass may turn white, for example. This can be avoided by never allowing the stove to burn with the ashpan open and taking great care with types of fuel that develop excessive heat, such as briquettes. - Page 15 (Drawing G) HWAM 3110, 3120, 3130: Remove the top plate. Loosen and remove the bolt that holds the two sides together. Loosen the bolt that holds the left side in position slightly, but do not remove it. Lift the left side about 10 mm and pull it away from the stove so that it is lifted free of the guide pins in the bottom plate of the stove.
- Page 16 Stop using the stove and contact the dealer. At interruptions that you cannot yourself rectify, you should contact the dealer. eclaratIon oF erFormance The Declaration of Performance can be downloaded from our website via the following links: HWAM 3110: www.hwam.com/dop/3110 HWAM 3120: www.hwam.com/dop/3120 HWAM 3130: www.hwam.com/dop/3130...
- Page 18 �•�RRF PR0VNINGSATTEST • Im • Rhein-Ruhr Feuersllitten Prilfstelle Lipperfekl 34 b 46047 Oberhausen Anarkandl preveinstltut i h. t. Delstatsbyggavadta,gtarne, reg.nr.: NRW 15 Rhein-Ruhr Feul:tstlUten Pr'i.ifstelle Anerkendt preveinstltut for byggetilsynsma,ssige tllladelser Anerkendt DIN CERTCO pr0velnstitut, reg.nr.: PL 139 f(DAk�L. Anerkendt prnvelnstltut, godkendt af Europakommlssionen, notified body: 1625 Akkr.dltler1,1ngn1ellt! D·PL-17727·01-00 Kontrolerklairing nr.
- Page 20 www.hwam.com...
