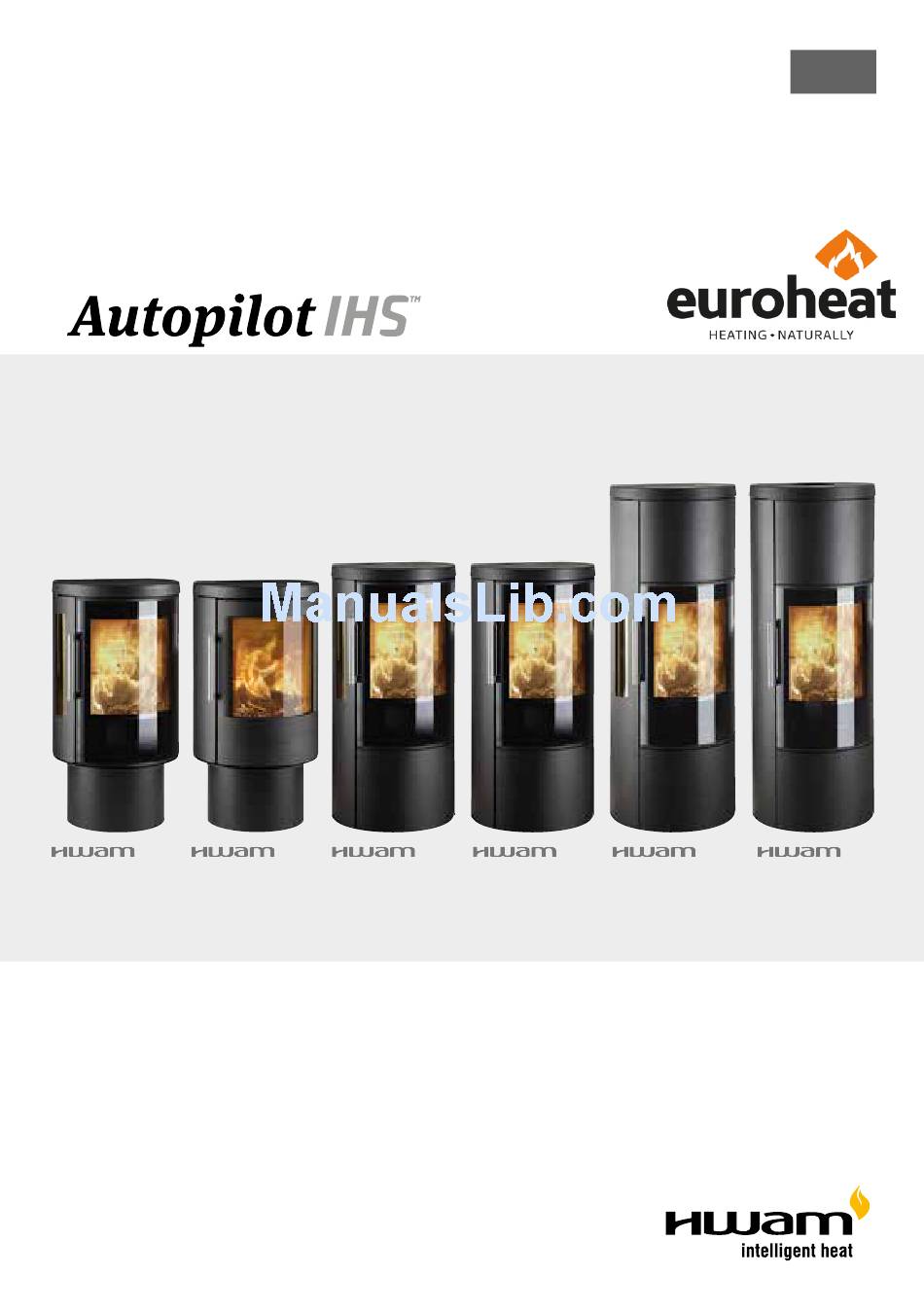

- Page 1 Installation Instructions & User's Manual 3610 3620 3630 3640 3650 3660 30.06.2016 / 97-9664 Euroheat IN1324...
-
Page 3: Table Of Contents
Table of contents, English Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-8 HWAM Autopilot IHS . -
Page 9: Hwam Autopilot Ihs
HWAM A iHS™ utopilot ngliSH Congratulations on your new wood-burning stove complete with a HWAM Autopilot IHS IHS is short for “Intelligent Heat System”, which is a digital control of the combustion in your new wood-burning stove. The purpose of the HWAM Autopilot IHS is to control the combustion in an environmentally optimal and economically efficient way, with a view to generating greater user comfort. -
Page 10: Installation
The weight of the chimney should be calculated according to its dimensions and height. Weight of the stove: Model Weight Height Width Depth HWAM 3610 on a pedestal 112 kg 113,6 cm 55,6 cm 44,2 cm HWAM 3620 on a pedestal 112 kg... - Page 11 Drawing A HWAM 3610/3630/3650 HWAM 3620/3640/3660 Min. distances: Min. distances: 1. Recommended for brick wall, back, cm 2. Recommended for brick wall, side, cm 1. For inflammable wall, back, cm 2. For inflammable wall, side,cm 1. To inflammable wall,corner installation,cm 3.
- Page 12 13. Installing the cover plate (3). Place the cover plate over the hole (above the combustion chamber, where the flue ring was just removed) and fasten with the three screws (Torx Bit no. 30). 14. Installing the flue ring (10). Insert the flue ring into the smoke outlet hole in the rear of the stove and secure it with the three screws.
- Page 13 Please note that bent and/or hori- zontal smoke pipes will reduce the effect of the chimney draft. Vertical cross-section of the stoves (Drawing B) B1: HWAM 3610, HWAM 3620 B2: HWAM 3630, HWAM 3640 B3: HWAM 3650, HWAM 3660 1.
- Page 14 Air box with power supply. For the models HWAM 3610 and HWAM 3620 on pedestals, it is necessary to remove the front of the pedestal in order to connect it to the power supply. To remove the front, follow the instructions in the drawings D1-D3.
-
Page 15: Chimney Sweeping
remote control, have prepared the wood-burning stove for lighting up a fire (made the match box appear on the display). If the electric power is cut and switched on again, the programme will return to standby and the self-test can be carried out. If the remote control responds with the text "Not completed", the self-test could not be carried out, either because the wood-burning stove has not cooled off or because it is not in standby mode. -
Page 16: The Remote Control
EMotE contRol The remote control is the user interface of the HWAM Autopilot IHS . The remote control measures the actual room temperature. It must hence be placed in a location in the room, where it is not affected by unnaturally high temperatures, such as the wood-burning stove’s radiation heat or direct sunlight. On the remote control you enter the desired heat level, as you would on a radiator thermostat. - Page 17 Thermostat adjustment The HWAM Autopilot IHS has a thermostat function, which attempts to keep the room temperature at the desired level. The thermostat works like a radiator. Use the remote control to choose the level you want and the temperature that suits your rooms.
- Page 18 The restoking alarm When the combustion progresses to the ember phase, a restoking alarm will go off. The alarm will light up three times with a ten second interval and it is supported by sound. Three different amounts of wood are recommended for restoking: A small amount of wood (700 - 1200 g) A medium amount of wood (1000 - 2000 g) A large amount of wood (1800 - 3000 g)
-
Page 19: Firing Manual - Wood
Maintenance alarms If a maintenance alarm goes off, you can continue using the stove. However, you should contact your dealer as soon as possible. Remember to mention the error code that appears in the display. The wood-burning stove could be affected by impure combustion. - Page 20 Recommended dimensions The dimensions of the fuel are important to good combustion. The dimensions should be as follows: Fuel type Length in cm Diameter in cm Wood for kindling a fire (finely chopped) 25-33 Chopped wood 25-33 Special fire lighting guide for stoves with soapstone or sandstone cladding Soapstone and sandstone are natural products which need to adjust to temperature changes.
- Page 21 Important! The door must not be opened when lighting up. It must always be closed when the stove is in use. Oth- erwise the stove’s intelligent control system does not function. The door should only be opened when lighting up, when restoking, and when cleaning the stove. The Thermostat Function The HWAM Autopilot IHS will in general have an environmentally friendly combustion and adapt to...
-
Page 22: Firing In General
Operating the heat compartment damper There is a damper at the back of the stove between the top plate and the heat compartment that opens and closes the flow of convection air in the heat compartment. The supply of convection air can be opened by moving the damper to the left and closed by moving the damper to the right. -
Page 23: Maintenance
Briquettes give off a lot of heat. Certain types expand considerably, thus causing an uncontrollable com- bustion. Coal burns at a high temperature and makes a lot of soot. Coal must be burned using the coal insert. Not suitable for fuel in these models. Coke burns at a high temperature and makes a lot of soot. -
Page 24: Operational Problems
At interruptions that you cannot yourself rectify, you should contact the dealer. EclARAtion oF ERFoRMAncE The DoP can be downloaded from our website via the following links: HWAM 3610 with Autopilot IHS www.hwam.com/dop/3610ihs HWAM 3630 with Autopilot IHS www.hwam.com/dop/3630ihs-3650ihs HWAM 3650 with Autopilot IHS www.hwam.com/dop/3630ihs-3650ihs... - Page 25 HWAM A iHS™ utopilot EdERlAndS Gefeliciteerd met uw nieuwe houtkachel met HWAM Autopilot IHS IHS staat voor ”Intelligent Heat System” en is een digitale sturing van de verbranding in uw nieuwe hout- kachel. HWAM Autopilot IHS is gericht op het regelen van een milieutechnisch optimale en zo efficiënt mogelijke verbranding met een hoge mate van comfort voor de gebruiker.
