2.4.9 Doorphone and Door Opener Connection

To connect up to two doorphones (KX-T30865) and up to two door openers (user-supplied), a
Doorphone Card (KX-TD160) is required.
To connect up to four doorphones (KX-T30865) and up to four door openers (user-supplied),
a Doorphone Card (KX-TD161) is required.

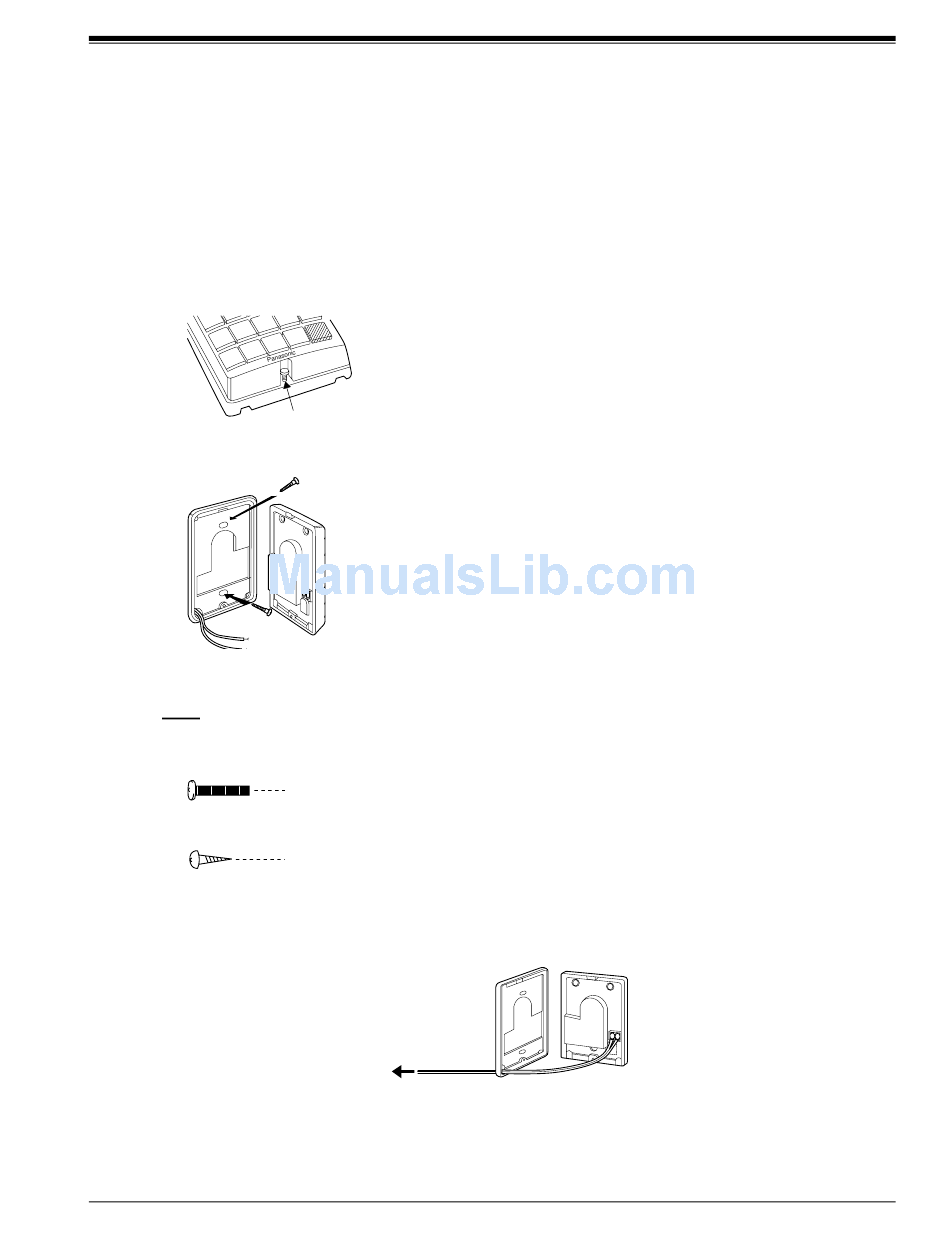

Installing the Doorphone
1.
Loosen the screw to separate the doorphone into two halves.
2.
Install the base cover to the wall with two screws.
Note
Two kinds of screws are included. Please choose the appropriate one depending on your wall
type:
3.
Connect the wires to the screws located in the front cover.
To the terminal box (See
"Wiring of the Doorphone".)
4. Secure both halves together and re-install the screw.
Installation Manual
screw
Type 1: When the doorphone
plate has been fixed to
the wall.
Type 2: When you wish to
install the doorphone
directly to the wall.
