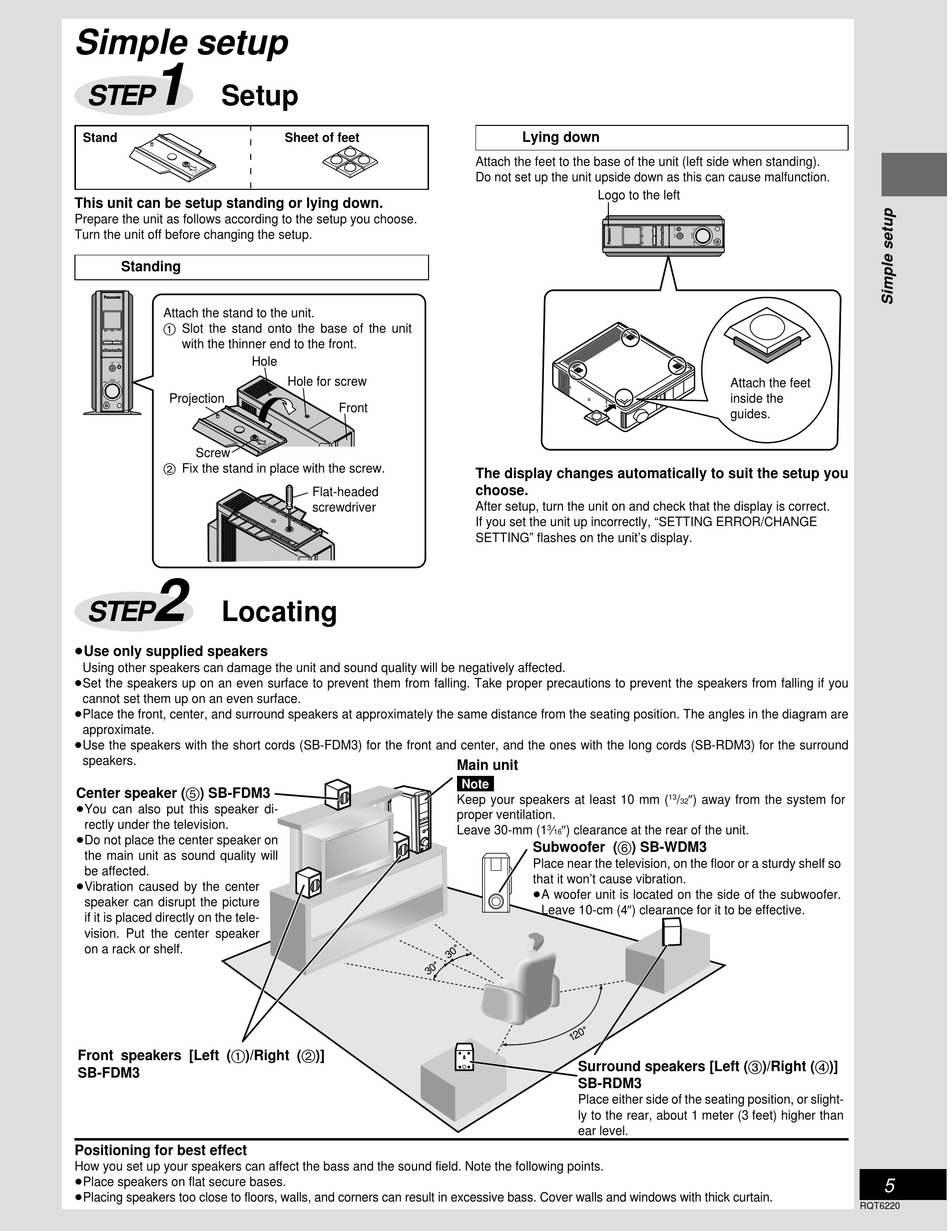

Simple Setup; Step 1 Setup; Step 2 Locating - Panasonic SC-DM3 Operating Instructions Manual

Simple setup

1
STEP Setup
Stand
This unit can be setup standing or lying down.
Prepare the unit as follows according to the setup you choose.
Turn the unit off before changing the setup.
Standing
Attach the stand to the unit.
1 Slot the stand onto the base of the unit
PL D
TUNER/AUX DVD with the thinner end to the front.
/ /
Hole
POWER OPEN/CLOSE
/I
VOLUME
DOWN UP
Projection
PHONES
Screw
2 Fix the stand in place with the screw.
2
STEP
Locating
≥Use only supplied speakers
Using other speakers can damage the unit and sound quality will be negatively affected.
≥Set the speakers up on an even surface to prevent them from falling. Take proper precautions to prevent the speakers from falling if you
cannot set them up on an even surface.
≥Place the front, center, and surround speakers at approximately the same distance from the seating position. The angles in the diagram are
approximate.
≥Use the speakers with the short cords (SB-FDM3) for the front and center, and the ones with the long cords (SB-RDM3) for the surround
speakers.
Center speaker (5) SB-FDM3
≥You can also put this speaker di-
rectly under the television.
≥Do not place the center speaker on
the main unit as sound quality will
be affected.
≥Vibration caused by the center
speaker can disrupt the picture
if it is placed directly on the tele-
vision. Put the center speaker
on a rack or shelf.
Front speakers [Left (1)/Right (2)]
SB-FDM3
Positioning for best effect
How you set up your speakers can affect the bass and the sound field. Note the following points.
≥Place speakers on flat secure bases.
≥Placing speakers too close to floors, walls, and corners can result in excessive bass. Cover walls and windows with thick curtain.
Sheet of feet
Hole for screw
Front
Flat-headed
screwdriver
Main unit
Note
Keep your speakers at least 10 mm (
proper ventilation.
Leave 30-mm (1
Lying down
Attach the feet to the base of the unit (left side when standing).
Do not set up the unit upside down as this can cause malfunction.
Logo to the left
The display changes automatically to suit the setup you
choose.
After setup, turn the unit on and check that the display is correct.
If you set the unit up incorrectly, "SETTING ERROR/CHANGE
SETTING" flashes on the unit's display.
3 ⁄ q) clearance at the rear of the unit.
16
Subwoofer (6) SB-WDM3
Place near the television, on the floor or a sturdy shelf so
that it won't cause vibration.
≥A woofer unit is located on the side of the subwoofer.
Leave 10-cm (4q) clearance for it to be effective.
Surround speakers [Left (3)/Right (4)]
SB-RDM3
Place either side of the seating position, or slight-
ly to the rear, about 1 meter (3 feet) higher than
ear level.
Attach the feet
inside the
guides.
13
/ q) away from the system for
32
5
