Overview
HP 6127XLG Blade Switch
Today's complex data centers require a demanding networking infrastructure. It all starts at the edge and that's where the HP
6127XLG Ethernet Blade Switch excels. The HP 6127XLG Switch is designed to support virtualized server environments with
exceptional bandwidth of 20Gb to each and every server, while providing a mix of 40Gb and 10Gb links (with an astounding
aggregate of 240Gb) to the core network. Combined with hardware support for VXLAN encapsulation, this provides the perfect
switch for Private/Public/Hybrid Cloud applications. Enterprise customers will not be disappointed with the HP 6127XLG which also
provides a converged fabric solution that supports Ethernet, iSCSI, Fibre Channel over Ethernet (FCoE), and Fibre Channel Forwarder
(FCF) protocols that enables connectivity for multiple storage topologies. The HP 6127XLG supports the HP Software-defined
Network (SDN) ecosystem that delivers simple, open, and Enterprise ready benefits to automate the data center network. With
support for IETF industry standard TRILL (Transparent Interconnection of Lots of Links) and SPB (Shortest Path Bridging), the HP
6127XLG delivers loop free large Layer 2 networks with multi-path support. Using HP's Intelligent Resilient Framework, (IRF)
multiple switches can be virtualized and managed as a single entity with HP's Intelligent Management Center (IMC). A full
complement of Layer 2/3 protocols and the latest in network security features round out this most capable of blade switches.

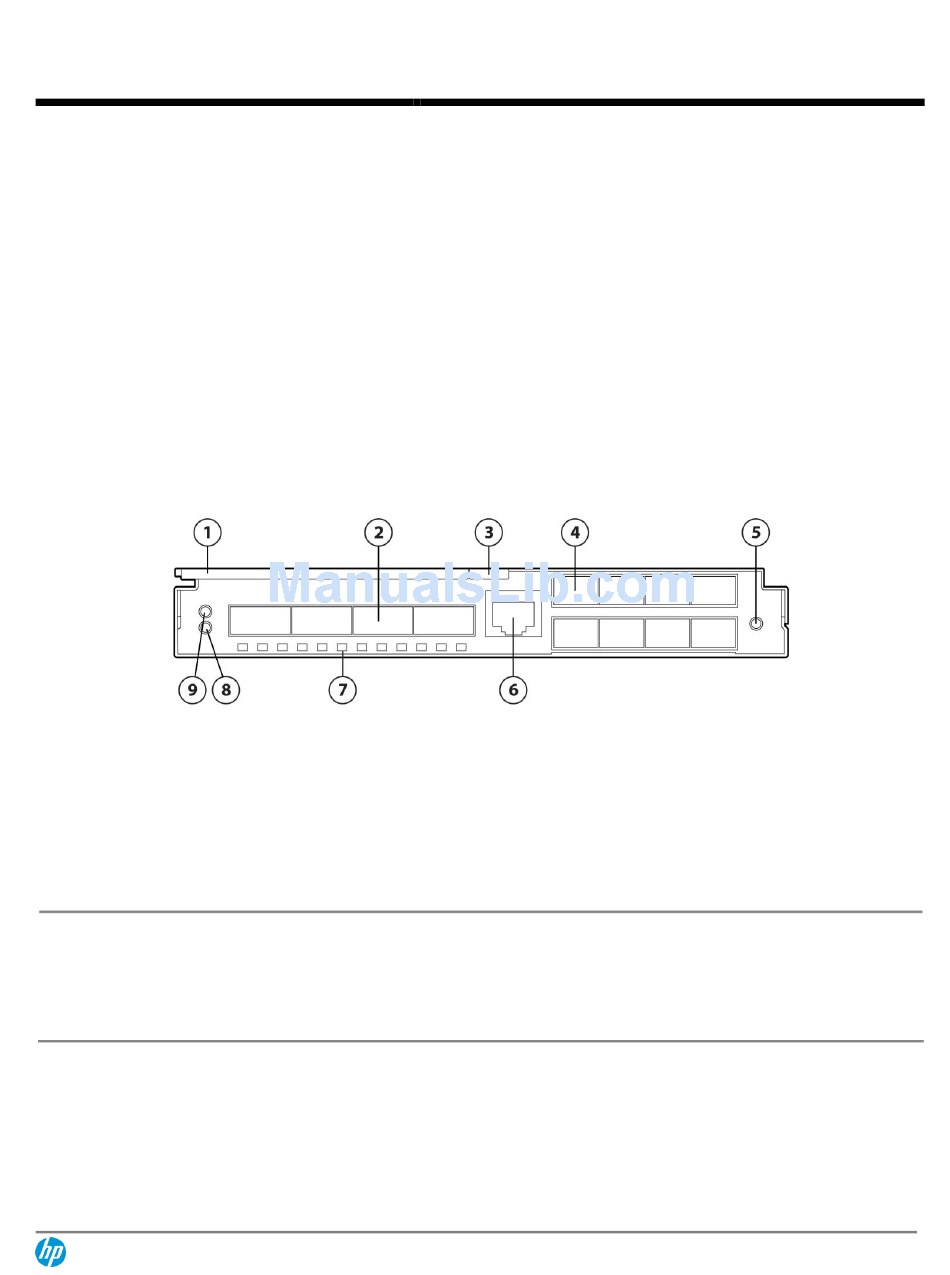

1. Ejector Lever
2. Four (4)x 40Gb (QSFP+) ports
3. Release tab
4. Eight (8)x 10Gb (SFP+) ports
5. Reset button
Models
HP 6127XLG Ethernet Blade Switch
HP 6127XLG Ethernet TAA Blade Switch
Compatibility
HP ProLiant Servers
HP ProLiant BL460c Gen9
HP ProLiant BL660c Gen9
HP ProLiant BL420c Gen8
HP ProLiant BL460c Gen8
HP ProLiant BL465c Gen8
Figure 1 HP 6127XLG Blade Switch
c04692828-DA–15297-Worldwide — Version 1 — August 17, 2015
6. Console port
7. Port LED
8. Health LED
9. Unit ID (UID) LED
HP 6127XLG Blade Switch
787635-B21
787635-B22
Page 1
