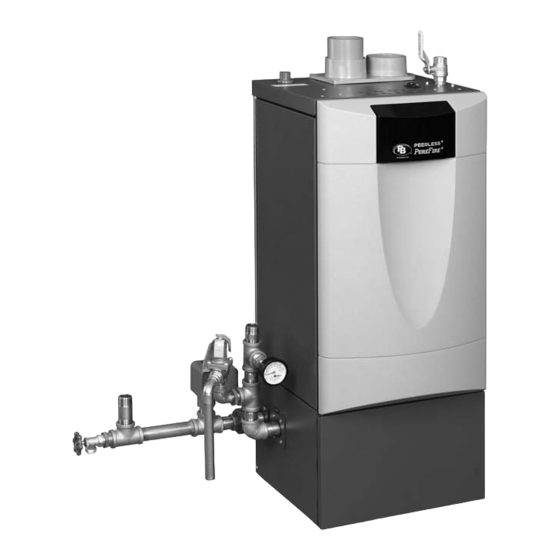

PEERLESS PUREFIRE PFW-399 Installation, Operation & Maintenance Manual

Gas hot water supply boilers pfw series
Hide thumbs Also See for PUREFIRE PFW-399:
Table of Contents

Advertisement

Quick Links

®
P
URE
Gas
Hot Water Supply Boilers
PFW-200 PFW-399
®
As an ENERGY STAR
Partner, PB Heat, LLC has determined that
this product meets the ENERGY STAR guidelines for energy efficiency.
I n s t a l l a t i o n ,
O p e r a t i o n &
M a i n t e n a n c e
M a n u a l
F
®
PFW
IRE
™
S
ERIES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PUREFIRE PFW-399 and is the answer not in the manual?

Questions and answers

Related Manuals for PEERLESS PUREFIRE PFW-399

Summary of Contents for PEERLESS PUREFIRE PFW-399

  • Page 1 ® ® ™ ERIES Hot Water Supply Boilers PFW-200 PFW-399 ® As an ENERGY STAR Partner, PB Heat, LLC has determined that this product meets the ENERGY STAR guidelines for energy efficiency. I n s t a l l a t i o n , O p e r a t i o n &...
