CONNECTIONS

Connecting other components

CAUTION
Do not connect this unit or other components to the AC power supply until all connections between
components are complete.
Notes
• When "Conversion" is set to "Off" (see page 93), be sure to make the same type of video connections as those made for your TV (see
page 23). For example, if you connected your TV to the VIDEO MONITOR OUT jack of this unit, connect your other components to
the VIDEO jacks.
• When "Conversion" is set to "On" (see page 93), the converted video signals are output only at the MONITOR OUT jacks. When
recording a source, you must make the same type of video connections between each component.
• To make a digital connection to a component other than the default component assigned to each DIGITAL INPUT or DIGITAL
OUTPUT jack, select the corresponding setting for "Option", "Optical Output", or "Coaxial Input" in "I/O Assignment" (see
page 87).
• If you connect your DVD player to both the DIGITAL INPUT (OPTICAL) and the DIGITAL INPUT (COAXIAL) jacks, priority is
given to the signals input at the DIGITAL INPUT (COAXIAL) jack.
• The short message display does not appear when the component video signals with 720p, 1080i or 1080p resolutions are input.
• The short message display does not appear when the component video signals with 480p/576p resolutions are input and output at the
VIDEO or S VIDEO MONITOR OUT jack.

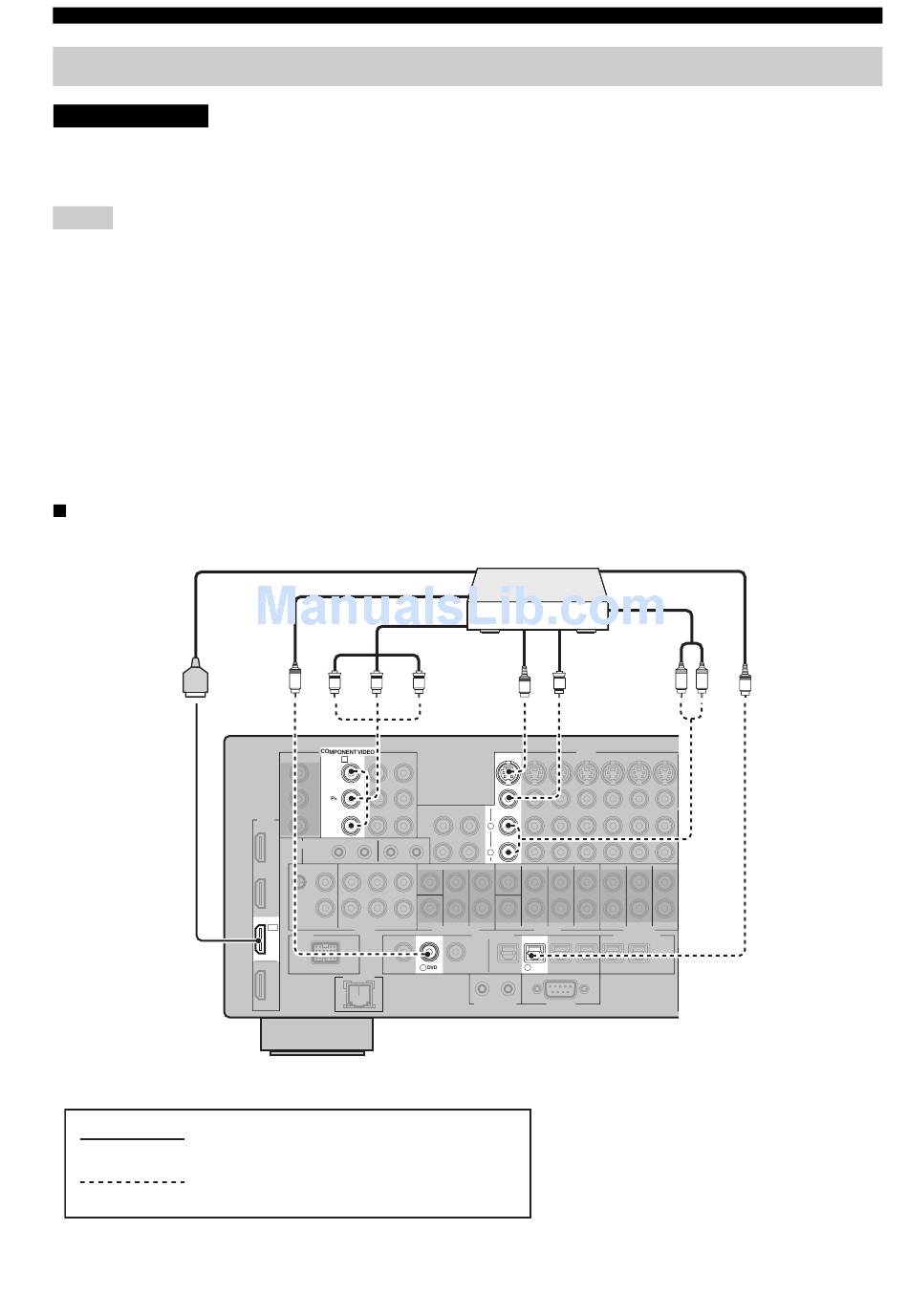

Connecting a DVD player
indicates recommended connections
indicates alternative connections
24
En
HDMI out
Coaxial out
Component out
C
P P Y
R B
A DVD
Y
HDMI
P
R
IN1
DVD
2
DVD player
S-video out Video out
V
S
VIDEO
DVD
L
R
DIGITAL INPUT
COAXIAL
5
DVD
Optical out
Audio out
R L
O
OPTICAL
