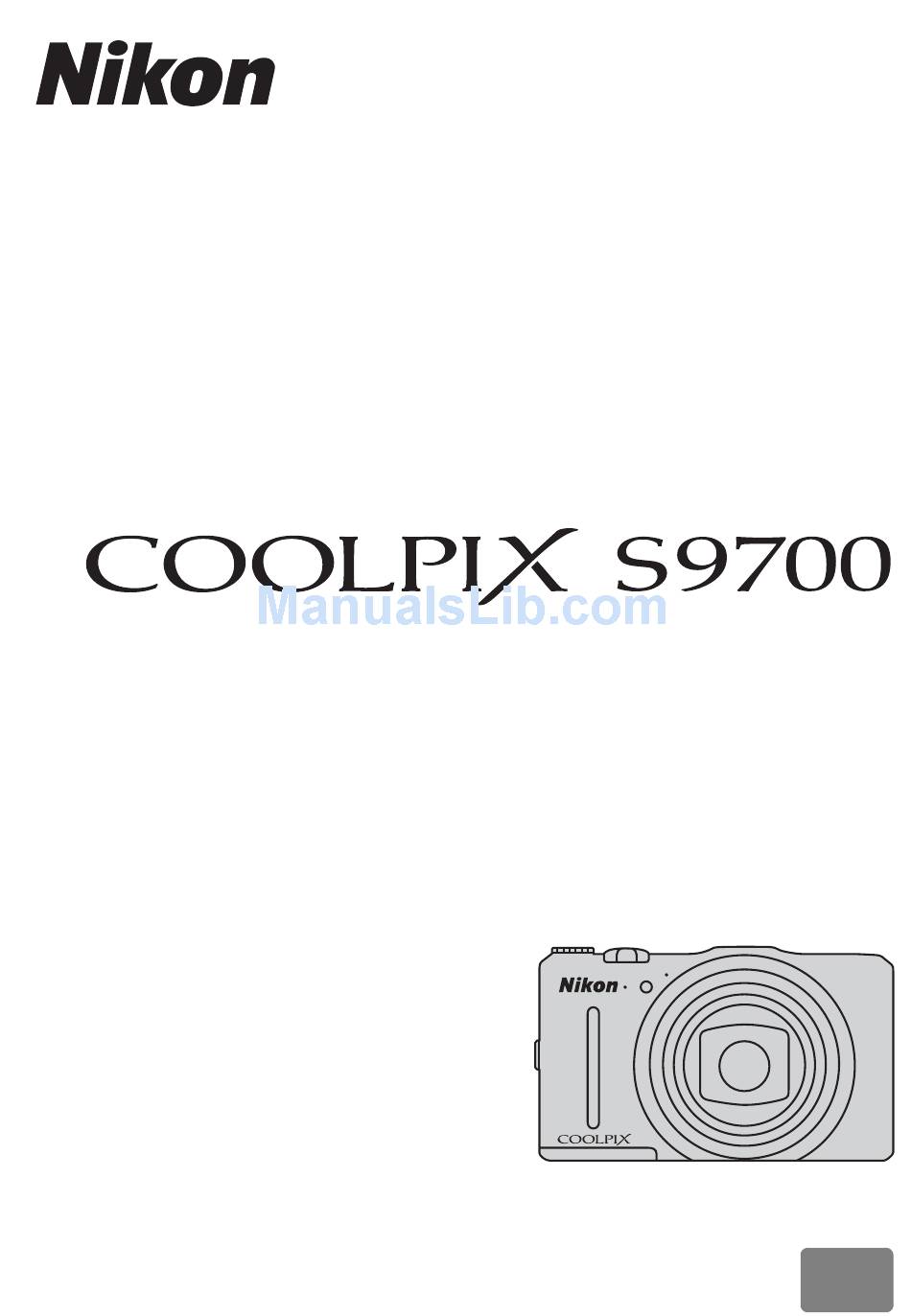

DIGITAL CAMERA
User's Manual
En
En

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COOLPIX S9700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Nikon COOLPIX S9700

  • Page 1 DIGITAL CAMERA User's Manual...
  • Page 3 Introduction Parts of the Camera The Basics of Shooting and Playback Shooting Features Playback Features Recording and Playing Back Movies General Camera Setup Using Location Data Functions/Displaying Maps Using the Wi-Fi (Wireless LAN) Function Connecting the Camera to a TV, Computer, or Printer Technical Notes and Index...
  • Page 4: Introduction

    Introduction Read This First Thank you for purchasing the Nikon COOLPIX S9700 digital camera. Before using the camera, please read the information in “For Your Safety” (Avii-ix), “<Important> Notes About Location Data Functions (GPS/GLONASS, Electronic Compass)” (Axii), and “Wi-Fi (Wireless LAN Network)” (Axiv), and familiarize yourself with the information provided in this manual.
  • Page 5: About This Manual

    “Parts of the Camera” (A1). Downloading the “Reference Manual” Refer to the Reference Manual (PDF format) for more detailed information. The Reference Manual can be downloaded from the Nikon website. http://nikonimglib.com/manual/ The Reference Manual can be viewed using Adobe Reader, available for free download from the Adobe website.
  • Page 6: Information And Precautions

    Before taking pictures on important occasions (such as at weddings or before taking the camera on a trip), take a test shot to ensure that the camera is functioning normally. Nikon will not be held liable for damages or lost profits that may result from product malfunction.
  • Page 7 Nikon reserves the right to change the specifications of the hardware and software described in these manuals at any time and without prior notice. Nikon will not be held liable for any damages resulting from the use of this product.
  • Page 8 For the COOLPIX S9700, the log data saved on the memory card is handled in the same way as other data. To erase the log data that is obtained but not stored on the memory card, select Create log ➝...
  • Page 9: For Your Safety

    For Your Safety To prevent damage to your Nikon product or injury to yourself or to others, read the following safety precautions in their entirety before using this equipment. Keep these safety instructions where all those who use the product will read them.
  • Page 10 Using a power supply other than charge remains. those provided or sold by Nikon could Discontinue use immediately result in damage or malfunction. should you notice any change in the battery, such as discoloration Observe caution when or deformation.
  • Page 11 Use appropriate cables When connecting cables to the input and output jacks, use only the cables provided or sold by Nikon for the purpose, to maintain compliance with product regulations. Handle moving parts with...
  • Page 12: Notices

    15 of the FCC Rules. These limits are modifications made to this device designed to provide reasonable that are not expressly approved by protection against harmful Nikon Corporation may void the interference in a residential user’s authority to operate the installation. This equipment equipment.
  • Page 13 State of California to cause birth defects or other reproductive harm. DISPOSE OF USED BATTERIES Wash hands after handling. ACCORDING TO THE Nikon Inc., INSTRUCTIONS. 1300 Walt Whitman Road This symbol indicates that Melville, New York 11747-3064 electrical and electronic...
  • Page 14: Important> Notes About Location Data Functions (Gps/Glonass, Electronic Compass)

    The detailed map data and location name information (Points of Interest: POI) of the People’s Republic of China (“China”) and the Republic of Korea are not provided for the COOLPIX S9700. bNotes about record location data functions and log recording...
  • Page 15 The COOLPIX S9700 is a camera. Do not use this camera as a navigation device or measuring instrument. Use information (such as direction) measured by the camera as a guideline only. Do not use this information for navigation of an airplane, car, and person or land survey applications.
  • Page 16: Wi-Fi (Wireless Lan Network)

    EU or EFTA can be used anywhere within the EU and EFTA). Nikon does not accept liability for use in other countries. Users who are unsure as to the original country of sale should consult with their local Nikon service center or Nikon-authorized service representative.
  • Page 17 COOLPIX S9700, which is equipped with a DW092 (FCC ID: EW4DW092/IC ID: 4634A-3149EC) Wireless LAN Module, has been tested and found to comply with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules.
  • Page 18 Precautions when Using Radio Transmissions Always keep in mind that radio transmission or reception of data is subject to interception by third parties. Note that Nikon is not responsible for data or information leaks that may occur during data transfer.
  • Page 19: Table Of Contents

    Table of Contents Introduction ........................ ii Read This First ..........................ii Confirming the Package Contents....................ii About This Manual ............................. iii Information and Precautions ....................... iv For Your Safety ........................vii WARNINGS ..............................vii Notices ............................x <Important> Notes About Location Data Functions (GPS/GLONASS, Electronic Compass) ......................
  • Page 20 Shooting Features....................31 A (Auto) Mode ........................31 Scene Mode (Shooting Suited to Scenes)..............32 Tips and Notes ............................33 Smart Portrait Mode (Capturing Images of Smiling Faces) ........39 Special Effects Mode (Applying Effects When Shooting)......... 41 j, k, l, m Modes (Setting the Exposure for Shooting) ......... 43 Using Quick Effects ..........................
  • Page 21 General Camera Setup................... 83 Functions That Can Be Set with the d Button (Setup Menu) ......83 Using Location Data Functions/Displaying Maps ........85 Starting Location Data Recording ..................85 Displaying Maps........................88 When Using Shooting Mode ......................88 When Using Playback Mode ......................89 Functions That Can Be Set Using the d Button (Location Data Options Menu) ......................
  • Page 22 Viewing Images in a Sequence ....................E11 Deleting Images in a Sequence ....................E12 Editing Still Images......................E13 Before Editing Images ........................E13 Quick Effects: Changing Hue or Mood ................E14 Quick Retouch: Enhancing Contrast and Saturation ..........E15 D-Lighting: Enhancing Brightness and Contrast ............E15 Red-eye Correction: Correcting Red-eye When Shooting with the Flash ..
  • Page 23 Voice Memo ............................E52 Copy (Copy Between Internal Memory and Memory Card)........E53 Sequence Display Options ......................E54 Choose Key Picture ........................E54 The Movie Menu ......................E55 Movie Options............................ E55 Open with HS Footage......................... E59 AF Area Mode ............................ E59 Autofocus Mode..........................
  • Page 24 Electronic Compass ........................E87 The Wi-Fi Options Menu....................E89 Error Messages......................... E91 File Names ......................... E96 Optional Accessories ..................... E97 Technical Notes and Index................F1 Caring for the Product ...................... F2 The Camera............................... F2 The Battery ..............................F3 Charging AC Adapter ......................... F4 Memory Cards............................
  • Page 25: Parts Of The Camera

    Parts of the Camera The Camera Body Flash raised Lens cover closed Zoom control........25 Positioning antenna ......85 f : wide-angle......25 Flash............50 g : telephoto ......25 h : thumbnail playback ..73 Microphone (stereo)....74, 76 i : playback zoom ....72 Self-timer lamp ........
  • Page 26 14 15 16 OLED monitor (monitor) ..6, 20 Tripod socket d (menu) button......4 Power connector cover (for connection with optional AC l (delete) button....... 29, 82 adapter)..........E97 Rotary multi selector Battery-chamber/ (multi selector) ........4 memory card slot cover ..10, 14 k (apply selection) button ....4 HDMI connector cover ....
  • Page 27: Attaching The Camera Strap

    Attaching the Camera Strap...
  • Page 28: Using Menus (The D Button)

    Using Menus (the d Button) Use the multi selector and k button to navigate the menus. Press the d button. The menu is displayed. 25m 0s 25m 0s 1/250 1/250 F3.7 F3.7 Press the multi Shooting menu selector J. Image quality Image size The current menu icon is displayed in yellow.
  • Page 29 Select a menu option. Welcome screen The menu options can also Time zone and date be selected by rotating the Monitor settings multi selector. Print date Photo VR Motion detection AF assist Press the k button. Photo VR The settings for the option you selected are displayed.
  • Page 30: The Monitor

    The Monitor The information that is displayed in the monitor during shooting and playback changes depending on the camera’s settings and state of use. By default, information is displayed when the camera is first turned on and when you operate the camera, and turns off after a few seconds (when Photo info is set to Auto info in Monitor settings (A83)).
  • Page 31 Shooting mode......22, 23 ISO sensitivity........62 Flash mode..........50 (a) Battery level indicator .... 20 (b) Charging AC adapter Macro mode ..........54 connection indicator Zoom indicator ......25, 54 Print date ..........83 Focus indicator........26 Travel destination icon ...E65 Movie options (normal speed “Date not set”...
  • Page 32: Playback Mode

    Playback Mode 4 5 6 7 8 9 999 / 999 999 / 999 9999 / 9999 9999 / 9999 999 / 999 999 / 999 29m00s 29m00s 29m00s 29m00s 15 16 9999. JPG 9999. JPG 15/05/2014 15:30 15/05/2014 15:30 26 a 2120...
  • Page 33 Movie options ......80, E55 Album icon in favorite pictures mode............E5 Volume indicator....81, E52 Category icon in auto sort mode Small picture icon ....74, E18 ..............E9 Crop icon.........72, E19 List by date icon ......E10 Quick effects guide ......28 Protect icon......74, E50 Easy panorama playback guide Sequence display (when ............
  • Page 34: The Basics Of Shooting And Playback

    The Basics of Shooting and Playback Preparation 1 Insert the Battery Open the battery-chamber/ memory card slot cover. Insert the battery. Battery latch Push the orange battery latch in the direction indicated by the arrow (1), and fully insert the battery (2). The battery locks into place when inserted correctly.
  • Page 35: Removing The Battery

    Removing the Battery Turn the camera off and make sure that the power-on lamp and the monitor have turned off, and then open the battery-chamber/ memory card slot cover. Move the battery latch in the direction indicated by the arrow (1) to eject the battery (2).
  • Page 36: Preparation 2 Charge The Battery

    Preparation 2 Charge the Battery Prepare the included charging AC adapter. If a plug adapter* is included with your camera, attach the plug adapter to the plug on the charging AC adapter. Push the plug adapter firmly until it is securely held in place.
  • Page 37 Charge lamp Description Flashes slowly The battery is charging. (green) When charging is complete, the charge lamp stops flashing green and turns off. About 2 hours and 20 minutes are required to charge a fully exhausted battery. The ambient temperature is not suited to charging. Charge the battery indoors with an ambient temperature of 5°C to 35°C (41°F to 95°F).
  • Page 38: Preparation 3 Insert A Memory Card

    Preparation 3 Insert a Memory Card Turn off the camera and open the battery-chamber/memory card slot cover. Insert the memory card. Memory card slot Slide the memory card in until it clicks into place. Be Careful to Insert the Memory Card in Correct Direction Inserting the memory card upside down or backwards could damage the camera and the...
  • Page 39: Removing Memory Cards

    Removing Memory Cards Turn the camera off and make sure that the power-on lamp and the monitor have turned off, and then open the battery-chamber/memory card slot cover. Gently push the memory card into the camera (1) to partially eject the card (2). High Temperature Caution The camera, battery, and memory card may be hot immediately after using the camera.
  • Page 40: Preparation 4 Setting The Display Language, Date, And Time

    Preparation 4 Setting the Display Language, Date, and Time When the camera is turned on for the first time, the language-selection screen and the date and time setting screen for the camera clock are displayed. If you exit without setting the date and time, O will flash when the shooting screen is displayed.
  • Page 41 Select your home London, Casablanca time zone and press the k button. To enable daylight saving time, press H. When the daylight saving time function is enabled, W is Back displayed above the map. To turn off the daylight saving time function, press I. Select the date format and press Date format the k button.
  • Page 42 Changing the Language Setting and the Date and Time Setting You can change these settings using the Language and Time zone and date settings in the z setup menu (A83). You can enable or disable daylight saving time in the z setup menu by selecting Time zone and date followed by Time zone.
  • Page 44: Step 1 Turn The Camera On

    Step 1 Turn the Camera On Press the power switch. The monitor turns on. To turn the camera off, press the power switch again. Note that the power switch is enabled a few seconds after the battery is inserted. Wait a few seconds before pressing the power switch.
  • Page 45 The Auto Off Function Flashes No operations No operations performed performed 3 min 25m 0s 25m 0s 1/250 1/250 F3.7 F3.7 Camera enters Camera turns off. standby mode. The time that elapses before the camera enters standby mode is about 1 minute. The time can be changed using the Auto off setting in the setup menu (A83).
  • Page 46: Step 2 Select A Shooting Mode

    Step 2 Select a Shooting Mode Rotate the mode dial to select a shooting mode. A (auto) mode is used in this example. Rotate the mode dial to A.
  • Page 47: Available Shooting Modes

    Available Shooting Modes Auto mode Used for general shooting. y Scene mode Camera settings are optimized according to the scene that you select. When using scene auto selector, the camera automatically selects the optimum scene mode when you frame an image, making it even easier to take images using settings that suit the scene.
  • Page 48: Step 3 Frame A Picture

    Step 3 Frame a Picture Hold the camera steady. Keep fingers and other objects away from the lens, flash, AF-assist illuminator, microphones, and speaker. When taking pictures in portrait (“tall”) orientation, turn the camera so that the flash is above the lens. Frame the picture.
  • Page 49: Using The Zoom

    Using the Zoom When you move the zoom control, the zoom Zoom out Zoom in lens position changes. To zoom in closer to the subject: Move toward g (telephoto) To zoom out and view a larger area: Move toward f (wide-angle) When you turn the camera on, the zoom moves to the maximum wide-angle position.
  • Page 50: Step 4 Focus And Shoot

    Step 4 Focus and Shoot Press the shutter-release button halfway. When the subject is in focus, the focus area that includes the subject or focus indicator (A7) glows green (multiple focus areas can glow green). When you are using digital zoom, the camera focuses on the subject in the center of the frame and the focus area is not displayed.
  • Page 51: The Shutter-Release Button

    The Shutter-release Button To set focus and exposure (shutter speed and aperture value), press the shutter-release button Press halfway lightly until you feel a slight resistance. Focus and exposure remain locked while the shutter-release button is pressed halfway. Press the shutter-release button all the way to release the shutter and take an image.
  • Page 52: Step 5 Play Back Images

    Step 5 Play Back Images Press the c (playback) button. If you press and hold down the c (playback) button while the camera is turned off, the camera turns on in playback mode. Use the multi selector to select an Display the previous image image to display.
  • Page 53: Step 6 Delete Images

    Step 6 Delete Images Press the l button to delete the image currently displayed in the monitor. Use the multi selector HI to select the desired deletion Delete method and press the k button. Current image To exit without deleting, press the d Erase selected images All images button.
  • Page 54: Deleting Images In A Sequence

    Operating the Erase Selected Images Screen Use the multi selector JK to Erase selected images select an image to be deleted, and then use H to display K. To undo the selection, press I to remove Move the zoom control (A1) toward g (i) to switch to full-frame playback or f (h) Back to switch to thumbnail playback.
  • Page 55: Shooting Features

    Shooting Features A (Auto) Mode Used for general shooting. When the camera detects the main subject, a yellow border (focus area) is displayed around it (Target finding AF (A68)). Functions Available in A (Auto) Mode Flash mode (A50) Self-timer (A53) Macro mode (A54) Exposure compensation (A58) Shooting menu (A61)
  • Page 56: Scene Mode (Shooting Suited To Scenes)

    Scene Mode (Shooting Suited to Scenes) When a scene is selected, camera settings are automatically optimized for the selected scene. Scene auto selector Portrait Landscape Sports Night portrait Party/indoor Beach Press the d button to display the scene menu and select a scene using the multi selector.
  • Page 57: Tips And Notes

    To View a Description (Help Display) of Each Scene Select a scene and move the zoom control (A1) toward g (j) to view a description of that scene. To return to the original screen, move the zoom control toward g (j) again. Tips and Notes x Scene auto selector When you point the camera at the subject, the camera automatically selects...
  • Page 58: Night Portrait

    d Sports While the shutter-release button is held all the way down, the camera shoots up to about 5 images continuously at a rate of about 6.9 fps (when image quality is set to Normal and when image size is set to i 4608×3456). The frame rate for continuous shooting may become slow depending upon the current image quality setting, image size setting, the memory card used, or shooting condition.
  • Page 59: Night Landscape

    j Night landscape From the screen displayed after j Night landscape is selected, select Hand- held or Tripod. Hand-held (default setting): - When the j icon at the top left of the monitor glows green, press the shutter-release button all the way to capture a series of images which are combined into a single image and saved.
  • Page 60: M Fireworks Show

    l Museum The camera captures a series of up to 10 images while the shutter-release button is held all the way down, and the sharpest image in the series is automatically selected and saved (BSS (Best Shot Selector)). The flash does not fire. m Fireworks show The shutter speed is fixed at about 4 seconds.
  • Page 61: Easy Panorama

    p Easy panorama From the screen displayed after p Easy panorama is selected, select the shooting range from Normal (180°) or Wide (360°). The zoom position is fixed at wide-angle. Press the shutter-release button all the way down, remove your finger from the button, and then slowly pan the camera horizontally.
  • Page 62: O Pet Portrait

    O Pet portrait When you point the camera at a dog or cat, the camera detects the pet’s face and focuses on it. By default, the shutter is automatically released when the camera detects a dog or cat face (pet portrait auto release). From the screen displayed after O Pet portrait is selected, select Single or Continuous.
  • Page 63: Smart Portrait Mode (Capturing Images Of Smiling Faces)

    Smart Portrait Mode (Capturing Images of Smiling Faces) When the camera detects a smiling face, you can take an image automatically without pressing the shutter-release button (smile timer (A63)). You can use the skin softening option to smooth the skin tones of human faces. Frame the picture.
  • Page 64 When the Self-timer Lamp Flashes When using smile timer, the self-timer lamp flashes when the camera detects a face and flashes quickly immediately after the shutter is released. Functions Available in Smart Portrait Mode Flash mode (A50) Self-timer (A53) Exposure compensation (A58) Shooting menu (A61)
  • Page 65: Special Effects Mode (Applying Effects When Shooting)

    Special Effects Mode (Applying Effects When Shooting) Effects can be applied to images during shooting. Image quality Image size Special effects Special effects Soft Nostalgic sepia Nostalgic sepia Nostalgic sepia High-contrast monochrome High-contrast monochrome High-contrast monochrome High key High key High key Low key Low key...
  • Page 66 Category Description Gives the image a mysterious appearance based on a o Cross process specific color. m Toy camera Gives the entire image a yellowish hue and darkens the effect 1 image periphery. n Toy camera Decreases the color saturation of the entire image and effect 2 darkens the image periphery.
  • Page 67: J, K, L, M Modes (Setting The Exposure For Shooting)

    j, k, l, m Modes (Setting the Exposure for Shooting) Images can be shot with greater control by setting the shutter speed or aperture value manually. Settings can also be adjusted to suit the shooting conditions and the type of shot you want to capture.
  • Page 68: Using Quick Effects

    Using Quick Effects When in j, k, l, or m mode, you can apply effects to images immediately after releasing the shutter. The edited image is saved as a separate file with a different name. Press the k button when the Quick effects image is displayed after it is taken in j, k, l, or m mode.
  • Page 69 Exposure The procedure for shooting images at the desired brightness (exposure) by adjusting the shutter speed or aperture value is called “determine exposure”. The sense of dynamism and amount of background defocus in images to be shot vary depending on the combinations of shutter speed and aperture value even if the exposure is the same.
  • Page 70 j (Programmed auto) Use for automatic control of the exposure by the camera. Different combinations of shutter speed and aperture value can be selected without changing the exposure by rotating the multi 25m 0s 25m 0s selector (“flexible program”). While flexible 1/250 1/250 1/250...
  • Page 71 Notes About Shooting When zooming is performed after the exposure is set, exposure combinations or aperture value may be changed. When the subject is too dark or too bright, it may not be possible to obtain the appropriate exposure. In such cases, the shutter speed indicator or aperture value indicator flashes (in j, k, and l modes), or the exposure indicator is displayed in red (in m mode) when the shutter-release button is pressed halfway.
  • Page 72: The Control Range Of The Shutter Speed

    The Control Range of the Shutter Speed The control range of the shutter speed differs depending on the aperture value or the ISO sensitivity setting. Additionally, the control range changes in the following continuous shooting settings. Control range (second) Setting j mode k mode l mode...
  • Page 73: Functions That Can Be Set Using The Multi Selector

    Functions That Can Be Set Using the Multi Selector The functions that are available vary with the shooting mode, as shown below. u j, k, l, m Function m Flash mode (A50) n Self-timer (A53) D Macro mode (A54) Creative slider (o Brightness (Exp.
  • Page 74: Using The Flash

    Using the Flash You can select the flash mode to match the shooting conditions. Press the multi selector H (m). Select the desired flash mode Auto (A52) and press the k button. If a setting is not applied by pressing the k button within a few seconds, the selection will be canceled.
  • Page 75 Raising the Flash When you press the shutter-release button halfway, the flash will automatically pop up if the conditions required for flash photography are met. Auto flash (U auto, V auto with red-eye reduction, or Y slow sync): If the lighting is dim, the flash automatically pops up when the shutter-release button is pressed halfway.
  • Page 76: Available Flash Modes

    Available Flash Modes U Auto The flash fires when necessary, such as in dim lighting. The flash mode icon on the shooting screen is displayed only immediately after the setting is made. Not available in shooting modes j, k, l, and m, and in some scene modes. Auto with red-eye reduction/Red-eye reduction Reduce “red-eye”...
  • Page 77: Using The Self-Timer

    Using the Self-timer The camera is equipped with a self-timer that releases the shutter about 10 seconds or 2 seconds after you press the shutter-release button. Set Photo VR to Off in the setup menu (A83) when using a tripod to stabilize the camera during shooting.
  • Page 78: Using Macro Mode

    Using Macro Mode Use macro mode when taking close-up images. Press the multi selector I (p). Select o and press the k Macro mode button. If a setting is not applied by pressing the k button within a few seconds, the selection will be canceled.
  • Page 79: Hue (Creative Slider)

    Adjusting Brightness (Exposure Compensation), Vividness, and Hue (Creative Slider) When the shooting mode is set to j, k, l, or m mode, use the creative slider to adjust brightness (exposure compensation), vividness, and hue for taking images. Operating the Creative Slider Press the multi selector K (o).
  • Page 80 Adjusting Brightness (Exposure Compensation) Adjust the overall brightness of the image. Slider To brighten the image, set a positive (+) Brightness (Exp. +/-) value. To darken the image, set a negative (–) value. + 2.0 + 0.3 - 2.0 Exposure compensation value Histogram Notes About Exposure Compensation...
  • Page 81 Adjusting Vividness (Saturation Adjustment) Adjust the overall vividness of the image. Slider The overall image vividness increases as the Vividness slider is moved up. The overall image vividness decreases as the slider is moved down. Adjusting Hue (White Balance Adjustment) Adjust the overall hue of the image.
  • Page 82: Adjusting Brightness (Exposure Compensation)

    Adjusting Brightness (Exposure Compensation) When the shooting mode is set to A (auto) mode, scene mode, smart portrait mode or special effects mode, you can adjust the brightness (exposure compensation). Press the multi selector K (o). Select a compensation value and Exposure compensation press the k button.
  • Page 83: Default Settings

    Default Settings Default settings for each shooting mode are described below. Creative Flash Self-timer Macro Shooting mode slider (A50) (A53) (A54) (A55) j, k, l, m Exposure Flash Self-timer Macro Shooting mode compensation (A50) (A53) (A54) (A58) A (auto) F (smart portrait) u (special effects) Exposure...
  • Page 84 Exposure Flash Self-timer Macro Shooting mode compensation (A50) (A53) (A54) (A58) m (fireworks show) n (black and white copy) o (backlighting) p (easy panorama) O (pet portrait) Cannot be used when Blink proof is set to On or when Smile timer is set to On (continuous) or On (BSS).
  • Page 85: Functions That Can Be Set With The D Button (Shooting Menu)

    Functions That Can Be Set with the d Button (Shooting Menu) The settings listed below can be changed by pressing the d button during shooting (A4). Image quality Image size White balance Metering Continuous 25m 0s 25m 0s 1/250 1/250 1/250 F3.7 F3.7...
  • Page 86: Options Available In The Shooting Menu

    Options Available in the Shooting Menu Option Description Allows you to set the image quality (compression ratio) Image quality used when saving images. Default setting: Normal Allows you to set the image size used when saving Image size images. Default setting: i 4608×3456 Allows you to adjust white balance to suit the weather conditions or light source in order to make the colors in White balance...
  • Page 87: Skin Softening

    Option Description Allows you to select the skin softening level for human Skin softening faces. Default setting: Normal Allows you to select whether or not the camera automatically releases the shutter when it detects a Smile timer human smiling face. Default setting: On (single) The camera automatically releases the shutter twice with every shot and saves one image in which the...
  • Page 88: Functions That Cannot Be Used Simultaneously

    Functions That Cannot Be Used Simultaneously Some functions cannot be used with other menu options. Restricted Option Description function When a setting other than Single is Continuous (A62) selected, the flash cannot be used. Flash mode When Blink proof is set to On, the Blink proof (A63) flash cannot be used.
  • Page 89 Restricted Option Description function When hue is adjusted using the creative slider, White balance in the Hue (using the shooting menu cannot be set. To set White balance creative slider) White balance, select P in the (A55) creative slider setting screen to reset the brightness, vividness, and hue.
  • Page 90 Restricted Option Description function When Quick effects is set to On, the Monitor captured image is displayed after each Quick effects (A62) settings shot regardless of the Image review setting. When Continuous H, Continuous L, Pre-shooting cache, Continuous H: Continuous (A62) 120 fps, Continuous H: 60 fps or BSS is selected, date and time cannot be imprinted on images.
  • Page 91 Restricted Option Description function When the flash fires, Motion Flash mode (A50) detection is disabled. When Pre-shooting cache, Continuous H: 120 fps, Continuous Motion Continuous (A62) H: 60 fps or Multi-shot 16 is selected, detection Motion detection is disabled. When ISO sensitivity is set to any ISO sensitivity (A62) setting other than Auto, Motion detection is disabled.
  • Page 92: Focusing

    Focusing The focus area varies depending on the shooting mode. Using Target Finding AF In auto mode or when AF area mode (A62) in j, k, l, or m mode is set to Target finding AF, the camera focuses in the manner described below. When the camera detects the main subject, a yellow border (focus area) is displayed around it.
  • Page 93: Using Face Detection

    Using Face Detection In the following shooting modes, the camera uses face detection to automatically focus on human faces. Scene auto selector, Portrait, or Night portrait scene mode (A32) Smart portrait mode (A39) When AF area mode (A62) in j, k, l, or 25m 0s 25m 0s 1/250...
  • Page 94: Using Skin Softening

    Using Skin Softening When the shutter is released while using one of the shooting modes listed below, the camera detects human faces and processes the image to soften facial skin tones (up to 3 faces). Smart portrait mode (A39) - The skin softening level can be adjusted. Scene auto selector, Portrait, or Night portrait scene mode (A32) Editing functions such as Skin softening can be applied to saved images by using Glamour retouch (A74) even after shooting.
  • Page 95: Focus Lock

    Focus Lock Focus lock shooting is recommended when the camera does not activate the focus area that contains the desired subject. Set AF area mode to Center (A61). AF area mode can be set when the shooting mode is set to j, k, l, or m. Position the subject in the center of the frame and press the shutter-release...
  • Page 96: Playback Features

    Playback Features Playback Zoom Moving the zoom control toward g (i) in full-frame playback mode (A28) zooms in on the image. Displayed area guide 4 / 4 4 / 4 0004. JPG 0004. JPG 15/05/2014 15:30 15/05/2014 15:30 Full-frame Playback Image is zoomed in.
  • Page 97: Thumbnail Playback, Calendar Display

    Thumbnail Playback, Calendar Display Moving the zoom control toward f (h) in full-frame playback mode (A28) displays images as thumbnails. 1 / 20 1 / 20 1 / 20 1 / 20 2014 15 15 0004. JPG 0004. JPG 15/05/2014 15:30 15/05/2014 15:30 Full-frame Playback Thumbnail Playback...
  • Page 98: Functions That Can Be Set With The D Button (Playback Menu)

    Functions That Can Be Set with the d Button (Playback Menu) When viewing images in full-frame playback mode or thumbnail playback mode, you can configure the menu operations listed below by pressing the d button (A4). Quick retouch 4 / 4 4 / 4 D-Lighting Red-eye correction...
  • Page 99: Sequence Display Options

    Option Description Allows you to select whether to display only the key picture for a sequence of images captured continuously or to display the sequence as individual Sequence images. display options When only the key picture is displayed for a sequence, press the k button to display each image in the sequence.
  • Page 100: Recording And Playing Back Movies

    Recording and Playing Back Movies Recording Movies Display the shooting screen. Check the remaining amount of movie recording time. If Photo info in the Monitor settings (A83) in the setup menu is set to Movie frame+auto info, the area that will be 25m 0s 25m 0s visible in the movie can be confirmed...
  • Page 101 Maximum Movie Length Individual movie files cannot exceed 4 GB in size or 29 minutes in length, even when there is sufficient free space on the memory card for longer recording. The maximum movie length for a single movie is displayed on the shooting screen. Recording may end before either limit is reached if camera temperature becomes elevated.
  • Page 102 Notes About Vibration Reduction During Movie Recording When Movie VR (A80) in the movie menu is set to On (hybrid), the angle of view (i.e., the area visible in the frame) becomes narrower during movie recording. When using a tripod to stabilize the camera during recording, set Movie VR to Off to prevent potential errors caused by this function.
  • Page 103 Saving Still Images While Recording Movies If the shutter-release button is pressed all the way while recording a movie, one frame is saved as a still image. Movie recording continues while the still image is being saved. Q is displayed at the top left of the monitor. When z is displayed, a still image cannot be saved.
  • Page 104: Functions That Can Be Set With The D Button (Movie Menu)

    Functions That Can Be Set with the d Button (Movie Menu) Enter shooting mode M d button M D menu icon M k button The settings of the menu options listed below can be configured. Movie options Open with HS footage AF area mode Autofocus mode Movie VR...
  • Page 105: Playing Back Movies

    Playing Back Movies Press the c button to enter playback mode. Movies are indicated by the movie options icon (A80). Press the k button to play back movies. 0010. MOV 0010. MOV 15/05/2014 15:30 15/05/2014 15:30 Movie options To adjust the volume, move the zoom control (A1).
  • Page 106: Deleting Movies

    Functions Available During Playback Rotate the multi selector to fast forward or rewind. Playback controls are displayed at the bottom of the monitor. Paused The operations listed below can be performed by using the multi selector JK to select a control and then pressing the k button.
  • Page 107: General Camera Setup

    General Camera Setup Functions That Can Be Set with the d Button (Setup Menu) Press the d button M z (setup) menu icon M k button The settings of the menu options listed below can be configured. Welcome screen Time zone and date Monitor settings Print date Photo VR...
  • Page 108: Format Memory/Format Card

    Option Description Format memory/ Allows you to format the internal memory or the Format card memory card. Allows you to change the camera’s display Language language. TV settings Allows you to adjust TV-connection settings. Allows you to set whether or not the battery in the Charge by camera is charged when the camera is connected to computer...
  • Page 109: Using Location Data Functions/Displaying Maps

    Using Location Data Functions/ Displaying Maps Starting Location Data Recording This camera receives signals from positioning satellites and obtains its current time and location data. The obtained location data (latitude and longitude) can be recorded on the images to be shot. Turn the Location Data Functions On Press the d button M z (location data options) menu icon M Location data options M k button...
  • Page 110 Notes About Location Data Functions Before using the location data functions, read “<Important> Notes About Location Data Functions (GPS/GLONASS, Electronic Compass)” (Axii). It takes a few minutes to obtain location data when positioning is performed for the first time or in a situation where positioning cannot be performed for a long period of time, or just after the battery is replaced.
  • Page 111 Location Data Reception Indicator and Points of Interest (POI) Information Location data reception can be checked on the Location name information shooting screen. (POI information) - n: Signals are being received from four or more satellites and positioning is being performed.
  • Page 112: Displaying Maps

    Displaying Maps The current position or image shooting location can be displayed on the screen using the camera’s internal map information. To display the map, press the U (map) button in shooting mode or playback mode. Maps cannot be displayed while the camera is being charged with the charging AC adapter.
  • Page 113: When Using Playback Mode

    Map Display The map display cannot be rotated. Only the north up display (the top of the screen indicates the north) is available. The map display scale varies depending on which country is shown on the map. In shooting mode, when Record location data in Location data options of the Location data options menu is set to Off or when positioning could not be performed, a world map centered on the region that was set in Time zone of Time zone and date in the setup menu (A83) or the last displayed map is...
  • Page 114 The following operations can be performed when you press the k button while thumbnails are displayed. - Scroll map: Return to the map display screen. - Save location: Save the shooting location of the image displayed as a location. - Center on saved location: Move the map by selecting a location you have saved (A90).
  • Page 115: Functions That Can Be Set Using The D Button (Location Data Options Menu)

    Functions That Can Be Set Using the d Button (Location Data Options Menu) Press the d button z (location data options) menu icon M k button The settings of the menu options listed below can be configured. Location data options The Location data options menu can be Distance units displayed also by pressing the d button...
  • Page 116: View Log

    Option Description Allows you to check or erase the log data saved on View log a memory card. Allows you to set the date and time of the camera's Set clock from internal clock using signals from the positioning satellite satellites.
  • Page 117: Using The Wi-Fi (Wireless Lan) Function

    Using the Wi-Fi (Wireless LAN) Function Functions That Can Be Performed Using Wi-Fi You can perform the following functions if you install the dedicated software “Wireless Mobile Utility” on your smart device that runs on Android OS or iOS, and connect it to the camera. Take Photos You can take still images using the two methods described below.
  • Page 118: Connecting The Smart Device To The Camera

    Connecting the Smart Device to the Camera Press the d button M q menu icon M k button Use the multi selector HI to select Connect to smart device Connect to smart device Disable Wi-Fi and press the k button. Options If Connect to smart device cannot be Current settings...
  • Page 119 To Terminate the Wi-Fi Connection Perform one of the following operations. Turn off the camera. Select Disable Wi-Fi in the Wi-Fi options menu on the camera (except when the camera is operated by remote control). Set the Wi-Fi setting on the smart device to Off. Notes About Wi-Fi Connection Connect to smart device cannot be selected in the following situations: - When no memory card is inserted in the camera.
  • Page 120: Connecting The Camera To A Tv, Computer, Or Printer

    Connecting the Camera to a TV, Computer, or Printer Connection Methods You can enhance your enjoyment of images and movies by connecting the camera to a TV, computer, or printer. Micro-USB connector HDMI micro connector (Type D) Open the connector Insert the plug straight.
  • Page 121 Viewing images on a TV Images and movies captured with the camera can be viewed on a TV. Connection method: Connect a commercially available HDMI cable to the TV’s HDMI input jack. Viewing and organizing images on a computer You can transfer images to a computer to perform simple retouching and manage image data.
  • Page 122: Using Viewnx 2

    Your Imaging Toolbox ViewNX 2™ Installing ViewNX 2 An Internet connection is required. For system requirements and other information, see the Nikon website for your region. Download the ViewNX 2 installer. Start the computer and download the installer from: http://nikonimglib.com/nvnx/ Double-click the downloaded file.
  • Page 123: Transferring Images To The Computer

    SD card reader: Connect a card reader (available separately from third-party suppliers) to the computer and insert the memory card. If a message is displayed prompting you to choose a program, select Nikon Transfer 2. When using Windows 7...
  • Page 124 Transfer images to the computer. Click Start Transfer. Start Transfer At default settings, all the images on the memory card will be copied to the computer. Terminate the connection. If the camera is connected to the computer, turn the camera off and disconnect the USB cable.
  • Page 125: Viewing Images

    Viewing Images Start ViewNX 2. Images are displayed in ViewNX 2 when transfer is complete. Consult online help for more information on using ViewNX 2. Starting ViewNX 2 Manually Windows: Double-click the ViewNX 2 shortcut on the desktop. Mac: Click the ViewNX 2 icon in the Dock.
  • Page 127: Technical Notes And Index

    Technical Notes and Index Caring for the Product........F2 The Camera.....................F2 The Battery....................F3 Charging AC Adapter................F4 Memory Cards..................F5 Cleaning and Storage........F6 Cleaning....................F6 Storage .....................F7 Troubleshooting..........F8 USER LICENSE AGREEMENT FOR MAP DATA AND LOCATION NAME DATA.........F19 Specifications..........F25 Approved Memory Cards ............... F29 Index ...............F32...
  • Page 128: Caring For The Product

    Caring for the Product The Camera To ensure continued enjoyment of this Nikon product, observe the precautions described below in addition to the warnings in “For Your Safety” (Avii-ix) when using or storing the device. Do Not Drop The product may malfunction if subjected to strong shock or vibration.
  • Page 129: The Battery

    Images in the monitor may be difficult to see under bright lighting. The monitor is lit by an LED backlight. Should the monitor begin to dim or flicker, contact your Nikon-authorized service representative. The Battery Be sure to read and follow the warnings in “For Your Safety” (Avii-ix) before use.
  • Page 130: Charging Ac Adapter

    If the battery will not be used for some time, insert it in the camera and completely exhaust it before removing it for storage. The battery should be stored in a cool location with an ambient temperature of 15°C to 25°C (59°F to 77°F).
  • Page 131: Memory Cards

    Memory Cards Use only Secure Digital memory cards. See “Approved Memory Cards” (F29) for recommended memory cards. Observe the precautions noted in the documentation included with your memory card. Do not affix labels or stickers to the memory card. Do not format the memory card using a computer. The first time you insert a memory card that has been used in another device into this camera, be sure to format it with this camera.
  • Page 132: Cleaning And Storage

    Cleaning and Storage Cleaning Do not use alcohol, thinner, or other volatile chemicals. Avoid touching glass parts with your fingers. Remove dust or lint with a blower (typically a small device with a rubber bulb attached to one end that is pumped to produce a stream of air out the other end). To Lens remove fingerprints or other stains that cannot be removed with a blower, wipe the lens with a soft cloth, using a spiral motion that starts...
  • Page 133: Storage

    Storage Turn the camera off when not in use. Be sure that the power-on lamp is off before putting the camera away. Remove the battery if the camera will not be used for an extended period. Do not store the camera with naphtha or camphor moth balls, or in any of the following locations: Next to equipment that produces strong electromagnetic fields, such as televisions or radios...
  • Page 134: Troubleshooting

    Troubleshooting If the camera fails to function as expected, check the list of common problems below before consulting your retailer or Nikon-authorized service representative. Power, Display, Settings Issues Problem Cause/Solution Wait for recording to end. – If the problem persists, turn the camera off.
  • Page 135 Problem Cause/Solution The camera automatically turns off to save power (auto off function). The camera or battery has become too cold and cannot operate properly. The inside of the camera has become hot. – Camera turns off Leave the camera off until the inside of the without warning.
  • Page 136 Problem Cause/Solution No indicators displayed Hide info is selected for Photo info in in monitor. Monitor settings in the setup menu. Print date not Time zone and date has not been set in the 16, 83, available. setup menu. The current shooting mode does not Date not imprinted on support Print date.
  • Page 137 Shooting Issues Problem Cause/Solution 96, 99, Cannot switch to E20, Disconnect the HDMI cable or USB cable. shooting mode. When the camera is in playback mode, 1, 28 press the c button, the shutter-release button, or the b (e movie-record) button.
  • Page 138 Problem Cause/Solution The flash mode is set to W (off). A shooting mode that restricts the flash is selected. On is selected for Blink proof in the smart portrait menu. Flash does not fire. On (continuous) or On (BSS) is selected for Smile timer in the smart portrait menu.
  • Page 139 Problem Cause/Solution The subject is dark, and the shutter speed is too slow or ISO sensitivity is too high. Noise Randomly spaced can be reduced by: bright pixels (“noise”) Using the flash. appear in image. Specifying a lower ISO sensitivity setting. The flash mode is set to W (off).
  • Page 140 Problem Cause/Solution It may take more time to save images in the following situations. When the noise reduction function is in – operation, such as when shooting in a dark environment When the flash mode is set to V (auto with red-eye reduction/red-eye reduction) When taking images in the following Saving images takes...
  • Page 141 Playback Issues Problem Cause/Solution This camera may not be able to play back images saved with another make or model of digital camera. File cannot be played This camera cannot play back movies – back. recorded with another make or model of digital camera.
  • Page 142 The camera is not recognized by the – not start when camera computer. is connected to a The computer is not set to start Nikon computer. Transfer 2 automatically. For more information about Nikon Transfer 2, refer to help information contained in ViewNX...
  • Page 143 Location Data Functions Problem Cause/Solution The camera may not be able to identify the location in some shooting environments. To use the location data functions, use the Unable to identify the camera as much as possible in an open-air location or it takes time area.
  • Page 144 Problem Cause/Solution Record location data in the Location data options menu is set to Off. Unable to select Start The camera is recording log data. To record log. a new log, select End log, and end the log currently being recorded. Make sure that a memory card is inserted in –...
  • Page 145: User License Agreement For Map Data And Location Name Data

    It is protected by copyright, and is subject to the following terms and conditions which are agreed to by you, on the one hand, and Nikon Corporation (“Nikon”) and its licensors (including their licensors and suppliers) on the other hand.
  • Page 146 YOUR USE OF OR INABILITY TO USE THIS INFORMATION, ANY DEFECT IN THE INFORMATION, OR THE BREACH OF THESE TERMS OR CONDITIONS, WHETHER IN AN ACTION IN CONTRACT OR TORT OR BASED ON A WARRANTY, EVEN IF NIKON OR ITS LICENSORS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Some States, Territories and Countries do not allow certain liability exclusions or damages limitations, so to that extent the above may not apply to you.
  • Page 147 Government End Users. If the Data supplied by HERE is being acquired by or on behalf of the United States government or any other entity seeking or applying rights similar to those customarily claimed by the United States government, the Data is a "commercial item"...
  • Page 148 Notices related to licensed software copyright holders. Map data and location name data for Japan © 2013 ZENRIN CO., LTD. All rights reserved. This service uses map and POI data of ZENRIN CO., LTD. “ZENRIN” is a registered trademark of ZENRIN CO., LTD. Map data and location name data except for Japan ©...
  • Page 149 Greece Copyright Geomatics Ltd. Hungary Copyright © 2003; Top-Map Ltd. La Banca Dati Italiana è stata prodotta usando quale riferimento Italy anche cartografia numerica ed al tratto prodotta e fornita dalla Regione Toscana. Norway Copyright © 2000; Norwegian Mapping Authority Portugal Source: IgeoE - Portugal Spain...
  • Page 150 Israel © Survey of Israel data source Jordan © Royal Jordanian Geographic Centre. Certain Data for Mozambique provided by Cenacarta © 2013 by Mozambique Cenacarta The Pacific Ocean and Caribbean Sea maritime borders have not been entirely defined. Northern land border defined by the natural course of the Coco Nicaragua River (also known as Segovia River or Wangki River) corresponds to the source of information available at the moment of its...
  • Page 151: Specifications

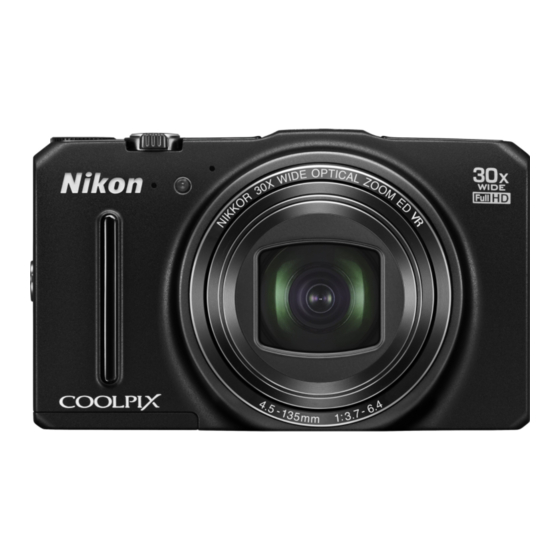

    Specifications Nikon COOLPIX S9700 Digital Camera Type Compact digital camera Number of effective 16.0 million pixels Image sensor 1/2.3-in. type CMOS; approx. 16.76 million total pixels Lens NIKKOR lens with 30× optical zoom 4.5-135 mm (angle of view equivalent to that of 25-...
  • Page 152 4608×3456 3264×2448 2272×1704 Image size (pixels) 1600×1200 640×480 16:9 12M 4608×2592 3456×3456 ISO sensitivity ISO 125 - 1600 ISO 3200, 6400 (available when using j, k, l, or m (Standard output sensitivity) mode) Exposure Metering mode Matrix, center-weighted, spot (digital zoom 2× or more) Programmed auto exposure with flexible program, shutter-priority auto, aperture-priority auto, manual, and Exposure control...
  • Page 153 Wi-Fi (Wireless LAN) IEEE 802.11b/g/n (standard wireless LAN protocol) Standards ARIB STD-T66 (standard for low power data communication systems) IEEE 802.11b: DBPSK/DQPSK/CCK Communications IEEE 802.11g: OFDM protocols IEEE 802.11n: OFDM Range (line of sight) Approx. 30 m (32 yd) Operating 2412 - 2462 MHz (1 - 11 channels) frequency IEEE 802.11b: 5 Mbps...
  • Page 154 For Argentina: Approx. 73 g (2.6 oz) For Brazil: Approx. 70 g (2.5 oz) Specifications Nikon will not be held liable for any errors this manual may contain. The appearance of this product and its specifications are subject to change without notice.
  • Page 155: Approved Memory Cards

    Approved Memory Cards The following Secure Digital (SD) memory cards have been tested and approved for use in this camera. Memory cards with an SD Speed Class rating of 6 or faster are recommended for recording movies. When using a memory card with a lower Speed Class rating, movie recording may stop unexpectedly.
  • Page 156 AVC Patent Portfolio License This product is licensed under the AVC Patent Portfolio License for the personal and non-commercial use of a consumer to (i) encode video in compliance with the AVC standard (“AVC video”) and/or (ii) decode AVC video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed to provide AVC video.
  • Page 157: Trademark Information

    Wi-Fi and the Wi-Fi logo are trademarks or registered trademarks of the Wi-Fi Alliance. Android and Google Play are trademarks or registered trademarks of Google, Inc. All other trade names mentioned in this manual or the other documentation provided with your Nikon product are trademarks or registered trademarks of their respective holders.
  • Page 158: Index

    Index .log ............E96 Symbols .MOV ........... E96 l Aperture-priority auto mode ............. 43, 46 .WAV ........... E96 A Auto mode......22, 31 F Auto sort mode......E9 AC adapter......96, E97 l Delete button..29, 82, E52 AF area mode o Exposure compensation ......
  • Page 159 Blink warning...... 84, E76 Brightness ......83, E66 Easy panorama p....37, E2 Brightness (exposure Easy panorama playback compensation) ......56, 58 ............37, E4 BSS..........36, E35 Electronic compass ..92, E87 Button sound......... E72 Exposure compensation..56, 58 Exposure mode ........
  • Page 160: List By Date Mode

    Internal memory......15, 20 Night landscape j......35 Internal memory indicator ..7, 9 Night portrait e........34 ISO sensitivity...... 62, E37 Nikon Transfer 2........99 Nostalgic sepia P....... 41 Landscape c......... 32 Number of exposures remaining Language ......84, E74 .............
  • Page 161 Protect........74, E50 Open with HS footage ........80, E57, E59 Quick effects Optical zoom .......... 25 ... 28, 44, 62, E14, E41 Optional accessories ....E97 Quick retouch ..... 74, E15 Paper size ..... E24, E25 Recording movies ....... 76 Party/indoor f........
  • Page 162 Shutter-release button ....1, 26 USB connector cover ......2 Single........62, E34 Single AF..... 80, E41, E60 Vibration reduction Skin softening..63, 70, E43 ....... 80, 83, E61, E69 Slide show ......74, E49 View log........92, E85 Slow sync ..........52 ViewNX 2...........
  • Page 164 No reproduction in any form of this manual, in whole or in part (except for brief quotation in critical articles or reviews), may be made without written authorization from NIKON CORPORATION. Printed in Indonesia FX4C03(11) 6MN41911-03 2014...

Table of Contents

Save PDF
