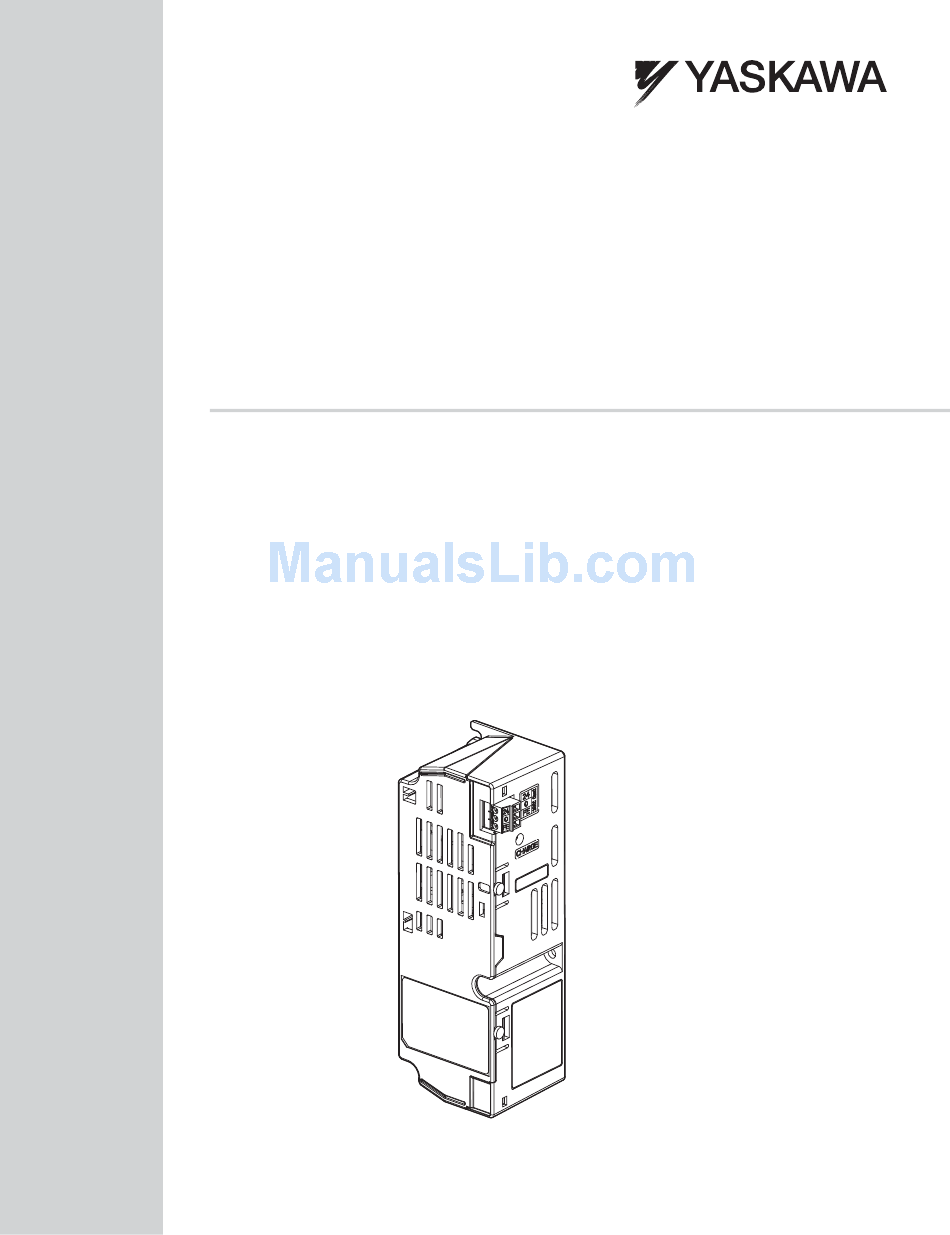

YASKAWA AC Drive 1000-Series Option
24 V Power Supply
Installation Manual
Type: PS-A10LB, PS-A10HB
To properly use the product, read this manual thoroughly and retain
for easy reference, inspection, and maintenance. Ensure the end user
receives this manual.
1000
安川インバータ
24 V
制御電源ユニット
取扱説明書
PS-A10LB, PS-A10HB
形式：
製品を安全にお使い頂くために，本書を必ずお読みください。
また，本書をお手元に保管していただくとともに，最終的に本製品をご使用になる
ユーザー様のお手元に確実に届けられるよう，お取り計らい願います。
MANUAL NO. TOBP C730600 55A
シリーズオプション

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS-A10LB and is the answer not in the manual?

Questions and answers

Related Manuals for YASKAWA PS-A10LB

Summary of Contents for YASKAWA PS-A10LB

  • Page 1 YASKAWA AC Drive 1000-Series Option 24 V Power Supply Installation Manual Type: PS-A10LB, PS-A10HB To properly use the product, read this manual thoroughly and retain for easy reference, inspection, and maintenance. Ensure the end user receives this manual. 1000 安川インバータ...
  • Page 2 Yaskawa. No patent liability is assumed with respect to the use of the information contained herein. Moreover, because Yaskawa is constantly striving to improve its high-quality products, the information contained in this manual is subject to change without notice.

  • Page 3: Table Of Contents

    7 SPECIFICATIONS ....... . . 37 YASKAWA ELECTRIC TOBP C730600 55A 1000-Series Option PS-A10 Installation Manual...

  • Page 4: Preface And Safety

    The selection and application of Yaskawa products remain the responsibility of the equipment manufacturer or end user. Yaskawa accepts no responsibility for the way its products are incorporated into the final system design. Under no circumstances should any Yaskawa product be incorporated into any product or design as the exclusive or sole safety control.
  • Page 5 Terms Note: Indicates supplemental information that is not related to safety messages Drive: Yaskawa AC Drive 1000-Series Option: Yaskawa AC Drive 1000-Series Option 24 Vdc Power Supply ◆ Registered Trademarks Trademarks are the property of their respective owners. ◆ Supplemental Safety Information Read and understand this manual before installing, operating, or servicing this option.

  • Page 6: General Safety

    • When ordering new copies of the manual, contact a Yaskawa representative or the nearest Yaskawa sales office and provide the manual number shown on the front cover.
  • Page 7 けが．感電のおそれがあります。 Lire le manuel avant l'installation. Attendre 5 minutes après 据え付け、 運転の前には必ず la coupure de l'alimentation, 取扱説明書を読むこと。 pour permettre la décharge 通電中および電源遮断後5分以内は des condensateurs. 本体内部，コネクタに触れないこと。 Figure 1 Warning Labels YASKAWA ELECTRIC TOBP C730600 55A 1000-Series Option PS-A10 Installation Manual...

  • Page 8: Product Overview

    600 V Class 200 V Class PS-A10LB L1000A 400 V Class PS-A10HB 200 V Class PS-A10LB T1000A 400 V Class PS-A10HB 200 V Class PS-A10LB Z1000 400 V Class PS-A10HB YASKAWA ELECTRIC TOBP C730600 55A 1000-Series Option PS-A10 Installation Manual...

  • Page 9: Receiving

    • A straight-edge screwdriver (blade depth: 0.4 mm, width: 2.5 mm) is required to install the drive and wire the option terminal block. Note: Tools required to prepare option cables for wiring are not listed in this manual. YASKAWA ELECTRIC TOBP C730600 55A 1000-Series Option PS-A10 Installation Manual...

  • Page 10: Option Components

    C – Nameplate G – Terminal Block TB1 Refer to Figure 3 for details. (24 Vdc power supply input) D – Connector tabs (6) Figure 2 24 Vdc Power Supply Option Components YASKAWA ELECTRIC TOBP C730600 55A 1000-Series Option PS-A10 Installation Manual...
  • Page 11 FILE NO : E131457 PASS YASKAWA ELECTRIC CORPORATION MADE IN JAPAN Figure 3 PS-A10LB Nameplate Example <1> Certification pending. Contact your Yaskawa representative or the nearest Yaskawa sales office for details. ◆ Terminal Block TB1 Refer to Table 2 for details on TB1 terminal functions.

  • Page 12: Installation And Uninstallation Procedure

    Do not touch circuit boards while the power to the drive is on. Failure to comply could result in death or serious injury. YASKAWA ELECTRIC TOBP C730600 55A 1000-Series Option PS-A10 Installation Manual...
  • Page 13 Do not use unshielded cable for control wiring. Failure to comply may cause electrical interference resulting in poor system performance. Use shielded twisted-pair wires and ground the shield to the ground terminal of the drive. YASKAWA ELECTRIC TOBP C730600 55A 1000-Series Option PS-A10 Installation Manual...
  • Page 14 B – 30 mm minimum Figure 4 Correct Installation Spacing Note: IP20/NEMA Type 1 Enclosure and IP00/Open-Chassis models require the same amount of space above and below the drive for installation. YASKAWA ELECTRIC TOBP C730600 55A 1000-Series Option PS-A10 Installation Manual...
  • Page 15 Figure 5 Dimensions UL and CE Compliance ■ Note: Certification pending. Contact your Yaskawa representative or the nearest Yaskawa sales office for details. Installation Area For compliance with UL and CE standards, the 24 V Power Supply Option should be placed within the enclosure.
  • Page 16 <1> CIMR-Z 2A0143 to 2A0396, 4A0124 to 4A0361 CIMR-A 4A0515 to 4A1200 CIMR-Z 4A0414 and 4A0590 <1> Drive models CIMR-T 2A0250 to 2A0415, and 4A0208 to 4A0415 are under development. YASKAWA ELECTRIC TOBP C730600 55A 1000-Series Option PS-A10 Installation Manual...
  • Page 17 Figure Figure 6 Figure 6 Remove the Connector Cover Pull the loose end of the connection cable out of the option. Figure 7 Figure 7 Pull Out the Connection Cable YASKAWA ELECTRIC TOBP C730600 55A 1000-Series Option PS-A10 Installation Manual...
  • Page 18 Align the connector tabs on the option with the insertion tabs on the drive as shown Figure Figure 9 Connector tabs Insertion tabs Figure 9 Align the Option and the Drive YASKAWA ELECTRIC TOBP C730600 55A 1000-Series Option PS-A10 Installation Manual...
  • Page 19 For Z1000 drives, use the tapping screw included in the package to attach the option unit. Figure 10 A - Use the tapping screw to attach the option unit Figure 10 Slide the Option onto the Drive Skip to Option Wiring on page YASKAWA ELECTRIC TOBP C730600 55A 1000-Series Option PS-A10 Installation Manual...
  • Page 20 Figure 11 Screw Connector cover Figure 11 Remove the Connector Cover Screw Slide the connector cover as shown in Figure Figure 12 Figure 12 Slide the Connector Cover YASKAWA ELECTRIC TOBP C730600 55A 1000-Series Option PS-A10 Installation Manual...
  • Page 21 Figure 13 Figure 13 Remove the Connector Cover Pull the loose end of the connection cable out of the option. Figure 14 Figure 14 Pull Out the Connection Cable YASKAWA ELECTRIC TOBP C730600 55A 1000-Series Option PS-A10 Installation Manual...
  • Page 22 Note: Take proper precautions when connecting the option so the option will easily fit onto the drive. Make sure the connector cable is not pinched between the option and the drive. Figure 16 Connector tab Insertion tab Figure 16 Tab Locations YASKAWA ELECTRIC TOBP C730600 55A 1000-Series Option PS-A10 Installation Manual...
  • Page 23 NOTICE: Use only the screws packaged with the option; other screws may damage drive components. Figure 17 Figure 17 Location of Screws Figure 18 Figure 18 Option Properly Installed Skip to Option Wiring on page YASKAWA ELECTRIC TOBP C730600 55A 1000-Series Option PS-A10 Installation Manual...
  • Page 24 Phillips screwdriver (M4) to remove the drive covers. Figure 19 A – Front cover 1 C – Terminal Cover B – Front cover 2 Figure 19 Remove the Covers YASKAWA ELECTRIC TOBP C730600 55A 1000-Series Option PS-A10 Installation Manual...
  • Page 25 A – Bracket for 24 V power supply unit Figure 20 Removing the bracket (CIMR-A 4A0515, 4A0675) Figure 21 A – Bracket for 24 V power supply unit Figure 21 Removing the bracket (CIMR-A 4A0930, 4A1200) YASKAWA ELECTRIC TOBP C730600 55A 1000-Series Option PS-A10 Installation Manual...
  • Page 26 5 Installation and Uninstallation Procedure Pull the loose end of the connection cable out of the option. Figure 22 Figure 22 Pull Out the Connection Cable YASKAWA ELECTRIC TOBP C730600 55A 1000-Series Option PS-A10 Installation Manual...
  • Page 27 Connect the option unit to the bracket so that the connector tabs on the unit catch and hold it in place. Figure 24 A – Connector tabs to catch the bracket Figure 24 Connecting the Option Unit to the Bracket YASKAWA ELECTRIC TOBP C730600 55A 1000-Series Option PS-A10 Installation Manual...
  • Page 28 NOTICE: Make sure the connector is facing in the proper direction when plugging it into the drive. An improper connection can damage the connector and the drive. Figure 26 Figure 26 Plugging the connector YASKAWA ELECTRIC TOBP C730600 55A 1000-Series Option PS-A10 Installation Manual...
  • Page 29 Make sure the connector cable is not pinched between the option and the drive. Figure 27 A – Option unit affixed to the bracket Figure 27 Installing the option unit Figure 28 Figure 28 Option Properly Installed YASKAWA ELECTRIC TOBP C730600 55A 1000-Series Option PS-A10 Installation Manual...
  • Page 30 31. After wiring the terminal TB1, reinstall the drive covers to their original locations. Figure 29 A – Front Cover 1 C – Terminal Cover B – Front Cover 2 Figure 29 Reinstall the covers to the drive YASKAWA ELECTRIC TOBP C730600 55A 1000-Series Option PS-A10 Installation Manual...
  • Page 31 NOTICE: Heat shrink tubing or electrical tape may be required to ensure that cable shielding does not contact other wiring. Insufficient insulation may cause a short circuit and damage the option or drive. YASKAWA ELECTRIC TOBP C730600 55A 1000-Series Option PS-A10 Installation Manual...

  • Page 32: Connection Diagram

    0.75 0.25 to 0.5 Shielded 24, 0, FE (1.95 to 2.21) Single line: (18 AWG) (24 to 20 AWG) (20 AWG) cable, etc. 0.25 to 1.5 (24 to 16 AWG) YASKAWA ELECTRIC TOBP C730600 55A 1000-Series Option PS-A10 Installation Manual...
  • Page 33 <1> CIMR-Z 2A0143 to 2A0396, 4A0124 to 4A0361 CIMR-A 4A0515 to 4A1200 CIMR-Z 4A0414 and 4A0590 <1> Drive models CIMR-T 2A0250 to 2A0415, and 4A0208 to 4A0415 are under development. YASKAWA ELECTRIC TOBP C730600 55A 1000-Series Option PS-A10 Installation Manual...
  • Page 34 NOTICE: Do not use excessive force when removing the option. Failure to comply can damage the cable and the connector. NOTICE: For Z1000 drives, first remove the screw used to fasten the option into place. Figure 32 Figure 32 Uninstallation Method A YASKAWA ELECTRIC TOBP C730600 55A 1000-Series Option PS-A10 Installation Manual...
  • Page 35 After removing the drive covers, remove the bracket and option unit as shown in Figure Figure 34 A – Remove the bracket and option unit Figure 34 Uninstallation Method C YASKAWA ELECTRIC TOBP C730600 55A 1000-Series Option PS-A10 Installation Manual...

  • Page 36: Verifying Operation

    Table 6 Power Supply and Control Circuit Drive Main Circuit Input Power from 24 V Power Control Circuit Drive Operation Power Supply Supply Option Operation in Drive Possible Normal operation Possible Not possible Stop Not possible YASKAWA ELECTRIC TOBP C730600 55A 1000-Series Option PS-A10 Installation Manual...

  • Page 37: Specifications

    <1> The option must be installed in an environment compatible with the drive environmental specifications. <2> Certification pending. Contact your Yaskawa representative or the nearest Yaskawa sales office for details. YASKAWA ELECTRIC TOBP C730600 55A 1000-Series Option PS-A10 Installation Manual...

  • Page 38: Revision History

    July 2012 11-3 Date of Revision number publication Date of original publication Date of Revision Section Revised Content Publication Number July 2012 Back cover Revision: Address − − March 2011 First Edition YASKAWA ELECTRIC TOBP C730600 55A 1000-Series Option PS-A10 Installation Manual...
  • Page 39 Phone: 81-3-5402-4502 Fax: 81-3-5402-4580 http://www.yaskawa.co.jp YASKAWA AMERICA, INC. 2121 Norman Drive South, Waukegan, IL 60085, U.S.A. Phone: (800) YASKAWA (927-5292) or 1-847-887-7000 Fax: 1-847-887-7310 http://www.yaskawa.com YASKAWA ELÉTRICO DO BRASIL LTDA. Avenda Fagundes Filho, 620 Bairro Saude, São Paulo, SP04304-000, Brasil Phone: 55-11-3585-1100 Fax: 55-11-5581-8795 http://www.yaskawa.com.br...
