1.1 If you HAVe A LANDLINe/bASIC LINe AND A TeLePHoNe SoCkeT
WITHouT NeTWork CoNNeCTIoN
Phone
If you have a landline/basic line connection without Internet connection,
1
you must use the three-pin telephone plug. Connect the telephone cable to the
bottom of the loose telephone plug and the other end to the 'LINE' port in the
splitter.
Connect the loose telephone plug to the telephone wall socket.
2
The telephone can be plugged into the front of the loose plug.
3
Connect the telephone cable between the router's DSL port and the splitter's
4
ADSL port.
Connect the router's power supply (12 V) to a power outlet (230 V) and switch
5
on the router.
Do not proceed to the next step before the router is ready. The first time the
ADSL router is switched on, it may take 10-15 minutes to program the router
from TDC's central management system. This is, among other things, due to the
fact that the management system restarts the router several times along the
way, which may take up to four minutes each time. For more information, please
read Section 8 'Status check/troubleshooting' in this guide.
The router is ready when the 'Power' LED lights green and the 'DSL Sync' LED
flashes and lights green.
How to connect your equipment to the router ports depends on your chosen
router profile for your Business Broadband solution. If you are unsure of your
router profile, it is specified on your order confirmation.
If you have ordered TDC Bredbånd Professionel or TDC BizBase,
6 7 8 9
connect the equipment to one of the four ports using the Ethernet cable.

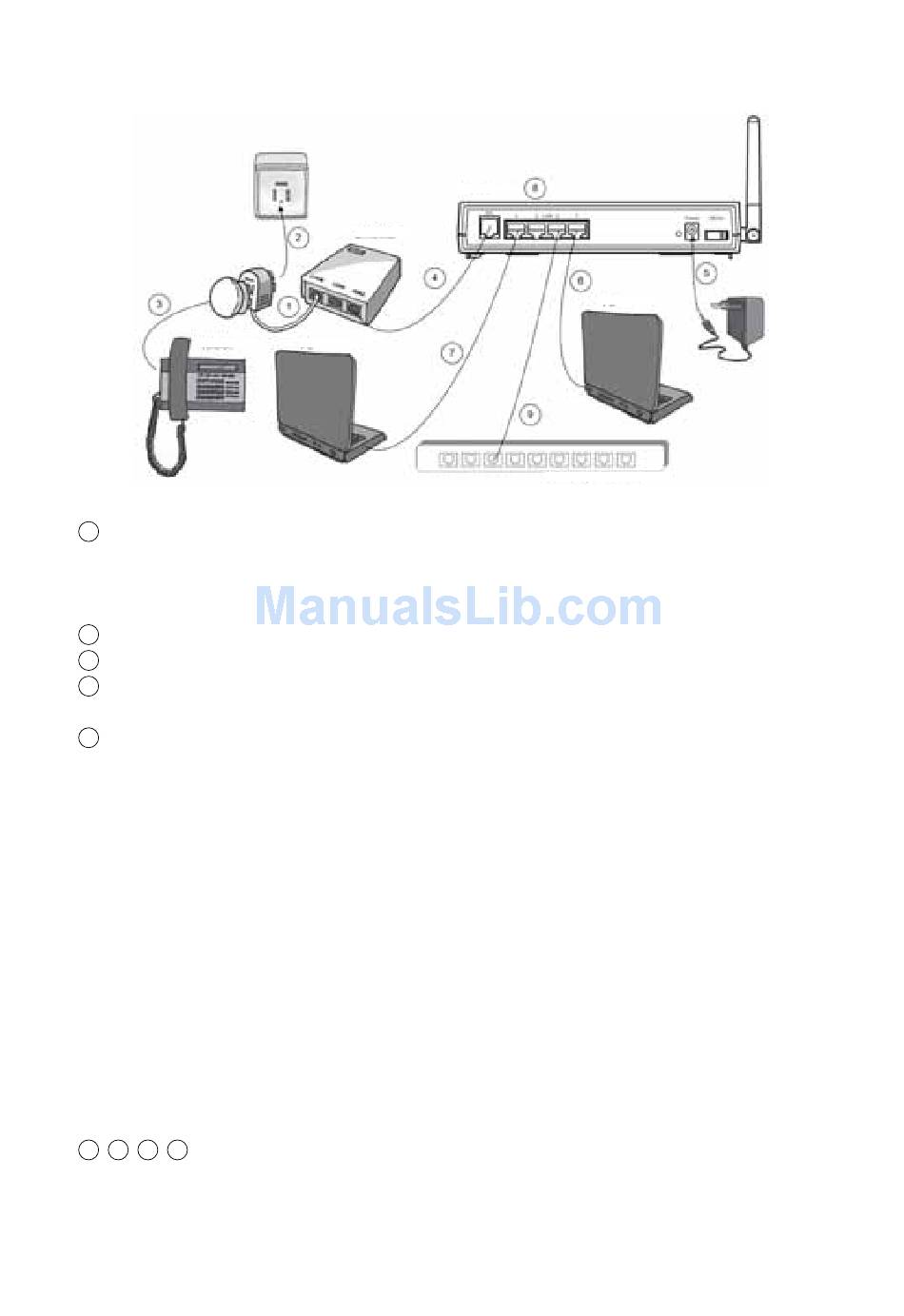

6
Router
Splitter
Computer
Computer
Hub/switch for LAN
