OHAUS RE-C series User Manual

OHAUS RE-C series User Manual

Price computing scale

Advertisement

99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431
Visit us at www.TestEquipmentDepot.com

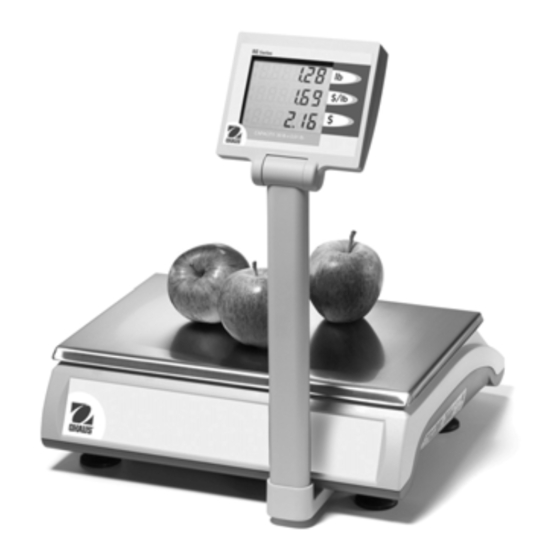

RE Series Price Computing Scale
RE-C (with Tower) Model
RE Model

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RE-C series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for OHAUS RE-C series

  • Page 1 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com RE Series Price Computing Scale RE-C (with Tower) Model RE Model...
  • Page 3: Table Of Contents

    RE Series EN-1 INTRODUCTION..................... 2 INSTALLATION ...................... 2 Unpacking ....................2 Assembling....................2 Selecting the Location................. 3 Leveling the Scale ..................3 Connecting Power..................3 OVERVIEW OF CONTROLS AND FUNCTIONS.............. 5 Control Panel .................... 5 Customer Display ..................5 Keys and Display Indicators................ 6 OPERATIONS ......................
  • Page 4: Introduction

    EN-2 RE Series INTRODUCTION This manual contains installation, operation and maintenance instructions for the RE Series scale. Please read the manual completely before installation and operation. Safety Precautions For safe and dependable operation of this scale, please comply with the following safety precautions: Verify that the input voltage printed on the AC Adapter and the plug type •...
  • Page 5: Selecting The Location

    RE Series EN-3 Install the weighing pan as illustrated below, with the pan properly aligned. 2.3 Selecting the Location Operate the scale on a firm, level surface. Avoid locations with rapid temperature changes, excessive air currents, vibrations, electromagnetic fields, heat or direct sunlight. 2.4 Leveling the Scale Adjust the leveling feet until the bubble is centered in the circle of the level indicator (located on the front panel).
  • Page 6 EN-4 RE Series When running on batteries, the battery cursor is displayed and indicates the state of the battery power: Battery is full About 2/3 battery power remaining About 1/3 battery power remaining Battery power is critical; batteries need to be changed 2.5.3 Battery Power Saving Feature When powered on batteries, the scale will enter sleep mode (Weight display SLEEP...
  • Page 7: Overview Of Controls And Functions

    RE Series EN-5 OVERVIEW OF CONTROLS AND FUNCTIONS 3.1 Control Panel 3.2 Customer Display Weight display Unit Price display Total Price display Weights & Measures marking Leveling Indicator Memory Keys / Pull-out Tab Numeric Keypad On/Off Key...
  • Page 8: Keys And Display Indicators

    EN-6 RE Series 3.3 Keys and Display Indicators • Short press turns the scale on; long press turns the scale off • Activates Pre-pack weighing; displayed Unit Price is fixed • In SETUP Mode, accepts the displayed setting and proceeds to the next step •...
  • Page 9: Operations

    RE Series EN-7 OPERATIONS 4.1 Turning the Unit On and Off Short-press [ON/OFF] to turn the scale on; long-press to turn the scale off. If a weight on the pan exceeds the power-on zero range (±10% of the scale ------ capacity), “...
  • Page 10: Weighing And Pricing

    EN-8 RE Series display will show the Tare as a negative net value (with the pan empty), and the PT and NET annunciators will turn on as the Tare weight is registered. 4.5.2 Recalling a Keyboard Tare With the PT annunciator on, press [>T<]. “ ”...
  • Page 11: Plu Function (Price Lookup)

    RE Series EN-9 4.9 PLU Function (Price Lookup) The PLU function is used for quick storage and recall of the unit price and tare value of frequently sold goods. There are two ways to enter PLU data: a) via the PLU key, and b) via the Memory (M1…M12) keys. 4.9.1 PLU Function via the PLU Key The unit price is looked up by simply entering the PLU number via the numeric keypad.
  • Page 12: By-Count Function

    EN-10 RE Series 3. If set to store two PLU’s per M-key, press and hold the desired M- key until the long beep, then quickly press the M-key again within 1 second. “ ” appears momentarily to indicate the data is stored in the second memory location of that M-key.
  • Page 13: Fractional Pricing

    RE Series EN-11 Total 3. The Weight display will show “ ”, the Unit Price display will show “ ” (the number of weighings), and the Total Price display will show the accumulated Total Price value. 4. Remove the item, then repeat steps 1 and 2 until all desired transactions are finished.
  • Page 14: Scale Settings

    EN-12 RE Series SCALE SETTINGS 5.1 Accessing the User Setup Mode Press [PLU] [4] [4] [4] [4]. “ ” will be displayed, then press [FIX]. To navigate in the User Setup Mode: • Press [FIX] to accept the displayed setting and proceed to the next step •...
  • Page 15: Calibration And Sealing

    Note: The following procedure requires the use of hand tools and calibration weights. If unable to perform the calibration, contact an authorized Ohaus service organization. 1. With the scale on, remove any sticker or sealing screw (1), then gently press the switch inside the access hole.
  • Page 16 EN-14 RE Series 6. Span Calibration Sequence: Display Description Actions Calibration Unit: Press [FIX] to select desired unit and proceed to the next step. kg or lb If needing to switch between kg and lb, press [>T<]. CAP 30 Scale Capacity Press [FIX] to select the displayed setting and proceed to the next step.
  • Page 17: Type Approval Sealing

    RE Series EN-15 6.2 Type Approval Sealing After the scale has been found to comply with local regulations by respective approving authorities, the scale may be sealed in the following manner: 6.2.1 Wire Sealing (1) Install the 2 cross drilled sealing screws securely as illustrated below. Run the wire into the holes, then apply the seal in place.
  • Page 18: Troubleshooting

    EN-16 RE Series MAINTENANCE 7.1 Cleaning Comply with safety precautions when cleaning and maintaining the scale Turn off and disconnect the scale from the power supply during • cleaning. Wipe the exterior components of the scale using a soft cloth dampened •...
  • Page 19: Troubleshooting

    RE Series EN-17 7.2 Troubleshooting The following table lists common problems, possible causes and remedies. If the problem persists, contact Ohaus or your authorized Ohaus dealer. Symptom Possible Causes Remedy Scale will not turn on. AC power not connected to Connect scale to power.
  • Page 20: Technical Data

    EN-18 RE Series TECHNICAL DATA 8.1 Specifications Model RE15US RE30US RE15CUS Capacity x Readability 30 lb x 0.01 lb 60 lb x 0.02 lb 30 lb x 0.01 lb NTEP* Displayed Resolution 3,000d Construction High-grade polymer housing, with tower stainless steel pan Pan Dimensions 9.5 x 13.5 in.
  • Page 21: Drawings

    RE Series EN-19 8.2 Drawings 9.5” / 242 mm 14.5” / 342 mm 4.5” / 115 mm 14” / 356 13.6” / 345 mm 16.7” / 17” / 423 mm 432 mm 9.5” / 242 mm 13.5” / 342 mm 4.5”...
  • Page 22: Compliance

    Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. ISO 9001 Registration In 1994, Ohaus Corporation, USA, was awarded a certificate of registration to ISO 9001 by Bureau Veritus Quality International (BVQI), confirming that the Ohaus quality management system is compliant with the ISO 9001 standard’s requirements.
  • Page 23: Limited Warranty

    Ohaus products are warranted against defects in materials and workmanship from the date of delivery through the duration of the warranty period. During the warranty period, Ohaus will repair, or, at its option, replace any component(s) that proves to be defective at no charge, provided that the product is returned, freight prepaid, to Ohaus.
  • Page 24 *80252577* P/N 80252577 © 2008 Ohaus Corporation, all rights reserved Printed in China Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com...
