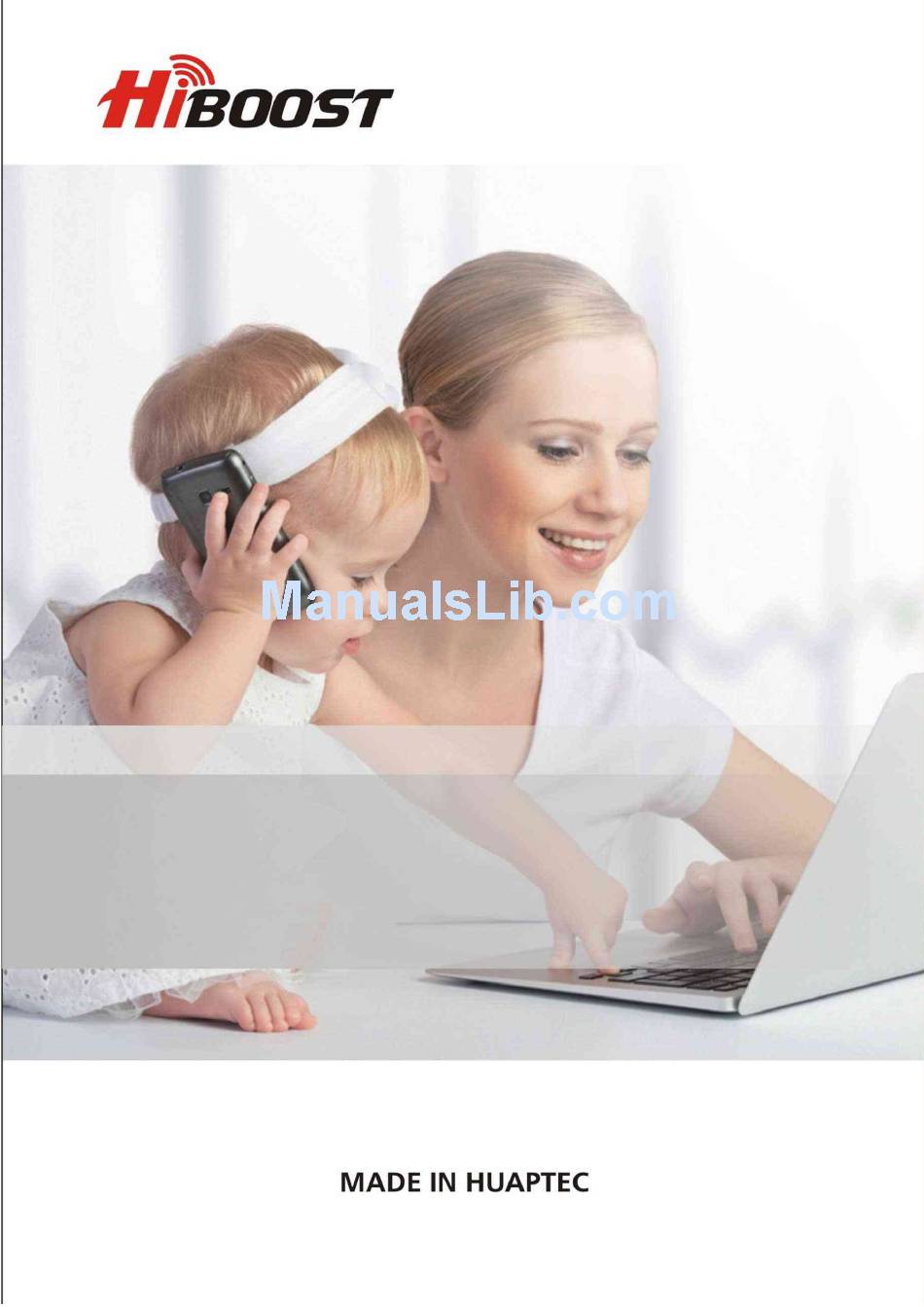

Page 1: User Manual
User Manual HiBoost Hi13-23 Single band and dual band consumer boosters 10 - 27dBm power range... -
Page 2: Table Of Contents
Table of Content Table of Content ....................... 2 Preface ..........................3 Safety Warnings ......................... 3 Overview ..........................4 Glossary of Terms ....................... 5 Package Contents ......................6 Features ..........................8 Booster’s Port Description ....................9 LCD Introduction ....................... 9 Control Button Operation ....................11 Manual Gain Control (MGC) .................. -
Page 3: Preface
Preface This user manual describes design, installation, commissioning and maintenance of Hiboost wide band consumer single and dual band boosters. Please, read user manual carefully before installing and maintaining the boosters. The information in this manual is subject to change without prior notice. Opinions are welcomed about the manual improvement. -
Page 4: Overview
Overview Hiboost single and dual band consumer boosters are designed to help mobile users to amplify weak cell phone signal. The devices are bi-directional. The outdoor antenna receives the signal from the cell tower and transmits it to the signal booster, the booster amplifies the signal and the indoor antenna sends it to your mobile device. -
Page 5: Glossary Of Terms
Glossary of Terms Item Definition Available on LTE800(832~862MHz/791~821MHz) network Available on EGSM900(880~890MHz/925~935MHz) and PGSM900(890~915MHz/935~960MHz), WCDMA/UMTS900(880~915MHz/925~960MHz) networks 1800 Available on GSM/LTE1800(1710~1785MHz/1805~1880MHz) networks 2100 Available on 3G(WCDMA/UMTS2100) (1920~1980MHz/2110~2170MHz) networks 2600 Available on LTE2600(2500~2570MHz/2620~2690MHz) network Radio Frequency Attenuation Automatic Level Control Automatic Gain Control Manual Gain Control Low Noise Amplifier Power Amplifier... -
Page 6: Package Contents
Outdoor panel antenna 5D-FB Cable 35 feet, N-male Hi17, 20, 23 Kit Indoor panel antenna 5D-FB Cable 15 feet, N-male Model Standard Package Contents Additional kit accessories Hi13 Single Band Kit Hi17 Single Band Kit Hi20 and Hi23 Single Band Kits... - Page 7 DualBand Packing List Name Description Quantity Hiboost dual band consumer N-female Adapter 12V/3A Plastic Expansion bolt Φ6 Tapping Screw M4*25 Hanging folder 51*68*1.5mm H5.5mm User Manual A booster kit includes the following kit accessories: Outdoor panel antenna Hi13 Kit 3D-FB Coaxial Cable...
-
Page 8: Features
Features Embedded CPU, self-adaptive intelligent system very easy to use and install, better performance is guaranteed even under complicated and constantly changing RF environment conditions. ISO: Intelligent isolation processing to avoid self-oscillation, quite wide adjusting range to stabilize the signal strength/quality for clearer voice/ higher data speed and avoid interference with mobile networks. -
Page 9: Booster's Port Description
Booster’s Port Description 1.LCD 2. Control button 3.Gain control knobs 4.Power connector 5. Outdoor antenna port6.Indoor antenna port 7.Set LCD Introduction... - Page 10 LCD1/LCD2/LCD3: Display area of working frequency. After the repeater is on, LCD1 and LCD3 will light all the time. LCD 2 displays the working frequency. Find below the list of frequencies displayed corresponding to the networks supported by the booster. Frequency LCD2 display LTE800...
-
Page 11: Control Button Operation
Control Button Operation To start the operation mode press ”LCD key” once. When LCD is in the circular display mode (displays gain and output power values in turn each 30 seconds), press ”LCD Key” shortly and it will stay in the current status. Press ”LCD Key”... -
Page 12: Installhiboost Booster System
Install Hiboost Booster System Before You Install • Make sure you have sufficient cable length between the outdoor/indoor antennas and the booster in case you have not a standard kit • Make sure the place where you install the booster is near to one existing electrical outlet. - Page 13 Booster System Installation Examples Studio apartment Duplex house Multi-storey building 1. Outdoor Antenna 2.Booster 3.Indoor Panel Antenna 4.Power Supply 5. Splitter 6. Omni Ceiling Antenna 7.Indoor Panel Antenna...
-
Page 14: Step 1. Install Outdoor Antenna
Step 1. Install Outdoor Antenna 1.1 How to find the place with the strongest receiving signal The booster’s main function is to improve weak RF signal inside a house, office or any other indoor area. The receiving strength of the outdoor antenna and the strength of the signal reception outdoors directly affect the efficiency of indoor coverage. - Page 15 After 3s After 3s You can always press "LCD key" so that the LCD will stay in the output power mode, and in case it is dual band, you can press "LCD Key" to switch to another band's output power display. Remark: when Alc shows up flashing, it means the receiving signal power is stronger than the system needs it.
- Page 16 More tips: Please try to pick up signal from cell towers that are not so busy, which can be estimated by the population density in the area served by this tower. It’s also recommended to avoid a cell tower near a supermarket, shopping mall, stadium and any other public place visited by many people regularly.
-
Page 17: Step 2.Install Indoor Antenna
Note: Wrap waterproof tape around the connectors between outdoor antenna and feeder line to avoid water or other kind of damage. Step 2.Install Indoor Antenna Select indoor panel antenna or omni-ceiling antenna as an indoor antenna according to your needs to provide indoor coverage. Install the indoor panel antenna as shown on the graph below. - Page 18 If you have an indoor omni ceiling antenna or whip antenna, the best place to install it is the center of your house. Fix the whip antenna as shown on the graph below. Install omni ceiling antenna as shown on the graph below. Step 1: Drill a hole in the ceiling.
-
Page 19: Step 3.Install Signal Booster
Step 3.Install Signal Booster 1. Select the location near a power supply on a wall. 2. Mount the booster with the screws included into the kit as shown on the graph below. 3. Connect the outdoor antenna cable to booster connector marked as “outdoor”. -
Page 20: Step 4.Booster Commissioning
Step 4.Booster Commissioning Overview: The booster has an intelligent startup system, booster commissioning is an automatic process able to guarantee system optimal performance. As soon as you finish booster system installation, plug it in a power supply to power on the booster. It will start working and checking the receiving signal and the isolation to ensure best system performance. - Page 21 You can check the output power displayed on LCD. It may range within 1-3dBdifference which is normal due to outdoor signal conditions. It’s perfect if the Output power reaches it’s maximum rated value for largest coverage; but you always leave it as it is if the coverage is good enough for you. In case the coverage is not enough, please take measures stated below on the following conditions.
- Page 22 ISO status indicates if the booster has enough isolation between outdoor and indoor antennas in order to avoid loop back or so-called self-oscillation. Thanks to intelligent software, HiBoost is fully protected from interference with operator mobile networks. "ISO" flashing on LCD display means that ISO function is working great and self-oscillation has been eliminated.
- Page 23 More about "AlC" indication: Alc indicates the strength of input signal or receiving power of the booster. Flashing Alc means that the booster has strong receiving power. Status Meaning Solution Methods Check coverage, leave it as it is if it’s good;...
- Page 24 More about LCD indication: Status Meaning Solution Methods Check coverage, leave it as it is if it’s good; take the actions to increase signal if coverage is not good. 1. Adjust the antenna direction or Output power is “---” status location to get stronger receiving lower than -10dBm signal...
-
Page 25: Main Specifications
Main Specifications RF Parameter 880~915MHz 925~960MHz 1800 1710~1785MHz 1805~1880MHz Frequency Range 2100 1920~1980MHz 2110~2170MHz 832~862MHz 791~821MHz 2600 2500~2570MHz 2620~2690MHz Hi13 60dB 65dB Hi17 65dB 65dB Max. Gain Hi20 65 dB 70dB Hi23 70dB 75dB Hi13 17dBm 13dBm 17dBm 17dBm Hi17 Max. -
Page 26: Troubleshooting
Environment Parameter Operating Temperature -10ºC~+55ºC Storage Temperature -10ºC~+80ºC Relative Humidity 5% - 95% Barometric Pressure 55 kPa -106 kPa Environment Conditions IP40 Troubleshooting Problem Solution The signal booster has no power. Check that the AC outlet is working. Try to fasten the connections between the The booster’s power is on but the phone is different parts of the system. -
Page 27: Product Warranty
Hiboost signal boosters are covered with2-year warranty. Huaptec offers two options for the products under warranty: repair or replace. This warranty does not apply to HiBoost signal boosters or kits that have been subjected to misuse, abuse, neglect or mishandling and that have its physical or electronic properties altered or damaged.
