Remove   settings   allows     you     to     remove     the     selected     setting     from     the     Target
Application  Menu.  This  command  is  not  allowed  on  Global  Settings.
Import  settings   allows   you   to   add   a   new   setting   created   by   Contour,   or   another
Shuttle  user,  to  the  existing  settings  list.
Export  settings   allows   you   to   export   the   setting   selected   in   the   Target   Application
Menu,  in  order  to  share  it  with  other  users,  or  back  it  up  for  security.  The  file  that  will  be
created  will  have  the  .pref  extension  and  will  be  located  in  the  folder  of  your  choice.
Export   s ettings   i nfo   will   create   an   html   file   that   will   contain  an   image  of   the   Shuttle
device   with   bubble   descriptions   (the   contents   of   the   Comment   field)   of   the   actions
associated  to  each  of  the  Shuttle  components.
Rebuild  the  whole   s ettings   file   resets  the  settings  collection  of  all  Shuttle  devices  to
the  factory  provided  one.  With  this  operation  all  user-­made  and  customized  settings  will
be  lost.

2.3.2
Device  Events  Control  Section
2.3.2.1

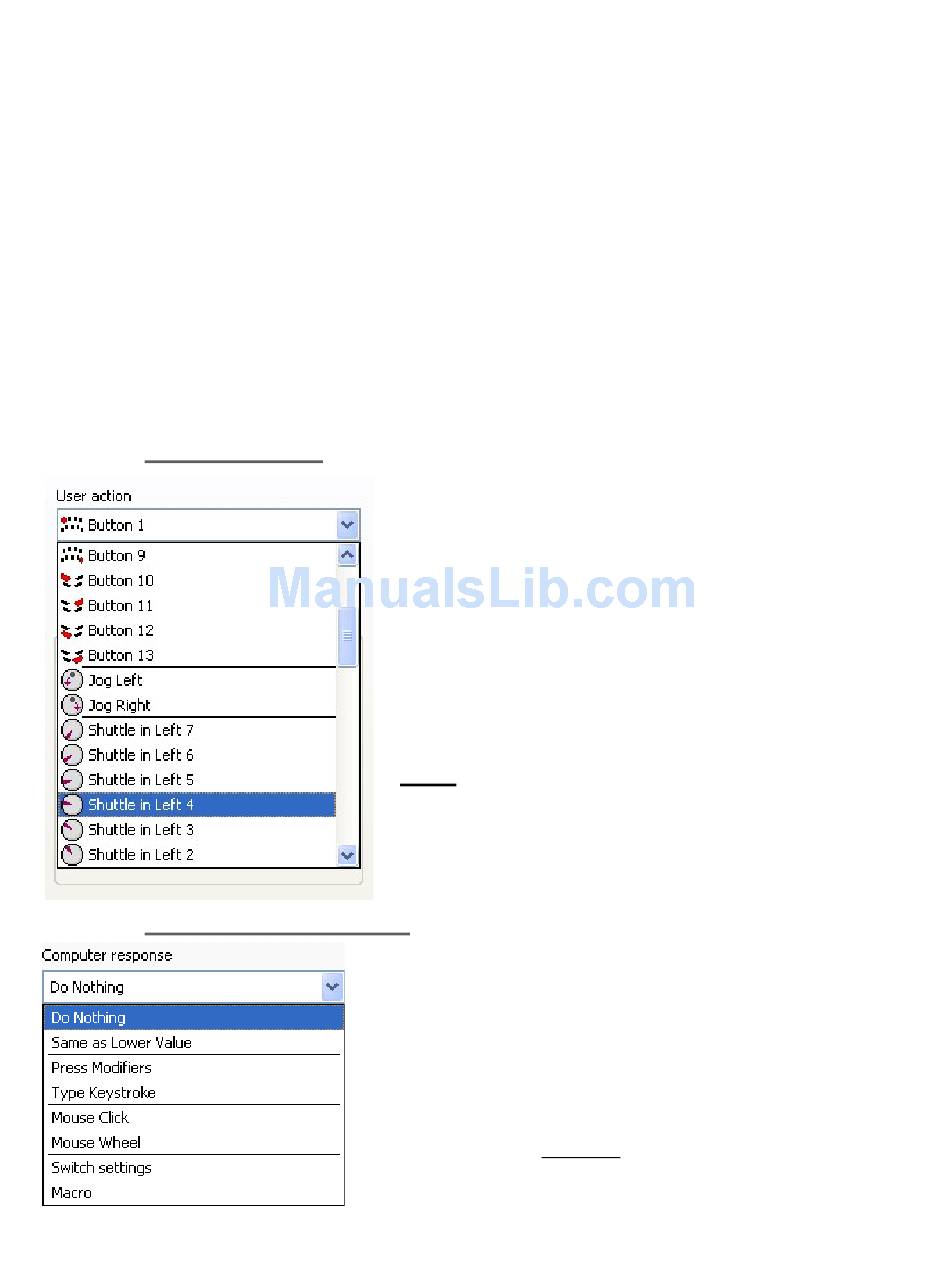

User  Action  Menu
2.3.2.2
Computer  Response  Menu
Contour  Shuttle  Multimedia  Controllers
This   menu   allows   you   to   choose   which   button(s)   or
feature(s)   you   wish   to   program.   You   can   select   any   of
the    buttons,    Jog    right    or    left,    Shuttle    positions   and
transitions.
Shuttle   positions   are   points   set   in   intervals   along   the
right   and   left   (clockwise   and   counterclockwise)  sides   of
the  Shuttle  Knob.  The  Shuttle  ring  has  seven  (7)  distinct
zones  in  each  direction  and  a  rest  zone.
Shuttle   transitions   are   points   in   between   Shuttle
positions.
Note:   The   primary   buttons,   Jog   directions   and   Shuttle
positions  can  be  accessed  more  easily  by  simply  clicking
the   desired   button   or   moving   the   Jog   or   Shuttle  on   the
device  itself.  This  will  automatically  bring  its  option  up  in
the   User   Action   Menu.   Shuttle   transitions   are   only
accessible  through  the  pull-­down  menu.
The  Computer  Response  Menu  allows  you  to  pick  a  function
that  you  want  a  button  or  other  feature  to  perform:
Do     Nothing     does     what     the     name     implies     –
selection   o f  this   o ption   m eans   t hat   t he   b utton   o r   o ther
feature  will  do  nothing.
Same   as    Lower   Value   will    perform    the    same
function   as   the   immediately   previous   command   on
the  shuttle  knob.  This  command  is  only  allowed  on
the  Shuttle  positions.
7
