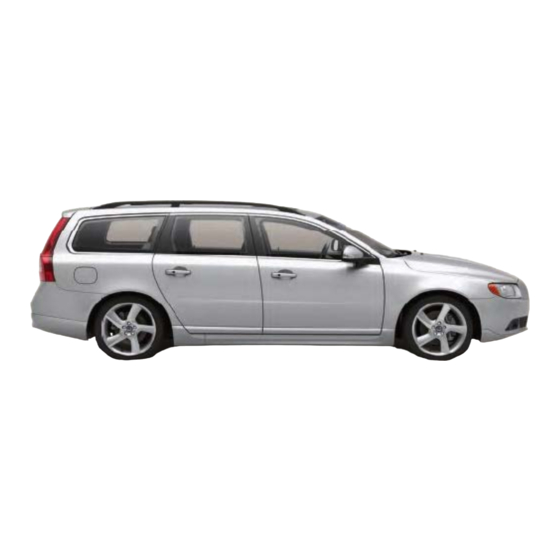

Page 1 VOLVO OWNER'S MANUAL V70 THANK YOU FOR CHOOSING VOLVO Welcome to the world-wide family of Volvo owners. We trust that you will enjoy many years of safe driving in your Volvo, an automobile designed with your safety and comfort in mind. To help ensure your satisfaction with this vehicle, we encourage you to familiarize yourself with the equipment descriptions, operating instructions and maintenance requirements/recommendations in this manual.
Page 2: Table Of Contents
Volvo Cars of Canada Corp. National Customer Service 175 Gordon Baker Road North York, Ontario M2H 2N7 1-800-663-8255 www.volvocanada.com 2007 © Volvo Car Corporation. All rights reserved. Contents 00 Introduction 01 Safety 02 Locks and alarm Important information Occupant safety...
Page 3 Hill Descent Control (HDC) Blind Spot Information System (option) Electric parking brake Passenger compartment convenience Contents 06 Maintenance and specifications 07 Index Volvo maintenance Index Maintaining your car Hood and engine compartment Engine oil Fluids Replacing bulbs Wiper blades and washer fluid Battery...
Page 4: Introduction
Do not export your Volvo to another country before investigating that country's applicable safety and emission control requirements. In some cases it may be difficult or impossible to comply with these requirements. Modifications to the emission control system(s) may render your Volvo not certifiable for legal operation in the U.S., Canada and other countries.
Page 5: Environment
Volvo and the environment Volvo is committed to the well being of its customers. As a natural part of this commitment, we care about the environment in which we all live. Caring for the environment means an everyday involvement in reducing our environmental impact.
Page 6 In addition to continuous environmental refinement of conventional gasoline-powered internal combustion engines, Volvo is actively looking at advanced technology alternative-fuel vehicles. When you drive a Volvo, you become our partner in the work to lessen the car's impact on the environment. To reduce your vehicle's environmental impact, you can: Maintain proper air pressure in your tires.
Page 7 Contents Top of Page...
Page 8: Occupant Safety
Occupant safety Volvo's concern for safety Safety is Volvo's cornerstone. Our concern dates back to 1927 when the first Volvo rolled off the production line. Three-point seat belts (a Volvo invention), safety cages, and energy-absorbing impact zones were designed into Volvo vehicles long before it was fashionable or required by government regulation.
Page 9: Reporting Safety Defects
Volvo strongly recommends that if your vehicle is covered under a service campaign, safety or emission recall or similar action, it should be completed as soon as possible. Please check with your local retailer or Volvo Cars of North America, LLC if your vehicle is covered under these conditions.
Page 10: Safety In The Passenger Compartment
Volvo also believes no child should sit in the front seat of a vehicle. Most states and provinces make it mandatory for occupants of a vehicle to use seat belts.
Page 11 WARNING Never repair the belt yourself; have this work done by a trained and qualified Volvo service technician only. Any device used to induce slack into the shoulder belt portion of the three-point belt system will have a detrimental effect on the amount of protection available to you in the event of a collision.
Page 12 Warning symbols in the instrument panel As an enhancement to the three-point seat belts, your Volvo is equipped with a Supplemental Restraint System (SRS). Volvo's SRS consists of seat belt pretensioners, front airbags, side impact airbags, a front passenger occupant weight sensor, and inflatable curtains.
Page 13 Have the vehicle towed to a trained and qualified Volvo service technician for repairs. Automatic transmission: Before attempting to tow the vehicle, use the following procedure to override the shiftlock system to move the gear...
Page 14 including inflation and deflation of the airbags, takes approximately one fifth of a second. The location of the front airbags is indicated by "SRS AIRBAG" embossed on the steering wheel pad and above the glove compartment, and by decals on both sun visors and on the front and far right side of the dash. The driver's side front airbag is folded and located in the steering wheel hub.
Page 15 This is a normal characteristic and does not indicate fire. Volvo's front airbags use special sensors that are integrated with the front seat buckles. The point at which the airbag deploys is determined by whether or not the seat belt is being used, as well as the severity of the collision.
Page 16: Safety In The Passenger Compartment
WARNING Children must never be allowed in the front passenger's seat. Volvo recommends that ALL occupants (adults and children) shorter than 4 feet 7 inches (140 cm) be seated in the back seat of any vehicle with a passenger-side front airbag.
Page 17 Disabling the passenger's side front airbag Volvo recommends that ALL occupants (adults and children) shorter than 4 feet 7 inches (140 cm) be seated in the back seat of any vehicle with a front passenger side airbag, and be properly restrained for their size and weight. See...
Page 18 OWS system's function. Volvo recommends that children always be properly restrained in appropriate child restraints in the rear seats. Do not assume that the passenger's side front airbag is disabled unless the PASSENGER AIRBAG OFF indicator lamp is lit. Make sure the child restraint is properly installed. If there is any doubt as to the status of the passenger's side front airbag, move the child restraint to the rear seat.
Page 19 Modifications If you are considering modifying your vehicle in any way to accommodate a disability, for example by altering or adapting the driver's or front passenger's seat(s) and/or airbag systems, please contact Volvo at: In the USA: Volvo Cars of North America, LLC Customer Care Center P.O.
Page 20 Side impact airbags - front seats only As an enhancement to the structural side impact protection built into your vehicle, it is also equipped with Side Impact Protection System (SIPS) airbags. The SIPS airbag system is designed to help increase occupant protection in the event of certain side impact collisions. The SIPS airbags are designed to deploy only during certain side-impact collisions, depending on the crash severity, angle, speed and point of impact.
Page 21 Safety in the passenger compartment Volvo Inflatable Curtain (VIC) The Volvo Inflatable Curtain system This system consists of inflatable curtains located along the sides of the roof liners, stretching from the center of both front side windows to the rear edge of the rear side door windows. It is designed to help protect the heads of the occupants of the front seats and the occupant of the outboard rear seating positions in certain side impact collisions.
Page 22 The cargo area and rear seat should not be loaded to a level higher than 2 in. (5 cm) below the upper edge of the rear side windows. Objects placed higher than this level could impede the function of the Volvo Inflatable Curtain.
Page 23 If your vehicle has been involved in a rear-end collision, the front seat backrests must be inspected by a trained and qualified Volvo service technician, even if the seats appear to be undamaged. Certain components in the WHIPS system may need to be replaced.
Page 24: Crash Mode
Never attempt to repair the vehicle yourself or to reset the electrical system after the vehicle has displayed SAFETY MODE SEE MANUAL. This could result in injury or improper system function. Restoring the vehicle to normal operating status should only be done by a trained and qualified Volvo service technician.
Page 25: Child Safety
Even if the vehicle appears to be drivable after Safety mode has been set, it should not be driven or towed (pulled by another vehicle). There may be concealed damage that could make it difficult or impossible to control. The vehicle should be transported on a flatbed tow truck to a trained and qualified Volvo service technician for inspection/repairs. 01 Safety...
Page 26 Please check local regulations. A specially designed and tested booster cushion (not available in Canada) can be obtained from your Volvo retailer for children weighing 33 - 80 lb. (15 - 36 kg) and 38-54 inches (97 - 137 cm) in height.
Page 27: Child Restraint Systems
Volvo's recommendations Why does Volvo believe that no child should sit in the front seat of a vehicle? It's quite simple really. A front airbag is a very powerful device designed, by law, to help protect an adult. Because of the size of the airbag and its speed of inflation, a child should never be placed in the front seat, even if he or she is properly belted or strapped into a child safety seat.
Page 28: Infant Seats
A small child's head represents a considerable part of its total weight and its neck is still very weak. Volvo recommends that children up to age 4 travel, properly restrained, facing rearward. In addition, Volvo recommends that children should ride rearward facing, properly restrained, as long as possible.
Page 29 Securing an infant seat with a seat belt NOTE Refer to pages 42-43 for information on securing a child restraint using ISOFIX lower anchors and/or top tether anchorages. 1. Place the infant seat in the rear seat of the vehicle. 2.
Page 30 WARNING A child seat should never be used in the front passenger seat of any vehicle with a front passenger airbag - not even if the "Passenger airbag off" symbol near the rear-view mirror is illuminated (on vehicles equipped with Occupant Weight Sensor).
Page 31: Convertible Seats
2. Attach the seat belt to the convertible seat according to the manufacturer's instructions. WARNING A small child's head represents a considerable part of its total weight and its neck is still very weak. Volvo recommends that children up to age 4 travel, properly restrained, facing rearward. In addition, Volvo recommends...
Page 32 Convertible child seats should be installed in the rear seat only. A rear-facing convertible seat should not be positioned behind the driver's seat unless there is adequate space for safe installation. 01 Safety Convertible seats 3. Fasten the seat belt by inserting the latch plate into the buckle (lock) until a distinct click is audible. 4.
Page 33: Booster Cushions
01 Safety Convertible seats WARNING A child seat should never be used in the front passenger seat of any vehicle with a front passenger airbag - not even if the "Passenger airbag off" symbol near the rear-view mirror is illuminated (on vehicles equipped with Occupant Weight Sensor).
Page 34: Isofix Lower Anchors
4. Ensure that the seat belt is pulled taut and fits snugly around the child. WARNING The hip section of the three-point seat belt must fit snugly across the child's hips, not across the stomach. The shoulder section of the three-point seat belt should be positioned across the chest and shoulder. The shoulder belt must never be placed behind the child's back or under the arm.
Page 35: Top Tether Anchors
01 Safety Top tether anchors Child restraint anchorages Your Volvo is equipped with child restraint top tether anchorages in the rear seat. They are located on the rear side of the backrests. Securing a child seat 1. Place the child restraint on the rear seat.
Page 36: Child Restraint Registration And Recalls
Integrated two-stage booster cushion (option) Volvo's optional integrated booster cushion is located in the center seating position. This booster cushion has been specially designed to help safeguard a child seated in the rear seat. This cushion should be stowed (folded up into the rear seat backrest) when not in use.
Page 37 Use this booster cushion only with children whose weight is between: Stage 1: 48-80 lbs (22-36 kg) Stage 2: 33-55 lbs 15-25 kg and whose height is between: Stage 1: 45-55 in. (115 -140 cm) Stage 2: 37-47 in. (95 -120 cm) In Canada, Transport Canada's weight recommendation is 40-80 lbs (18-36 kg).
Page 38: Integrated Booster Cushion
01 Safety Integrated booster cushion That the seat belt is properly positioned and is taut. The shoulder section of the seat belt is across the child's collarbone, not over the neck. The lap section of the seat belt is across the child's hips and not the abdomen. Using the integrated booster cushion Stage 1 Pull the handle (1) forward and upward (2) to release the booster cushion.
Page 39 With the booster cushion in the stage 1 position, press the button (see the arrow in illustration 1). Lift the front edge of the booster cushion and press it rearward toward the backrest to lock it in position. 01 Safety Integrated booster cushion Stowing the two-stage integrated booster cushion The booster cushion can be folded down completely (stowed) from either the stage 1 or stage 2 positions.
Page 40: Child Safety Locks
In the event of a collision while the integrated booster cushion was occupied, the entire booster cushion and seat belt must be replaced. The booster cushion should also be replaced if it is badly worn or damaged in any way. This work should be performed by a trained and qualified Volvo service technician only 01 Safety...
Page 41 The rear doors can only be opened from the outside when the slot is in the horizontal position. The rear doors can be opened from the inside when the slot is in the vertical position. Power child safety locks (option on certain markets) The power child lock function can be activated by pressing the button shown in the inset illustration above.
Page 42: 02 Locks And Alarm
2 0 0 8 VOLVO 02 Locks and alarm Remote key and key blade Keyless drive Locks Alarm 02 Locks and alarm 02 Locks and alarm Remote key and key blade Introduction Two remote keys or optional Personal Car Communicators (PCC) are provided with your vehicle. They enable you to unlock the doors and tailgate, and also function as ignition keys to start the vehicle or operate electrical components.
Page 43 Loss of a remote key If a remote key is lost, the other one must be taken with the vehicle to a trained and qualified Volvo service technician. As an anti-theft measure, the code of the lost remote must be erased from the system.
Page 44 The vehicle will start only with a properly coded key. If you misplace a key, take the other keys to a trained and qualified Volvo service technician for reprogramming as an antitheft measure.
Page 45 Replacing the battery in the remote key The batteries should be replaced if: The information symbol illuminates and Replace car key battery is shown in the display and/or if the locks do not react after several attempts to unlock or lock the vehicle. NOTE The remote key's range is normally approximately 60 ft (20 m) from the vehicle.
Page 46 unlock. See page 125 for a description of the menu system. Approach lighting - As you approach the vehicle, press button on the remote control to light the interior lighting, parking lights, license plate lighting and the lights in the door mirrors (option). 02 Locks and alarm Remote key and key blade These lights will switch off automatically after 30, 60 or 90 seconds.
Page 47 NOTE If none of the indicator lights flash when the information button has been pressed several times from different places in relation to the vehicle, contact an authorized Volvo service technician. The indicator lights provide information according to the illustration below.
Page 48: Keyless Drive
Outside of the PCC's range If the PCC is more than approximately 300 ft (100 m) from the vehicle when the information button is pressed, no new information will be received. The PCC most recently used to lock or unlock the vehicle will show the vehicle's most recently received status.
Page 49 Removing the key blade Slide the spring loaded catch to the side and pull the key blade out of the remote control Reinserting the key blade in the remote control 1. Hold the remote control with the slot for the key blade up. 2.
Page 50 vehicle is brought to the retailer for service. With the private locking function activated: The vehicle's doors can be locked or unlocked with the remote The engine can be started The glove compartment cannot be unlocked The tailgate cannot be unlocked or opened with the remote The rear floor hatch cannot be opened Activating the private locking function 1.
Page 51 Opening the remote key/PCC Slide the spring loaded catch to the side and pull the key blade out of the remote control NOTE Turn the remote key with the buttons downward so that the battery does not fall out when the cover is removed. Insert a small screwdriver in the hole behind the spring loaded catch and carefully pry up the cover Replacing the batteries CAUTION...
Page 52 Insert the first new battery with the + side upward. Insert the plastic spacer over the battery. Insert the second new battery on top of the plastic spacer, with the + side downward. Re-assembling the remote key 1. Press the remote key's cover into place. 2.
Page 53 Pull a door handle to unlock and open the door or pull the tailgate opening control. The number of doors that are unlocked at the same time can be set in the vehicle's menu system, under Car settings Lock settings Keyless entry.
Page 54 CAUTION Keyless drive remote controls should never be left in the vehicle. In the event of a break-in, a remote found in the vehicle could make it possible to start the engine. Electromagnetic fields or metal obstructions can interfere with the keyless drive system. Avoid placing the remote control near cellular phones, metallic objects or e.g., in a metal briefcase.
Page 55: Locks
The keyless drive system has a number of antennas located at various points in the vehicle. On the inside center of the rear bumper Left rear door handle Center of the parcel shelf, on the underside Ceiling, above the center of the rear seat Right rear door handle Under the rear section of the center console Under the front section of the center console.
Page 56 The lock buttons on the door panel can be used to lock or unlock all doors and the tailgate at the same time. Unlocking Press the unlock button. Locking Press the lock button after the front doors have been closed. Each door can be locked individually with the lock button on the respective doors.
Page 57: Alarm
Lock the glove compartment by turning the key a quarter of a turn (90°) clockwise. The key slot is horizontal when the glove compartment is locked. Locking/unlocking the tailgate Unlocking the tailgate with the remote key Press the tailgate unlock button on the remote. See also page The alarm indicator light on the dashboard will go out to indicate that the alarm is not monitoring the entire vehicle.
Page 58 The siren is disconnected when the alarm is disarmed. A message will appear in the information display if a fault should occur in the alarm system. Contact an authorized Volvo service technician. NOTE Do not attempt to repair any of the components in the alarm system yourself. This could affect the insurance policy on the vehicle.
Page 59 This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Canada IC: 4405A-DA 5823(3) Movement sensor DA5823 by Dynex Operation is subject to the following conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired...
Page 60 In certain situations it may be desirable to turn off the accessory inclination and movement alarm sensors if, for example, you drive your vehicle onto a ferry where the rocking of the boat could trigger the alarm or if a pet is left in the vehicle with the doors locked.
Page 61: 03 Your Driving Environment
2 0 0 8 VOLVO 03 Your driving environment Instruments and controls Ignition modes Seats Steering wheel Lighting Wipers and washers Power windows Mirrors Power moonroof HomeLink® Universal Transceiver (option) Starting the engine Transmission Brakes Hill Descent Control (HDC) Electric parking brake...
Page 62 03 Your driving environment Instruments and controls 03 Your driving environment Instruments and controls Information displays...
Page 63 The information displays show information on some of the vehicle's functions, such as cruise control, the trip computer and messages. The information is shown with text and symbols. More detailed information can be found in the descriptions of the functions that use the information displays. Gauges Speedometer Fuel gauge, see also the section on refueling beginning on...
Page 64 The malfunction indicator (CHECK ENGINE) light will illuminate if the computer senses a condition that potentially may need correcting. When this happens, please have your vehicle checked by a trained and qualified Volvo service technician as soon as possible.
Page 65 2. Restart the engine. 3. If the warning light goes off, no further action is required. If the warning light remains on, the vehicle should be driven to a trained and qualified Volvo service technician for inspection. See page 115 for additional information.
Page 66 If the light comes on while driving, stop the vehicle, stop the engine immediately, and check the engine oil level. If the oil level is normal and the light stays on after restart, have the vehicle towed to the nearest trained and qualified Volvo service technician.
Page 67 223. If the brake fluid level is normal but the symbols are still lit, the vehicle can be driven, with great care, to an authorized Volvo workshop to have the brake system checked. If the level in the reservoir is below MIN, the vehicle should be transported to an authorized Volvo workshop to have the brake system checked.
Page 68 until the fault has been rectified but the text message can be cleared with the READ button, see page 126. The warning symbol can also come on in conjunction with other symbols. Action: 1. Stop in a safe place. Do not drive the vehicle further. 2.
Page 69: Ignition Modes
Display Control for setting the clock. Turn the control clockwise/counterclockwise to set the time. The set time is shown in the information display. 03 Your driving environment Ignition modes Functions Inserting and removing the remote key The various ignition modes are accessed by inserting the remote key into the ignition slot. The remote key can be removed from the ignition slot by pressing the key in.
Page 70: Ignition Modes
Ignition mode I Press the remote key into the ignition slot and press START/STOP ENGINE. Ignition mode II Press the remote key into the ignition slot and press START/STOP ENGINE for approx. 2 seconds. Ignition mode III (engine start) Start the engine, see page 109.
Page 71: Seats
Seats Front seats Lumbar support: turn the control for firmer or softer lumbar support. Front-rear adjustment: lift the bar and move the seat to the position of your choice. Raise/lower front edge of seat cushion, pump up/down. Backrest tilt: turn the control to adjust the angle of the backrest. Raise/lower the seat, pump up/down.
Page 72 Without releasing the catches, push the backrest forward. Move the seat as far forward as possible so that the head restraint slides under the glove compartment. WARNING Cover sharp edges on the load to help prevent injury to occupants. Secure the load to help prevent shifting during sudden stops.
Page 73 Stored seat position Stored seat position Stored seat position Memory button Programming the memory Three different seating and door mirror positions can be stored in the driver seat's memory. The following example explains how button 1 can be programmed. Buttons 2 and 3 can be programmed in the same way.
Page 74 Automatic seat adjustment To move the seat to the position in which you left it: 1. Unlock the driver's door with the same remote control (the one used to lock the doors) 2. Open the driver's door within 2 minutes. The driver's seat will automatically move to the position in which you left it.
Page 75 The three sections of the rear seat backrest can be folded down in different combinations to make it easier to transport long objects. The left (driver's side) section can be folded down separately. The center section can be folded down separately. The right (passenger's side) section can be folded down together with the center section.
Page 76: Steering Wheel
The center head restraint should be adjusted according to the passenger's height. The restraint should be carefully adjusted to support the occupant's head. Pull the head restraint up as required. To lower, press and hold the button (located at the center, between the backrest and the head restraint) while pressing the head restrain down.
Page 77 Adjusting Lever for releasing/locking the steering wheel Possible positions The steering wheel can be adjusted for both height and reach: 1. Pull the lever toward you to release the steering wheel. 2. Adjust the steering wheel to the position that suits you. 3.
Page 78: Lighting
Steering wheel Horn Press the steering wheel hub to sound the horn. 03 Your driving environment Lighting Lighting panel Thumb wheel for adjusting display and instrument lighting Rear fog light Front fog lights Headlights/parking lights Instrument lighting Illumination of the display and instrument lights will vary, depending on ignition mode. The display lighting is automatically subdued in darkness and the sensitivity is set with the thumb wheel.
Page 79 When the engine is started, the low beams are activated automatically (daytime running lights) if the headlight control is in position Daytime running lights can be deactivated by an authorized Volvo workshop. NOTE The use of daytime running lights is mandatory in Canada.
Page 80 When the ABL function is activated, the headlight beams adjust laterally to help light up a curve according to movements of the steering wheel (see the right-pointing beam in the illustration). This function is activated automatically when the engine is started and can be deactivated/reactivated by pressing the ABL button in the center console.
Page 81 Emergency Brake Lights, EBL, activate in the event of sudden braking or if the ABS system is activated. This function causes an additional taillight on each side of the vehicle to illuminate to help alert vehicles traveling behind. The EBL function activates if: The ABS system activates for more than approximately a half second In the event of sudden braking while the vehicle is moving at speeds above approximately 6 mph (10 km/h) When the vehicle has come to a stop, the brake lights and additional taillights remain on for as long as the brake pedal...
Page 82 Press the button to switch the rear fog light on/off. The rear fog light indicator symbol on the instrument panel and the light in the button come on when the rear fog light is switched on. NOTE The rear fog light is considerably brighter than the normal tail lights and should be used only when conditions such as fog, rain, snow, smoke or dust reduce visibility for other vehicles to less than 500 ft.
Page 83 When turning Move the lever as far up or down as possible to start the turn signals. The turn signals will be cancelled automatically by the movement of the steering wheel, or the lever can be returned to its initial position by hand. NOTE This automatic flashing sequence can be interrupted by immediately moving the lever in the opposite direction.
Page 84 The lights are switched on or off by pressing each respective button. Courtesy lights/door step lighting (option) The courtesy lights/door step lighting switch on/off automatically when one of the front doors is opened/closed. Glove compartment lighting The glove compartment lighting switches on/off automatically when the lid is opened/closed. Overhead courtesy lighting The passenger compartment lighting is switched on and off automatically when button is in the neutral position.
Page 85 Factory setting 03 Your driving environment Lighting Approach lighting Approach lighting is activated by pressing the approach light button on the remote key (see the illustration on page 54). When the function has been activated, the parking lights, indicator lights, door mirror lights, license plate lighting, dome lighting and door step lighting come on.
Page 86: Wipers And Washers
2 0 0 8 VOLVO 03 Your driving environment Wipers and washers Windshield wipers/washers Rain sensor (option) on/off Thumb wheel sensitivity/frequency CAUTION Use ample washer fluid when washing the windshield. The windshield should be thoroughly wet when the wipers are in operation.
Page 87 Rain sensor (option) The rain sensor automatically regulates wiper speed according to the amount of water on the windshield.The sensitivity of the rain sensor can be adjusted moving the thumb wheel up (the wipers will sweep the windshield more frequently) or down (the wipers will sweep the windshield less frequently).
Page 88 Move the lever toward the steering wheel to start the windshield and headlight washers. After the lever is released the wipers make several extra sweeps. Heated washer nozzles (option) The washer nozzles are heated automatically in cold weather to help prevent the washer fluid from freezing. High-pressure headlight washing (option) High-pressure headlight washing consumes a large quantity of washer fluid.
Page 89: Power Windows
. This function is deactivated when a different gear is selected. Consult your Volvo retailer if you would like to have this function deactivated. NOTE On vehicles with the optional rain sensor, the tailgate wiper will be activated when reverse is selected, if the rain sensor is activated and it is raining.
Page 90 WARNING Always remove the ignition key when the vehicle is unattended. Never leave children unattended in the vehicle. Make sure that the windows are completely unobstructed before they are operated. Option on certain markets only. Operating Manual up/down Auto up/down. All power windows can be operated using the control panel in the driver's door.
Page 91: Mirrors
03 Your driving environment Power windows Laminated glass (option on certain markets only) This glass is reinforced to help provide protection against break-ins and improved sound insulation in the passenger compartment. The windshield and side windows have laminated glass. 03 Your driving environment Mirrors Power door mirrors Adjusting...
Page 92 driver's door is opened. The function can be activated/deactivated under Car key memory Seat & mirror positions. For a description of the menu system, see page 125. Tilting the door mirrors when parking (option) The door mirrors can be tilted down to help give the driver to a better view along the sides of the vehicle, for example when parallel parking.
Page 93: Power Moonroof
Use the defroster to quickly remove misting and ice from the rear window and the door mirrors. Press the button once to start simultaneous rear window and door mirror defrosting. The light in the button indicates that the function is active. Defrosting is deactivated automatically and its duration is controlled by the outside temperature.
Page 94 Closing, manual Closing, automatic Automatic opening Pull the switch as far back as possible (to the position for automatic opening) and release it to automatically fully slide open the moonroof. Manual opening Pull the switch back to the first stop (the position for manual opening)and hold it until the moonroof has opened to the position of your choice.
Page 95: Homelink® Universal Transceiver (Option)
Never place heavy objects on the moonroof. 03 Your driving environment Power moonroof Visor The moonroof features a sliding visor. The visor slides open automatically when the moonroof is opened, and must be closed manually. 03 Your driving environment HomeLink® Universal Transceiver Introduction HomeLink is a system that can be programmed to learn the codes of three different remote controlled-devices (for...
Page 96 switching on the vehicle's ignition. Press the programmed HomeLink button to activate the garage door, driveway gate, security lightning, home security system etc. Your original hand-held transmitters may, of course, be used at any time. WARNING If you use HomeLink to open a garage door or gate, be sure no one is near the gate or door while it is in motion. Do not use the HomeLink Universal Transceiver with any garage door opener that lacks safety "stop"...
Page 97 NOTE Once the button is pressed, there are 30 seconds in which to initiate the next step. 6. Return to the vehicle and firmly press and hold the trained HomeLink button for two seconds and release. Repeat the "press/hold/release" sequence up to 3 times to complete the training process. To train additional HomeLink buttons, begin with step two.
Page 98 the desired HomeLink button while you press and repress ("cycle") your hand-held transmitter every two seconds until the frequency signal has been learned. The indicator light will flash slowly and then rapidly after several seconds upon successful training. If necessary, follow steps 5-7 to complete the training for a rolling code device. To train additional HomeLink buttons, begin with step two.
Page 99: Starting The Engine
rapidly. 4. When the indicator light begins to flash rapidly, release both buttons. The previous device has now been erased and the new device can be activated by pushing the HomeLink button that has just been programmed. This procedure will not affect any other programmed HomeLink. Erasing Channels Individual buttons cannot be erased.
Page 100 WARNING An extra mat on the driver's floor can cause the accelerator and/or brake pedal to catch. Check that the movement of these pedals is not impeded. Not more than one protective floor covering may be used at one time. 4.
Page 101 automatic transmission fluid. Keyless drive (option) Follow steps 3-4 for starting the engine. NOTE For the vehicle to start, one of the vehicle's remote keys must be in the passenger compartment. Steering wheel lock The steering wheel lock is deactivated when the remote key is inserted into the ignition slot and activated when the remote key is removed from the ignition slot.
Page 102: Transmission
6. After the engine has started, first remove the negative (-) terminal jumper cable (black). Then remove the positive (+) terminal jumper cable (red). WARNING PROPOSITION 65 WARNING! Battery posts, terminals, and related accessories contain lead and lead compounds, chemicals known to the state of California to cause cancer and reproductive harm.
Page 103 The information display (see page 74) shows the gear selector's position or the selected gear by displaying the following: P, R, N, D, 1, 2, 3, 4, 5, or 6. Keylock To remove the remote key from the ignition slot, the gear selector must be in the P position. The remote key is locked in the slot in all other positions.
Page 104 Geartronic allows you to manually shift among your vehicle's six forward speeds. Geartronic can be selected at any time. To access the manual (M) shifting position from Drive (D), move the gear selector to the right to M (or to S on models equipped with Sport mode).
Page 105: Brakes
If the fluid level is below the MIN mark in the reservoir or if a brake system message is shown in the information display: DO NOT DRIVE. Have the vehicle towed to a trained and qualified Volvo service technician and have the brake system inspected.
Page 106 to a stop with the engine switched off. If the power brakes are not working, the brake pedal must be pressed approximately five times harder than usual to make up for the lack of power assistance. This can happen for example when towing your vehicle or if the engine is switched off when the vehicle is rolling.
Page 107: Hill Descent Control (Hdc)
MIN mark in the reservoir or if a brake system-related message is shown in the information display: DO NOT DRIVE. Have the vehicle towed to a trained and qualified Volvo service technician and have the brake system inspected. 03 Your driving environment...
Page 108 HDC can be switched on and off with the button in the center console. An indicator light in the button illuminates when HDC is activated. The indicator light in the instrument panel illuminates and a message is displayed when the system is controlling the vehicle's speed.
Page 109: Electric Parking Brake
Electric parking brake Introduction An electric parking brake has the same function as a manual parking brake. NOTE A faint sound from the parking brake's electric motor can be heard when the parking brake is being applied. This sound can also be heard during the automatic function check of the parking brake. The brake pedal will move slightly when the electric parking brake is applied or released.
Page 110 Electric parking brake Releasing the electric parking brake Manual release 1. Fasten the seat belt. 2. Insert the remote key in the ignition slot. 3. Press firmly on the brake pedal. 4. Pull the parking brake control. Vehicles with Keyless drive (option) 1.
Page 111 Contact a Volvo workshop if the message remains. Parking brake Service required - A fault has arisen. Contact a Volvo workshop if the fault remains. WARNING If the vehicle must be parked before the fault has been corrected, always put the gear selector in P and turn the wheels so that they point away from the curb if the vehicle is pointing uphill or toward the curb if it is pointing downhill.
Page 112 2 0 0 8 VOLVO 04 Comfort and driving pleasure Menus and messages Climate system Audio system Trip computer Compass Stability system Active chassis system-Four C Cruise control Adaptive Cruise Control-ACC Distance Alert Collision Warning with Auto-brake (option) Driver Alert System-option...
Page 113 Center console controls Navigation button - scrolls and selects among menu options ENTER - selects menu options MENU - accesses the menu system EXIT - leads back one step in the menu structure. A long press exits the menu system. Steering wheel keypad ENTER EXIT...
Page 114: 04 Comfort And Driving Pleasure
The navigation button can be used instead of ENTER and EXIT when navigating the menu hierarchy. The right arrow is equal to ENTER and the left arrow to EXIT. The menu options are numbered and can also be selected directly with the numerical keypad (1-9 only). 04 Comfort and driving pleasure Menus and messages Menu overview...
Page 115 Auto. volume control Resets all audio settings. Main menu FM FM settings Radio text Advanced radio settings Audio settings Main menu CD Random Folder Disc Single disc All discs CD settings Disc text (option) Audio settings Main menu AUX Volume, AUX input Audio settings The menu option for audio settings is available in all audio sources.
Page 116 READ - access to the list of messages and message confirmation. Thumbwheel - browse among menus and options in the list of functions. RESET - reset the active function. Used in certain cases to select/activate a function, see the explanation under each respective function.
Page 117: Climate System
If a warning message appears while you are using the trip computer, the message must be read and confirmed by pressing READ before the previous activity can be resumed. 04 Comfort and driving pleasure Menus and messages 04 Comfort and driving pleasure Climate system Introduction Air conditioning...
Page 118 Special tools and equipment are required to maintain and carry out repairs on the climate system. Work of this type should only be done by a trained and qualified Volvo service technician. Refrigerant Volvo cares about the environment. The air conditioning system in your car contains a CFC-free refrigerant - R134a. This substance 04 Comfort and driving pleasure Climate system will not deplete the ozone layer.
Page 119 Replace the cabin air filter with a new one at the recommended intervals. Please refer to your Warranty and Service Records Information booklet, or consult a trained and qualified Volvo service technician for these intervals. The filter should be replaced more often when driving under dirty and dusty conditions. The filter cannot be cleaned and therefore should always be replaced with a new one.
Page 120 Air vents in the dashboard Open Closed Horizontal airflow Vertical airflow Direct the outer air vents toward the side windows to defrost. Air vents in the door pillars Open Closed Horizontal airflow Vertical airflow Direct the outer air vents toward the side windows to defrost. Direct the vents into the passenger compartment to maintain a comfortable climate in the rear seat.
Page 121 Electronic climate control, ECC Ventilated front driver's seat (option) Blower Heated front driver's seat (option) Air distribution Heated front passenger's seat (option) Auto Ventilated front passenger's seat (option) Temperature control, passenger's side A/C - On/Off Heated rear window and door mirrors, see page 102.
Page 122 Blower control Turn the control clockwise to increase or counterclockwise to decrease the blower speed. Pressing the AUTO switch will automatically regulate blower speed and override manual adjustment. NOTE If the blower is turned off completely, the air conditioning is disengaged, which may result in fogging on the windows.
Page 123 The function automatically regulates cooling, heating, blower speed, recirculation, and air distribution to maintain the chosen temperature. If you select one or more manual functions, the other functions continue to be controlled automatically. The air quality sensor is engaged and all manual settings are switched off when AUTO is pressed. The display shows AUTO CLIMATE.
Page 124 switched off by pressing the AC button. Recirculation will not function while defrost is engaged. The climate system will return to its previous settings when the defroster function is switched off. Recirculation/air quality system Recirculation This function can be used to shut out exhaust fumes, smoke, etc from the passenger compartment. The air in the passenger compartment is then recirculated, i.e., no air from outside the car is taken into the car when this function is activated.
Page 125: Audio System
Recirculation is limited in cold weather to avoid fogging. If the insides of the windows start fogging, disengage the air quality sensor. Use the defroster function to increase airflow to the front, side, and rear windows. 04 Comfort and driving pleasure Climate system Air distribution table 04 Comfort and driving pleasure...
Page 126 Socket for external audio source (AUX) Steering wheel keypad Center console control panel Control panel with headphones socket (option) Steering wheel keypad Confirm selection in menu system. Go higher in the menu system. Interrupt current function. Volume A short press scrolls between CD tracks or preset radio stations. A long press searches within CD tracks or searches for radio stations automatically.
Page 127 Volume Scroll/search forward and backward Audio source, activating Headphones sockets (3.5 mm) - accessory Activating/deactivating The control panel is activated by pressing MODE when the audio system is switched on. It is switched off automatically when the audio system is switched off or by a long press on MODE. Scroll/search forward and backward Short presses on are used to scroll between CD tracks or preset radio stations.
Page 128 04 Comfort and driving pleasure Audio system Radio text on/off CD/CD changer Random Disc text on/off Track information on/off Audio settings Sound stage (front/driver/rear) Auto. volume control (off/low/medium/high) Sirius satellite radio (option) Add song to memory Direct channel entry... Song seek on/off Sirius settings Song memory (show memory list) Car settings...
Page 129 Internal audio sources: AM, FM and CD External audio source. For connection, see page 136 Push button and knob controls for making sound settings Navigation button Volume and on/off Audio volume and automatic volume control The audio system compensates for disrupting noises in the passenger compartment by increasing the volume according to the speed of the vehicle.
Page 130 Surround (option) - Surround settings. Under Surround, 3 channel stereo or Dolby Surround Pro logic II can be activated by selecting 3-ch Dpl2 respectively. This enables the following options: Center level - Level for the center speaker. Surround level - Level for surround sound. Equalizer Sound levels for different frequencies can be adjusted separately using the equalizer Premium Sound...
Page 131 CD insert and eject CD slot Navigation button for changing CD tracks Fast-back and change CD track CD changer position selection (option) Scan CD Playing a CD (CD player If a music CD is in the player when CD is pressed, it will be played automatically. Otherwise, insert a disc and press Certain markets only.
Page 132 NOTE The Eject all function can only be used while the vehicle is at a standstill and will be cancelled if the vehicle begins to move. Pause When the audio system volume is turned off completely, the CD player will pause and will resume playing when the volume is turned up again.
Page 133 Different messages are displayed depending on which random function has been selected: RANDOM means that the tracks from only one music CD are played RND ALL means that all tracks on all music CDs in the optional CD changer are played. RANDOM FOLDER means that the sound files in a directory on the current CD are played.
Page 134 Select wave band AM and FM (FM1 and FM2) Automatic tuning 1. Select a wave band using FM or AM. 2. Press on the navigation button. Manual tuning 1. Select a wave band using FM or AM. 2. Turn TUNING to select a station. Preset Ten station presets can be stored for each wave band.
Page 135 04 Comfort and driving pleasure Audio system Radio text Some stations transmit information on program content, artists, etc. This information can be shown on the display. Activate/deactivate in FM mode under Radio text. 04 Comfort and driving pleasure Audio system Sirius satellite radio (option) Listening to satellite radio The Sirius satellite system consists of a number of high elevation satellites in geosynchronous orbit.
Page 136 3. Use the up/down arrow keys to scroll through the list of categories. 4. Press ENTER or the right arrow key to select a category. The first channel in the selected category will then be played. NOTE The category is default, which enables you to scroll through the entire list of available satellite channels. The channel categories are automatically updated several times a year.
Page 137 Song Seek Song Memory functions provide both audio and visual notification when Sirius is broadcasting your favorite songs. Song Seek enables you to store the name of the song for future advance notification when that song is being played. The Song Memory feature makes it possible to view all of the current songs that are stored in memory.
Page 138 3. Select Advanced Sirius settings. WARNING Settings should be made when the vehicle is at a standstill. The following settings can be made in the Sirius menu: The list of saved songs can be displayed Channel skip settings can be made Channel lock settings can be made The channel access code can be displayed or changed Your Sirius ID can be displayed...
Page 139: Trip Computer
Sirius settings menu and press ENTER. 2. Press and hold the ENTER button for 2 seconds. 3. The current code will be displayed. Your Volvo retailer can also provide you with assistance. SIRIUS ID This function displays the 12-digit Sirius activation ID.
Page 140 If a warning message appears while you are using the trip computer, this message must be acknowledged in order to return to the trip computer function. Acknowledge a message by pressing READ. To change the unit of measure specified for distance and speed, contact an authorized Volvo workshop. Average speed The system calculates the average speed from the last resetting.
Page 141: Compass
driving style. 04 Comfort and driving pleasure Trip computer Resetting 1. Select Average speed Average fuel consumption. 2. Press and hold RESET for approx. 1 second to reset the selected function. If RESET is kept depressed for at 3 three seconds, Average speed and Average fuel consumption are reset simultaneously.
Page 142: Stability System
are shown in the mirror's display if calibration is necessary. 1. Stop the vehicle in a large open area, away from traffic. 2. Start the vehicle. 3. Using a pen or similar object, press and hold the button on the rear side of mirror until is shown again (after approx.
Page 143 A pulsating sound will be audible when the system is actively operating and is normal. Traction control (TC) This function is designed to help reduce wheel spin by transferring power from a drive wheel that begins to lose traction to the wheel on the opposite side of the vehicle (on the same axle). TC is most active at low speeds.
Page 144: Active Chassis System-Four C
1. Stop the vehicle in a safe place and turn off the engine. 2. Restart the engine. If the message remains when the engine is restarted, drive to an authorized Volvo workshop to have the system inspected. Symbols in the instrument panel If the symbols are displayed at the same time, read the message in the information display.
Page 145 Use the buttons in the center console to change setting. The setting in use when the engine is switched off is activated the next time the engine is started. Speed-dependent steering force (option) Steering force increases with the speed of the vehicle to give the driver enhanced sensitivity. At low speed the vehicle is easy to steer in order to facilitate parking, etc.
Page 146: Cruise Control
2 0 0 8 VOLVO 04 Comfort and driving pleasure Cruise control Operation Standby mode Resume set speed Deactivating Activate/set speed Set speed indicator (parentheses indicate standby mode) Engaging the cruise control function Before a speed can be set, the cruise control system must be engaged (put in standby mode).
Page 147 Adjusting the set speed After a speed has been set, it can be increased or decreased by using the buttons. Press and hold down until the vehicle reaches the desired speed. This will become the set speed when the button is released. Press for approximately a half second and release the button to increase or decrease vehicle speed by approximately 1 mph (1.6 km/h).
Page 148: Adaptive Cruise Control-Acc
Do not use the adaptive cruise control system in demanding driving conditions such as city traffic, winding roads, at intersections, on slippery surfaces, in poor visibility, heavy rain, etc. Maintenance of cruise control components must only be performed by an authorized Volvo workshop. WARNING Adaptive cruise control cannot cover all driving situations and traffic, weather and road conditions.
Page 149 04 Comfort and driving pleasure Adaptive Cruise Control-ACC WARNING Adaptive cruise control is not a collision avoidance system. The driver is always responsible for applying the brakes if the system does not detect another vehicle. Adaptive cruise control does not react to slow moving or stationary vehicles. The distance to the vehicle ahead (in the same lane) is measured by a radar sensor.
Page 150 Strong sunlight, reflections, extreme light contrasts, the use of sunglasses, or if the driver is not looking straight ahead may make the visual warning signal in the windshield difficult to see. WARNING Cruise control only warns of vehicles detected by the radar sensor, see page 162.
Page 151 The "car" symbol illuminates on the left side of the display when the radar sensor detects another vehicle ahead. The distance to a vehicle ahead is only regulated when this symbol is illuminated. Adjusting the set speed After a speed has been set, it can be increased or decreased by using the buttons.
Page 152 Cruise control is deactivated, either with a short press on , or by action taken by the driver, such as braking, etc. The set speed, for example 55 mph, is then shown in parentheses. Speed and time interval are resumed by pressing WARNING There may be a significant increase in speed after the button has been pressed.
Page 153 Accessories or other objects must not be installed in front of the grille. Modification of the radar sensor could make its use illegal. The radar sensor's capacity to detect vehicles ahead is impeded: if the radar sensor is obstructed and cannot detect other vehicles, for example in heavy rain, or if snow or other objects are obscuring the radar sensor.
Page 154 This, in turn, means that the functions of the ACC, Distance Alert, and Collision Warning System with Auto-brake will not function. The table lists possible causes for this message being displayed, and suitable actions. 04 Comfort and driving pleasure Adaptive Cruise Control-ACC Symbols and message in the display...
Page 155: Distance Alert
04 Comfort and driving pleasure Distance Alert Introduction Distance Alert is part of Adaptive Cruise Control and is a function that provides information about the time interval to the vehicle ahead. Time interval information is only given for a vehicle that is driving ahead of your vehicle, in the same lane, and in the same direction.
Page 156 Setting a time interval The buttons for setting a time interval are located on the left side of the steering wheel (see the illustration on page 160). Press to increase the interval or to decrease it. Five different time intervals can be selected and are shown in the display as 1-5 horizontal bars. The greater the number of bars, the longer the time interval.
Page 157: Collision Warning With Auto-Brake (Option)
Bad weather or winding roads may affect the radar sensor's capacity to detect vehicles ahead. The size of the vehicle ahead, such as a motorcycle, may also make it difficult to detect. This may result in the warning light illuminating at a shorter distance than the one that has been set, or that the light will not come on at all. 04 Comfort and driving pleasure Distance Alert Symbols and messages in the display...
Page 158 The driver is responsible for maintaining a safe distance and speed, even when the collision warning system is in use. Maintenance of the collision warning system components must only be performed by a trained and qualified Volvo technician. Function Visual warning signal, collision risk...
Page 159 The driver must apply the brakes for full braking effect. NOTE The auto-brake function is always on and cannot be turned off. Operation Settings are made from the center console via a menu system. See page 124 for information on using the menu system. On and off To switch Collision Warning on or off, go into the menu Car settings...
Page 160 Limitations Strong sunlight, reflections, extreme light contrasts, the use of sunglasses, or if the driver is not looking straight ahead may make the visual warning signal in the windshield difficult to see. For this reason, always activate the audible warning signal in such conditions. NOTE The visual warning signal may be temporarily disengaged in the event of high passenger compartment temperature due to strong sunlight, etc.
Page 161 on the camera or cause these systems to temporarily stop functioning. Never place any objects, decals, etc., on the windshield in front of the camera. This could reduce or block the camera's function, and could cause one or more of the systems that utilize the camera to stop functioning. Strong sunlight, reflections from the road surface, a dirty road surface, or unclear lane marker lines may drastically reduce the camera's capacity to detect the side of a lane or another vehicle.
Page 162: Driver Alert System-Option
04 Comfort and driving pleasure Driver Alert System-option Introduction The Driver Alert System is designed to help a driver who may be becoming fatigued or who is inadvertently leaving the lane. The Driver Alert System consists of two different functions that can be switched on together or separately. Driver Alert Control (DAC) Lane Departure Warning (LDW) When one or both of the functions has been switched on, it is in standby mode and is activated when the vehicle...
Page 163 NOTE The camera has certain limitations, see page 170. DAC is designed to help detect a slowly changing driving pattern. It is primarily intended to be used on main roads and is not meant for use in city traffic. WARNING DAC is not intended to extend the duration of driving.
Page 164 The function is activated when the vehicle exceeds a speed of 40 mph (65 km/h). The display will show level markings of 1-5 bars, where a low number of bars indicates erratic driving. A high number of bars indicates stable driving. If the vehicle is being driven erratically, the driver will be alerted by an audible signal and the message Driver Alert, Time for a break...
Page 165 This function is designed to help reduce the risk of accidents in situations where the vehicle leaves its lane and there is a risk of driving off the road or into the opposite lane. LDW consists of a camera that monitors the lane's side marker lines. The driver is alerted by an audible signal if the vehicle crosses a side marker line or the road's center dividing line.
Page 166: Park Assist (Option)
The driver will only be warned once for each time the wheels cross a marker line. No alarm will be given if a marker line is between the wheels. A warning will be given even when Increased sensitivity has been selected. See page 125 for more information 04 Comfort and driving pleasure...
Page 167 who may be close to the front or rear of your vehicle. An audible signal and symbols in the audio system's display indicate the distance to the object. WARNING Park Assist is an information system, NOT a safety system. This system is designed to be a supplementary aid when parking the vehicle.
Page 168 Visual indicator The audio system's display gives an overview of the vehicle's position in relation to a detected object. The markers in the display indicate that one or more of the four sensors has detected an object. The greater the number of markers, the closer the vehicle is to the object.
Page 169 If the information symbol illuminates and Park Assist syst Service required is shown on the information display, this indicates that the system is not functioning properly and has been disengaged. Consult a trained and qualified Volvo service technician. CAUTION In certain circumstances, the park assist system may give unexpected warning signals that can be caused by external sound sources that use the same ultrasound frequencies as the system.
Page 170: Blind Spot Information System (Option)
The sensors must be cleaned regularly to ensure that they work properly. Clean them with water and a suitable car washing detergent. 04 Comfort and driving pleasure Park assist (option) Ice and snow covering the sensors may cause incorrect warning signals. NOTE If the sensors are obstructed by e.g., dirt, snow, or ice, this could result in false warning signals from the park assist system.
Page 171 "blind area." CAUTION The BLIS system should only be repaired by a trained and qualified Volvo service technician. WARNING BLIS is an information system, NOT a warning or safety system.
Page 172 04 Comfort and driving pleasure Blind Spot Information System (option) When does BLIS function The system functions when your vehicle is moving at speeds above 6 mph (10 km/h). When you pass another vehicle: The system reacts when you pass another vehicle at a speed of up to 6 mph (10 km/h) faster than that vehicle. When you are passed by another vehicle: The system reacts if your vehicle is passed by another vehicle at a speed of up to 43 mph (70 km/h) faster than your vehicle.
Page 173 cameras were obscured. In both of the above mentioned conditions, a message will appear in the information display. When driving in such conditions, the system's function will be limited or it may be temporarily switched off. See page 185 for instructions. When the message is no longer displayed, BLIS will return to normal function.
Page 174: Passenger Compartment Convenience
BLIS is automatically activated when the ignition is switched on. The indicator lights will provide confirmation by flashing 3 times. The system can be switched off by pressing the BLIS button in the center console (see the illustration). The indicator light in the button goes out when the system is switched off, and a text message is displayed.
Page 175 04 Comfort and driving pleasure Passenger compartment convenience Compartment in door panel Storage pocket on the front edge of the front seat cushions Glove compartment Storage compartment, 12-volt socket and AUX input Jacket holder Rear seat cup holders Storage pocket Jacket holder The jacket hanger is located on the inboard side of the front passenger's seat head restraint.
Page 176 Includes cup holder for driver and passenger, 12 V socket and small storage compartment. Cigarette lighter and ashtray (option) Your Volvo retailer has lighters and ashtrays available as accessories. Glove compartment The owner's manual and maps can be kept here. There are also holders for pens and fuel cards. The glove...
Page 177 12-volt sockets The electrical socket can be used for 12-volt accessories such as cell phone chargers and coolers. The maximum current is 10 A. For the socket to supply current, the ignition must be in at least mode I, see page WARNING Always keep the sockets covered when not in use.
Page 178 Contents Top of Page...
Page 179 2 0 0 8 VOLVO 05 During your trip Driving recommendations Refueling Loading Cargo area Towing a trailer Emergency towing 05 During your trip 05 During your trip Driving recommendations General information Economical driving conserves natural resources Better driving economy may be obtained by thinking ahead, avoiding rapid starts and stops and adjusting the speed of your vehicle to immediate traffic conditions.
Page 180: 05 During Your Trip
Remove snow tires when threat of snow or ice has ended. Note that roof racks, ski racks, etc, increase air resistance and also fuel consumption. At highway driving speeds, fuel consumption will be lower with the air conditioning on and the windows closed than with the air conditioning off and the windows open.
Page 181 Before a long distance trip It is always worthwhile to have your vehicle checked by a trained and qualified Volvo service technician before driving long distances. Your retailer will also be able to supply you with bulbs, fuses, spark plugs and wiper blades for your use in the event that problems occur.
Page 182 Volvo Washer Solvent should be diluted as follows: Down to 14° F (-10° C): 1 part washer solvent and 4 parts water Down to 5°...
Page 183: Refueling
Deposit control gasoline (detergent additives) Volvo recommends the use of detergent gasoline to control engine deposits. Detergent gasoline is effective in keeping injectors and intake valves clean. Consistent use of deposit control gasolines will help ensure good drivability and fuel economy.
Page 184 Refueling Octane rating MINIMUM Volvo recommends premium for best performance, but using 87 octane or above will not affect engine reliability. Volvo engines are designed to achieve rated horsepower, torque, and fuel economy performance using premium 91 octane fuel. RECOMMENDED...
Page 185 Carbon monoxide is a poisonous, colorless, and odorless gas. It is present in all exhaust gases. If you ever smell exhaust fumes inside the vehicle, make sure the passenger compartment is ventilated, and immediately return the vehicle to a trained and qualified Volvo service technician for correction. Opening/closing the fuel filler door...
Page 186 CAUTION Avoid spilling gasoline during refueling. In addition to causing damage to the environment, gasolines containing alcohol can cause damage to painted surfaces, which may not be covered under the New Vehicle Limited Warranty. 05 During your trip Refueling Manually opening the fuel filler door If necessary, the fuel filler door can be opened manually.
Page 187: Loading
If the fuel filler cap is not closed tightly or if the engine is running when the vehicle is refueled, the Check Engine Light (malfunction indicator lamp) may indicate a fault. However, your vehicle's performance will not be affected. Use only Volvo original or approved fuel filler caps.
Page 188 The cargo area and rear seat should not be loaded to a level higher than 2 in. (5 cm) below the upper edge of the rear side windows. Objects placed higher than this level could impede the function of the Volvo Inflatable Curtain.
Page 189 CAUTION Be sure that there is adequate space above and behind the vehicle before opening the tailgate automatically. NOTE If the tailgate has been opened and closed continuously for more than 90 seconds, the automatic function will be deactivated to avoid overloading the electrical system. The automatic function can be used again after approximately 10 minutes.
Page 190 05 During your trip Loading Load anchoring eyelets The load anchoring eyelets on both sides of the vehicle are used to fasten straps, etc., to help anchor items in the cargo area. WARNING Cover sharp edges on long loads to help prevent injury to occupants. Secure the load to help prevent shifting during sudden stops.
Page 191 To move a hook, fold it down in the direction in which its opening points. Press the hook down lightly and move it to the desired position. Fold up the hook. It will lock in place. NOTE There should be at least 2 in. (50 cm) between the hooks in the rail. WARNING Switch off the engine, apply the parking brake and put the gear selector in P when loading and unloading the vehicle.
Page 192 NOTE In order to return a removed hook into a rail, it must be press down lightly. Reinserting a hook It is important to insert the hooks correctly in the rails. The hooks' openings should point away from each other. The opening on the hook closest to the rear seat backrest should point toward the backrest.
Page 193: Cargo Area
Grocery bag holder (option) Grocery bag holder under the floor of the cargo compartment The grocery bag holder holds shopping bags in place. 1. Open the hatch in floor of the cargo compartment. 2. Secure the shopping bags with the strap. Available on certain markets only.
Page 194 NOTE The steel cargo grid is easiest to install by two people, and should be folded down. When installing the grid, the handle should be on the front side of the grid (see illustrations The rear seat backrests must be folded down when installing the steel cargo grid, see page Put the handle in the installation position, see the illustration.
Page 195 Pull the cover over the cargo and hook it into the holes in the rear cargo area pillars. To retract (roll up) the cover, release it from the holes and guide it toward the rear seat backrest. Installing the cover 1.
Page 196 Two cassettes containing nylon cargo nets are stored in a compartment under the cargo area floor. Attaching the cassette(s) The two-sections of the net are attached to the rear side of the rear seat backrest. The cassettes have different widths, and the widest section should be mounted on the right side (seen from the rear of the vehicle).
Page 197 Insert the net's rod in the retaining bracket on the right side near the ceiling and press it forward. It will click into place. Extend the left section of the rod and insert it in the bracket on the left side of the cargo compartment. Press it forward until it clicks into place.
Page 198: Towing A Trailer
Volvo has developed especially for your vehicle. Volvo-approved removable roof racks are designed to carry the maximum allowable roof load for this vehicle: 220 lbs (100 kg). For non-Volvo roof racks, check the manufacturer's weight limits for the rack.
Page 199 More frequent vehicle maintenance is required. Remove the ball and drawbar assembly when the hitch is not being used. Volvo recommends the use of synthetic engine oil when towing a trailer over long distances or in mountainous areas. WARNING Bumper-attached trailer hitches must not be used on Volvos, nor should safety chains be attached to the bumper.
Page 200: Emergency Towing
Installing the ball holder 1. If necessary, remove the cotter pin from the locking bolt and slide the locking bolt out of the hitch assembly. 2. Slide the ball holder into the hitch assembly. 3. Align the hole in the ball holder with the one in the hitch assembly. 4.
Page 201 The towing eyelet is located under the floor of the cargo area, with the spare tire. This eyelet must be screwed into the positions provided on the right sides of either the front or rear bumper (see illustration). NOTE On certain models equipped with a trailer hitch, the towing eyelet cannot be screwed into the hole in the rear bumper.
Page 202 Consult the tow truck operator. Towing vehicles with front wheel drive/All Wheel Drive Volvo recommends the use of flat bed equipment. If wheel lift equipment must be used, please use extreme caution to help avoid damage to the vehicle. In this case, the vehicle should be towed with the rear wheels on the ground if at all possible.
Page 203: 06 Maintenance And Specifications
This maintenance program contains inspections and services necessary for the proper function of your vehicle. The maintenance services contain several checks that require special tools and training, and therefore must be performed by a qualified technician. To keep your Volvo in top condition, specify time-tested and proven Genuine Volvo Parts and Accessories.
Page 204 Maintenance Your Volvo passed several major inspections before it was delivered to you, in accordance with Volvo specifications. The maintenance procedures outlined in the Warranty and Service Records Information booklet, many of which will positively affect your vehicle's emissions, should be performed as indicated. It is recommended that receipts for vehicle emission maintenance be retained in case questions arise concerning maintenance.
Page 205 Wipe driver information displays with a soft cloth. Visually inspect battery terminals for corrosion. Corrosion may indicate a loose terminal connector, or a battery near the end of its useful service life. Consult your Volvo retailer for additional information. As needed: Wash the car, including the undercarriage, to reduce wear that can be caused by a buildup of dirt, and corrosion that can be caused by salt residues.
Page 206 OBD II system to "ready" for inspection. A half-hour trip of mixed stop- and-go/highway driving is typically needed to allow OBD II to reach readiness. Your Volvo retailer can provide you with more information on planning a trip.
Page 207: Battery
Refer to the Warranty and Service Records Information booklet for information on the oil change intervals. Volvo recommends Castrol oil products. CAUTION Not checking the oil level regularly can result in serious engine damage if the oil level becomes too low.
Page 208 Volvo does not recommend the use of oil additives. Always add oil of the same type and viscosity as already used. Never fill oil above the MAX mark. This could cause an increase in oil consumption. Checking and adding oil...
Page 209 Do not top off with water only. This reduces the rust-protective and antifreeze qualities of the coolant and has a lower boiling point. It can also cause damage to the cooling system if it should freeze. Top off with Volvo Genuine Coolant/Antifreeze only (a 50/50 mix of water and antifreeze).
Page 210 If the fluid level is below the MIN mark in the reservoir or if a brake-related message is shown in the information display: DO NOT DRIVE. Have the car towed to a trained and qualified Volvo service technician and have the brake system inspected.
Page 211 Active Bi-Xenon® headlights (option) - due to the high voltage used by these headlights, these bulbs should only be replaced by a trained and qualified Volvo service technician. Turn off the lights and remove the remote key from the ignition before changing any bulbs.
Page 212 Always switch off the ignition before starting to replace a bulb. The optional Bi-Xenon® headlight bulbs contain trace amounts of mercury. These bulbs should always be disposed of by a trained and qualified Volvo service technician. Removing the headlight housing 1.
Page 213 4. Lift out the housing and place it on a soft surface to avoid scratching the lens. 5. Replace the defective bulb(s), see page 234. Reinserting the headlight housing 1. Plug in the connector until it clicks into place. 2. Reinstall the headlight housing and locking pins. Check that they are correctly inserted. The headlight housing must be properly inserted and secured in place before the lighting is switched on or the remote key is inserted into the ignition slot.
Page 214 4. Unplug the connector from the bulb. 5. Replace the bulb and reinsert it into the headlight housing. 6. Put the cover back into position and reinstall the headlight housing. 06 Maintenance and specifications Replacing bulbs High beam, Halogen 1. Remove the headlight housing from the vehicle (see the instructions on page 228).
Page 215 3. Remove the bulb by pressing the holder downward. 4. Remove the connector from the bulb. 5. Insert a new bulb in the connector until it snaps in place. It can only be inserted in one way. 6. Return the bulb holder into position in the headlight housing. 7.
Page 216 1. Remove the headlight housing from the vehicle (see the instructions on page 228). 2. Remove the round cover by pulling the tab until the cover comes off. 3. Pull out the holder to access the bulb. 4. Remove the burned out bulb by pressing it in slightly and turning out before pulling it out. Press a new bulb into the socket.
Page 217 06 Maintenance and specifications Replacing bulbs Fog lights 1. Remove the cover by pressing in the clips and pulling straight out. 2. Unscrew the fog light housing screw and pull it out. 3. Turn the bulb counterclockwise and remove it. 4.
Page 218 Rear fog light (driver's side only) Backup light Brake lights (LED) High-mounted brake lights (LED) NOTE If an error message remains in the display after a faulty bulb has been replaced, contact an authorized Volvo workshop. 06 Maintenance and specifications Replacing bulbs License plate lighting...
Page 219 1. Remove the screws with a screwdriver. 2. Carefully detach the entire bulb housing and pull it out. 3. Replace the bulb. 4. Refit the entire bulb housing and screw it into place. Footwell lighting 1. Insert a screwdriver at the short end of the lens closest to the tunnel console (the center of the vehicle) and turn gently so that the lens comes loose.
Page 220 Before starting to replace a bulb, see page 228. 1. Insert a screwdriver and gently turn so that the bulb housing comes loose. 2. Replace the bulb. 3. Check that the bulb illuminates and press it back into the bulb housing. 06 Maintenance and specifications Replacing bulbs Vanity mirror lighting...
Page 221 06 Maintenance and specifications Wiper blades and washer fluid Wiper blades The windshield wiper blades are different lengths. The blade on the driver's side is longer than the blade on the passenger side. Service position The windshield wiper blades must be in the service (vertical) position for replacement or washing. 1.
Page 222 Replacing the windshield wiper blades With the wipers in the service position, fold out the wiper arm from the windshield. Press the button on the wiper blade attachment and pull the wiper blade straight out, parallel with the wiper arm. Slide in the new wiper blade until it clicks into place.
Page 223 1. Fold the wiper arm outward. 2. Grasp the inner section of wiper blade (at the arrow). 3. Pull out the blade to release it from the wiper arm. 4. Press the new wiper blade into place and check that it seats securely. 5.
Page 224 NOTE A used battery should be disposed of in an environmentally responsible manner. Consult your Volvo retailer or take the battery to a recycling station. Handling Check that the battery cables are correctly connected and tightened. Never disconnect the battery when the engine is running (for example, when replacing the battery).
Page 225 Maintenance Regularly check that the electrolyte level is correct and never fill above the level mark. Check all cells. Use a large screwdriver or a coin to remove the cell caps. Each cell has its own maximum and minimum level mark. If necessary, top up with distilled water to the battery's maximum mark.
Page 226 WARNING Connect and disconnect the positive and negative cables in the correct sequence. 06 Maintenance and specifications Battery Removal Switch off the ignition and wait at least 5 minutes before disconnecting the battery so that all information in the vehicle's electrical system can be stored in the control modules. Open the clips on the front cover and remove the cover.
Page 227: Fuses
2. From the side, examine the curved metal wire in the fuse to see if it is intact. If the wire is broken, insert a new fuse of the same color and amperage (written on the fuse). If fuses burn out repeatedly, have the electrical system inspected by a trained and qualified Volvo service technician. WARNING Never use metal objects or fuses with higher amperage than those stated on the following pages.
Page 228 Fuses 16-33 are 35-41 may be changed at any time when necessary. Fuses 1-15, 34, and 42-44 are relays/circuit breakers and should only be removed or replaced by a trained and qualified Volvo service technician. There is a special fuse removal tool on the underside of the cover.
Page 229 06 Maintenance and specifications Fuses Under the glove compartment Fold aside the interior trim covering the fuse box. Press the cover's lock and fold it up. The fuses are accessible. Positions...
Page 230 06 Maintenance and specifications Fuses Cargo area...
Page 231 Positions...
Page 232 Contents Top of Page...
Page 233 2 0 0 8 VOLVO 06 Maintenance and specifications Wheels and tires Introduction Your vehicle is equipped with tires according to the vehicle's tire information placard on the B-pillar (the structural member at the side of the vehicle, at the rear of the driver's door opening).
Page 234: Wheels And Tires
WARNING The wheel and tire sizes for your Volvo are specified to meet stringent stability and handling requirements. Unapproved wheel/tire size combinations can negatively affect your vehicle's stability and handling. Approved tire sizes are shown in the Tire inflation pressure tables beginning on page 250.
Page 235 Unbalanced wheels impair tire economy and driving comfort. Tires must maintain the same direction of rotation throughout their lifetime. When replacing tires, the tires with the most tread should be mounted on the rear wheels to reduce the chance of oversteer during hard braking.
Page 236 When weather temperature changes occur, tire inflation pressures also change. A 10-degree temperature drop causes a corresponding drop of 1 psi (7 kPa) in inflation pressure. Check your tire pressures frequently and adjust them to the proper pressure, which can be found on the vehicle's tire information placard or certification label. Checking tire pressure Cold tires Inflation pressure should be checked when the tires are cold.
Page 237 Wheels and tires Tire inflation pressure table - U.S. models The following tire pressures are recommended by Volvo for your vehicle. Refer to the tire inflation placard for information specific to the tires installed on your vehicle at the factory.
Page 238 Wheels and tires Tire inflation pressure table - Canadian models The following tire pressures are recommended by Volvo for your vehicle. Refer to the tire inflation placard for information specific to the tires installed on your vehicle at the factory.
Page 239 250, or consult your Volvo retailer. The tire pressure warning light will not identify which tire is under-inflated. Be sure to check all four tires. A certain amount of air seepage from the tires occurs naturally and tire pressure fluctuates with seasonal changes in temperature.
Page 240 20 mph (30 km/h) or faster to erase the message. Volvo recommends that TPMS sensors be fitted on all wheels used on the vehicle. Volvo does not recommend moving sensors back and forth between sets of wheels.
Page 241 1. 215: the width of the tire (in millimeters) from sidewall edge to sidewall edge. The larger the number, the wider the tire. 2. 65: The ratio of the tire's height to its width. 3. R: Radial tire. 4. 15: The diameter of the wheel rim (in inches). 5.
Page 242 This limit is set by the tire manufacturer. Recommended tire inflation pressure: inflation pressure, established by Volvo, which is based on the type of tires that are mounted on a vehicle at the factory. This inflation pressure is affected by the number of occupants in the vehicle, the amount of cargo, and the speed at which the vehicle will be driven for a prolonged period.
Page 243 exceed its maximum permissible weight. Gross vehicle weight (GVW) The vehicle's curb weight + cargo + passengers. NOTE The location of the various labels in your vehicle can be found on page 270. A table listing important weight limits for your vehicle can be found on page 274.
Page 244 Snow chains can be used on your Volvo with the following restrictions: Snow chains should be installed on front wheels only. Use only Volvo approved snow chains. If accessory, aftermarket or "custom" tires and wheels are installed and are of a size different than the original tires and wheels, chains in some cases CANNOT be used.
Page 245 Recommended tire pressure (see the placard on the B-pillar or on the fuel filler door) should be maintained irrespective of which position on the vehicle the temporary spare tire is used on. In the event of damage to this tire, a new one can be purchased from your Volvo retailer. WARNING Current legislation prohibits the use of the "Temporary Spare"...
Page 246 Incorrectly mounted tires impair the car's braking properties and ability to force aside rain, snow and slush. The tires with the most tread should always be at the rear (to reduce the risk of skidding). Contact a Volvo workshop if you are unsure about the tread depth. Tire rotation Your vehicle has no recommended tire rotation.
Page 247 wear worse. If you do rotate your tires... Please follow the tire manufacturer's recommendations, as outlined in the tire manufacturers tire warranty pamphlet. 06 Maintenance and specifications Wheels and tires Changing a wheel Spare wheel The spare wheel (Temporary spare) is only intended for temporary use. Replace the spare wheel with a normal wheel as soon as possible.
Page 248 The other two blocks can remain in the wheel well. After use The foam block and spare wheel must be replaced in the reverse order. Note the arrow on the upper foam block. It should point forward. 06 Maintenance and specifications Wheels and tires NOTE If the floor hatch is not completely closed, the private locking feature (see...
Page 249: Vehicle Care
positioned in the attachment. 7. Raise the vehicle until the wheel to be changed is lifted off the ground. 8. Unscrew the wheel nuts completely and carefully remove the wheel so as not to damage the threads on the studs. 06 Maintenance and specifications Wheels and tires 9.
Page 250 Never use wax on the rubber seals around the moonroof. Exterior components Volvo recommends the use of special cleaning products, available at your Volvo retailer, for cleaning colored plastic, rubber, or ornamental components such as chromed strips on the exterior of your vehicle. The instructions for using...
Page 251 carefully. Solvents or stain removers should not be used. CAUTION Avoid waxing or polishing plastic or rubber components Polishing chromed strips can wear away or damage the surface Polishes containing abrasive substances should not be used Automatic car wash We do NOT recommend washing your car in an automatic wash during the first six months (because the paint will not have hardened sufficiently).
Page 252 06 Maintenance and specifications Vehicle care Volvo also offers a special leather softener that should be applied after the cleaner and protectant. It leaves leather soft and smooth, and reduces friction between leather and other finishes in the vehicle. Volvo recommends cleaning, protecting and conditioning your vehicle's leather two to four times a year. Ask your Volvo retailer about Leather Care Kit 951 0251 and Leather Softener 943 7429.
Page 253 The floor mats should be vacuumed or brushed clean regularly, especially during winter when they should be taken out for drying. Spots on textile mats can be removed with a mild detergent. For best protection in winter, Volvo recommends the use of Volvo rubber floor mats. Consult your Volvo retailer.
Page 254: Label Information
See page 270 for the location of the model plate. Minor stone chips and scratches Material: Primer - can Paint - touch-up pen Brush Masking tape If the stone chip has not gone down to the bare metal and an undamaged color coat remains, you can add paint immediately after removing dirt.
Page 255 Federal Motor Vehicle Safety Standards (FMVSS) specifications (USA) and Ministry of Transport (CMVSS) standards (Canada) Your Volvo is designed to meet all applicable safety standards, as evidenced by the certification label on the facing side of the driver's door. For further information regarding these regulations, please consult your Volvo retailer.
Page 256 06 Maintenance and specifications Specifications Dimensions - XC70...
Page 257 06 Maintenance and specifications Specifications Weights 06 Maintenance and specifications Specifications Engine specifications 06 Maintenance and specifications Specifications Engine oil...
Page 258 Operation in hot climates When temperatures exceed 104° F (40° C) in your area, Volvo recommends, for the protection of your engine, that you use a heavier weight oil, such as such as SAE 5W-40 or 0W-40. See the viscosity chart.
Page 259 American Petroleum Institute (API) symbol The API Service Symbol "donut" is divided into three parts: The upper section describes the oil's performance level. The center identifies the oil's viscosity. The lower section indicates whether the oil has demonstrated energy-conserving properties in a standard test in comparison to a reference oil.
Page 260 Under normal driving conditions the transmission oil does not need changing during its service life. However, it may be necessary under adverse driving conditions. Models without headlight washers 06 Maintenance and specifications Specifications Electrical system General information 12 volt system with a voltage-regulated alternator. Single pole system in which the chassis and engine block are used as conductors.
Page 261: Volvo Programs
Volvo programs Volvo On Call Roadside Assistance Your new Volvo comes with a four year ON CALL roadside assistance. Additional information, features, and benefits are described in a separate information package in your glove compartment. If you have misplaced your package, dial: In the U.S.A.
Page 262 2 0 0 8 VOLVO Index 12-volt sockets 188, 189 Accessory installation warning Active Bi-Xenon® headlights Active chassis system Active yaw control Adaptive cruise control 158-161 Air conditioning Air distribution Air distribution table Air vents Airbags disconnecting the front passenger's side...
Page 263 Automatic transmission Geartronic general description 112-113 shiftlock override Axle weight Battery changing 238-239 maintenance remote control, replacing specifications warning symbols Black box Blind Spot Information System(BLIS) 182-184 Blinkers (turn signals) Booster cushion, integrated 45-47 Booster cushions Brake lights emergency brake lights Brake system checking fluid level emergency brake assistance...
Page 264: Compass
hooks for securing loads 205, 206 steel grid Catalytic converter CD player/changer 140-141 Central locking system, introduction Chains Chassis system Check engine light Child restraint systems 34-35 booster cushions convertible seats 38-40 infant seats 36-37 ISOFIX/LATCH anchors top tether anchors Child restraints, recalls and registration Child safety 31-33...
Page 265 Current, conserving Defroster Detachable key blade 57-58 Dimensions XC70 Direction indicators Disconnecting the front passenger's airbag 22-24 Distance Alert Dome lighting 93-94 Door mirrors Driver Alert system Driver distraction warning Driving economically Driving in cold weather Driving through water 131-133 Economical driving Electric parking brake Electrically operated tailgate...
Page 266 Federal Clean Air Act Floor rails Fluid specifications Fog lights front front, changing bulbs front/rear 91, 92 Four C (active chassis system) Front airbags 19-21 disconnecting passenger's side airbag 22-24 Front fog lights changing bulbs Front park assist 178-180 Front seats heated Fuel filler cap Fuel filler door...
Page 267 Heartbeat sensor (alarm system) Heated front seats Heated oxygen sensors Heated rear seats High beams indicator light Hill Descent Control 117, 118 Home safe lighting HomeLink universal transceiver 105-108 Hood Horn Ignition modes Immobilizer Important information Indicator lights 74-77 Infant seats 36-37 Inflatable curtain Inflation pressure...
Page 268: Loading
Labels list of location of Lane Departure Warning LATCH anchors Leather care Lighting panel Load anchoring eyelets Loading floor rails hooks for securing loads 205, 206 Loading the vehicle 202, roof loads Locking automatic from the inside from the outside glove compartment tailgate Locking the vehicle...
Page 269 Net in cargo area Occupant safety Occupant weight sensor 22-24 Octane recommendations Odometer, trip checking low pressure warning light specifications volumes On Call Roadside Assistance Overhead courtesy lighting 93-94 Overheating, engine Oxygen sensors, heated Pacemaker (keyless drive warning) Paint, touching up Panic alarm Park assist 178-180...
Page 270 functions Sirius satellite radio 145-148 Rails, floor Rain sensor READ button Rear fog light Rear park assist 178-180 Rear seats center head restraint folding head restraint heated Rear window defroster Rearview mirror auto-dim function compass Recall, child restraints Refrigerant 128, Refueling 196-197 fuel filler cap...
Page 271 Automatic locking retractor/Emergency locking retractor buckling maintenance pretensioners reminder reminder warning light securing child restraint systems 36, 38, unbuckling use during pregnancy using Seats, front 82-83 Setting the clock Shiftlock override Side door mirrors Side impact airbags Side marker lights, changing bulbs Sirius satellite radio 145-148 Snow chains...
Page 272 warning light Tailgate driving with it open locking/unlocking power operated wiper/washer Tailgate wiper, replacing the blade Taillights, changing bulbs Temporary spare tire Three-way catalytic converter Tire pressure monitoring system indicator light Tires changing from summer to winter designations glossary of terms improving economy inflation pressure 247-248...
Page 273 Vehicle maintenance performed by the owner Vehicle weights Ventilated seats Volvo and the environment Volvo Inflatable Curtain Volvo maintenance Volvo On Call Roadside Assistance Volvo programs Warning flashers, hazard Warning lights 74-77 Warning symbol Warning system, collision 168-170...
Page 274 Wheels changing 262-263 storing Wheels and tires, introduction Whiplash protection system 28-29 Windows laminated glass power 99-100 Windshield rain sensor washer fluid 236, washers wipers/washers Windshield wipers, replacing blades Wiper blades replacing tailgate wiper replacing windshield wipers Contents Top of Page...

Volvo 2008 V70 Owner's Manual

Table of Contents

Introduction

1 Safety

2 0 0 8 Volvo V70

Volvo V70

2 0 0 8 Volvo V70

2 0 0 8 Volvo V70

2 0 0 8 Volvo V70

Quick Links

Chapters

Related Manuals for Volvo 2008 V70

Summary of Contents for Volvo 2008 V70

Table of Contents
