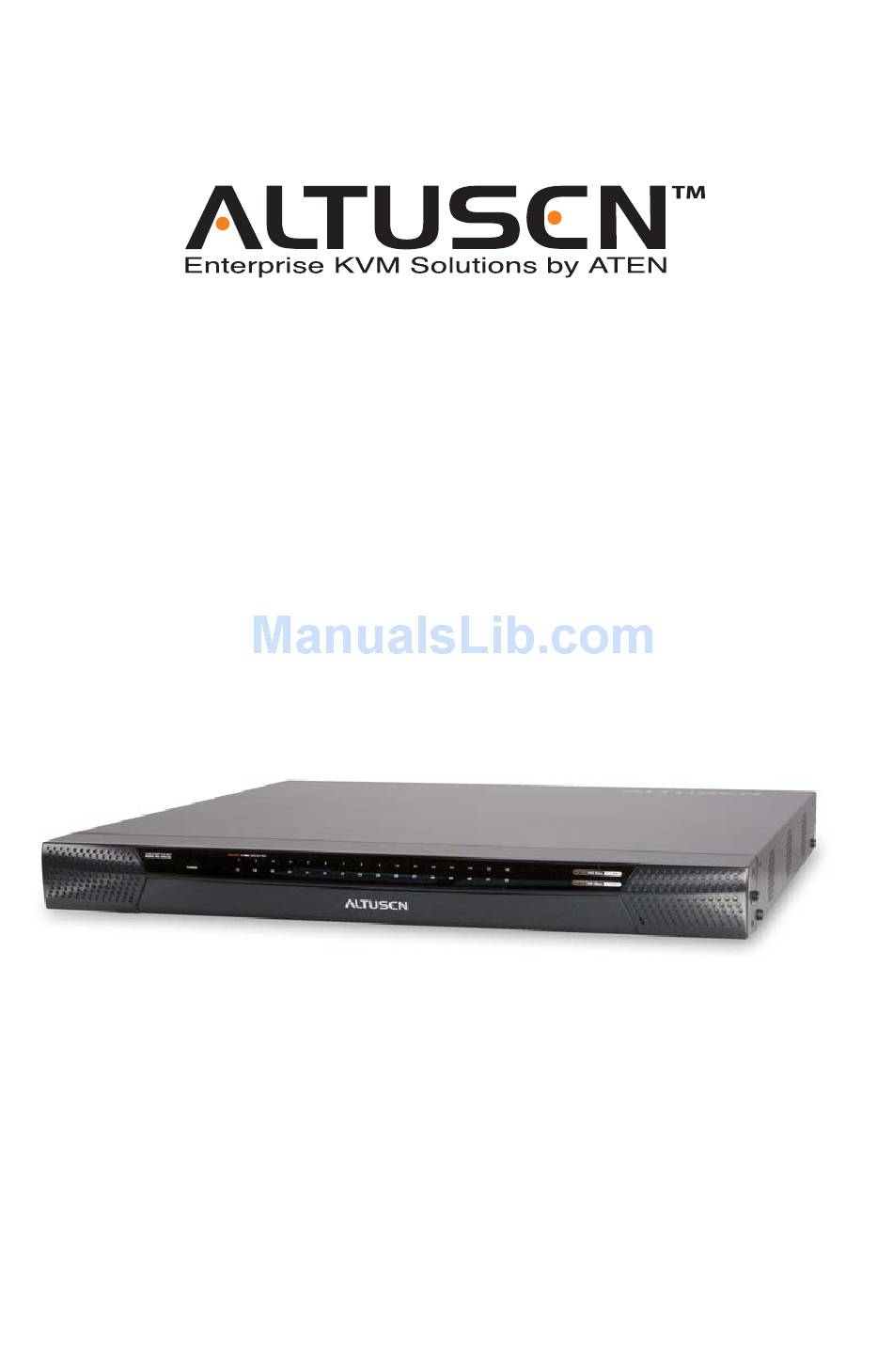

Page 1 KVM Over the NET™ KN2132 / KN4116 / KN4132 User Manual www.aten.com...
Page 2: Sj/T 11364-2006
KN2132 / KN4116 / KN4132 User Manual FCC Information This is an FCC Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
Page 3: User Information
KN2132 / KN4116 / KN4132 User Manual User Information Online Registration Be sure to register your product at our online support center: International http://support.aten.com North America ATEN TECH http://www.aten-usa.com/product_registration ATEN NJ http://support.aten.com Telephone Support For telephone support, call this number:...
Page 4: Package Contents
Manual Part No. PAPE-0296-AX1G F/W Version: 1.0.067 Manual Date: 2008-10-28 Altusen and the Altusen logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners.
Page 5: Table Of Contents
KN2132 / KN4116 / KN4132 User Manual Contents FCC Information ..........ii SJ/T 11364-2006.
Page 6 KN2132 / KN4116 / KN4132 User Manual Chapter 3. Super Administrator Setup Overview..........25 First Time Setup .
Page 7 KN2132 / KN4116 / KN4132 User Manual Port Naming......... . 62 Port Properties.
Page 8 KN2132 / KN4116 / KN4132 User Manual Network........... 97 IP Installer .
Page 9 KN2132 / KN4116 / KN4132 User Manual Chapter 10. Download Overview ..........119 Chapter 11.
Page 10 KN2132 / KN4116 / KN4132 User Manual Appendix Safety Instructions ......... 149 General .
Page 11: About This Manual
Chapter 4, Logging In, describes how to log in to the KN2132 / KN4116 / KN4132 with each of the available access methods: from a local console; an internet browser; a stand-alone Windows application (AP) program; and a stand-alone Java application (AP) program.
Page 12 KN2132 / KN4116 / KN4132 User Manual Chapter 11, Port Operation, provides detailed information on accessing and operating the devices connected to the KN2132 / KN4116 / KN4132’s ports. Chapter 12, The Log Server, explains how to install and configure the Log Server.
Page 13: Conventions
For information about all ALTUSEN products and how they can help you connect without limits, visit ALTUSEN on the Web or contact an ALTUSEN Authorized Reseller. Visit ALTUSEN on the Web for a list of locations and telephone numbers: International http://www.aten.com...
Page 14 KN2132 / KN4116 / KN4132 User Manual This Page Intentionally Left Blank...
Page 15: Chapter 1. Introduction
Introduction Overview The KN2132 / KN4116 / KN4132 are IP-based KVM control units that allow both local and remote operators to monitor and access multiple computers from a single console. For example, a single KN4132 can control up to 32 computers.
Page 16 – ensuring multi-platform operability. The client software allows operators to exchange keyboard, video and mouse signals with the computers attached to the KN2132 / KN4116 / KN4132 just as if they were present locally and working on the equipment directly.
Page 17: Features
32 computers – up to 512 computers in a two-level cascade Two 10/100/1000 Mbps NICs for redundant LAN or two IP operation Two IP design supports 2 (KN2132) or 4 (KN4116/KN4132) remote sessions Multi-user support – up to 64 user accounts – 1 local and 2 (KN2132) or 4 (KN4116/KN4132) remote users can simultaneously access separate ports –...
Page 18 KN2132 / KN4116 / KN4132 User Manual Mouse DynaSync for USB mice – local and remote mouse movement are the same – no need to constantly resync the two movements Windows-based Log Server Supports all major server platforms and VT100 based serial devices...
Page 19: System Requirements
Computers The following equipment must be installed on the computers that connect to the KN4132's KVM ports: A VGA, SVGA or Multisync port For USB KVM Adapter Cable Connections: a Type A USB port and USB host controller...
Page 20: Video
KVM Adapter Cables Cat 5e (or higher) cable is required to connect the KN2132 / KN4116 / KN4132 to one of the KVM Adapter Cables (see Single Stage Installation Diagram, page 18). The following KVM Adapter Cables are required for use with the KN2132...
Page 21: Operating Systems
/ KN4132 include Windows 2000 and higher, and those capable of running Sun's Java Runtime Environment (JRE) 6, Update 3, or higher. Browsers Supported browsers for users that log into the KN2132 / KN4116 / KN4132 include the following: Browser...
Page 22: Components
Note: The figure, shows the front panel of a KN2132 / KN4132. The KN4116 differs in that it only has a single row of port LEDs.
Page 23 KN4116 / KN4132 is running performs a system reset. Pressing and holding this switch in for more than three seconds when the KN2132 / KN4116 / KN4132 is running resets its configuration to the factory default settings. Note: This does not clear User Account information.
Page 24: Rear View
The Cat 5e cables that link the KN4132 to the KVM Adapter Cables (which connect to the computers), plug in here. Note: The figure, above, shows the rear panel of a KN2132 / KN4132 with two blocks of 16 KVM ports (32 ports in total). The KN4116 differs in...
Page 25: Chapter 2. Hardware Setup
Overview For convenience and flexibility that allows mixing the PS/2 and USB interfaces, as well as multiple platforms, the KN2132 / KN4116 / KN4132's design utilizes KVM Adapter Cables, that serve as intermediaries between the switch and the connected devices (refer to the installation diagram on p. 16).
Page 26: Stacking And Rack Mounting
To place the KN2132 / KN4116 / KN4132, or to stack units if you are daisy chaining them, remove the backing material from the bottom of the rubber feet that came with this package, and stick them onto the switch’s bottom panel at...
Page 27: Rack Mounting
Chapter 2. Hardware Setup Rack Mounting The KN2132 / KN4116 / KN4132 can be mounted in a 19" (1U) rack. The mounting brackets can screw into either the front or the back of the unit so that it can attach to the front or the back of the rack.
Page 28 KN2132 / KN4116 / KN4132 User Manual 3. Position the device in the front of the rack and align the holes in the mounting brackets with the holes in the rack. 4. Screw the mounting brackets to the rack. Note: Cage nuts are provided for racks that are not prethreaded.
Page 29: Rack Mounting - Rear
Chapter 2. Hardware Setup Rack Mounting - Rear To mount the unit at the rear of the rack, do the following: 1. Remove the two screws at the rear of the unit: Phillips head hex M3 x 6 2. Use the M3 x 8 Phillips head hex screws supplied with the rack mounting kit to screw the rack mounting brackets into the rear of the unit: Phillips head hex M3 x 8...
Page 30 KN2132 / KN4116 / KN4132 User Manual 3. Position the device in the rack and align the holes in the mounting brackets with the holes in the rack. 4. Screw the mounting brackets to the rear of the rack. Note: Cage nuts are provided for racks that are not prethreaded.
Page 31: Single Station Installation
Single Station Installation In a Single Stage installation, there are no additional switches cascaded from the KN2132 / KN4116 / KN4132. To set up a single stage installation, refer to the installation diagrams starting on page 18 (the numbers in the diagram correspond with the numbers of the instruction steps), and do the following: 1.
Page 32: Single Stage Installation Diagram
9. Plug the power cord supplied with this package into the KN2132 / KN4116 / KN4132’s Power Socket, and then into an AC power source. After the KN2132 / KN4116 / KN4132 is cabled up you can turn on the power. After it is powered up, you can turn on the computers.
Page 33: Adapter Module Connection Diagram
Chapter 2. Hardware Setup Adapter Module Connection Diagram KA9131 KA9120 KA9170 KA9130 KA7140 KA9140 SERIAL TERMINAL...
Page 34: Two Stage Installation
Two Stage Installation To control even more computers, up to 32 additional KVM switches can be cascaded from the KVM ports of the KN2132 / KN4116 / KN4132. As many as 512 computers can be controlled in a complete two stage installation.
Page 35: Two Stage Installation Diagram
After all the Second Stage units have been powered on, the First Stage unit must be powered on next. After the Second and First stage units have been powered on, the computers can be powered on. Two Stage Installation Diagram KN4132 KH1516 KA9120...
Page 36: Hot Plugging
Powering Off and Restarting If it becomes necessary to power off the KN2132 / KN4116 / KN4132, or if the switch loses power and needs to be restarted, wait 10 seconds before powering it back on. The computers should not be affected by this, but if any of them...
Page 37: Port Id Numbering
Chapter 2. Hardware Setup Port ID Numbering Each computer on the installation is assigned a unique Port ID. The Port ID is a one or two segment number that is determined by the Stage Level and KVM Port number of the KVM switch that the computer is connected to. The first segment represents the KVM Port number of the First Stage unit;...
Page 38 KN2132 / KN4116 / KN4132 User Manual This Page Intentionally Left Blank...
Page 39: Super Administrator Setup
Chapter 3 Super Administrator Setup Overview The KN2132 / KN4116 / KN4132 supports three types of user, as shown in the table, bellow: User Type Role Super Administrator Access and manage ports and devices. Manage Users, and Groups. Configure the overall installation. Configure personal working environment.
Page 40 KN2132 / KN4116 / KN4132 User Manual Since this is the first time you are logging in, use the default Username: administrator; and the default Password: password. Note: For security purposes, you should change these to a unique Username and Password. (See Changing the Super Administrator Login, page 28 for details.)
Page 41: Network Setup
Chapter 3. Super Administrator Setup Network Setup To set up the network, do the following: 1. Click Device Management 2. Select the Network tab. Fill in the fields according to the information provided under Network, page 97.
Page 42: Changing The Super Administrator Login
KN2132 / KN4116 / KN4132 User Manual Changing the Super Administrator Login To change the default Super Administrator Username and Password, do the following: 1. At the top of the screen, click User Management. The User Management page has a list of Users and Groups in the left hand panel, and a more detailed list of users –...
Page 43 Chapter 3. Super Administrator Setup (Continued from previous page.) The User Information page appears: 3. Change the Username and Password to something unique. 4. Re-enter the password to confirm it is correct. 5. Click Save. 6. When the dialog box informing you that the change completed successfully appears, click OK.
Page 44: Moving On
User Management, Device Management, and Firmware Upgrade Maintenance. These activities can be accomplished using any of the KN2132 / KN4116 / KN4132’s GUI utilities: the Local Console; the browser-based Java applet; the stand-alone Windows Client AP; or the stand-alone Java Client AP. Choose the approach that suits you best.
Page 45: Chapter 4. Logging In
Local Console Login When the local console is attached (see Single Station Installation, page 17) and there is no user logged in, the KN2132 / KN4116 / KN4132’s login screen appears on the display: 5. Simply key in your Username and Password, then click Login to bring up the KN2132 / KN4116 / KN4132’s OSD Main Page.
Page 46: Browser Login
Java web site: http://java.com. 1. To access the switch, do the following:Open the browser and specify the IP address of the KN2132 / KN4116 / KN4132 you want to access in the browser's location bar. Note: For security purposes, a login string may have been set by the administrator.
Page 47: Windows Client Ap Login
You initially download the Windows AP Client program from the browser page (see Chapter 10, Download). To connect to the KN2132 / KN4116 / KN4132, go to the location on your hard disk that you downloaded the Windows AP Client program to, and double-click its icon (WinClient.exe) to bring up the Windows Client Connection Screen: (Continues on next page.)
Page 48: The Connection Screen
Lists status messages regarding the connection to the KN2132 / KN4116 / KN4132. Switch to Remote View Once a connection with a KN2132 / KN4116 / KN4132 has been established, this button becomes active. Click it to switch to the KN2132 / KN4116 / KN4132’s Main OSD Page.
Page 49: The File Menu
The Tools Menu Tools menu operations are performed after you connect to the KN2132 / KN4116 / KN4132, but before you switch to remote view. There are two entries on the Tools Menu: Hotkey Setup, and Control Panel. Hotkey Setup is explained in the next section.
Page 50: Hotkey Setup
KN2132 / KN4116 / KN4132 User Manual Hotkey Setup Various actions related to manipulating the remote server can be accomplished with hotkeys. The Hotkey Setup utility lets you configure which hotkeys perform the actions. The actions are listed in the left panel; the hotkeys that invoke them are shown in the panel at the right.
Page 51: Control Panel Configuration
Chapter 4. Logging In Control Panel Configuration Once a connection to the KN2132 / KN4116 / KN4132 has been established, a Control Panel entry appears on the Connection Screen’s Tools menu. Click the menu item to bring up a dialog box that allows you to configure the items that...
Page 52 Snapshot These settings let the user configure the KN2132 / KN4116 / KN4132’s screen capture parameters (see the Snapshot description under The Control Panel, page 43): Path lets you select a directory that the captured screens automatically get saved to.
Page 53: Java Client Ap Login
You initially download the Java AP Client program from the browser page (see Chapter 10, Download). To connect to the KN2132 / KN4116 / KN4132, go to the location on your hard disk that you downloaded the Java AP Client program to, and double-click its icon (JavaClient.jar) to bring up the Address Input...
Page 54 2. Click OK. A Login dialog box appears: 3. Provide a valid Username and Password, and then click OK to switch to the KN2132 / KN4116 / KN4132’s OSD Main Page. For a description of the OSD Main Page, see page 41.
Page 55: Chapter 5. The Osd Main Page
Chapter 5 The OSD Main Page Overview After you have successfully logged in, the KN2132 / KN4116 / KN4132 Main OSD Page appears. This chapter describes the OSD Main Page elements The Main OSD Page When the OSD comes up, the Port Access page is displayed. There is an icon...
Page 56: Osd Icon Bar
Click this icon to close the OSD page and go to the display of the the last selected port. Click this icon to brings up a panel with information about the KN2132 / KN4116 / KN4132’s firmware version. Click this icon to log out and end your KN2132 / KN4116 / KN4132 session.
Page 57: The Control Panel
Configuration, page 37, for details. 2. Refer to the Note on page 129 for further information regarding the KN2132 / KN4116 / KN4132’s bus assignments. 3. Right clicking in the text row area brings up a menu that allows you...
Page 58: Control Panel Functions
KN2132 / KN4116 / KN4132 User Manual Control Panel Functions The Control Panel functions are described in the table below. Icon Function This is a toggle. Click to make the Control Panel persistent – i.e., it always displays on top of other screen elements. Click again to have it display normally.
Page 59 Chapter 5. The OSD Main Page (Continued from previous page.) Icon Function Click to bring up the on-screen keyboard (see The On-Screen Keyboard, page 54). Click to select the mouse pointer type. Note: This icon changes depending on which mouse pointer type is selected (see Mouse Pointer Type, page 55).
Page 60: Hotkey Setup
KN2132 / KN4116 / KN4132 User Manual Hotkey Setup Various actions related to manipulating the remote server can be accomplished with hotkeys. The Hotkey Setup utility (accessed by clicking this icon), lets you configure which hotkeys perform the actions. Note: This feature is only available with the Windows Client AP version.
Page 61 Substitute Alt key Although all other keyboard input is captured and sent to the KN2132 / KN4116 / KN4132, [Alt + Tab] and [Ctrl + Alt + Del] work on your local computer. In order to implement their effects on the remote system, another key may be substituted for the Alt key.
Page 62: Video Settings
KN2132 / KN4116 / KN4132 User Manual Video Settings Clicking the Hammer icon on the Control Panel brings up the Video Settings dialog box. The options in this dialog box allow you to adjust the placement and picture quality of the remote screen on your monitor:...
Page 63 Enable Refresh The KN2132 / KN4116 / KN4132 can redraw the screen every 1 to 99 seconds, eliminating unwanted artifacts from the screen. Select Enable Refresh and enter a number from 1 through 99.
Page 64: Gamma Adjustment
KN2132 / KN4116 / KN4132 User Manual Gamma Adjustment If it is necessary to correct the gamma level for the remote video display, use the Gamma function of the Video Adjustment dialog box. Under Basic configuration, there are ten preset and four user-defined levels to choose from.
Page 65: The Message Board
Chapter 5. The OSD Main Page The Message Board The KN2132 / KN4116 / KN4132 supports multiple user logins, which can possibly give rise to access conflicts. To alleviate this problem, a message board feature has been provided, allowing users to...
Page 66: The Button Bar
KN2132 / KN4116 / KN4132 User Manual The Button Bar The buttons on the Button Bar are toggles. Their actions are described in the table below: Button Action Enable/Disable Chat. When disabled, messages posted to the board are not displayed. The button is shadowed when Chat is disabled. The icon displays next to the user's name in the User List panel when the user has disabled Chat.
Page 67: User List Panel
Chapter 5. The OSD Main Page User List Panel The names of all the logged in users are listed in this panel. Your name appears in blue; other users' names appear in black. By default, messages are posted to all users. To post a message to one individual user, select the user's name before sending your message.
Page 68: The On-Screen Keyboard
KN2132 / KN4116 / KN4132 User Manual The On-Screen Keyboard The KN2132 / KN4116 / KN4132 supports an on-screen keyboard, available in multiple languages, with all the standard keys for each supported language. Click this icon to pop up the on-screen keyboard: One of the major advantages of the on-screen keyboard is that if the keyboard languages of the remote and local systems aren’t the same, you don’t have to...
Page 69: Mouse Pointer Type
To display/hide the expanded keyboard keys, click the arrow to the right of the language list arrow. Mouse Pointer Type The KN2132 / KN4116 / KN4132 offers a number of mouse pointer options when working in the remote display. Click this icon to select from the available choices: Note: 1.
Page 70: Mouse Dynasync Mode
Note: This feature is only available for Windows and Mac systems (G4 and higher) connected to the KN2132 / KN4116 / KN4132 with a KA9170 KVM Adapter, and whose adapter attribute OS setting is configured for Win or Mac (see Port Properties, page 63). All other configurations must use manual mouse synchronization (described in the next section).
Page 71: Manual Mouse Synchronization
Chapter 5. The OSD Main Page (Continued from previous page.) Note: For Mac systems, there are two automatic settings to choose from. If mouse synchronization is not satisfactory with the default, try the Mac 2 setting. To select Mac 2, right click in the text area of the Control Panel and →...
Page 72: Osd Hotkeys
KN2132 / KN4116 / KN4132 User Manual OSD Hotkeys A means of navigating the OSD from the keyboard is provided via the KN2132 / KN4116 / KN4132’s OSD hotkey function. The operations performed by the OSD hotkeys are shown in the table, below: Hotkey...
Page 73: Chapter 6 Port Access
Port Access Overview When you log in to the KN2132 / KN4116 / KN4132, the OSD comes up with the Port Access page displayed. The page is organized into two main areas. All the ports that a user is permitted to access are listed in the Port Selection panel at the left of the page.
Page 74: The Port Selection Panel
KN2132 / KN4116 / KN4132 User Manual The Port Selection Panel All switches and their ports – including cascaded switches and their ports – are listed in a tree structure in the panel at the left of the screen: The Port Selection List Users only see the switches and ports that they have access permission for.
Page 75: Port Configuration
Chapter 6. Port Access Port Configuration To configure a switch or port right click its icon. A list with various options pops up. The items on the list vary depending on your user type, and whether you selected a switch or a port. The screenshot below, shows the available items: The meanings of the configuration items are explained in the following table: Item...
Page 76: Port Naming
KN2132 / KN4116 / KN4132 User Manual (Continued from previous page.) Item User Type Explanation Export Administrators This item is only available for switches. It allows Configuration you to save the configuration settings for the switch in an external file (SysConfig.cfg). Simply click Export Config;...
Page 77: Port Properties
Chapter 6. Port Access 2. Key in a name for the port (or change/delete a previous one). The maximum number of characters allowed for a port name is 19. You can use any combination of letters, numbers, and symbols on the typewriter keys of keyboards with PC US English layout.
Page 78 KN2132 / KN4116 / KN4132 User Manual (Continued from previous page.) The Port Properties dialog box allows you to make configuration settings for the selected port. An explanation of the configuration fields is given in the table, below: Field Explanation...
Page 79: Scan
Chapter 6. Port Access (Continued from previous page.) Field Explanation Timeout This field sets a time threshold for users on ports whose Access Mode has been set to Occupy (see Access Mode – above, in this table). If there is no activity from the user occupying the port for the amount of time set here, the user is timed out and the port is released.
Page 80: Filter
KN2132 / KN4116 / KN4132 User Manual Filter Filter allows you to control the number and type of ports that display in the Port Selection List, as well as which ports get scanned when Auto Scan Mode is invoked (see Scan, page 65). When you click Filter, the bottom of the panel changes to look similar to the figure, below: All –...
Page 81: The Information And Configuration Notebook
Chapter 6. Port Access The Information and Configuration Notebook The larger panel at the right of the Port Access Main Page is represented as a tabbed notebook: Click a tab to open its related page. This section discusses each of the pages. History The History page (shown above) provides a record of each time that a port was accessed.
Page 82: Favorites
KN2132 / KN4116 / KN4132 User Manual Favorites This is similar to a Bookmarks feature. Ports that you frequently visit can be saved in a list here. Simply open this page and select the port – rather than hunting for it in the port tree. This feature is especially handy on large, crowded installations.
Page 83: Modifying A Favorite
Chapter 6. Port Access (Continued from previous page.) 3. To add a port: Drag it from the Port Select list and drop it onto the container – or – Right click on it; select Copy. Right click on the container; select Paste. The switch that the port belongs to is added to the container;...
Page 84: User Settings
User Settings The User Settings page allows users to set up their own, individual, working environments. The KN2132 / KN4116 / KN4132 stores a separate configuration record for each user profile, and sets up the working configuration according to the Username that was keyed into the Login dialog box: (Continues on next page.)
Page 85 If there is no user input for the amount of time set with this function, the user is automatically logged out. A login is necessary before the KN2132 / KN4116 / KN4132 can be accessed again. Beeper When set to ON, the beeper sounds whenever a Port is changed;...
Page 86: Log
KN2132 / KN4116 / KN4132 User Manual The KN2132 / KN4116 / KN4132 logs all the events that take place on it. The Log page displays the information in the log file: Note: The Log tab only appears for administrators and users who have been given permission to view the log file (see Access, page 75).
Page 87: Filter
Chapter 6. Port Access Filter Filter allows you to search for particular events by date or by specific words or strings. When you access this function, the log filter dialog box displays at the bottom of the page: A description of the items is given in the table, below: Item Description Priority...
Page 88: Sessions
Sessions The Session page lets the administrator see at a glance all the users currently logged into the KN2132 / KN4116 / KN4132, and provides information about each of their sessions. Note: 1. The Session tab only appears in Administrator sessions. It isn’t available for ordinary users.
Page 89: Access
Chapter 6. Port Access Access Administrators use the Access page to set user and group access and configuration rights for switches and ports. The page is organized into three main areas: a large Main panel; a Status panel at the lower left, and a Properties panel at the lower right Note: The Access tab only appears in Administrator sessions.
Page 90 √ mark ( ) indicates that the user has permission to make changes to the KN2132 / KN4116 / KN4132’s configuration settings (see Chapter 8, Device Management); an X means that the user is denied permission to make configuration changes.
Page 91: The Main Panel - Ports
Chapter 6. Port Access The Main Panel – Ports If a port is chosen in the Port Selection List, the Main panel looks similar to the one shown below: Name lists all the users and groups that have been created. The input box at the top of the column allows you to key in a search condition so that only user or group names that match what you key in show up in the List.
Page 92: The Status Panel
KN2132 / KN4116 / KN4132 User Manual The Status Panel The Status panel provides information about the online status of a selected port, and the KVM Adapter cable attached to it: Note: This panel is inactive (as shown in the previous screenshot), when a switch is selected in the Port Select list.
Page 93: Chapter 7. User Management
Chapter 7 User Management Overview The User Management page allows super administrators and administrators to create, modify, and delete users and groups, and assign attributes to them. Note: This page is for super administrators and administrators only. Ordinary users can go directly to Chapter 11, Port Operation. The Main Page The page is organized into two main areas.
Page 94: Users
KN2132 / KN4116 / KN4132 User Manual The section located below the Users and Groups list provides a filter that allows you to expand or narrow the scope of the names that appear in the list. The buttons below the main panel are used in managing users and groups, as shown in the sections that follow.
Page 95 Windows Client allows a user to download the Windows Client software, and access the KN2132 / KN4116 / KN4132 with it, in addition to (or instead of) the browser access method. Java Client allows a user to download the Java...
Page 96 KN2132 / KN4116 / KN4132 User Manual (Continued from previous page.) Field Description Status Status allows you to control the user’s account and access to the installation, as follows: Disable Account lets you suspend a user’s account without actually deleting it, so that it can be easily reinstated in the future.
Page 97 Chapter 7. User Management 7. Click Users in the List panel to return to the main screen. The new user appears in the list and in the main panel, as well. The Users List can expand and collapse. If the list is expanded, click the minus symbol ( –...
Page 98: Modifying User Accounts
KN2132 / KN4116 / KN4132 User Manual Modifying User Accounts To modify a user account, do the following: 1. In the User list, click the user’s name – or – In the main panel, select the user’s name, then click Modify.
Page 99: Groups
Chapter 7. User Management Groups Groups allow administrators to easily and efficiently manage users and devices. Since device access rights apply to anyone who is a member of the group, administrators need only set them once for the group, instead of having to set them for each user individually.
Page 100 Windows Client allows group members to download the Windows Client software, and access the KN2132 / KN4116 / KN4132 with it, in addition to (or instead of) the browser access method. Java Client allows group members to download the...
Page 101: Modifying Groups
Chapter 7. User Management 7. Click Group in the List panel to return to the main screen. The new group appears in the list and in the main panel, as well. The Groups List can expand and collapse. If the list is expanded, click the minus symbol ( –...
Page 102: Users And Groups
KN2132 / KN4116 / KN4132 User Manual Users and Groups There are two ways to assign users to – and remove users from – groups: from the Users notebook; and from the Group notebook. Note: Before you can assign users to groups, you must first create them.
Page 103: Removing Users From A Group From The User's Notebook
Chapter 7. User Management Removing Users From a Group From the User’s Notebook To remove a user from a group from the User’s notebook, do the following: 1. In the User list, click the user’s name – or – In the main panel, select the user’s name, then click Modify. 2.
Page 104: Assigning Users To A Group From The Group's Notebook
KN2132 / KN4116 / KN4132 User Manual Assigning Users to a Group From the Group’s Notebook To assign a user to a group from the Group notebook, do the following: 1. In the Group list, click the group’s name – or –...
Page 105: Removing Users From A Group From The Group's Notebook
Chapter 7. User Management Removing Users From a Group From the Group’s Notebook To remove a user from a group from the Group’s notebook, do the following: 1. In the Group list, click the group’s name – or – In the main panel, select the group’s name, then click Modify. 2.
Page 106: Device Assignment
KN2132 / KN4116 / KN4132 User Manual Device Assignment When a user logs in to the KN2132 / KN4116 / KN4132, the OSD comes up with the Port Access page displayed. All the ports that the user is permitted to access are listed in the Port Selection panel at the left of the page.
Page 107 5. Under View Log, click the icon to toggle the choices. A check mark ( indicates that the user has permission to view the KN2132 / KN4116 / KN4132’s log files; an X means that the user is denied permission to view the files.
Page 108: Filters
KN2132 / KN4116 / KN4132 User Manual (Continued from previous page.) Filters There are three filters at the top of the page that allow you to expand or limit the scope of the ports that are displayed, as described in the following table:...
Page 109: Chapter 8. Device Management
Chapter 11, Port Operation. The Main Page The page is organized into two main areas. All KN2132 / KN4116 / KN4132 switches – as well as compatible cascaded switches – appear in the panel at the left of the page.
Page 110: General
Simply delete the switch’s number and key in the name of your choice. MAC1 Address The KN2132 / KN4116 / KN4132 supports two network interfaces. This item displays the MAC address of the first interface. MAC2 Address The KN2132 / KN4116 / KN4132 supports two network interfaces.
Page 111: Network
IP Installer utility. See IP Installer, page 153, for IP Installer details. Note: 1. If you select View Only, you will be able to see the KN2132 / KN4116 / KN4132 in the IP Installer’s Device List, but you will not be able to change the IP address.
Page 112: Nic Settings
If you choose not to enable the Redundant NIC function, the two NICs can be configured with separate interfaces. Users can log into the KN2132 / KN4116 / KN4132 with either IP address. To set up the switch with this configuration, the do the following: 1.
Page 113: Ip Address
Chapter 8. Device Management IP Address The KN2132 / KN4116 / KN4132 can either have its IP address assigned dynamically (DHCP), or it can be given a fixed IP address. For dynamic IP address assignment, select the Obtain IP address automatically radio button.
Page 114: Security
If any filters have been configured, they appear in the IP Filter and/or MAC Filter list boxes. IP and MAC Filters control access to the KN2132 / KN4116 / KN4132 based on the IP and/or MAC addresses of the computers attempting to connect. A maximum of 100 IP filters and 100 MAC filters are allowed.
Page 115: Adding Filters
Chapter 8. Device Management Adding Filters To add a filter, do the following: 1. After enabling IP and/or MAC filtering, click Add. A dialog box similar to the ones below appears: Note: Each IP filter can consist of a single address, or a range of addresses. To filter a single IP address, key in the same address in both the From and To fields.
Page 116: Login String
Note: 1. There must be a forward slash between the IP address and the string. 2. If no login string is specified here, anyone will be able to access the KN2132 / KN4116 / KN4132 login page using the IP address alone. This makes your installation less secure.
Page 117: Customization
Chapter 8. Device Management Customization The Customization page is used to set Login Failure, Working Mode, and Miscellaneous parameters. Login Failures Allowed sets the number of consecutive failed login attempts that are permitted from a remote computer. Timeout sets the amount of time a remote computer must wait before attempting to login again after it has exceeded the number of allowed failures.
Page 118: Working Mode
KN2132 / KN4116 / KN4132 User Manual Working Mode If ICMP is enabled, the KN2132 / KN4116 / KN4132 can be pinged and an IP address can be assigned with the ARP command. If it is not enabled, the device cannot be pinged, nor can it be assigned an IP address with the ARP command.
Page 119: Adapter Attributes
Chapter 8. Device Management Adapter Attributes The Adapter Attribute Settings dialog box looks similar to the figure below: The attribute setting details are the same as the ones that were discussed in Chapter 6, Port Access. Refer back to Port Properties, page 63 for attribute details.
Page 120: Service
Users must specify the port number when they log in. If an invalid port number (or no port number) is specified, the KN2132 / KN4116 / KN4132 will not be found. An explanation of the fields is given in the table below:...
Page 121: Log Server
Chapter 8. Device Management Log Server Important transactions that occur on the KN2132 / KN4116 / KN4132, such as logins and internal status messages, are kept in an automatically generated log file. Specify the MAC address and a port number for the computer that the Log Server resides on in this panel.
Page 122: Anms
It is divided into three main panels, as described, below: RADIUS Settings To allow authentication and authorization for the KN2132 / KN4116 / KN4132 through a RADIUS server, do the following: 1. Check Enable.
Page 123: Ldap / Ldaps Authentication And Authorization Settings
Where xxxx represents the Username given to the user when the account was created on the KN2132 / KN4116 / KN4132. The user’s access rights are the ones assigned for the KN2132 / KN4116 / KN4132, as well. (See Adding Users, page 80.)
Page 124: Date/Time
Set the parameters according to the information below. Time Zone To establish the time zone that the KN2132 / KN4116 / KN4132 is located in, drop down the Time Zone list and choose the city that most closely corresponds to where it is at.
Page 125: Date
Chapter 8. Device Management Date Mouse Setup Click << or >> to move backward or forward by one year increments. Click < or > to move backward or forward by one month increments. In the calendar, click on the day. To set the time, use the 24 hour HH:MM:SS format.
Page 126: Oobc
KN2132 / KN4116 / KN4132 User Manual OOBC In case the KN2132 / KN4116 / KN4132 cannot be accessed with the usual LAN-based methods for some other reason, it can be accessed via the switch’s modem port. This page is used to enable support for PPP (modem) dial in operation.
Page 127: Chapter 9 Maintenance
Overview The Maintenance function is used to upgrade the KN2132 / KN4116 / KN4132’s firmware, as well as the firmware of the KVM Adapter Cables used to connect its ports to the installed devices. Note: This function is for super administrators only. Other users can skip this chapter and go directly to Chapter 11, Port Operation.
Page 128: Firmware File
These are described in the following sections. Firmware File As new versions of the KN2132 / KN4116 / KN4132 firmware become available, they are posted on our website and can be downloaded to a convenient location on your computer from there. When performing an upgrade, you use this section to navigate to where the download file is located.
Page 129: Upgrading The Firmware
KN4132 main firmware as well as the firmware of selected KVM Adapter Cables at the same time. To perform the upgrades, do the following: 1. Go to our website and download the new KN2132 / KN4116 / KN4132 firmware file to a convenient location on your computer.
Page 130: Independent Adapter Firmware Upgrade
To perform the independent upgrades, do the following: 1. Go to our website and download the new KN2132 / KN4116 / KN4132 firmware file to a convenient location on your computer. 2. In the Firmware File section of the Maintenance dialog box, click Browse;...
Page 131: Firmware Upgrade Recovery
Chapter 9. Maintenance Firmware Upgrade Recovery Should the KN2132 / KN4116 / KN4132’s main firmware upgrade procedure fail, and the switch becomes unusable, the following firmware upgrade recovery procedure will resolve the problem: 1. Power off the switch. 2. Press and hold the Reset Switch in (see Reset Switch, page 9 for details).
Page 132 KN2132 / KN4116 / KN4132 User Manual This Page Intentionally Left Blank...
Page 133: Chapter 10. Download
Chapter 10 Download Overview Download is used to download stand-alone AP versions of the Windows Client, the Java Client, the Log Server, and Power Over the Net (PON) programs. When you select this tab, a list of available programs appears: Note: The number and type of programs that appear will vary depending on your User Type.
Page 134 KN2132 / KN4116 / KN4132 User Manual This Page Intentionally Left Blank...
Page 135: Chapter 11. Port Operation
Overview After you have successfully logged in (see Logging In, page 31), the KN2132 / KN4116 / KN4132 Main OSD Page appears with the Port Access tab selected: Note: 1. There is a hidden Control Panel at the upper or lower center of the screen that becomes visible when you mouse over it.
Page 136: The Osd Toolbar
KN2132 / KN4116 / KN4132 User Manual (Continued from previous page.) Once you switch to a port, its screen displays on your monitor, and your keyboard and mouse input affects the remote system: The OSD Toolbar The OSD provides a toolbar to help you with port switching operations from within the captured port.
Page 137: The Toolbar Icons
OSD. Click to begin Auto Scan Mode. The KN2132 / KN4116 / KN4132 automatically switches among the ports that were selected for Auto Scanning with the Port Select and Filter functions (see Filter, page 66). This allows you to monitor their activity without having to switch among them manually.
Page 138: Toolbar Hotkey Port Switching
KN2132 / KN4116 / KN4132 User Manual Toolbar Hotkey Port Switching When the toolbar displays, you can use hotkeys to provide KVM focus to a port directly from the keyboard. The KN2132 / KN4116 / KN4132 provides the following hotkey features: Auto Scanning Skip Mode Switching The hotkeys are: A and P for Auto Scanning;...
Page 139: Pausing Auto Scan
Chapter 11. Port Operation Pausing Auto Scan While you are in Auto Scan Mode, you can pause the scanning in order to keep the focus on a particular computer by pressing P. During the time that Auto Scanning is paused, the S in front of the Port ID blinks On and Off. Pausing when you want to keep the focus on a particular computer can be more convenient than exiting Auto Scan Mode because when you Resume scanning, you start from where you left off.
Page 140: Recalling The Osd
KN2132 / KN4116 / KN4132 User Manual Recalling the OSD To dismiss the toolbar and bring back the Main OSD display (the Port Access page), do one of the following: Tap the OSD Hotkey once. From the toolbar, click the icon that opens the OSD (see The Toolbar Icons, page 123).
Page 141: Panel Array Mode
OSD divides your screen into a grid of up to 42 panels: Each panel represents one of the KN2132 / KN4116 / KN4132's ports beginning with Port 1 at the upper left, and going from left to right; top to bottom.
Page 142: Panel Array Toolbar
KN2132 / KN4116 / KN4132 User Manual Panel Array Toolbar The panel array toolbar, at the lower right of the screen, provides shortcut navigation and control of the panel array as described in the table below: Click and drag to move the toolbar to another position on the screen.
Page 143: Multiuser Operation
When a user changes to a port everyone on the same bus changes to that port, as well. 2. The KN4116 and KN4132 support four remote buses. The first, fifth, ninth, etc. users are all on the first bus; the second, sixth, 10th, etc.;...
Page 144 KN2132 / KN4116 / KN4132 User Manual This Page Intentionally Left Blank...
Page 145: Chapter 12. The Log Server
The Log Server The Windows-based Log Server is an administrative utility that records all the events that take place on selected KN2132 / KN4116 / KN4132 units and writes them to a searchable database. This chapter describes how to install and configure the Log Server.
Page 146: Starting Up
The screen is divided into three components: A Menu Bar at the top A panel that will contain a list of KN2132 / KN4116 / KN4132 units in the middle (see The Log Server Main Screen, page 137). A panel that will contain an Events List at the bottom...
Page 147: The Menu Bar
The Configure menu contains three items: Add; Edit; and Delete. They are used to add new KN2132 / KN4116 / KN4132 units to the KN2132 / KN4116 / KN4132 List; edit the information for units already on the list; or delete KN2132 / KN4116 / KN4132 units from the list.
Page 148: Events
A description of the fields is given in the table, below: Field Explanation Address This can either be the IP address of the KN2132 / KN4116 / KN4132 or its DNS name (if the network administrator has assigned it a DNS name). Port The port number that was assigned to the Log Server(see Service, page 106).
Page 149: Maintenance
Server List KN2132 / KN4116 / KN4132 units are listed according to their IP address. Select the unit that you want to perform the search on from this list. You can select more than one unit for the search.
Page 150: Options
KN2132 / KN4116 / KN4132 User Manual Options Network Retry allows you to set the number of seconds that the Log Server should wait before attempting to connect if its previous attempt to connect failed. When you click this item, a dialog box, similar to the one below, appears: Key in the number of seconds, then click OK to finish.
Page 151: The Log Server Main Screen
KN2132 / KN4116 / KN4132. (If there are more than one unit, the selected unit is the one that is highlighted). To select a KN2132 / KN4116 / KN4132 unit in the list, simply click on it. (Continues on next page.)
Page 152: The List Panel
The Event Panel The lower panel displays log events for the currently selected KN2132 / KN4116 / KN4132. Note that if there are more than one KN2132 / KN4116 / KN4132 units, even though they aren't currently selected, if their Recording checkbox is checked, the Log Server records their log events and keeps them in its database.
Page 153: Ldap Server Configuration
To allow authentication and authorization for the KN2132 / KN4116 / KN4132 via LDAP or LDAPS, the Active Directory’s LDAP Schema must be extended so that an extended attribute name for the KN2132 / KN4116 / KN4132 – iKVM4140-userProfile – is added as an optional attribute to the person class.
Page 154: Install The Active Directory Schema Snap-In
KN2132 / KN4116 / KN4132 User Manual Install the Active Directory Schema Snap-in To install the Active Directory Schema Snap-in, do the following: 1. Open a Command Prompt. 2. Key in: regsvr32 schmmgmt.dll to register schmmgmt.dll on your computer. 3. Open the Start menu; click Run; key in: mmc /a; click OK.
Page 155: Extend And Update The Active Directory Schema
Chapter 13. LDAP Server Configuration Extend and Update the Active Directory Schema To extend and update the Active Directory Schema, you must do the following 3 procedures: 1) create a new attribute; 2) extend the object class with the new attribute;...
Page 156 KN2132 / KN4116 / KN4132 User Manual (Continued from previous page.) 5. Fill in the dialog box to match the entries for Description and Common Name shown below, then click OK to complete the procedure. Note: The Unique X500 Object ID uses periods, not commas.
Page 157: Extending The Object Class With The New Attribute
Chapter 13. LDAP Server Configuration Extending the Object Class With the New Attribute To extend the object class with the new attribute, do the following: → → 1. Open the Control Panel Administrative Tools Active Directory Schema. 2. In the left panel of the screen that comes up, select Classes. 3.
Page 158 KN2132 / KN4116 / KN4132 User Manual 5. On the Attributes page, click Add: 6. In the list that comes up, select iKVM4140-userProfile, then click OK to complete the procedure.
Page 159: Editing Active Directory Users
Chapter 13. LDAP Server Configuration Editing Active Directory Users To edit Active Directory Users With the Extended Schema, do the following: 1. Run ADSI Edit. (Installed as part of the Support Tools.) 2. In the left panel, open Domain, and navigate to the DC=aten,DC=com CN=Users node.
Page 160 KN2132 / KN4116 / KN4132 User Manual (Continued from previous page.) 5. On the Attribute Editor page of the dialog box that appears, select iKVM4140-userProfile from the list. 6. Click Edit to bring up the String Attribute Editor: (Continues on next page.)
Page 161 Chapter 13. LDAP Server Configuration (Continued from previous page.) 7. Key in the KN2132 / KN4116 / KN4132 permission attribute values. For example: Note: Where user represents the Username of a KN2132 / KN4116 / KN4132 user whose permissions reflect the permissions you want Jason to have (see Users, page 80).
Page 162 KN2132 / KN4116 / KN4132 User Manual This Page Intentionally Left Blank...
Page 163: Appendix
Appendix Safety Instructions General Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. Do not use the device near water.
Page 164 KN2132 / KN4116 / KN4132 User Manual extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes. To help protect your system from sudden, transient increases and decreases in electrical power, use a surge suppressor, line conditioner, or un-interruptible power supply (UPS).
Page 165: Rack Mounting
Appendix Rack Mounting Before working on the rack, make sure that the stabilizers are secured to the rack, extended to the floor, and that the full weight of the rack rests on the floor. Install front and side stabilizers on a single rack or front stabilizers for joined multiple racks before working on the rack.
Page 166: Technical Support
KN2132 / KN4116 / KN4132 User Manual Technical Support Technical support is available both by email and online (with a browser over the web): International Email Support support@aten.com Online Technical Support http://support.aten.com Support Troubleshooting http://www.aten.com Documentation Software Updates Telephone Support...
Page 167: Ip Address Determination
If you are an administrator logging in for the first time, you need to access the KN2132 / KN4116 / KN4132 in order to give it an IP address that users can connect to. There are three methods to choose from. In each case, your computer must be on the same network segment as the KN2132 / KN4116 / KN4132.
Page 168: Browser
2. Specify the switch's default IP address (192.168.0.60) in your browser, and you will be able to connect. 3. Assign a fixed IP address for the KN2132 / KN4116 / KN4132 that is suitable for the network segment that it resides on.
Page 169: Port Forwarding
For example, if the KN2132 / KN4116 / KN4132 connected to a particular router has an IP address of 192.168.1.180, you would log into your router’s setup program and access the Port Forwarding (sometimes referred to as Virtual Server) configuration page.
Page 170: Ppp Modem Operation
KN2132 / KN4116 / KN4132 User Manual PPP Modem Operation Basic Setup In addition to the browser and AP methods, the KN2132 / KN4116 / KN4132 can also be accessed through its RS-232 port using a PPP dial-in connection, as follows: 1.
Page 171: Connection Setup Example (Windows Xp)
Appendix Connection Setup Example (Windows XP) To set up a dial-in connection to the KN2132 / KN4116 / KN4132 under Windows XP, do the following: → → 1. From the Start menu, select Control Panel Network Connections Create a New Connection.
Page 172: Ka7140 Configuration And Operation
KN2132 / KN4116 / KN4132 User Manual KA7140 Configuration and Operation The KA7140 Adapter Cable connects a serial device to the KN2132 / KN4116 / KN4132. Configuration To configure the KA7140 to interact with the connected device, you need to set its serial parameters to match the parameters of the device, as follows: 1.
Page 173: Troubleshooting
Press and release the Reset switch (see Reset Switch, page 9). I can’t access the KN2132 / If the KN2132 / KN4116 / KN4132 is behind a router, KN4116 / KN4132, even though the router’s Port Forwarding (also referred to as I have specified the IP address Virtual Server) feature must be configured.
Page 174: Mouse Problems
KN2132 / KN4116 / KN4132 User Manual Mouse Problems Symptom Action Mouse and/or Keyboard not Unplug the cable(s) from the console port(s), then plug it/ responding. them back in. Mouse movement There is too much data being transferred for your extremely slow connection to keep up with.
Page 175: Administration
Resolution My KN2132 / KN4116 / Only units whose Access Port settings for Program (see KN4132 units don’t show up page 106) match the number specified for Port in the in the Server List window Server area of this dialog box appear in the Server List when I start the Windows window.
Page 176: Mac Systems
Change the keyboard language of your computer to characters that I input do English-UK. not appear. Use the KN2132 / KN4116 / KN4132’s On-Screen Keyboard and set the on-screen keyboard to the same language that the other system is using. (See The On- Screen Keyboard, page 54.) Java performance Exit the program and start again.
Page 177: Sun Systems
KA9131 you can use it KN2132 / KN4116 / instead of the KA9170. KN4132? * These solutions work for most common Sun VGA cards. If using them fails to resolve the problem, consult the Sun VGA card's manual.
Page 178: The Log Server
KN2132 / KN4116 / KN4132 User Manual The Log Server Problem Resolution The Log Server program The Log Server requires the Microsoft Jet OLEDB 4.0 does not run. driver in order to access the database. This driver is automatically installed with Windows ME, 2000 and XP.
Page 179: Additional Mouse Synchronization Procedures
Note: 1. These procedures are to be performed on the computers attached to the KN2132 / KN4116 / KN4132's ports - not on the computer you are using to access the KN2132 / KN4116 / KN4132.
Page 180: Sun / Linux
KN2132 / KN4116 / KN4132 User Manual 2. Windows XP / Windows Server 2003: → a) Open the Mouse Properties dialog box (Control Panel Mouse) b) Click the Pointer Options tab c) Set the mouse speed to the middle position (6 units in from the left) d) Disable Enhance Pointer Precision 3.
Page 181: Additional Video Resolution Procedures
Appendix Additional Video Resolution Procedures If you are running Windows, and wish to use the refresh rates indicated with an asterisk (*) on page 6, do the following: → → → → 1. Open Control Panel Display Settings Advanced Monitor. 2.
Page 182: Clear Login Information
4. When the Link and 10/100Mbps LEDs flash, power off the switch. 5. Remove the jumper cap from J23. 6. Close the housing and start the KN2132 / KN4116 / KN4132 back up. After powering on the unit, you can use the default Super Administrator...
Page 183: Trusted Certificates
Appendix Trusted Certificates Overview When you try to log in to the device from your browser, a Security Alert message appears to inform you that the device’s certificate is not trusted, and asks if you want to proceed. The certificate can be trusted, but the alert is triggered because the certificate’s name is not found on Microsoft list of Trusted Authorities.
Page 184: Installing The Certificate
KN2132 / KN4116 / KN4132 User Manual Installing the Certificate To install the certificate, do the following: 1. In the Security Alert dialog box, click View Certificate. The Certificate Information dialog box appears: Note: There is a red and white X logo over the certificate to indicate that it is not trusted.
Page 185: Certificate Trusted
Appendix 5. Next, click Finish to complete the installation; then click OK to close the dialog box. Certificate Trusted The certificate is now trusted: When you click View Certificate, you can see that the red and white X logo is no longer present –...
Page 186: Specifications
KN2132 / KN4116 / KN4132 User Manual Specifications Function KN2132 KN4132 Computer Direct Connections Port Selection Pushbutton / OSD / Hotkey Connectors Console Keyboard 1 x 6-pin Mini-DIN Female (Purple) Port 1 x USB Type A Female (White) Video 1 x HDB-15 Female (Blue)
Page 187 Appendix Function KN4116 Computer Direct Connections Connectors Console Keyboard 1 x 6-pin Mini-DIN Female (Purple) Port 1 x USB Type A Female (White) Video 1 x HDB-15 Female (Blue) Mouse 1 x 6-pin Mini-DIN Female (Green) 1 x USB Type A Female (White) KVM Port 16 x RJ-45 Female (Black) Power...
Page 188: Osd Factory Default Settings
KN2132 / KN4116 / KN4132 User Manual OSD Factory Default Settings The factory default settings are as follows: Setting Default OSD Hotkey [Scroll Lock] [Scroll Lock] Port ID Display Port Number + Name Port ID Display Duration 3 Seconds Scan/Skip Mode...
Page 189: Supported Kvm Switches
Appendix Supported KVM Switches The following is a list of fully supported KVM switches that can be used in a cascaded installation: KH88 KH98 KH1508 KH1516 CS9134 CS9138 Note: The installation cannot be cascaded beyond the second level.
Page 190: Limited Warranty
ALTUSEN warrants this product against defects in material or workmanship for a period of one (1) year from the date of purchase. If this product proves to be defective, contact ALTUSEN's support department for repair or replacement of your unit. ALTUSEN will not issue a refund.
Page 191 Index Access, 75 Date/Time Settings, 110 Access Ports, 106 Synchronize, 42 Adapter Attributes, 105 Deleting groups, 87 Adapter cable Deleting user accounts, 84 firmware upgrade recovery, 117 Device Assignment, 92 Adapter Cables Device Management, 95 upgrading, 116 Customization, 103 Adapter connection diagram, 19 General, 96 Adding Users, 80 Network, 97...
Page 192 KN2132 / KN4116 / KN4132 User Manual General page, 96 LDAP / LDAPS, 109 Groups LDAP Server Configuration, 139 assigning users, 88, 90 List Panel, 138 creating, 85 Lock Key LEDs, 45 Deleting, 87 Log, 72 Managing, 85 filter, 73...
Page 193 Index Module connection diagram, 19 log page, 72 Mouse Main panel, 75 DynaSync Mode, 56 Sessions, 74 Synchronization, 56 Port Configuration, 61 Mouse pointer type, 55 Port Forwarding, 155 Mouse Problems, 160 Port ID Numbering, 23 Mouse synchronization Port names Windows, 165 clearing, 104 Port Operation, 121...
Page 194 KN2132 / KN4116 / KN4132 User Manual Service page, 106 Two IP Addresses, 98 Sessions, 74 Two Stage Installation, 20 Single Station Installation, 17 SJ/T 11364-2006, ii Skip Mode, 125 User Management, 79 Specifications, 172 User Notice, iii Stacking, 12...
