Special prompt:
1. ILLUMI: Connection head lamp headlamp power supply positive electricity
2. PARKING: Connection hand brake grounding
3. REVERSE-IN: Connection Back-draft firing line
4. B+: Connection automobile level positive electricity
5. ACC: Connection automobile vehicle key firing line
6. GND: Connection automobile level negative wire
7. P-CNTR: Connection external connection power amplifier ACC
8. Key1, key2: The steering wheel pilot wire, cannot receive a telegram the source, with
original vehicle against coil data line connection
Note: To keep pictures during the driving, connect the Break-in control line
(pink) to GND.

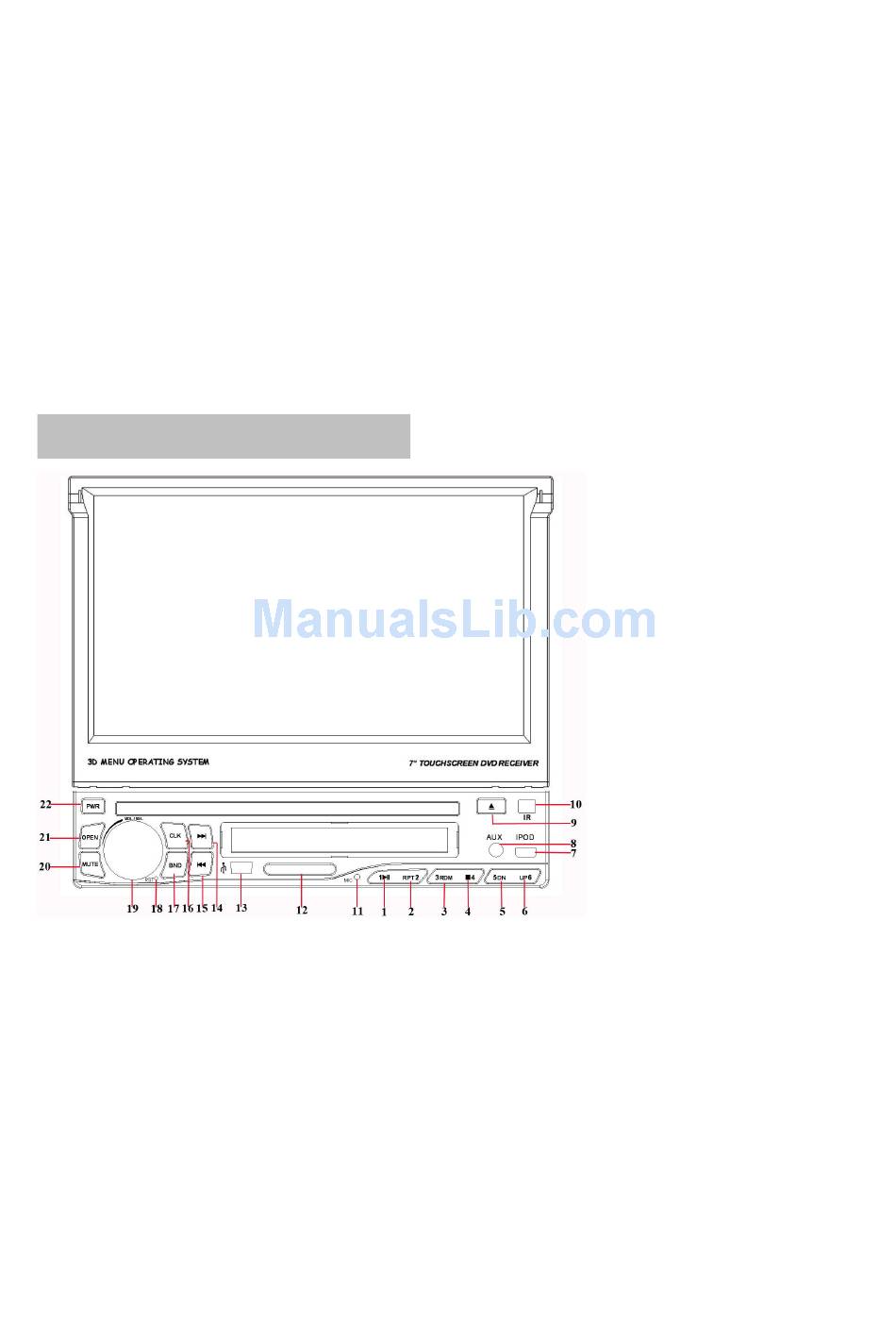

3. One Din Mounting Dimension

1. Pause
2. Repeat
3. Random
4. Stop
5. Down Slide
6. Up Slide
7. IPOD Slot
8. Aux in
9. Eject
10. Remote control Sensor
11. MIC
12. SD card Slot
13. USB port
14. Tuning/Selecting Tracks
15. Tuning/Selecting Tracks
16. Clock
17. Band
18. Reset button
19. Volume adjustment
20. Mute button
21. Open Screen
22. Power
