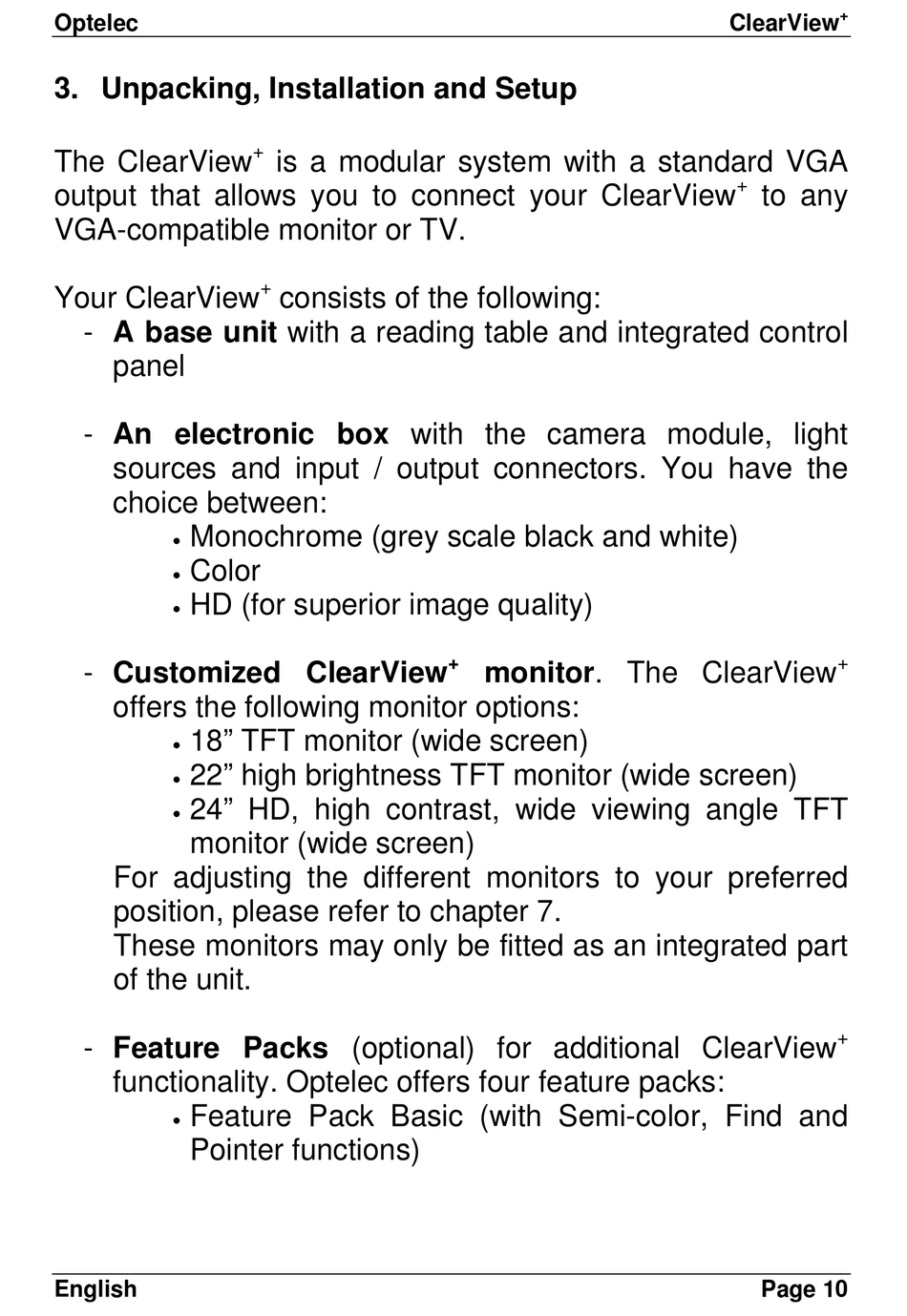

3. Unpacking, Installation and Setup

The ClearView
output that allows you to connect your ClearView
VGA-compatible monitor or TV.
Your ClearView
- A base unit with a reading table and integrated control
panel
- An electronic box with the camera module, light
sources and input / output connectors. You have the
choice between:
Monochrome (grey scale black and white)

Color

HD (for superior image quality)

- Customized ClearView
offers the following monitor options:
18" TFT monitor (wide screen)

22" high brightness TFT monitor (wide screen)

24" HD, high contrast, wide viewing angle TFT

monitor (wide screen)
For adjusting the different monitors to your preferred
position, please refer to chapter 7.
These monitors may only be fitted as an integrated part
of the unit.
- Feature Packs (optional) for additional ClearView
functionality. Optelec offers four feature packs:
Feature Pack Basic (with Semi-color, Find and

Pointer functions)
English
+
is a modular system with a standard VGA
+
consists of the following:
+
monitor. The ClearView
+
ClearView
+
to any
+
+
