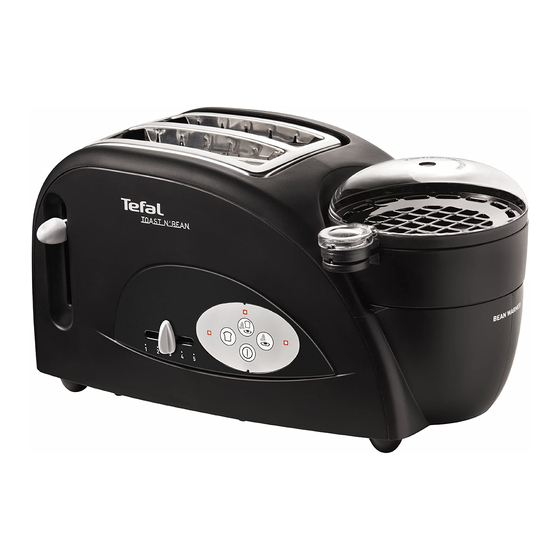

TEFAL Toast n' Bean Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
TOASTN'BEAN-NC00027083_TEFAL201-GB 03/01/12 10:09 Pagea
EN
p. 2 - 25

Advertisement

loading
Need help?

Need help?

Do you have a question about the Toast n' Bean and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TEFAL Toast n' Bean

Summary of Contents for TEFAL Toast n' Bean

  • Page 1 TOASTN'BEAN-NC00027083_TEFAL201-GB 03/01/12 10:09 Pagea p. 2 - 25...
  • Page 2 TOASTN'BEAN-NC00027083_TEFAL201-GB 03/01/12 10:09 Pageb TOAST N' BEAN www.tefal.com...
  • Page 3 TOASTN'BEAN-NC00027083_TEFAL201-GB 03/01/12 10:09 Page2 Description Slots for bread Water-heating bowl Carriage control lever Measuring beaker Crumb tray Egg piercing spike with protection Toasting level control cap (caution - sharp) Control panel Egg holder a. Toast button Baked beans and egg pan b.

  • Page 4: Safety Instructions

    TOASTN'BEAN-NC00027083_TEFAL201-GB 03/01/12 10:09 Page3 Safety instructions Important safeguards This appliance is not intended to be operated using an external timer or separate remote control system. For your safety, this appliance conforms with applicable standards and regulations (Directives on low voltage, electromagnetic compatibility, materials in contact with foodstuffs, environment, etc.) •...
  • Page 5 Leave it at a local civic waste collection point. ‹ If you have any product problems or queries, please contact our Customer Relations Team first for expert help and advice: 0845 602 1454 - UK (01) 677 4003 - Ireland or consult our website - www.tefal.co.uk...
  • Page 6 TOASTN'BEAN-NC00027083_TEFAL201-GB 03/01/12 10:09 Page5 DO NOT • Never immerse the toaster in water or place it under running water. • Do not operate the appliance close to or under inflammable materials like curtains or shelves. • Do not put the appliance in the dishwasher. •...

  • Page 7: Before Using Your Appliance For The First Time

    TOASTN'BEAN-NC00027083_TEFAL201-GB 03/01/12 10:09 Page6 • Never introduce objects into the appliance. • Do not place the lid or any other parts on top of the toaster. Before using your appliance for the first time • Unpack your appliance and remove all labels, carefully read the directions for use before using the appliance for the first time.
  • Page 8 TOASTN'BEAN-NC00027083_TEFAL201-GB 03/01/12 10:09 Page7 Toaster (before first use) • Plug in the appliance. Select maximum toasting level. max. • Press on , the light flashes. • Operate the toaster part 3 times in succession, without inserting any bread. Lower the carriage lever until it clicks in place.
  • Page 9 TOASTN'BEAN-NC00027083_TEFAL201-GB 03/01/12 10:09 Page8 Baked beans/egg part (before first use) • Fill the measuring beaker (medium level 1) with cold water and pour it into the water heating tank. • Install all elements without adding the baked beans or the eggs.
  • Page 10 TOASTN'BEAN-NC00027083_TEFAL201-GB 03/01/12 10:09 Page9 > 10 min. • Then let the appliance cool down. When used for the first time a slight odour may be given off. This is quite normal. Cooking different food at the same time Hard- Poached FUNCTIONS Toast Baked beans...

  • Page 11: Toasting Bread

    TOASTN'BEAN-NC00027083_TEFAL201-GB 03/01/12 10:09 Page10 Toasting bread • Insert the bread into the slots. Check that the crumb tray is properly in place. Plug in the appliance. • Set the toasting level to your taste. From 1 lightly browned to 5 well browned. •...
  • Page 12 TOASTN'BEAN-NC00027083_TEFAL201-GB 03/01/12 10:09 Page11 • Once the cycle is finished, the carriage will rise automatically and the light will go off. Raise the carriage lever to remove the toast more easily. HIGH LIFT Do not toast bread that has been buttered prior to toasting. Stop / eject •...
  • Page 13 TOASTN'BEAN-NC00027083_TEFAL201-GB 03/01/12 10:10 Page12 Warming baked beans A) Cooking table for baked beans to be warmed Types of Cooking Baked beans Water level baked beans method quantity (accessories needed to warm baked beans) Up to 200 g (maximum net Reheat weight of baked beans) The result of warming may vary according to the type of baked beans used.
  • Page 14 TOASTN'BEAN-NC00027083_TEFAL201-GB 03/01/12 10:10 Page13 • Place the baked beans tray on the egg accessory. • Place the baked beans in the pan accessory. Fit the cover. • Plug in the appliance. • Press on , the light flashes. • Cooking will start. •...

  • Page 15: Cooking Eggs

    TOASTN'BEAN-NC00027083_TEFAL201-GB 03/01/12 10:10 Page14 Cooking eggs A) Cooking table for hard-boiled eggs, boiled eggs and soft-boiled eggs Cooking Number Preparation Water level method of eggs (accessories needed to cook eggs) Hard-boiled HARD Boiled MEDIUM Soft -boiled SOFT For example to cook 3 medium boiled eggs, pour water into the beaker up to the graduated level on medium gauge.
  • Page 16 TOASTN'BEAN-NC00027083_TEFAL201-GB 03/01/12 10:10 Page15 • Pour water from the measuring beaker into the water heating tank and fit the egg accessory. The egg must be pierced at the large rounded end to avoid the shell bursting during boiling. • Remove the protection cap. •...
  • Page 17 TOASTN'BEAN-NC00027083_TEFAL201-GB 03/01/12 10:10 Page16 • Press on , the light flashes. • Cooking will start. • The eggs are ready when there is no more water in the water-heating tank. The appliance will stop automatically. • If you wish to continue boiling the eggs, add more cold water into the water heating tank, wait a few seconds and press the button.
  • Page 18 TOASTN'BEAN-NC00027083_TEFAL201-GB 03/01/12 10:10 Page17 B1) To cook poached eggs, scrambled eggs and omelettes • Fill the measuring beaker according to the degree of cooking required (see cooking table above). The poaching results may vary according to the size, temperature and freshness of the egg.
  • Page 19 TOASTN'BEAN-NC00027083_TEFAL201-GB 03/01/12 10:10 Page18 • Press on , the light flashes. • Cooking will start. • The eggs are ready when there is no more water in the water-heating tank. The appliance will stop automatically. • If you wish to continue poaching the egg, pour more cold water into the water heating tank, wait a few seconds and press the button.
  • Page 20 TOASTN'BEAN-NC00027083_TEFAL201-GB 03/01/12 10:10 Page19 • Pour cold water into the water heating tank and fit the egg accessory. • For baked beans, place the beans in the pan accessory. • For hard-boiled eggs, pierce the large rounded end of the egg with the spike on the underside of the measuring beaker.
  • Page 21 TOASTN'BEAN-NC00027083_TEFAL201-GB 03/01/12 10:10 Page20 • For poached eggs, lightly oil the egg dish. Break the egg. Fit the egg dish on the pan accessory. • Position the steam accessory then add food to be warmed. Fit the lid. Only heat pre-cooked foods. Do not heat raw uncooked bacon, ham or sausage. stage: bread •...
  • Page 22 TOASTN'BEAN-NC00027083_TEFAL201-GB 03/01/12 10:10 Page21 • Press on , the light flashes. • Lower the carriage lever until it clicks in place. • The 3 lights are on. Toasting and cooking will start. • At the end of the toasting cycle, the carriage will rise automatically and the light will go off.

  • Page 23: Maintenance And Cleaning

    TOASTN'BEAN-NC00027083_TEFAL201-GB 03/01/12 10:10 Page22 • When the baked beans / egg are ready, both lights go out. The appliance will stop automatically when there is no more water in the water heating tank. • You can stop the cooking process at any moment by pressing the button.
  • Page 24 TOASTN'BEAN-NC00027083_TEFAL201-GB 03/01/12 10:10 Page23 • Clean the pan accessory with a damp sponge. • Empty and clean the crumb tray regularly. • After cleaning, always replace the crumb tray. • Use the cord storage system under the appliance to tuck the power cord away.
  • Page 25 Country List to request the appropriate postal address. TEFAL/T-FAL shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase. This guarantee will not cover any damage which could occur as a result of misuse, negligence, failure to follow TEFAL/T-FAL instructions, use on current or voltage other than as stamped on the product, or a modification or unauthorised repair of the product.
  • Page 26 TEFAL/T-FAL. d) In cases where the product is not repairable in the new country, the international TEFAL/ T-FAL guarantee is limited to a replacement by a similar product or an alternative product at similar cost, where possible.
  • Page 27 TOASTN'BEAN-NC00027083_TEFAL201-GB 03/01/12 10:10 Page26...
  • Page 28 TOASTN'BEAN-NC00027083_TEFAL201-GB 03/01/12 10:10 Page27...
  • Page 29 TOASTN'BEAN-NC00027083_TEFAL201-GB 03/01/12 10:10 Page28...
  • Page 30 TOASTN'BEAN-NC00027083_TEFAL201-GB 03/01/12 10:10 Page29 GROUPE SEB UK LTD Riverside House - Riverside Walk Windsor - Berkshire SL4 1NA...
  • Page 31 TOASTN'BEAN-NC00027083_TEFAL201-GB 03/01/12 10:10 Page30...
  • Page 32 TOASTN'BEAN-NC00027083_TEFAL201-GB 03/01/12 10:10 Page31...
