Summary of Contents for Stihl MS 461 R

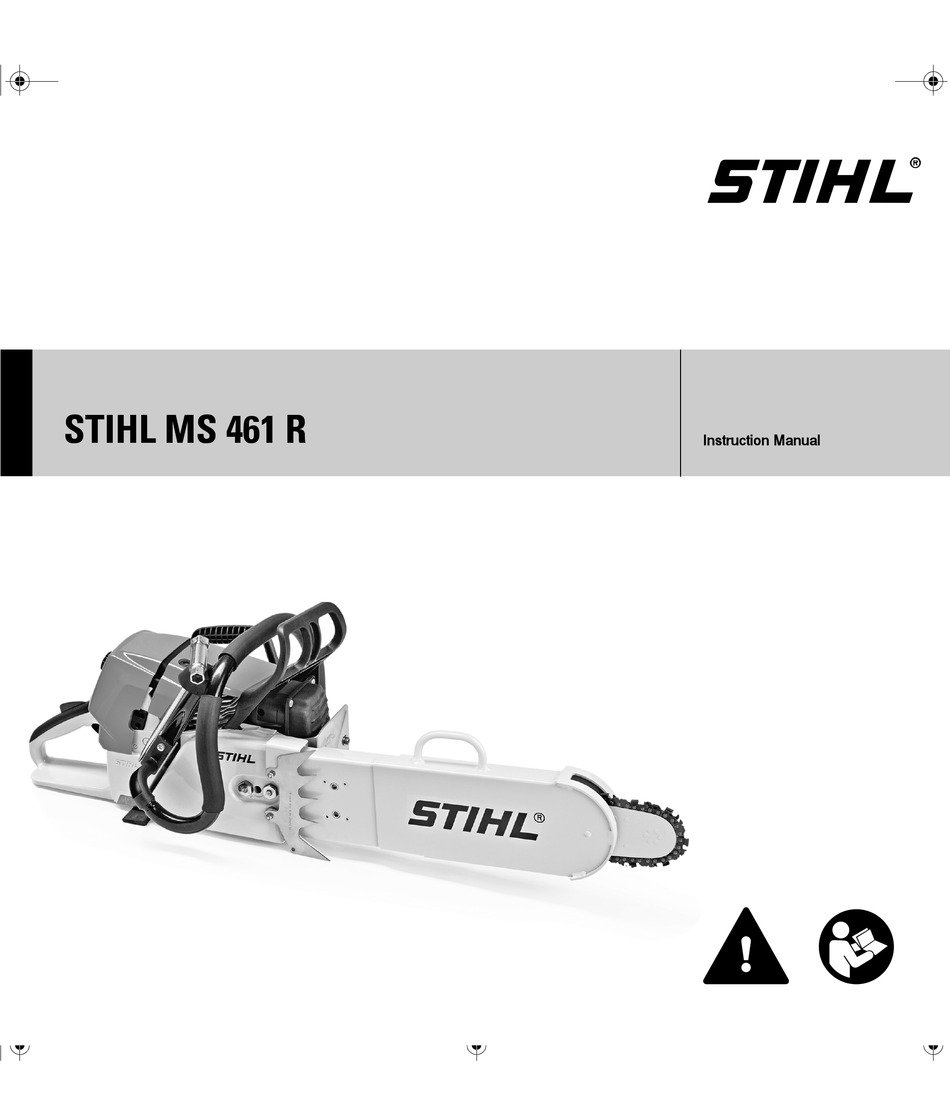

- Page 1 STIHL MS 461 R Instruction Manual...
-
Page 3: Table Of Contents
Saw Chain concerning this product. Main Parts Your Disposal Dr. Nikolas Stihl This instruction manual is protected by copyright. All rights reserved, especially the rights to reproduce, translate and process with electronic systems. MS 461 R... -
Page 4: Guide To Using This Manual
Safety Precautions hear, as described in this instruction manual, before starting work. Also wear additional face shield and protective The -STIHL rescue saw is designed Symbols in text goggles. specially for use in rescue service (e.g. Fire Brigade, technical relief Flying splintered parts increase the risk organization, disaster control etc). -
Page 5: Mounting The Depth Limiter
Slide the depth limiter (3) onto the guard. Fit the star knob screw (4) with washer (5). Tighten down the screws (2). MS 461 R... -
Page 6: Chain Lubrication
Because of the anticipated long periods Use a screwdriver to turn the of disuse, a partly synthetic chain tensioning screw (4) clockwise until lubricant, e. g., STIHL Chain and Bar the chain fits snugly against the Lubricant. underside of the bar. -
Page 7: Checking The Chain Tension (Depth Limiter Installed)
If necessary, retension the chain. A new chain has to be retensioned more often than one that has been in use for some time. MS 461 R... -
Page 8: Maintaining And Sharpening The Saw Chain
With the saw chain 36 RDR, cutters, tie straps, 3 - humped drive links, and drive Sharpening angle 15° links can be unriveted and riveted. Lowering the depth gauges Side plate angle 85° The depth gauge setting is lowered when the cutter is sharpened. MS 461 R... -
Page 9: Main Parts
18 Decompression valve 19 Starter grip 20 Fuel filler cap 21 Master Control lever 22 Throttle trigger 23 Throttle trigger lockout 24 Rear handle 25 Rear hand guard 26 Depth limiter 27 Star knob screw 28 Handle Serial number MS 461 R... -
Page 10: Disposal
English Disposal Observe all country-specific waste disposal rules and regulations. STIHL products must not be thrown in the garbage can. Take the product, accessories and packaging to an approved disposal site for environment- friendly recycling. Contact your STIHL servicing dealer for the latest information on waste disposal. - Page 12 0458-776-0121-A englisch www.stihl.com *04587760121A* 0458-776-0121-A...
