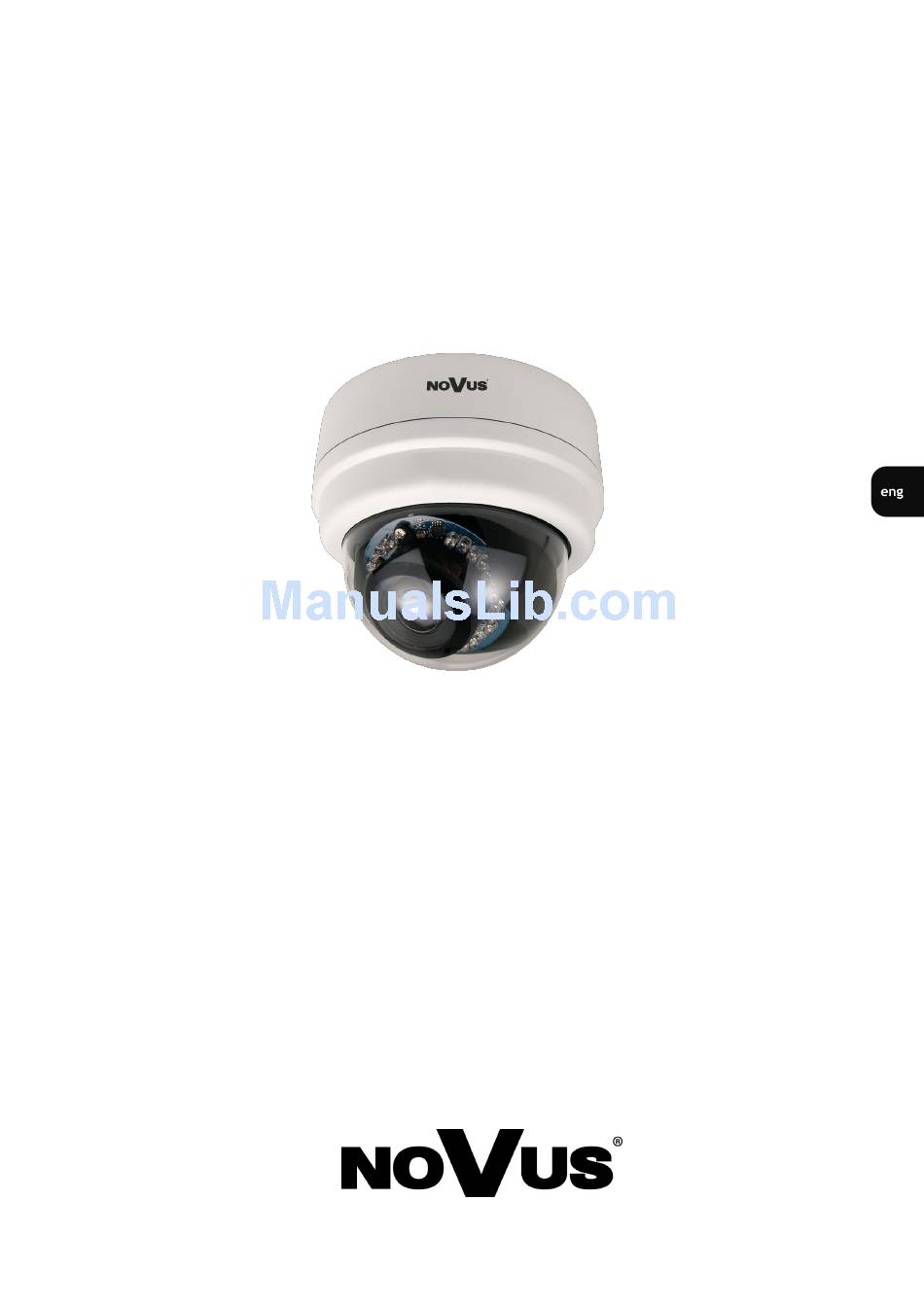

- Page 1 U s e r ’s m a n u a l ( s h o r t ) NVIP-3DN7000V/IRH-2P...
-
Page 2: Important Safeguards And Warnings
NVIP-3DN7000V/IRH-2P User’s manual (short form) ver.1.0 IMPORTANT SAFEGUARDS AND WARNINGS EMC (2004/108/EC) and LVD (2006/95/EC ) Directives CE Marking Our products are manufactured to comply with requirements of the following directives and national regulations implementing the directives: Electromagnetic compatibility EMC 2004/108/EC. - Page 3 NVIP-3DN7000V/IRH-2P User’s manual (short form) ver.1.0 IMPORTANT SAFEGUARDS AND WARNINGS WARNING! THE KNOWLEDGE OF THIS MANUAL IS AN INDESPENSIBLE CONDITION OF A PROPER DEVICE OPERATION. YOU ARE KINDLY REQUSTED TO FAMILIRIZE YOURSELF WITH THE MANUAL PRIOR TO INSTALLATION AND FURTHER DEVICE OPERATION.
-
Page 4: Table Of Contents
NVIP-3DN7000V/IRH-2P User’s manual (short form) ver.1.0 TABLE OF CONTENTS TABLE OF CONTENTS ....................4 1. FOREWORD INFORMATION ..................6 1.1. General Characteristics ..................6 1.2. NVIP-3DN7000V/IRH-2P tech specification ............7 1.3. Camera dimension ....................8 1.4. Package contents ....................9 2. - Page 5 NVIP-3DN7000V/IRH-2P User’s manual (short form) ver.1.0 TABLE OF CONTENTS All rights reserved © AAT Holding sp. z o.o.
-
Page 6: Foreword Information
Network protocol support : Onvif (2.0), HTTP, TCP/IP, IPv4/v6, UDP, HTTPS, Multicast, FTP, DHCP, DDNS, NTP, RTSP, RTP, UPnP, SNMP, QoS Software: NMS (NOVUS MANAGEMENT SYSTEM) for video recording, live monitoring, playback and remote IP devices administration Built-in fun & heater... -
Page 7: Nvip-3Dn7000V/Irh-2P Tech Specification
NVIP-3DN7000V/IRH-2P User’s manual (short form) ver.1.0 FOREWORD INFORMATION 1.2. NVIP-3DN7000V/IRH-2P specification Model NVIP-3DN7000V/IRH-2P Pick-up Element 1/2.8”, 3M CMOS Imager Resolution 3 megapixels Color: 0.2 lx / F 1.2 (DSS), Min. Illumination B/W: 0.02 lx / F 1.2 (DSS) IR: 0lx... -
Page 8: Camera Dimension
NVIP-3DN7000V/IRH-2P User’s manual (short form) ver.1.0 FOREWORD INFORMATION 1.3. Camera dimensions All rights reserved © AAT Holding sp. z o.o. -
Page 9: Package Contents
NVIP-3DN7000V/IRH-2P User’s manual (short form) ver.1.0 FOREWORD INFORMATION 1.4. Package contents 1.4. Package contents After you open the package make sure that the following elements are inside: After you open the package make sure that the following elements are inside:... -
Page 10: Start-Up And Initial Ip Camera Configuration
NVIP-3DN7000V/IRH-2P User’s manual (short form) ver.1.0 START-UP AND INITIAL CAMERA CONFIGURATION 2. START-UP AND INITIAL IP CAMERA CONFIGURATION 2.1. Description of connectors and control tools NVIP-3DN7000V/IRH-2P 1. Focus adjustment 2. Light Sensor 3. Zoom adjustment 4. Port Ethernet 100 Mb/s (RJ-45 connector) 5. -
Page 11: Nvip-3Dn7000V/Irh-2Pmounting
NVIP-3DN7000V/IRH-2P User’s manual (short form) ver.1.0 START-UP AND INITIAL CAMERA CONFIGURATION 2.2. NVIP-3DN7000V/IRH-2P mounting To mount a camera please follow the instructions below: Unscrew the dome from the camera Unscrew base from the camera’s module (“A” screw). Push latches marked “B” in the direction pointed by arrow and move camera module up Remove the cable, place a cable glad on it, next, screw the assembly to camera housing using thin and thick (6mm) silicone gasket provided with choke. -
Page 12: Starting The Ip Camera
START-UP AND INITIAL CAMERA CONFIGURATION 2.3. Starting the IP camera To run NOVUS IP camera you have to connect ethernet cable between camera and network switch with PoE support (IEEE 802.3af). You can also connect it directly via power supply adapter with parameters compatible with camera power supply specification. -
Page 13: Initial Configuration Via The Web Browser
192.168.1.2 to 192.168.1.254, for example 192.168.1.60). It is not allowed to set the same addresses for camera and PC computer You can either set a network configuration (IP address, gateway, net mask, etc.) of NOVUS IP camera yourself or select DHCP mode (DHCP server is required in this method in target network) by using web browser or by NMS software. -
Page 14: Network Connection Utilizing Web Broswer
NVIP-3DN7000V/IRH-2P User’s manual (short form) ver.1.0 NETWORK CONNECTION UTILIZING WEB BROWSER 3. NETWORK CONNECTION UTILIZING WEB BROSWER 3.1. Recommended PC specification for web browser connections Requirements below apply to connection with an IP camera, assuming smooth image display in 1920x1080 resolution and 25 fps speed. - Page 15 NVIP-3DN7000V/IRH-2P User’s manual (short form) ver.1.0 NETWORK CONNECTION UTILIZING WEB BROWSER If the installation fails, changing security settings for the IE browser is required. In order to do that, please choose: Tools > Internet options > Security tab > Custom level and:...
-
Page 16: Connection With Ip Camera Via The Other Browser
NVIP-3DN7000V/IRH-2P User’s manual (short form) ver.1.0 NETWORK CONNECTION UTILIZING WEB BROWSER 3.3. Connection with IP camera via other browser eg. Chrome, Mozilla Firefox, Safari ) It is also possible to connect to the camera using Mozilla Firefox, but this browser doesn't offer full functionality of the camera, so the recommended browser is Internet Explorer. - Page 17 NVIP-3DN7000V/IRH-2P User’s manual (short form) ver.1.0 NETWORK CONNECTION UTILIZING WEB BROWSER After downloading and running it, a window depicting installation of particular components is then displayed. After proper installation pictures from the camera should become visible All rights reserved © AAT Holding sp. z o.o.
-
Page 18: Www Interface - Working With Ip Camera
NVIP-3DN7000V/IRH-2P User’s manual (short form) ver.1.0 WWW INTERFACE - WORKING WITH IP CAMERA 4. WWW INTERFACE - WORKING WITH IP CAMERA 4.1. Displaying live pictures 1. Main tabs Home — live view page System — camera settings ( IP, recording, sending alarm messages, motion detection) Streaming —... - Page 19 NVIP-3DN7000V/IRH-2P User’s manual (short form) ver.1.0 WWW INTERFACE - WORKING WITH IP CAMERA - Snapshot - saves the current frame in JPEG format - Video Streaming pause/play button - Web recording to AVI button 5. Video streaming information. Right mouse button click on the live screen view displays additional information about actual video and audio transition parameters.
-
Page 20: Electric Connectors And Accesories
5.1. Connecting power supply to the camera. The camera is supplied by using RJ45 network socket. To run NOVUS IP camera you have to connect ethernet cable between camera and network switch with PoE support (IEEE 802.3af). You can also use a power injector compatible with IEEE 802.3af standard. -
Page 21: Sd Card Installation
NVIP-3DN7000V/IRH-2P User’s manual (short form) ver.1.0 ELECTRIC CONNECTORS AND ACCESORIES Alarm output electric connections Indicator Output + Indicator IP Camera Output - power supply 5.3. SD card installation Camera supports SD and SDHC cards with their capacity up to 16GB. In order to install the card... -
Page 22: Restoring Factory Defaults
NVIP-3DN7000V/IRH-2P User’s manual (short form) ver.1.0 ELECTRIC CONNECTORS AND ACCESORIES 6. RESTORING FACTORY DEFAULTS NOVUS IP cameras allow to restore defaults via: software (web browser level) resetting the camera settings hardware (using reset) restores factory defaults. 6.1. Restoring software factory defaults Factory software default restores default settings of the IP camera except network settings. - Page 23 NVIP-3DN7000V/IRH-2P User’s manual (short form) ver.1.0 NOTES All rights reserved © AAT Holding sp. z o.o.
- Page 24 2014-02-13 MM AAT Holding sp. z o.o., 431 Pulawska St., 02-801 Warsaw, Poland tel.: +4822 546 07 00, fax: +4822 546 07 59 www.novuscctv.com...
