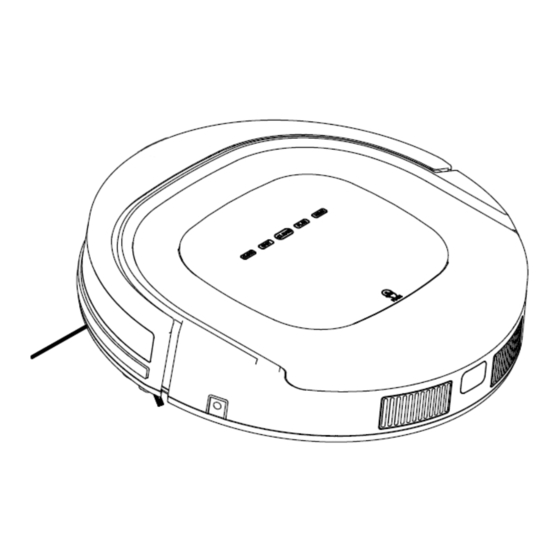

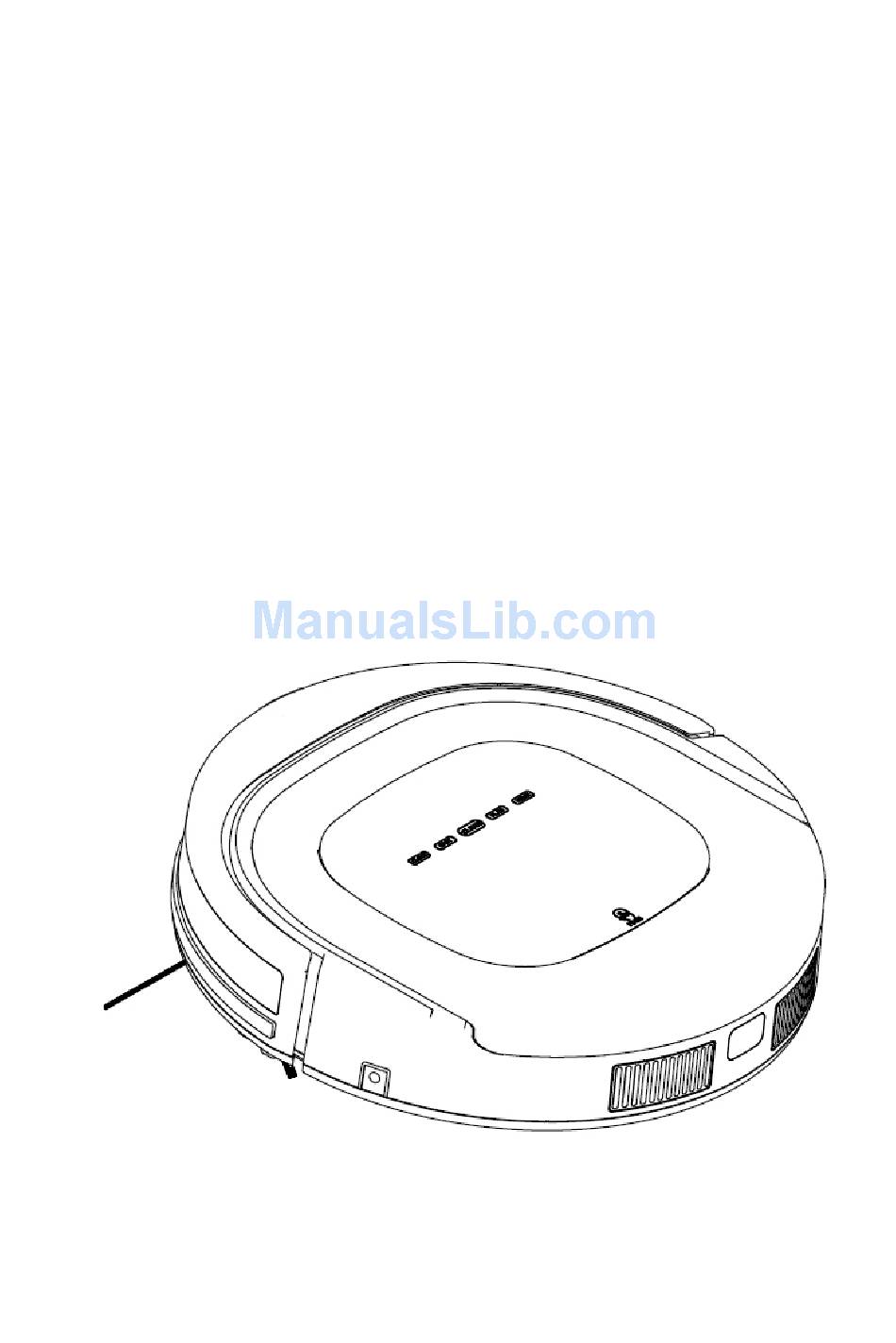

- Page 1 RolliBot Genius Vacuum Cleaner Model: BL800 User Manual Please keep this user manual in your sight, read it thoroughly and carefully before using this product.
-
Page 2: Table Of Contents
Contents Safety Instructions -------------------------------------------------------------------------------------------------- 1 Product Features ----------------------------------------------------------------------------------------------------- 2 Product Components ---------------------------------------------------------------------------------------------- 3 Main Body and Accessories ------------------------------------------------------------------------------------------- 4 Main Body Diagram ------------------------------------------------------------------------------------------------------ 5 Dust Bin --------------------------------------------------------------------------------------------------------------------- 6 Charging Station/Remote Control ------------------------------------------------------------------------------------ 7 Display Panel -------------------------------------------------------------------------------------------------------------- 8 Product Operation --------------------------------------------------------------------------------------------------- 10 Battery Charging ---------------------------------------------------------------------------------------------------------- 10 Starting up/Standby/Sleep/Power off -------------------------------------------------------------------------------- 11 Scheduling ------------------------------------------------------------------------------------------------------------------ 12... -
Page 3: Safety Instructions
Safety Instructions Before using this product, please read the safety instructions and follow all regular safety precautions. Read this user manual thoroughly and carefully before using this product. Keep this user manual in your sight. Any operation not following the instructions in this user manual may lead to harm to human or this product. -
Page 4: Product Features
Product Features This product is a distinctive, epoch-making and intelligent robot vacuum cleaner, which not only with cleaning function, two side brushes and powerful suction, but also roller brush kits and suction kits exchangeable function. The machine can automatically identify the kits installed is roller brush kits or suction kits, then it will decide the working mode by itself, which makes the machine cleaning more efficiently. - Page 5 Product Features 2. Spot cleaning mode The robot will clean intensively in a spiral way when it detects a very dirty area while the suction components being used. But users need to press SPOT button on remote control to enter spot cleaning mode when the roller brush components being used, in this mode, it makes the cleaning more efficient.
-
Page 6: Product Components
Product Components Main Body and Accessories Description Main Body Charging Station Adaptor Remote Control (without battery) Mopping Cloth and Water Tank each one piece HEPA Filter Side Brushes*2 and Spare Brushes*2 User Manual Virtual Wall (without battery) -
Page 7: Main Body Diagram
Product Components... -
Page 8: Dust Bin
Product Components Dust Bin Roller brush component... -
Page 9: Charging Station/Remote Control
Product Components Note: Install two AAA type batteries into the remote control before use. Remove the batteries if the remote will be left unused for a long period. If you use the remote near the charging station, the robot may not recognize the command and may not work. -
Page 10: Display Panel
Product Components Display Panel LED Panel LED panel shows the time setting, charging status, and error codes by using numbers, letters or graphs. : fully charged, : low power, : charging, : Suction passage blocked, : no dust bin. Normal working indicator Spot cleaning indicator Auto-charge indicator Power indicator... - Page 11 Product Components “SUN” “MON” “TUES” “WED” “THUR” “FRI” “SAT” ------------ “Sunday”, “Monday”, “Tuesday”, “Wednesday”, “Thursday”, “Friday”, “Saturday” Buttons Clean button / Confirm button Press this button to change from sleep mode to standby mode, in standby mode, press this button and hold it for more than 3 seconds to go into sleep mode. B.
-
Page 12: Product Operation
Product Operation Battery Charging Charging station placement Place charging station against the wall and Remove obstacles from within 1 meter at two sides and about 2 meters in front of the station, as shown in the right figure. If the robot has been shut down, power on the robot by pressing the power switch at the right side of the robot for more than 3 seconds. -
Page 13: Starting Up/Standby/Sleep/Power Off
Product Operation The robot will return to charging station automatically when it accomplishes cleaning or battery power is low. If the robot is not to be used for a long time, fully charge the battery before use, turn the power off, remove and store it in a cool, dry place. -
Page 14: Scheduling
Product Operation Scheduling You can schedule the robot and set it to start cleaning automatically at a certain time every day. How to schedule the robot Note: The robot can only be set when it’s in standby mode or charging mode. If the robot is in sleep mode, press on main body or ON/OFF on remote control to wake it up. -
Page 15: Suction Kit And Roller Brush Kit
Product Operation Note: a. Before scheduling, please set the robot time to be the same with real time. b. The robot will start cleaning at the scheduled time of Robot Clock every day. If the power switch is turned off, the robot needs to be reset. Scheduling by remote control (note: setting by remote control will work every day) Setting scheduling time a. -
Page 16: Cleaning Modes
Product Operation Cleaning Modes Auto cleaning In this mode, the robot will clean a room automatically and adjust its cleaning behavior based on specific situations. Spot cleaning In this mode, the robot will center on the starting point, then rotate externally, which suitable for cleaning in an open area. -
Page 17: Water Tank Installation
Product Operation Water tank and its mopping cloth usage Attach mopping cloth Stick mopping cloth on the bottom of water tank as shown in fig 1. Make sure the sticking side and mopping cloth are facing the appropriate sides, and then stick the mopping cloth on its sticking side. -
Page 18: Product Maintenance
Product Maintenance Cleaning Side Brushes Check the side brush when it gets dirty and replace it if it’s damaged. Max life span for side brush is 12 months. Note: Before replacing side brushes, check and make ‘L’/ ‘R’ mark on side brush match with the ‘L’/ ‘R’ mark on the bottom base of the robot. -
Page 19: Cleaning Sensors And Wheels
Product Maintenance Cleaning Sensors and Wheels Slightly wipe all the sensors and wheels, as marked in figure below, with soft cleaning cloth or tool. Cleaning Charging Poles Clean the charging poles, as marked in figure below, with soft cleaning cloth or tool. Cleaning Suction Passage and Dust Sensor Take out the suction kit from robot, then clean the suction passage and dust sensor, as marked in figure below, with soft cleaning cloth or tool. -
Page 20: Cleaning Roller Brush Kit
Product Maintenance Cleaning Roller Brush Kit Take out the roller brush kit from robot, remove the roller brush, then clean it and its cover-plate, as shown in the figure below, with soft cleaning cloth or tool. (the roller brush can be washed by water) Note: Please reinstall the roller brush in the original order of disassembly after it’s fully dry. -
Page 21: Troubleshooting
Troubleshooting Error Code for Sensors Cause Solution Code Error AUBF Suction passage blocked Clean suction passage Put back dust bin and place it in AUBN Dust bin not placed in position or robot without dust bin position E1XX Left collision switch fault Check sensitivity of the front E2XX Right collision switch fault... - Page 22 Troubleshooting Error Code for Sensors Cause Solution Code Error Left anti-drop sensor detects cliff, front bumper EXX9 right infrared sensor detects obstacle Front anti-drop sensor detects cliff, front bumper EXXA right infrared sensor detects obstacle Left and front anti-drop sensors detect cliff, front EXXB bumper right infrared sensor detects obstacle Right anti-drop sensor detects cliff, front bumper...
- Page 23 Troubleshooting Troubleshooting for Motors Cause Solution code Error Check if fan is pressed, and clean L01X Fan overloaded dust bin L0X1 Left wheel overloaded L0X2 Right wheel overloaded L0X3 Left and right wheels overloaded L0X4 Left side brush overloaded L0X5 Left wheel and left side brush overloaded L0X6 Right wheel and left side brush overloaded...
-
Page 24: Battery Removal
Battery Removal Remove the screws on battery cover with a screw driver. Remove the battery cover. Grasp the insulating tape at two sides of the battery and lift the battery. Unplug the wire connector that links the battery and robot. Note: Only use the original battery of the product, otherwise it may cause product damage. -
Page 25: Mobile App Quick Start
Mobile APP Quick Start RolliBot Genius Mobile APP is available on iOS and Android. 1. Go to Apple App Store (iOS) or Google Play (Android), search “RolliBot”, download and install. 2. Run the app and signup an account for the first time.
