Mecmesin Vortex Operating Instructions Manual page 14

PACKING INSTRUCTIONS FOR VORTEX MOTORISED TEST FRAMES WHEN
RETURNING TO MECMESIN LIMITED
1 Remove AFTI display unit, AFTI swivel bracket, upper gripping fixture and lower gripping
fixture.
2 Set the top edge of the crosshead 100 to 225mm below the top of the side pillars to
tighten both the side adjuster wheels (B).
3 Set the loading dish (A) to the lowest possible position, and tighten the central adjuster
wheel (C).

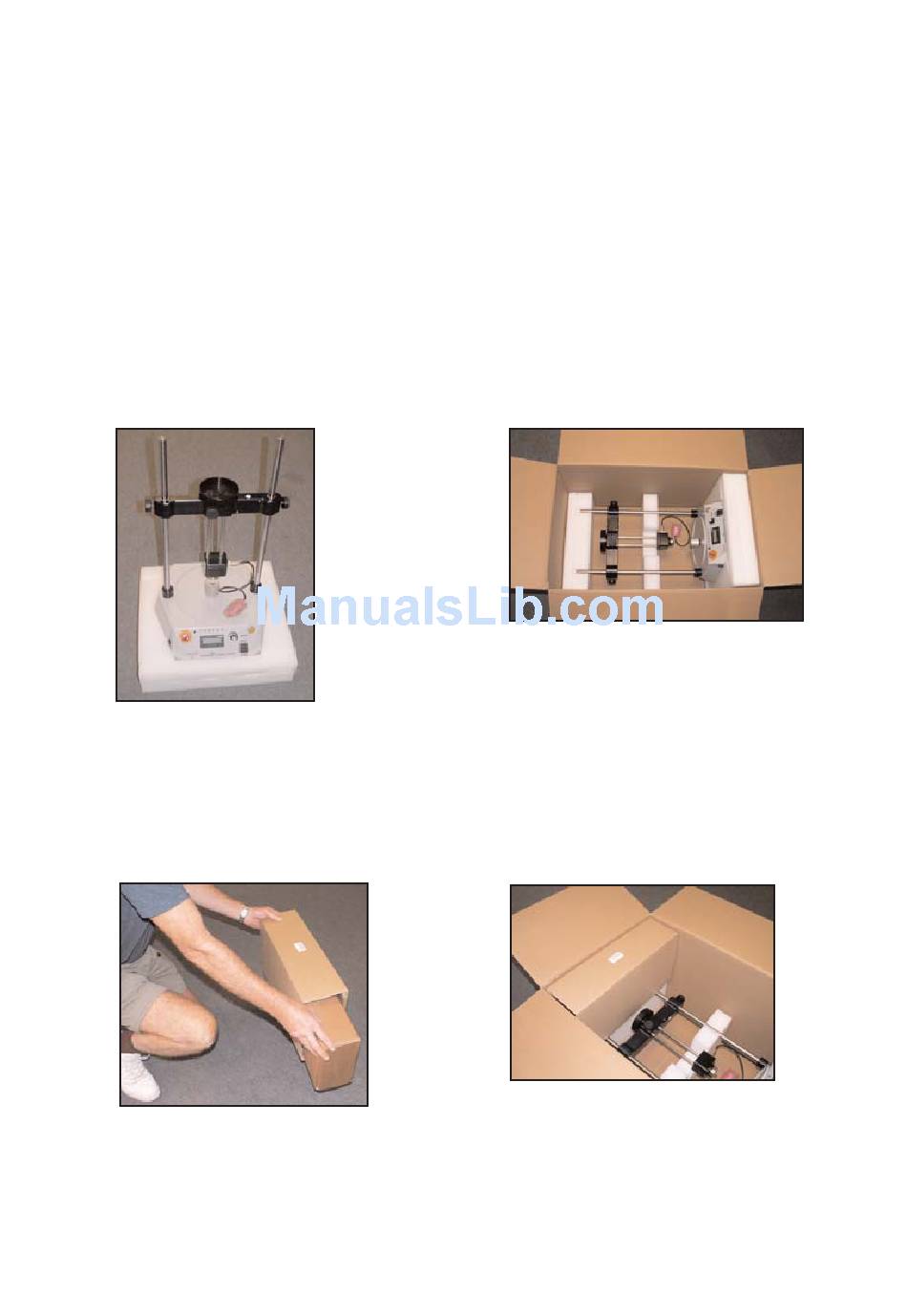

4 Place the Vortex in the plastic
foam base unit collar.
6 Wrap gripping fixtures in bubble
wrap provided, place in accessories
box, and slide accessories box into
accessories sleeve.
.
page 12
5 Place the Vortex and base unit collar into outer
box resting on two plastic foam spacers, as
illustrated.
7 Slide tongue of accessories sleeve between
upper plastic foam spacer, and outer box.
