- Page 1 Installation and Operation Manual DA-6804+D Single- and Dual-Channel 3G HD-SDI, 1.5 G HD-SDI, and SD-SDI Distribution Amplifiers Edition B 175-100192-00 Delivering the Moment...
-
Page 2: Contact Information
This publication does not in any way warrant description accuracy or guarantee the use for the product to which it refers. Imagine Communications reserves the right, without notice to make such changes in equipment, design, specifications, components, or documentation as progress may warrant to improve the performance of the product. -
Page 3: Installation And Operation Manual
Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute. DA-DH6804+D Dual 1×4 3-Gb/s HD-SDI Distribution Amplifiers DA-DHR6804+D Dual 1×4 3-Gb/s HD-SDI Distribution Amplifiers with Reclocking DA-DS6804+D Dual 1×4 SD-SDI Distribution Amplifiers DA-DSR6804+D Dual 1×4 SD-SDI Distribution Amplifiers with Reclocking Installation and Operation Manual Edition B May 2011... -
Page 5: Table Of Contents
Back Module ..................... 3 Signal Flow ......................4 Maximum 6800+ Frame Power Ratings ............6 Installation Jumpers J1 and J2 (DA-DSR6804+D and DA-DHR6804+D) ........ 8 Jumper J3 ......................9 Installing and Removing Modules ............... 9 Installation ....................9 Removal ....................... 9 Operation Automatic Changeover .................. - Page 6 Contents Status Indicator ..................12 Signal Condition Indicators ................ 12 Web Browser Control ..................13 CCS Navigator Control ..................14 Operating Notes ....................14 Specifications Inputs ......................17 Outputs ......................18 Temperature ....................19 Power Consumption ..................19 Start-Up Time ....................19 Index Keywords ......................
-
Page 7: About This Manual
DA-DHR6804+D: Dual 1×4 3-Gb/s HD-SDI distribution amplifiers with reclocking DA-DS6804+D: Dual 1×4 SD-SDI distribution amplifiers DA-DSR6804+D: Dual 1×4 SD-SDI distribution amplifiers with reclocking Intended Audience This manual is written for engineers, technicians, and operators responsible for the installation, setup, and / or operation of the DA-6804+ series of distribution amplifiers. -
Page 8: Writing Conventions
About This Manual Writing Conventions To enhance your understanding, the authors of this manual have adhered to the following text conventions: Table P-2 Manual Style and Writing Conventions Term or Description Convention Bold Indicates dialog boxes, property sheets, fields, buttons, check boxes, list boxes, combo boxes, menus, submenus, windows, lists, and selection names Italics... -
Page 9: Product Servicing
DA-6804+D Series Installation and Operation Manual Contact your dealer if any item on the packing list is missing. Contact the carrier if any item is damaged. Remove all packaging material from the product and its associated components before you install the unit. Product Servicing DA-6804+ series modules are not designed for field servicing. -
Page 10: Safety Terms And Symbols
viii About This Manual Safety Terms and This product manual uses the following safety terms and symbols to identify certain conditions or practices. See the 6800+ Safety Instructions and Symbols Standards Manual for more information. Table P-3 Safety Terms and Symbols Symbol Description WARNING: Identifies conditions or practices that can result in personal injury or loss of life —... -
Page 11: Waste From Electrical And Electronic Equipment (Weee) Directive
DA-6804+D Series Installation and Operation Manual Waste from Electrical and Electronic Equipment (WEEE) Directive The European Union (EU) Directive 2002 / 96 / EC on Waste from Electrical and Electronic Equipment (WEEE) deals with the collection, treatment, recovery, and recycling of electrical and electronic waste products. - Page 12 About This Manual Copyright © 2011, Harris Corporation...
-
Page 13: Introduction
DA-DHR6804+D is a dual channel 3 Gb/s HD/SD-SDI distribution amplifier with reclocking capability DA-DS6804+D is a dual channel SD-SDI distribution amplifier DA-DSR6804+D is a dual channel SD-SDI distribution amplifier with reclocking capability Each distribution amplifier consists of a front and back module, and operates in FR6802+ series frames, occupying two slots. -
Page 14: Main Features
All Models The main features of the DA-6804+D series are listed below: Passes signals at data rates from 5 Mb/s to 540 Mb/s (DA-DS6804+D and DA-DSR6804+D) or from 5 Mb/s to 3 Gb/s (DA-DH6804+D and DA-DHR6804+D) Four selectable channel configurations: 1×8_ACO: 1 input to 8 outputs with auto changeover... -
Page 15: Front Module

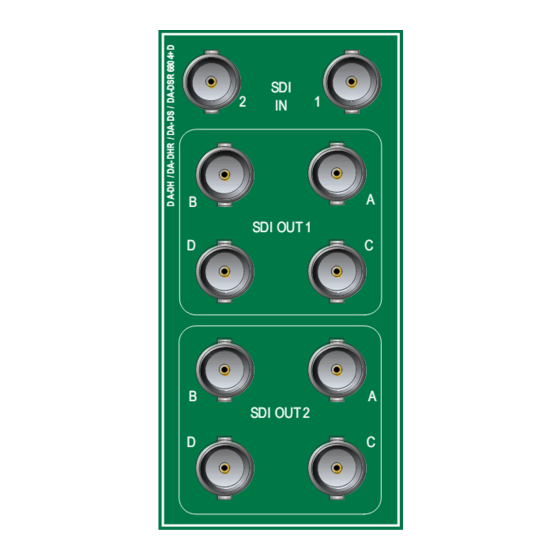

DA-6804+D Installation and Operation Manual Front Module Figure 1-1 DA-6804+D Front Module Back Module DA-6804+D series modules cannot be installed in 6800 / 7000 series frames. SDI OUT 1 SDI OUT 2 Figure 1-2 DA-6804+D Series Back Module Copyright © 2011, Harris Corporation... -
Page 16: Signal Flow
Chapter 1 Introduction Signal Flow HD/SD-SDI Out 1A Driver 1 HD/SD-SDI Out 1B Equalizer HD/SD-SDI In 1 HD/SD-SDI Out 1C Driver 2 HD/SD-SDI Out 1D 4 x 4 HD/SD-SDI Out 2A Driver 1 HD/SD-SDI Out 2B Equalizer HD/SD-SDI In 2 HD/SD-SDI Out 2C Driver 2 HD/SD-SDI Out 2D... - Page 17 SD-SDI Out 1D 4 x 4 SD-SDI Out 2A Driver 1 SD-SDI Out 2B Equalizer Reclock 2 SD-SDI In 2 SD-SDI Out 2C Driver 2 SD-SDI Out 2D Monitoring and Control Figure 1-6 DA-DSR6804+D Signal Flow Diagram Copyright © 2011, Harris Corporation...
-
Page 18: Maximum 6800+ Frame Power Ratings
Chapter 1 Introduction Maximum 6800+ Frame Power Ratings Table 1-1 describes the maximum allowable power ratings for 6800+ frames. Note the given maximums before installing any 6800+ modules in your frame. DA-6804+D series modules cannot be installed in 6800 / 7000 series frames. Table 1-1 Maximum Power Ratings for 6800+ Frames Max. -
Page 19: Installation
Installation CAUTION: Before installing this product, read the 6800+ Series Safety Instructions and Standards manual shipped with the Harris Infrastructure and Networking Documentation and Product Resources DVD. The document is also downloadable from our website and contains important information about the safe installation and operation of 6800+ series products. -
Page 20: Jumpers J1 And J2 (Da-Dsr6804+D And Da-Dhr6804+D)
Installation Jumpers J1 and J2 (DA-DSR6804+D and DA-DHR6804+D) To set the reclocker mode for the DA-DSR6804+D and DA-DHR6804+D at the card-edge, use Jumper J1 (for channel 1) and Jumper J2 (for channel 2). The reclocker remains in AUTO mode if no jumper is set. -
Page 21: Jumper J3
DA-6804+D Installation and Operation Manual Jumper J3 Jumper J3 sets the control modes for all of the DA-6804+D modules (see Figure 2-1 for the jumper location). Table 2-2 J3 Jumper Settings Label Description Setting 1×8_ACO Locally configures distribution amplifier as single channel (1×8) with automatic changeover 1×8_IN1 Locally configures distribution amplifier as single channel (1×8);... - Page 22 Chapter 2 Installation Copyright © 2011, Harris Corporation...
-
Page 23: Operation
In_1 from SDI In_2. Reclocking The DA-DSR6804+D can reclock 270 Mb/s SD-SDI signals; the DA-DHR6804+D, can reclock 270 Mb/s, 1.485 Gb/s, and 2.97 Gb/s SMPTE signals. If the input data is not at one of those rates, the reclocker function will not function. Instead, the signal will pass through the module. -
Page 24: Led Displays
Chapter 3 Operation LED Displays LEDs on the front edge of the front module report the operating status when the power is on and signal is applied. The system status and signal condition LEDs are shown in Figure 3-1. The individual LEDs are described on page Status Indicator... -
Page 25: Web Browser Control
DA-6804+D Installation and Operation Manual Table 3-2 Signal Condition LED Descriptions (Continued) Name Color Function 1.5G Green Input signal is reclocked at 1.485 Gb/s Input signal is not reclocked 3.0G Green Input signal is reclocked at 2.97 Gb/s Input signal is not reclocked Alarms for the DA-6804+D modules are logged and monitored by software control applications. -
Page 26: Ccs Navigator Control
Chapter 3 Operation Figure 3-2 Web-Enabled Control Display CCS Navigator Control In CCS Navigator, when you select the frame and slot for the module location, the software displays the item values on the control pane. Read-only parameters values are displayed as green characters on a black background. - Page 27 Ch. 1 and Ch.2 Selects the reclock rate for the 270 Mb/s Re-Clocking Mode designated channel input Bypass (DA-DHR6804+D and DA-DSR6804+D) Disabled Ch.1 and Ch.2 Loss of Enables or disables Loss of Lock alarm Enabled Lock Alarm on the designated channel...
- Page 28 Chapter 3 Operation Copyright © 2011, Harris Corporation...
-
Page 29: Specifications
Table 4-1 Electrical Channel Input Specifications Item Specification Number of inputs DA-DH6804+D and DA-DHR6804+D: Signal type 3G-SDI, HD-SDI, SD-SDI, ASI DA-DS6804+D and DA-DSR6804+D: SD-SDI, ASI Connector BNC per IEC169-8 Impedance 75Ω All models: >15 dB, 5 MHz to 1.5 GHz... -
Page 30: Outputs
Table 4-2 Electrical Channel Output Specifications Item Specification Number of outputs DA-DH6804+D and DA-DHR6804+D: Signal type 3G-SDI, HD-SDI, SD-SDI, ASI DA-DS6804+D and DA-DSR6804+D: SD-SDI, ASI Connector BNC per IEC169-8 Impedance 75Ω All models: >15 dB, 5 MHz to 1.5 GHz... -
Page 31: Temperature
DA-6804+D Series Installation and Operation Manual Temperature Table 4-3 Temperature Specifications Item Specification Performance 41° to 104°F (5° to 40°C) Temperature Operating Temperature 32° to 122°F (0° to 50°C) Power Table 4-4 Power Consumption Specifications Consumption Item Specification Normal Mode <3.8 W Sleeping (Green) Mode <1.5 W... - Page 32 Chapter 4 Specifications Copyright © 2011, Harris Corporation...
-
Page 33: Keywords
Index Keywords Alarm definitions Operating notes Automatic changeover Output specifications Parameters Back module diagram Power consumption specifications Power ratings of the frames Card-edge LEDs CCS Navigator control Reclocking Removing modules Restriction on Hazardous Substances viii (RoHS) Features of the modules Return Authorization (RA) number Front module illustration Revision history of manual... - Page 34 Index Copyright © 2011, Harris Corporation...
- Page 36 For more information, please visit www.broadcast.harris.com. Harris is a registered trademark of Harris Corporation. Trademarks and tradenames are the property of their respective companies. Broadcast Communications Division 25 Dyas Road | North York, ON CANADA M3B 1V7 | Tel: (416) 445 9640 www.broadcast.harris.com ©2011 Harris Corporation...
