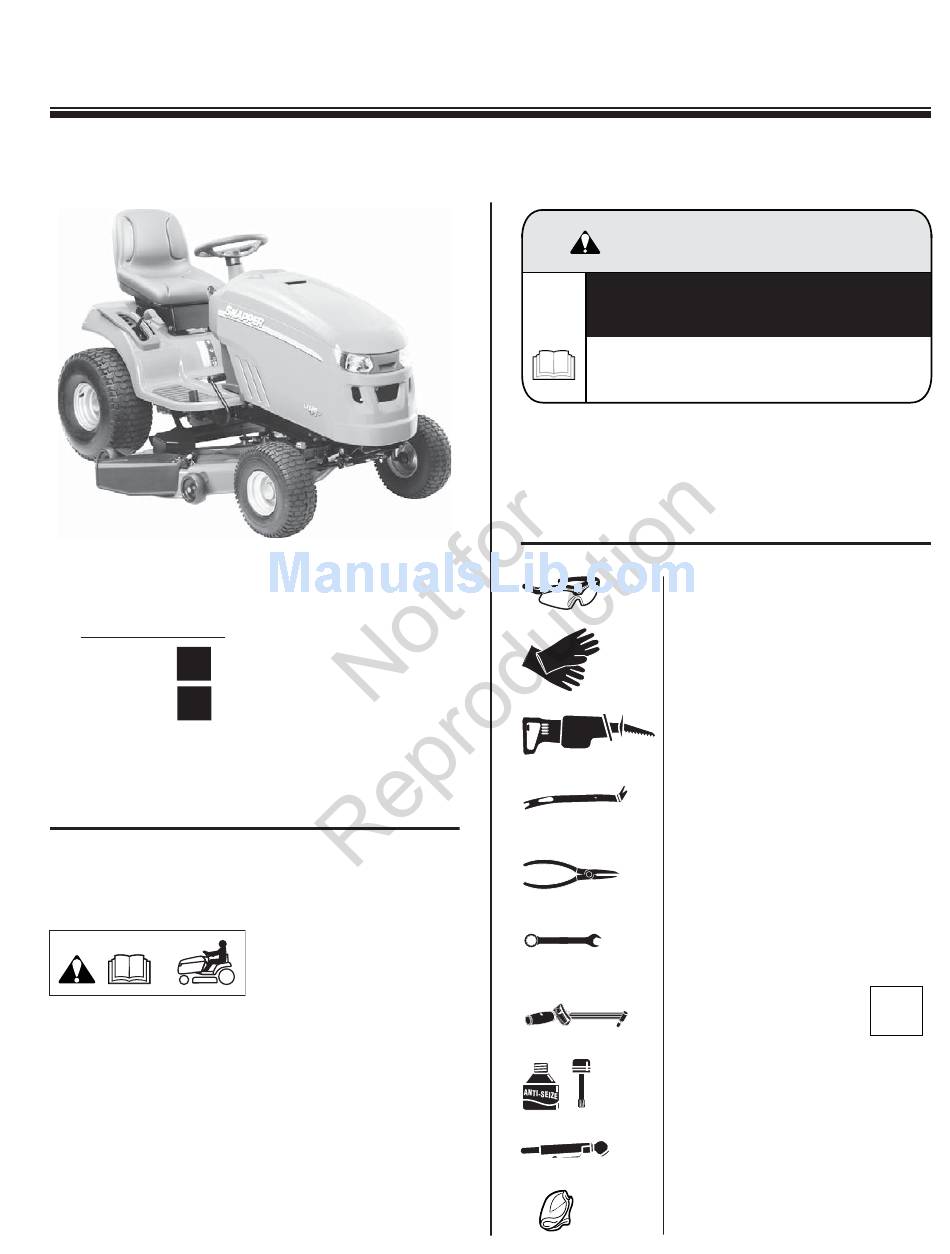

Tractor - Setup Instructions
Note:
Follow the procedures that apply to your model.
Models
2690945
42˝
2690946
46˝
Attention Setup Personnel:
This unit should NOT be delivered to a customer until
assembly has been completed according to these
instructions.
unit contain important information that must be followed
when assembling, setting-up, operating, servicing,
transporting, or storing the unit.
These warnings are highlighted by the safety alert
triangle symbol shown above, which signifi es that an
important safety message is being provided.
You must read, understand, and follow these warnings
and instructions, and use safe shop and work practices
at all times while working on or around this unit and all
other outdoor power equipment.
The safety warnings
provided in this guide and
in the tractor's operator
manual included with the
WARNING
AVOID SERIOUS INJURY OR DEATH:
AVOID SERIOUS INJURY OR DEATH:
Read and follow the tractor operator
manual before running engine.
Tools
EYE PROTECTION
WORK GLOVES
CUTTING SAW - packing crate
(optional)
PRY BAR
CUTTING TOOL for tie downs
WRENCHES
7/16˝,1/2˝, 15/16˝
TORQUE WRENCH
ANTI-SEIZE LUBRICANT
TIRE PRESSURE GAUGE
CLOTH (checking oil)
lb-ft
( Nm)
1752827 (REV. -)
